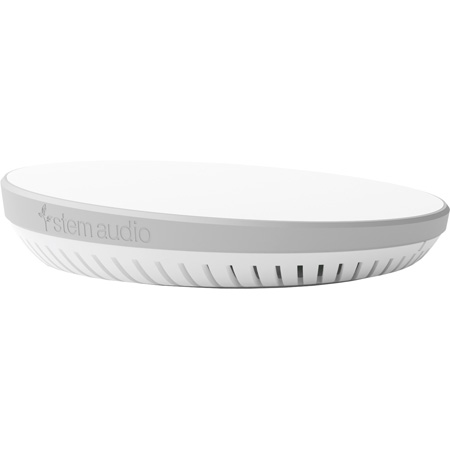

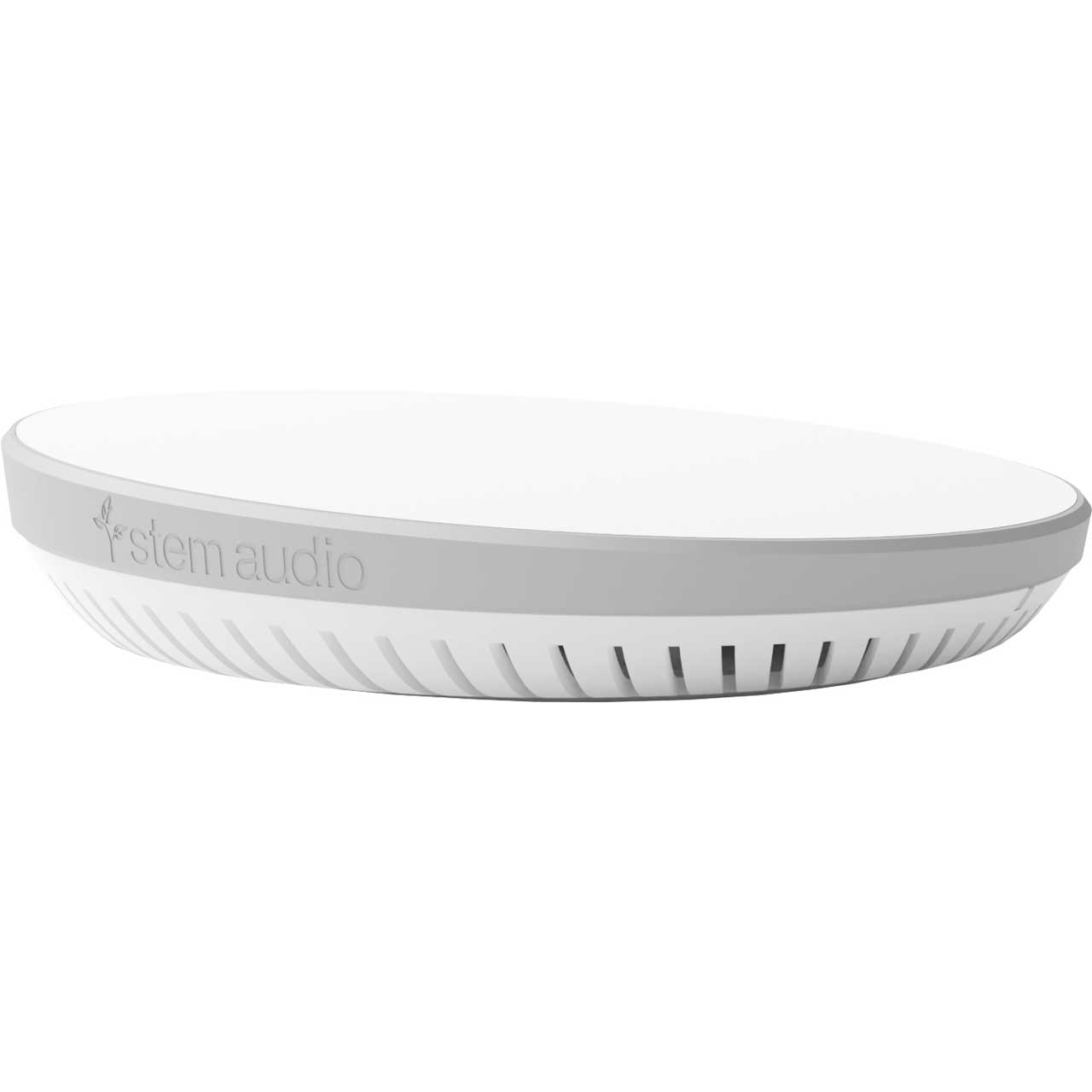

Shure STEM ECOSYSTEM HUB1 Communication Center for Multiple Devices in Conference Rooms


  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.


Items similar to the STM-HUB1

HUB1 - Overview

The Shure STEM ECOSYSTEM HUB Communication Center acts as the brain of a room, connecting your network of Stem Ecosystem products to external loudspeakers and other conferencing interfaces over USB Type B, Dante®, or SIP.

Mix & Match
Mix and match all Stem devices until your room is completely covered.

Control and manage the Stem Ecosystem securely on your network.

Stem solutions are compatible with your favorite video conferencing platforms.

3 Step Setup
With the Ecosystem, anyone can easily get their meeting room up and running in just 3 simple steps.

Expand Your Ecosystem For Any Room
With the ability to connect up to 10 audio devices in one room you have the flexibility to expand coverage for any meeting environment.

Tie Your Room Together
With options for Dante, USB Type B, Ethernet, VoIP, and pluggable terminal blocks, Hub hooks you up with a wide variety of connectivity options to choose from.

Mount Your Hub, Your Way
Hub gives you the flexibility to mount the device discreetly behind any display or in a credenza.

Power At Your Fingertips
All Stem solutions connect via Power over Ethernet (PoE) making installation easier than ever. Running cables to power your products will never be an issue again.

  • Features:

    • Connects up to 10 audio endpoints
    • Kensington lock equipped
    • Wall mountable
    • Danter enabled
  • Specifications:

    • General:
    • Frequency Response: 50Hz - 16KHz
    • Broadcast Level (peak): 90dB SPL @ 1Khz from 1m (5 watts RMS)
    • Noise Cancellation: > 15dB (without pumping noise)
    • Weight: 0.5 lbs. (0.23 kg)

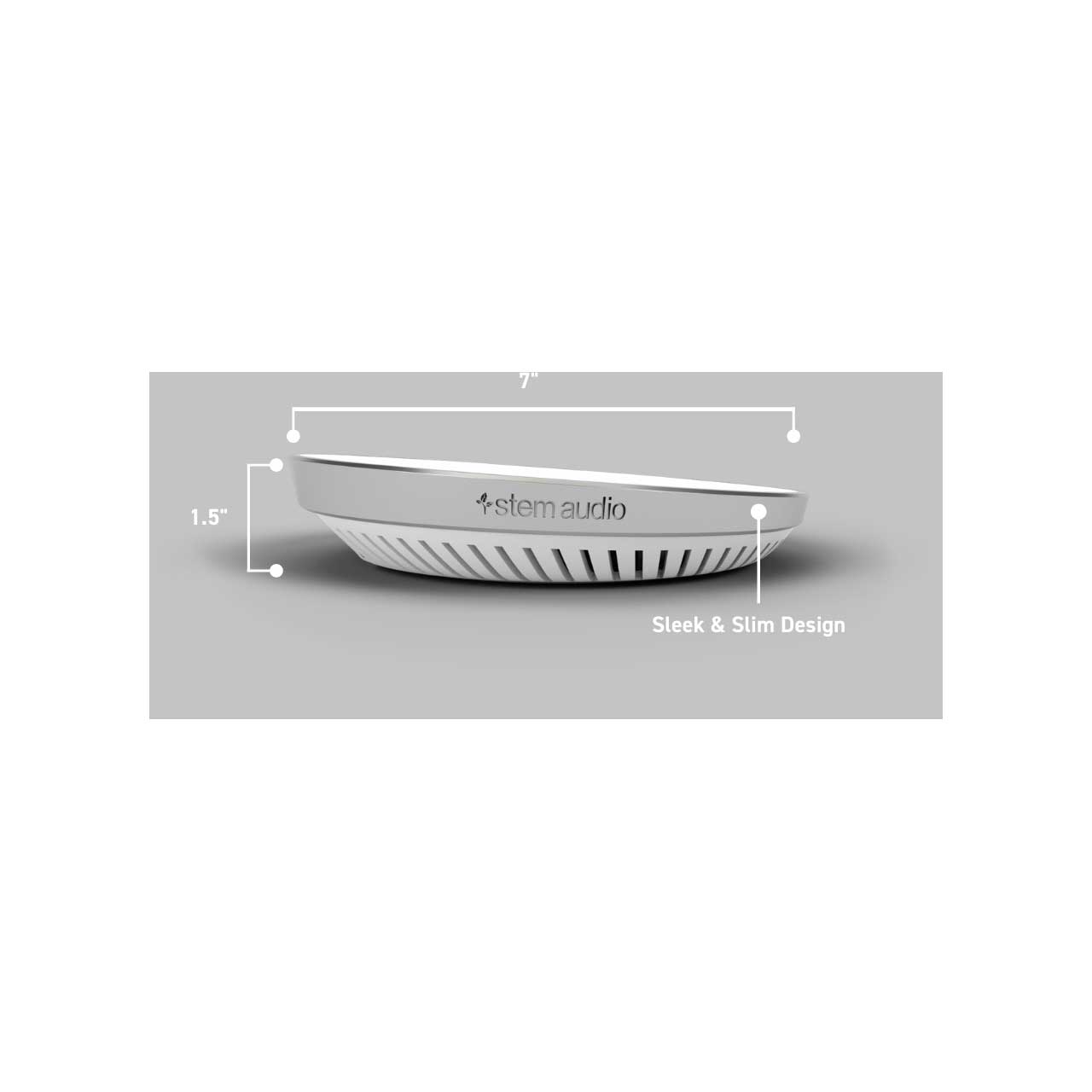

    • Dimensions: 7 x 1.5 in (17.8 x 3.8 cm) D x H
    • Power Consumption: PoE+ 802.3 at Type 2
    • Operating Systems: Windows 98 and up / Linux / MacOS.

    • USB: USB Type B
    • Ethernet: RJ45 connector (requires PoE+)
    • Dante®: RJ45 connector
    • Analog: Female Terminal Block (for external speakers)

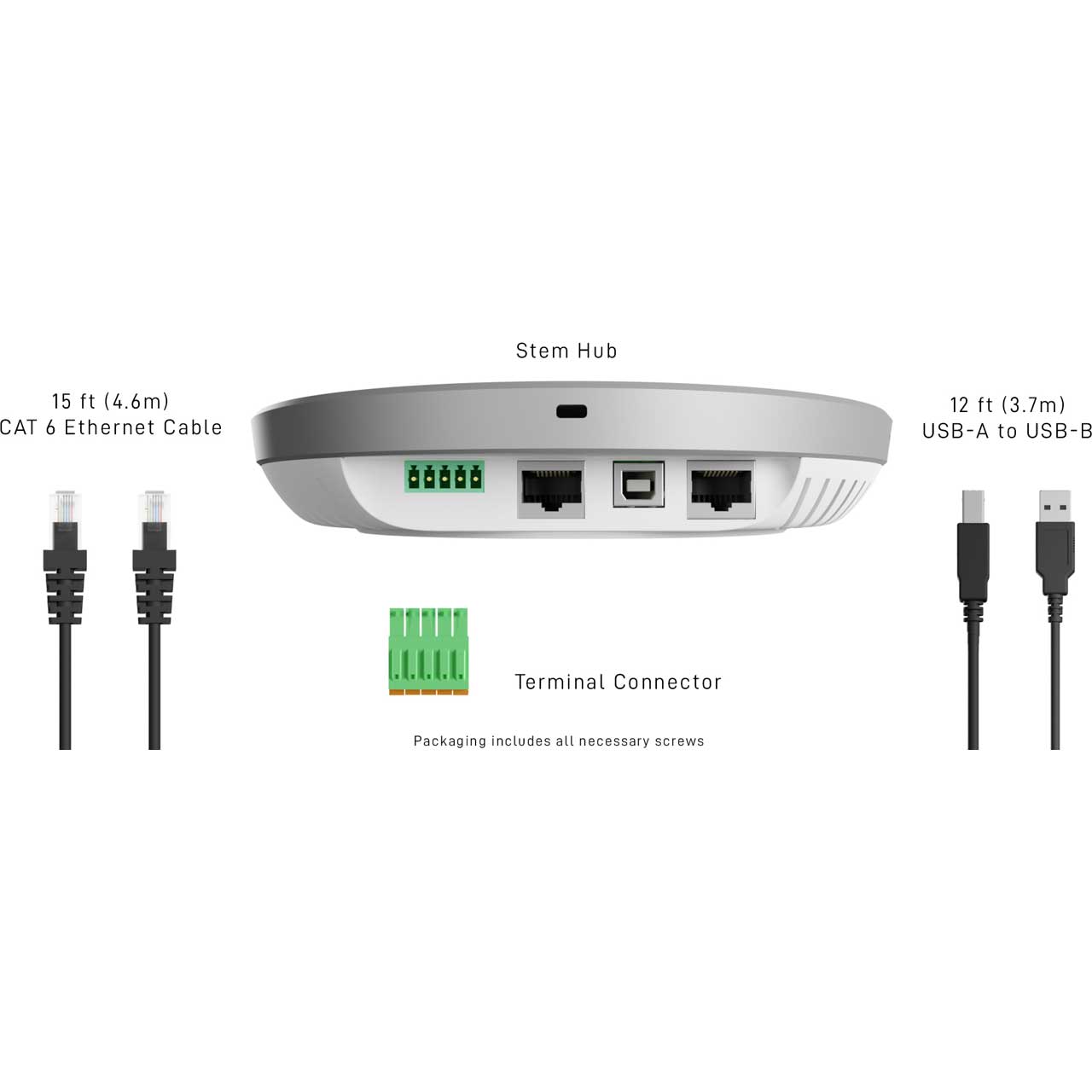

  • Item Includes:

    • 1x STEM HUB1
    • 1x USB Type A to USB Type B Cable: 12 ft. (3.7 m)
    • 1x CAT 6 Ethernet Cable: 15 ft. (4.6 m)
    • 1x Terminal Block Connector (male)
    • 2x Philips Head Screws and Drywall Anchors
