Peerless-AV IB14X14-W 14x14 Inch Wall Box for Recessed Power and AV Components

ITEM #: PER-IB14X14-W MFG #: IB14X14-W

free ship

List Price:


Our Price:


Availability: Typically Ships in 3-10 Days
iAvailability Description Popup

    IB14X14-W - Overview

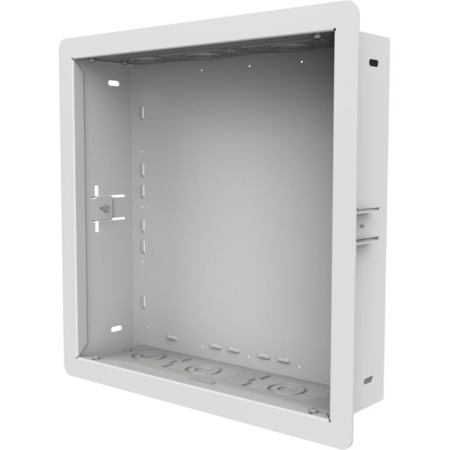

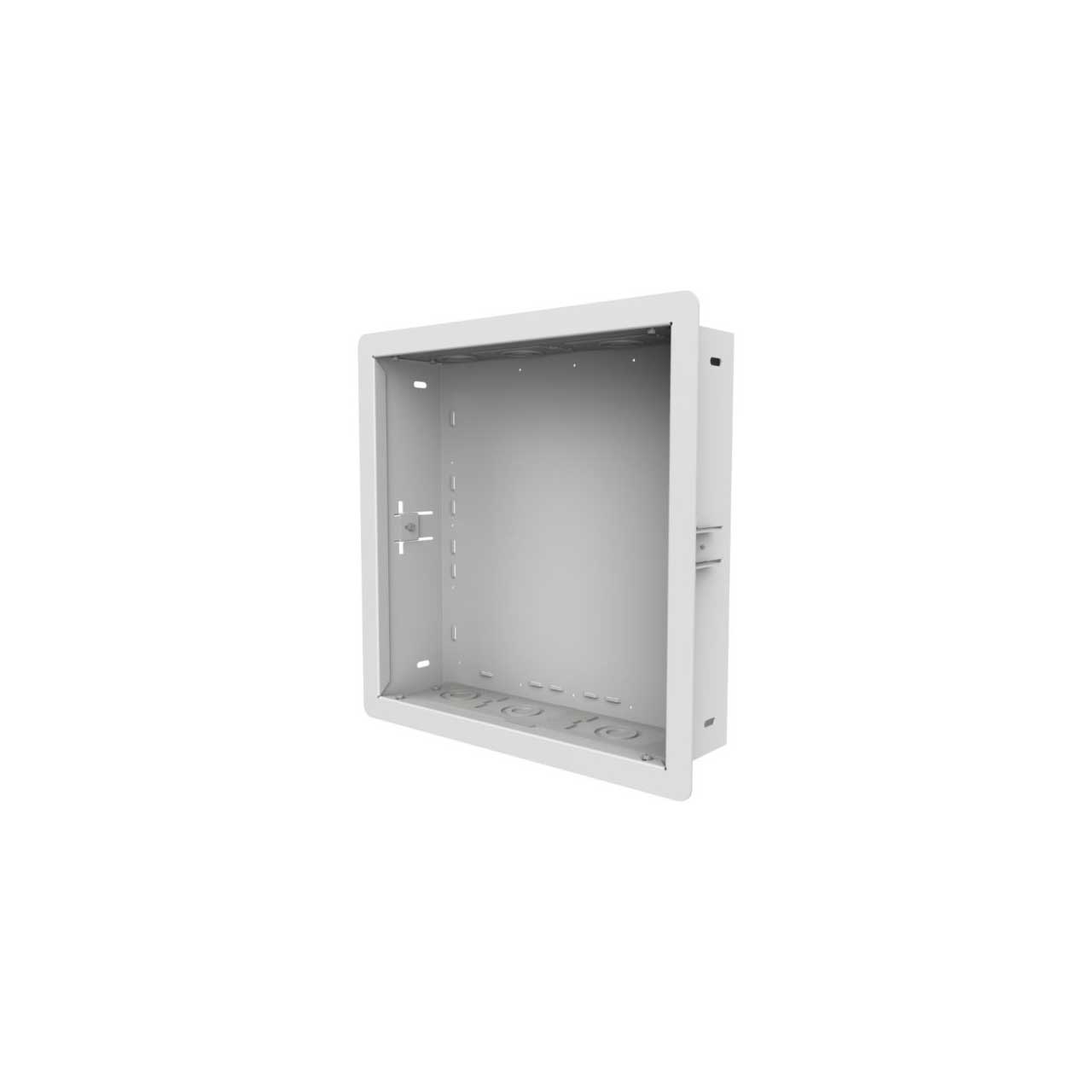

    Peerless-AV's new IB14X14-W In-Wall Boxes are designed to provide ultimate flexibility for any installation. The removable trim ring allows the installation to take place before or after drywall is installed. Flexible mounting options allow securement by two studs, a single stud or drywall only. Removable mounting plates reduce installation time by allowing an installer to complete wiring terminations outside the In-Wall Box.

    • Features:

      • Installs between 16" (406mm) stud centers, to a single stud or directly into a drywall opening
      • Knock-outs for 3/4", 1.0", 1.25" and 1.5" conduit
      • Cut-Out Dimensions: 14.4" x 14.4" (365 x 365mm)
      • Adjustable Trim Ring allows use of 3/8" - 3/4" drywall thickness
      • Knock-outs provide the ability to mount up to four single gang outlets. Compatible with RACO 420 gang box or equivalent.
      • Integrated cable tie locations
      • IB14X14-AC-W includes a 720 joule Leviton duplex surge protector, gang box and face plate
      • UL 2416 listed
    • Specifications:

      • Minimum to Maximum Screen Size: N/A
      • Weight Capacity: 25lb (11.3kg)
      • Color: White
      • Finish: Powder Coat
      • Distance from Ceiling: N/A
      • Distance from Wall: N/A
      • Mounting Pattern: N/A
      • Security Features: Non-Security Hardware
      • Product Dimensions: 15.75x15.75x3.94" (400x400x100mm)
      • Shipping Weight: 8.16lb (3.7kg)
      • Ship Dimensions: 18 x 4 x 18" (457.2 x 101.6 x 457.2mm)
    • Item Includes:

      • 1x IB14X14-W: In-Wall Box, Trim Ring
      • 2x Drywall Clamps
      • 2x Mounting Plates, and Wood Stud Mounting Hardware IB14X14-AC-W: In-Wall Box
      • 1x Trim Ring
      • 2x Drywall Clamps
      • 2x Mounting Plates
      • 1x Wood Stud Mounting Hardware
      • 1x Duplex Surge Suppressor
      • 1x Gang Box and Face Plate
    • GTIN:
