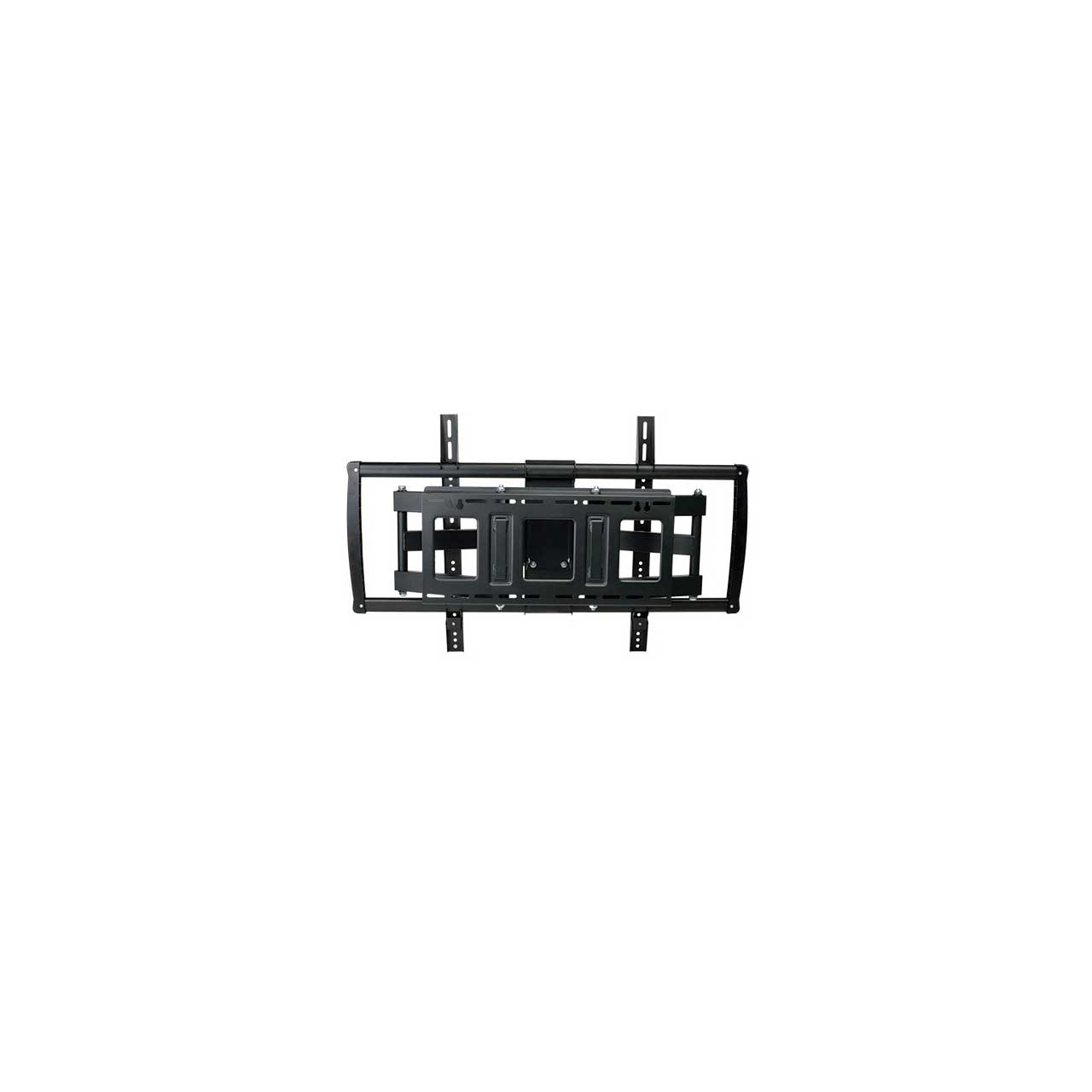

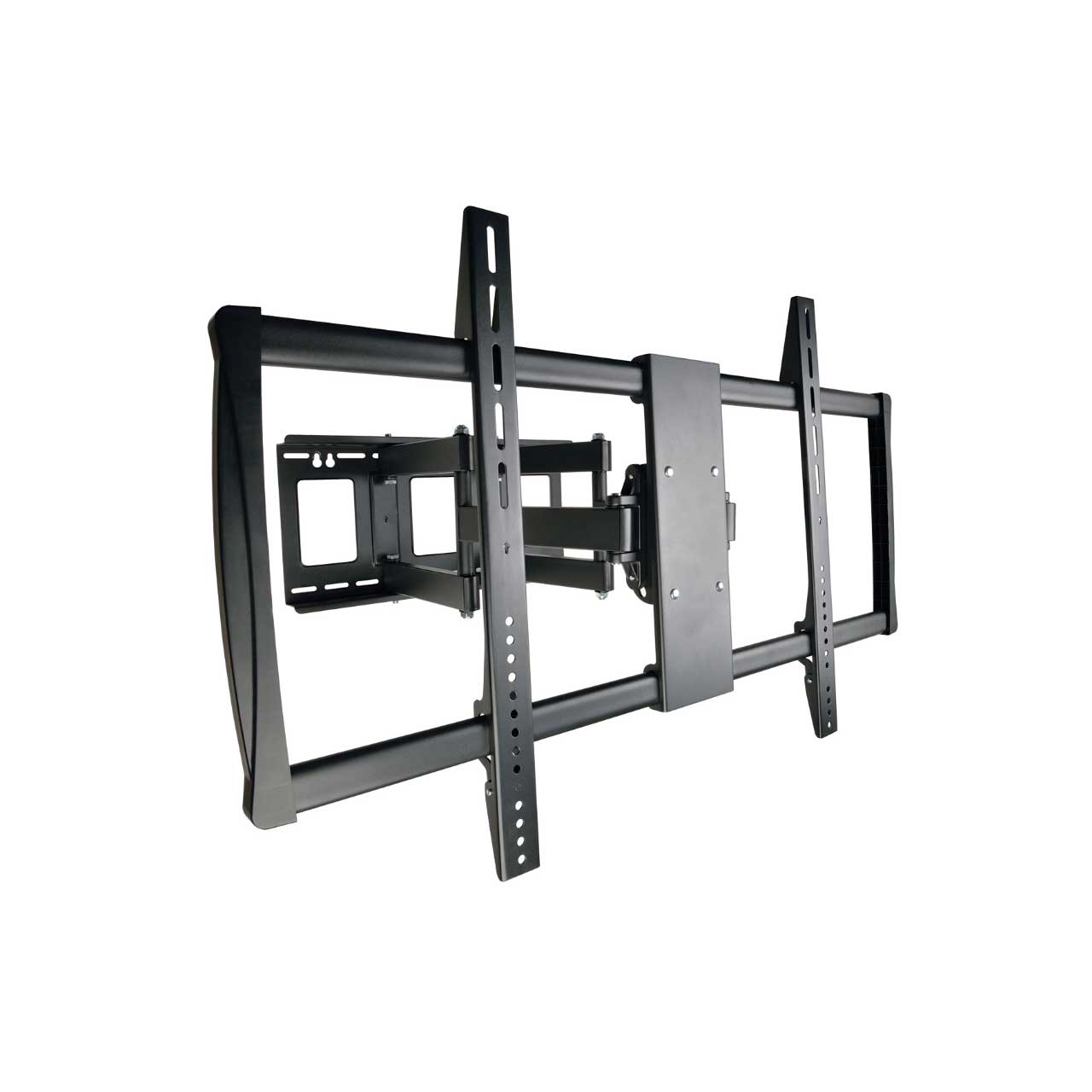

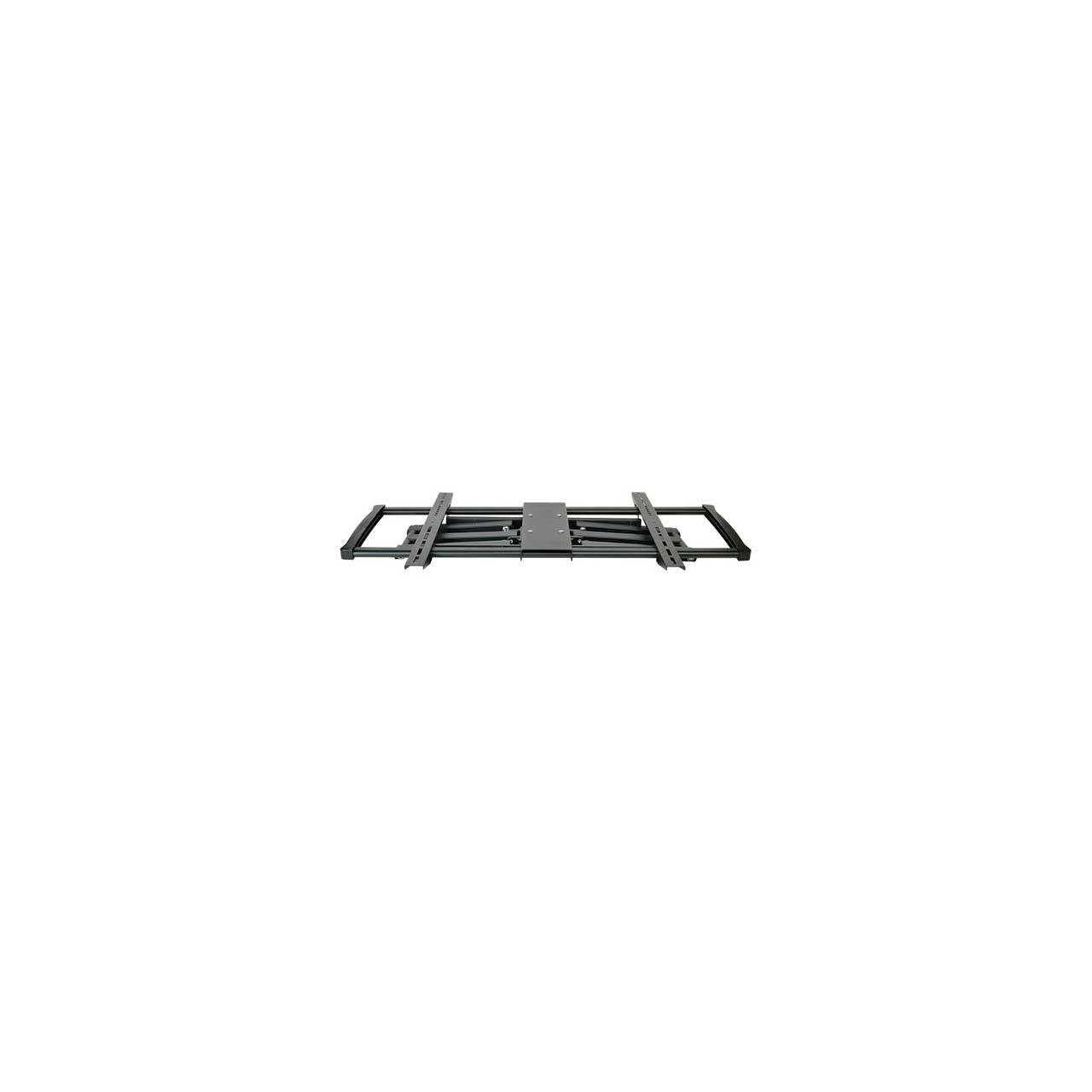

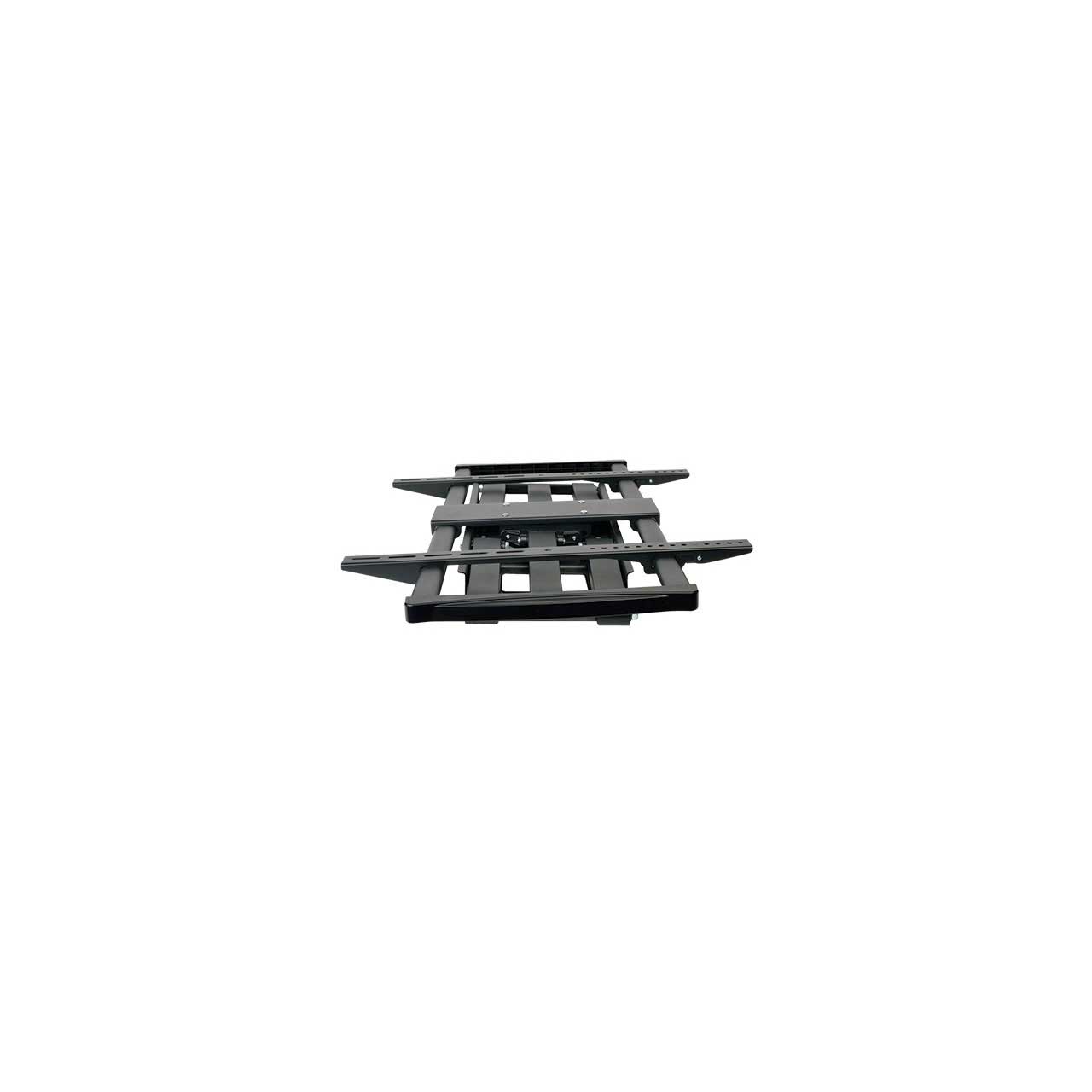

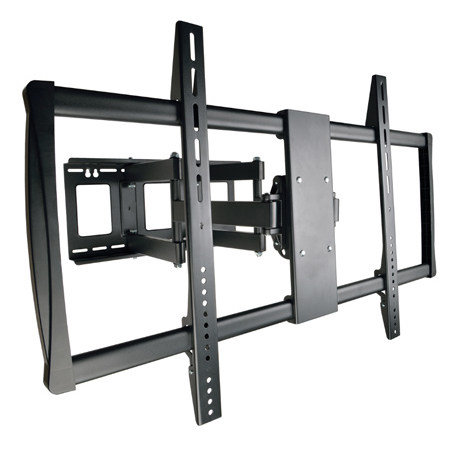

Tripp Lite DWM60100XX Swivel/Tilt Wall Mount for 60 Inch to 100 Inch TVs and Monitors

ITEM #: TRL-DWM60100XX MFG #: DWM60100XX

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

List Price:

$322.82

Our Price:

$249.15

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    DWM60100XX - Overview

    The VESA-compliant DWM60100XX Swivel/Tilt Wall Mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 60 to 100 inches.

    The articulating arm has six pivots that adjust independently for angle to give you maximum flexibility in positioning your display to fit your environment and comfort level. A 90° swivel, -15° to +15° tilt and -3° to +3° screen level adjustment capability minimizes glare and provides comfortable viewing from multiple angles.

    Durable all-metal frame with scratch-resistant powder-coated finish supports up to 275 pounds. Frame is open for easy wall access. Mounting hardware included Conforms to VESA-compliant displays with any of the following mounting hole patterns: 200 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 400 mm, 600 x 400 mm, 600 x 900 mm, 800 x 400 mm and 800 x 600 mm.

    • Features:

      • Mounts Your TV or Monitor to the Wall
      • Fits most flat-panel televisions, monitors and other displays from 60 to 100 inch
      • Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants
      • Articulated arm with 6 pivots adjusts independently for angle
      • Mounting hardware included Convenient Adjustment
      • 90° swivel, -15° to +15° tilt and -3° to +3° screen level adjustment capability provides comfortable viewing from multiple angles Durable Metal Construction
      • Supports up to 275 lb.
      • Open frame allows easy wall access
      • Scratch-resistant powder-coated finish blends with any décor
      • Display cable attaches to mount to reduce clutter VESA Compliance
      • Supports the following VESA mounting hole patterns: 200 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 400 mm, 600 x 400 mm, 600 x 900 mm, 800 x 400 mm and 800 x 600 mm

    • Specifications:

      • Mounting Location: Wall
      • Unit Dimensions (hwd / in.): 24.2 x 36.5 x 24.62
      • Unit Dimensions (hwd / cm): 61.5 x 92.7 x 62.5
      • Unit Weight (lbs.): 31.5
      • Unit Weight (kg): 14.29
      • Color: Black
      • Screen Size Compatibility (in.): 60 - 100
      • Screen Size Compatibility (cm): 152.4 - 254
      • VESA Pattern (mm): 200x200; 400x200; 300x300; 400x400; 600x400; 800x400; 800x600; 600x900
      • Motion: Full
      • Degrees of Motion: -15/+15 Tilt, 90 Swivel, -3/+3 Level Adjustment
      • Min/Max Arm Extension (in.): 2.76 min to 24.61 max
      • Min/Max Arm Extension (cm): 7.01 min to 62.51 max
      • Maximum Weight Capacity (lbs.): 275
      • Maximum Weight Capacity (kg): 125
      • Tools Necessary: Yes
      • Cord Management: No
      • Product Warranty Period (Worldwide): 5-year limited warranty

    • Item Includes:

      • Wall mount
      • Wall template
      • (2) Wall brackets
      • (4) Cable guides
      • (4) M4 x 6 screws
      • (4) M5 x 14 screws
      • (4) M6 x 14 screws
      • (4) M6 x 30 screws
      • (4) M8 x 20 screws
      • (4) M8 x 30 screws
      • (4) Washers
      • (8) Small spacers
      • (4) Big spacers
      • (4) Anchor bolts
      • (4) Concrete anchors
      • (2) D8 washers
      • Hex key
      • Owner’s manual

    • Warranty:

      • 5 Year

    • GTIN:

      0037332186591
