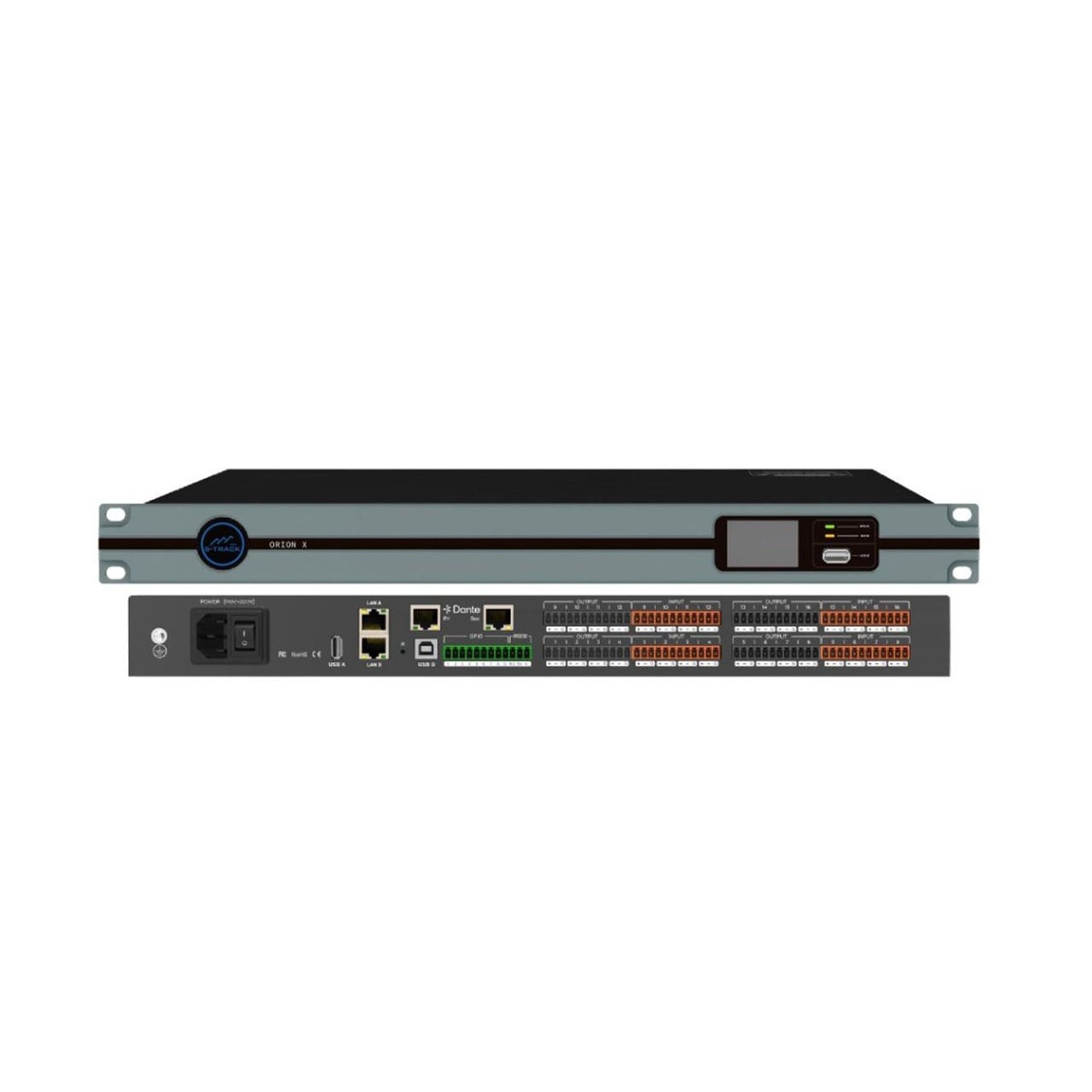

SAS S-Track Orion X-24 Digital Signal Processor with 64x64 Dante Routing and Drag-and-Drop GUI

ORION-X-24 - Overview

• Features:

  • 16x16 analog I/O via terminal block
  • Mic or line inputs with preamps and phantom power
  • Line outputs
  • 64x64 Dante with primary and redundant network ports
  • Out-of-band control jack
  • USB-C stereo audio input
  • Drag-and-drop open architecture GUI
  • Up to 64 independent audio chains
  • DSP blocks include EQ, compressor, limiter, gate, ducker, automixing, noise reduction, feedback reduction, FIR filtering, AGC, and noise generator


• Specifications:

  Input
  • Analog Input Channels: Mic/Line 16
  • Dante Inpute Channels: 64
  • Input Frequency Response:
    - 20Hz - 20KHz@18Bu, ±0.2dB
    - 50Hz - 20KHz@18Bu, ±0.2dB
  • THD+N @ +18dBu Sensitivity & +8dBu Input: < 0.003%
  • Input Equivalent Input Noise (Unweighted 20Hz - 20kHz): <- 125dB
  • Inputs Crosstalk @1kHz: >110dB typical, 100dB max
  • Input Dynamic Range @ +18dBu Sensitivity: >110dB
  • Input Common Mode Noise Rejection @ +18dBu Sensitivity: 60dB
  • Input Impedance (Balanced): 2.4kΩ nominal
  • Input Sensitivity Range (3dB): -39dBu - +18dBu
  • Phantom Power: +48V DC, input current max 10mA
  • Sampling Rate: 48kHz
  • AD/DA Conversion: 24-bit

    Output
  • Analog Output Channels: 16
  • Dante Output Channels: 64
  • Frequency Respone: 20Hz - 20KHz @ all environments, ±0.2dB
  • THD+N: 0.003%, +18dBu max output level
  • Outputs Crosstalk @ 1kHz: >100dB typical, 90dB maximum
  • Output Dynamic Range: >108dB
  • Output Impedance (Balanced): 100Ω
  • Output Level Range: 18dBu/4dBu

    USB
  • USB A: 32-bit float
  • Channels: 2x2
  • Sample Rate: 48kHz

    General
  • Display: Displays the device IP address and device name
  • Noise Floor: -90dBu
  • Power:
    - Nominal Power: 35W
    - Maxium Power: 65W
  • Power Supply: AC 100V - 240V, 50Hz/60Hz
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Operating Humidity: 10% - 90%RH, No Condensation
  • Product Weight: 5.52lbs (2.5kg)
  • Dimensions (LxWxH): 19" x 10.26" x 1.73 (482.4mm x 260.5mm x 44mm)


• Warranty:

  • 2 Year Warranty
