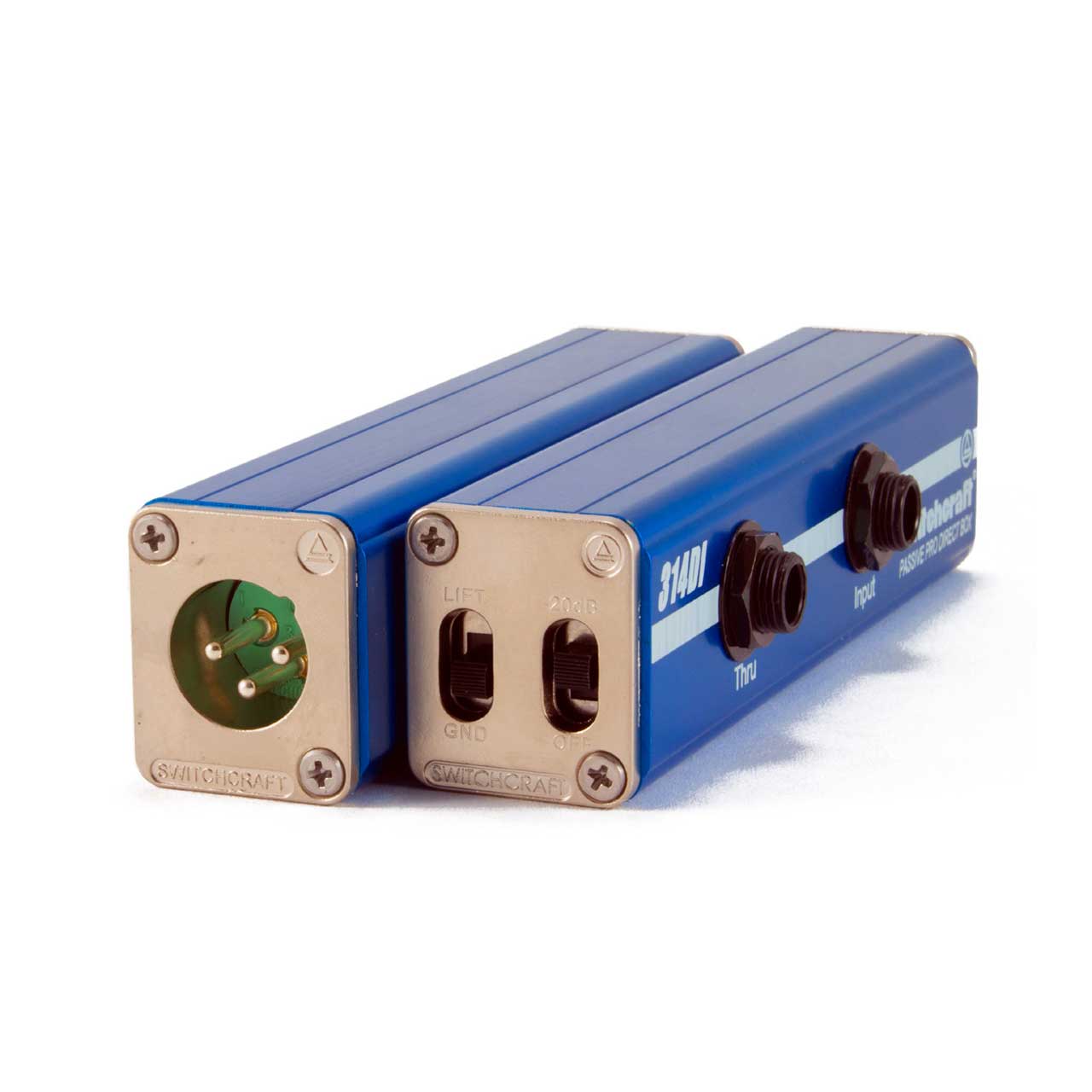

Switchcraft 314DI Audio Stix Instrument Passive Direct Box

ITEM #: SW-314DI MFG #: 314DI

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

List Price:


Our Price:


Availability: Typically Ships in 3-10 Days
iAvailability Description Popup

    314DI - Overview

    An addition has been added to the popular AudioStix line of premium pro audio products. The 314DI is a pocket size version of Switchcraft's standard high quality DI Box series of products.

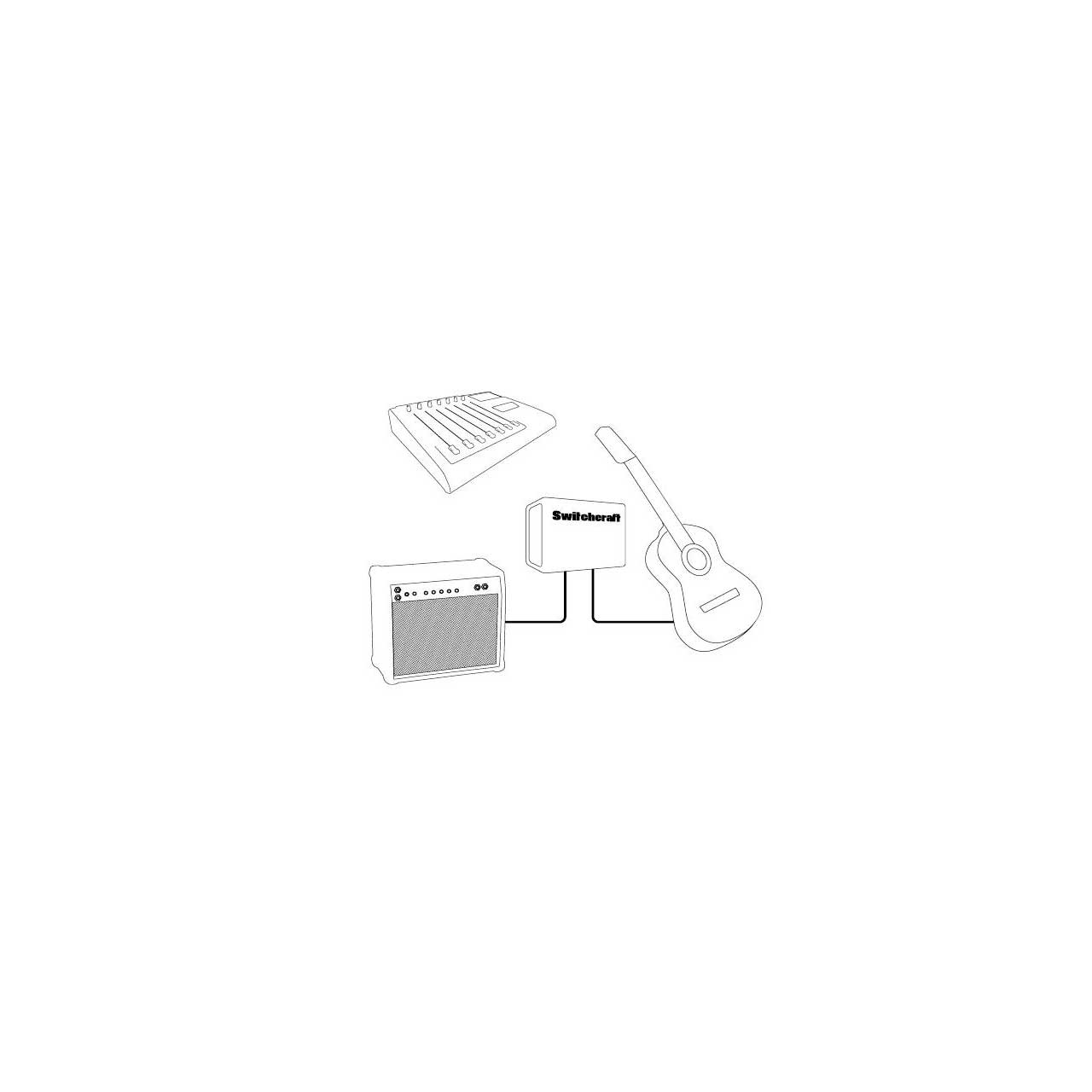

    Converts the unbalanced outputs of guitars, keyboards and other instruments with line-out level to balanced, mic level signals that can be connected to audio consoles and mic preamps.

    • Features:

      • ¼" Feed Thru - allows for connection to multiple devices such as an amp and a tuner; two amps and much more.
      • Switchcraft DE Series Locking Male XLR provides balanced, mono, mic level output
      • Ground Lift Switch
      • -20db pad to enable the device to handle stronger signals without distortion
    • Specifications:

      • Frequency Response: 15Hz - 40kHz +/-0.3dB, ref 1kHz
      • Total Harmonic Distortion + Noise: < 0.009% at 1kHz, +4dBu Input, 22kHz Bandwidth
      • Maximum Input Level: +12.5dB uat 20Hz with 1% THD+Noise
      • +23dBuWith 20dB Pad Engaged
      • Input Impedance: > 120k Ω at 1kHz
      • Output Impedance: < 45 Ω at 1kHz
      • Deviation from Linear Phase: ≤ 1° at 1kHz
      • Voltage Gain: -22dB +/-1dB
      • -42dB +/-1dB with 20dB pad engaged
      • Pad Attenuation: 20dB +/-1dB
    • GTIN:
