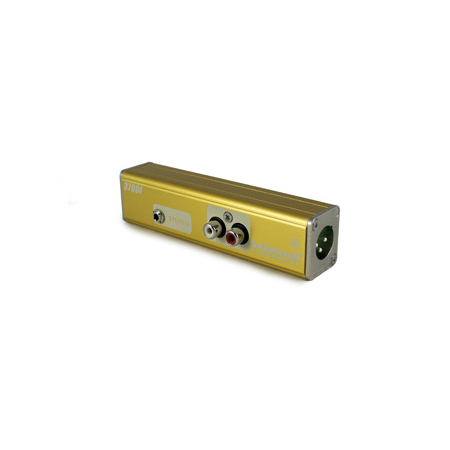

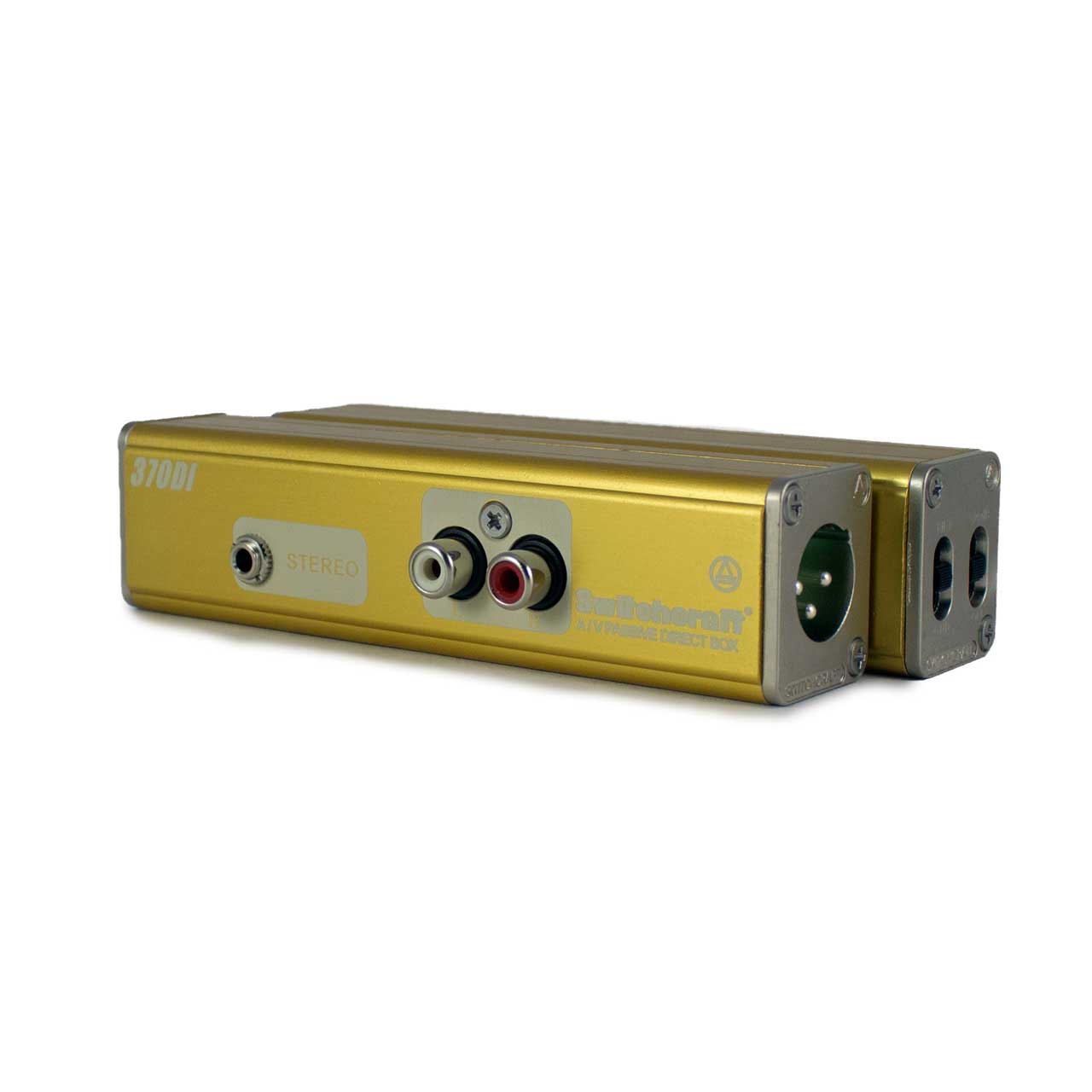

Switchcraft 370DI AudioStix Passive A/V DI Box 1/8 Inch Stereo Jack RCA Jacks to Locking Male XLR

ITEM #: SW-370DI MFG #: 370DI

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    370DI - Overview

    The 370DI is a durable, pocket size, Direct Box which is a cross between Switchcraft's SC700CT DI Box and 318 Inline Audio Adapter. The 370DI sums and converts the unbalanced stereo outputs of cell phones, tablets, laptops and consumer gear to a balanced mono line level for connecting to audio consoles and house sound systems.

    • Features:

      • Dual RCA inputs
      • 3.5MM input (1/8" TRS jack)
      • Switchcraft DE Series locking male XLR provides balanced, mono, mic level output
      • Ground Lift Switch
      • 20db pad to enable the device to handle stronger signals without distortion
    • Specifications:

      • Frequency Response: 20Hz-20kHz
      • Total Harmonic Distortion + Noise: 0.12%
      • Maximum Input level, Pad OFF: 20dBV
      • Maximum Input level, Pad ON: 40dBV
      • Voltage Gain: -4.5dB
      • Input Impedance: >1900Ω
      • Output Impedance: <700Ω
      • Pad Attenuation: -20dB
    • GTIN:
