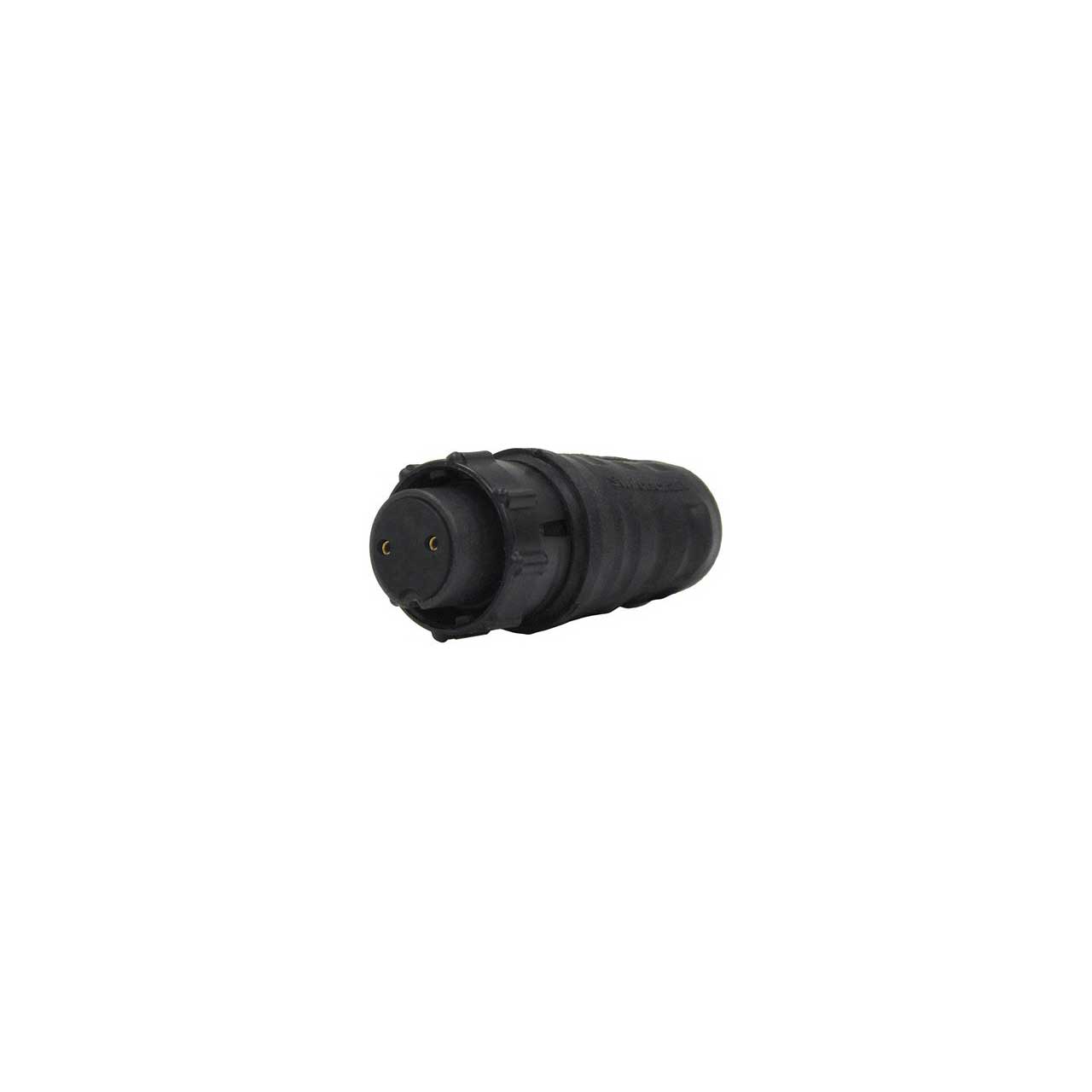

Switchcraft EN3C2FX Standard Circular Connector - 2P Female Cord Type for Harsh Environment

ITEM #: SW-EN3C2FX MFG #: EN3C2FX

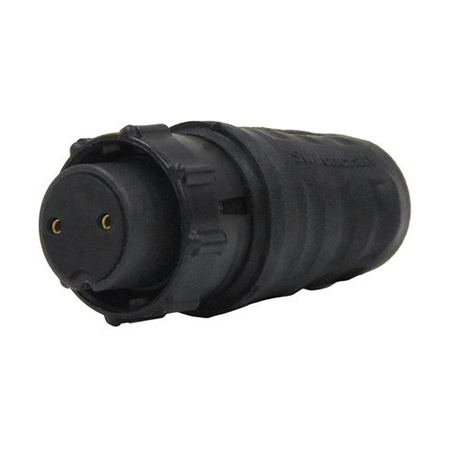

Primary Image
Switchcraft

We are an authorized dealer for this series; however, applicable tariffs and final pricing must be confirmed before order acceptance. Please contact a sales engineer at 1-800-522-2025 for further assistance.

Availability: Sold Out
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

EN3C2FX - Overview

EN3 Harsh environment Cable Mount, 2 contacts, female.

EN3 Series connectors are trusted by customers all over the world. Factory molded cable assemblies are made by Switchcraft in Chicago and are a great way to maximize the performance and durability of your cables. Utilizing an integral O-Ring/gasket, EN3 custom cable assemblies are available in 2-18 pins/sockets in the same housing size and come in a variety of mold options such as straight with and without strain relief, right angle with strain relief and quick disconnect with strain relief. Exceeds enclosure rating IP66/IP68 and NEMA 250 when mated or covered. Switchcraft has knowledgeable engineers ready to help you develop a custom cable to meet your requirements.

  • Features:

    • Sealed to IP68/IP69K NEMA 250 (6P)
    • Patented grommet & o-ring free design
    • Cable, panel & cable to cable options
    • Gold plated contacts standard
    • Solder, crimp & PC contact options
    • Straight & right angle PC contact panel connectors
    • APPLICATIONS:
    • Any sealed data transmission
    • Military or industrial GPS location devices
    • Instrumentation
    • Medical data carts
    • Marine Applications
    • Transportation
    • General industrial
    • electronic applications


  • Specifications:

    • MECHANICAL SPECIFICATIONS
    • Life: Minimum 600 insertion / withdrawal cycles
    • Vibration: Mil-Std 202 Method 201
    • Shock: Mil-Std 202 Method 213B, condition K
    • Hex Nut Torque: All series hex nut to withstand 8-10 in-lb tightening torque.
    • Coupling Locking Style Bayonet with ribbed coupling nut (winged coupling nut optional)
    • Back Shell Style: Boot
    • ELECTRICAL SPECIFICATIONS
    • Voltage Rating: 250 V AC/DC
    • Current Rating: 13.0 A - 2 or 3 #16 contacts accepts 16 through 18 AWG
    • 7.5 A - 2 through 6 #20 contacts accepts 20 through 22 AWG
    • 6.5 A - 7 or 8 #20 contacts accepts 20 through 22 AWG
    • 3 A - 9 through 18 #26 contacts accepts 26 through 28 AWG
    • Insulation Resistance: 100 MO min
    • Contact Resistance: 20 mO max
    • ENVIRONMENTAL SPECIFICATIONS
    • Operating Temperature Rating: -40§C to +65§C (-40§F to +149°F)
    • Moisture Resistance: Mil-Std 202 Method 106F
    • Insulation Resistance: Mil-Std 202 Method 302 condition B
    • Thermal Shock: Mil-Std 202 Method 107G
    • Salt Atmosphere (Corrosion): Mil-Std 202 Method 101D condition B
    • Weathertight: IEC 60529 IP16/IP18
    • IEC 60529 IP66/IP68
    • IEC 60529 IP68/IP69K
    • NEMA 250 (6P)
    • CFR 46 Part 110.20
    • MATERIAL SPECIFICATIONS
    • Panel connector shells & locking disk: Thermoplastic UL94V-0
    • Connector shell interior: Elastomeric, Black UL 94HB
    • Contacts: Copper Alloy, Gold over Nickel Plate
    • MOLDED CABLE ASSEMBLIES
    • Weathertight: IEC 60529 IP66/IP68
    • IEC 60529 IP68 /IP69K
    • NEMA 250 (6P)
    • CFR 46 Part 110.20
    • CERTIFICATIONS UL File E319753 ; 2-8 pin cord, in-line and panel only
