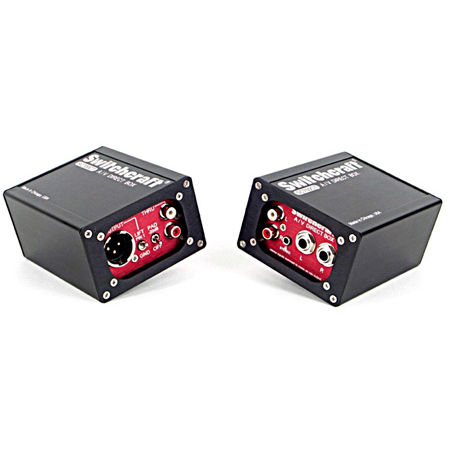

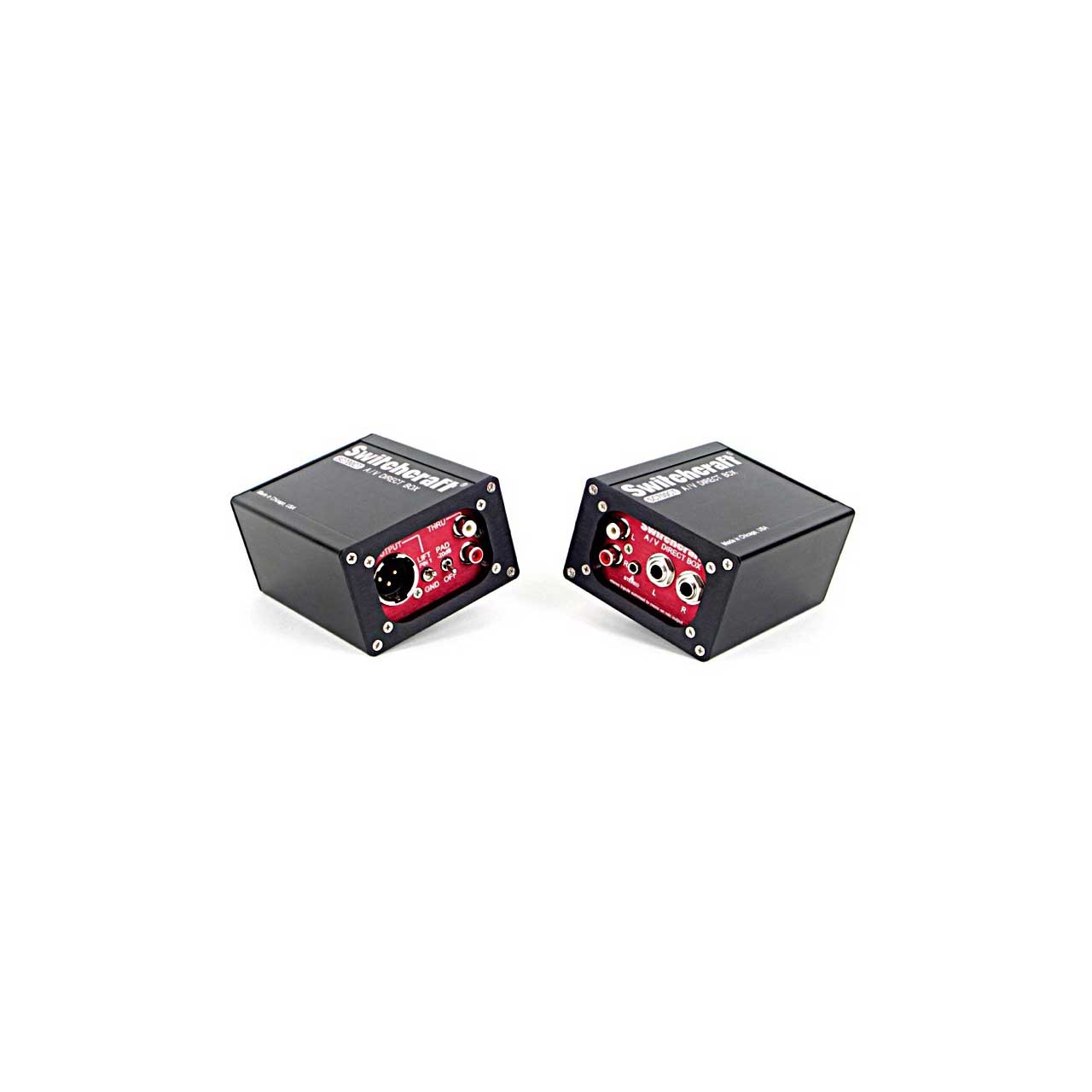

Switchcraft SC700CT A/V Direct Box


free ship

List Price:


Our Price:


Availability: Typically Ships in 3-10 Days
iAvailability Description Popup

    SC700CT - Overview

    The SC700CT A/V Direct Box from Switchcraft is ideal for connecting the outputs of MP3 players, PC's, laptops, CD players and other audio devices to audio consoles, mic preamps, effects processors, house sound systems and other equipment with 3-pin XLR inputs.

    The SC700CT converts the outputs of high impedance stereo or mono line level audio devices and musical instruments to low impedance, balanced and isolated mic level signals. All stereo inputs on the SC700CT are summed to mono and output to a single 3-pin XLR connector.

    Built by hand in Chicago, USA.

    • Specifications:

      • All measurements were taken with a 25 Ohm unbalanced source into a 1k Ohm balanced load measured on XLR output.
        Common Mode Rejection
      • Greater than 85dB at 60Hz
        Input Impedance
      • Greater than 120k Ohms at 1kHz
        Output Impedance
      • Less than 50 Ohms at 1kHz
        Phase Response
      • Less than 7° at 20Hz
      • Less than 1° at 1kHz
      • Less than 13° at 20kHz
        Total Harmonic Distortion + Noise
      • Less than .5% (At 20Hz, +4dBu, 22kHz Bandwidth)
      • Less than .009% (At 1kHz, +4dBu, 22kHz Bandwidth)
        Maximum Input Level
      • +18dBu (At 20Hz with 1% THD+N)
      • +38dBu (At 20Hz with 1% THD+N, 20dB Pad Engaged)
        Frequency Response
      • 20Hz to 20kHz (+/-0.3dB, ref 1kHz)
        Voltage Gain
      • -23dB
      • -43dB (With 20dB Pad Engaged)
