Switchcraft TA4FWX TA Series 4-pin Mini XLR Female Cable Mount Flex Relief - White

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Switchcraft TA4FWX TA Series 4-pin Mini XLR Female Cable Mount Flex Relief - White

    Manufacturer: Switchcraft

    Item #: SW-TA4FWX   •   MFG #: TA4FWX



    List Price:$10.90
    Our Price:$8.82
    Quantity Pricing

    free ship


    Availability: Usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




      Share!

      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov

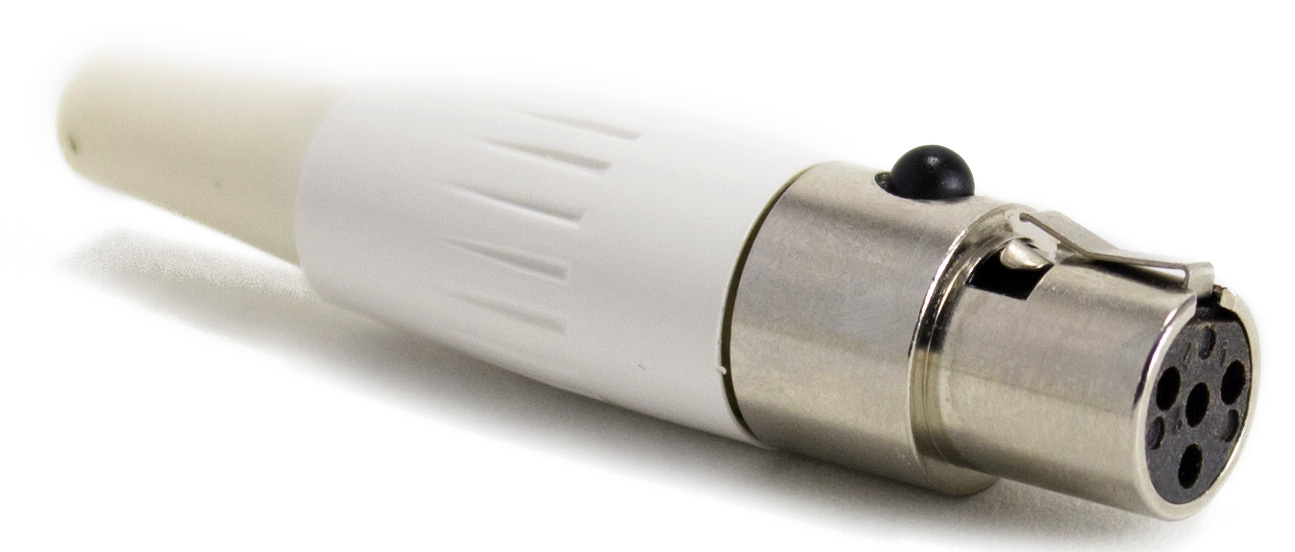

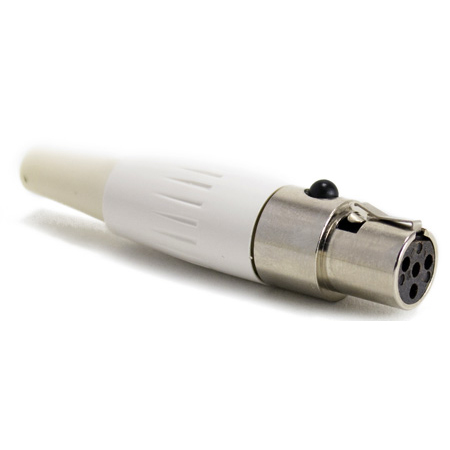

      The TA4FWX is a Tini-QG "Mini XLR" 4 Pin Female Cable Mount, Silver Pins, White.


      • Specifications

        • SPECIFICATIONS: (3-5 CORD MOUNT ONLY)
          ELECTRICAL
        • Contact Resistance: .010 ohms maximum after life (and after salt spray).
        • Current Rating (Carry Only): 5 A, 125 V AC (4 A, 125 V AC on 5 circuit) based on 30°C maximum.
        • Insulation Resistance: 510,000 megohms minimum @ 500 VDC (initial); 10,000 megohms minimum (after humidity test).
        • Dielectric Strength: 1,000 V (rms).
        • MECHANICAL
        • Life: 5,000 operations minimum
        • Insertion/Withdrawal Forces (after life): 6.1 lb./2.77 kg after life, insertion; 5.6 lb/2.54 kg, withdrawal.
        • Solderability Standard: Meets EIA RS-186-9E.
        • Mechanical Shock: Meets MIL-STD-202, method 213B.
        • Vibration: Meets MIL-STD-202, method 201A.
        • Wire Size: #22 wire gauge solid; #24 wire gauge stranded.

        • ENVIRONMENTAL
        • Thermal Range: -55°C to + 85°C.
        • Humidity: Meets MIL-STD-202, method 106D.
        • Thermal Shock: Meets MIL-STD-202, method 107D.
        • Salt Spray: Meets MlL-STD-202, method 101.

        • MATERIAL
        • Housing, Plugs and Male Receptacles: Copper alloy, nickel-plated. Female Receptacle–Die-cast zinc, nickel-plated.
        • Black Tini Q-G Housing: Copper alloy, black chrome-plated.
        • Pin and Socket Contacts: Copper alloy, silver-plated.
        • Flex Relief: Molded black thermoplastic elastomer.
        • Latch Button: Molded black thermoplastic.
        • Release Lever and Mounting Washer: Steel, nickel-plated.
        • Standoff/Ground Terminal and Cable Clamp: Steel, electrotinned.
        • Inserts and Insulating Spacer: Molded, high strength thermoplastic
        • Latch (Female): Copper alloy, nickel-plated.
        • Mounting Nut: Copper alloy, nickel-plated.

        • SPECIFICATIONS (6-8 Cord Mount and all Receptacles and Adapters):
          ELECTRICAL
        • Contact Resistance: .010 ohm maximum after life.
        • Current Rating (Carry only): 1.5A, 125 VAC, based on 30° maximum
        • Insulation Resistance: 510,000 M O minimum @ 500 VDC (initial).
        • Dielectric Strength: 250 V rms.

        • MECHANICAL
        • Life: 2,000 operations
        • Insertion/Withdrawal Forces (after life): –13 pound insertion; –13 pound maximum withdrawal
        • Solderability Standard: Meets EIA RS-186-9E.
        • Wire Size: 28 wire gauge stranded.

      • Warranty

        • Lifetime Limited Warranty
