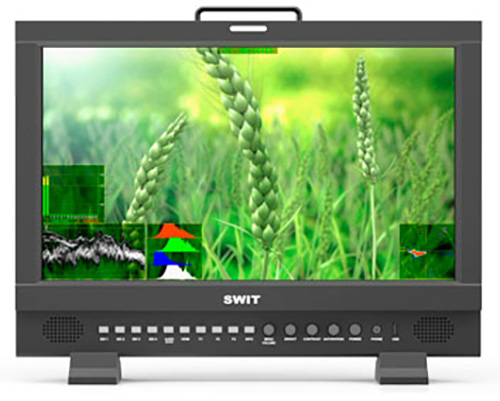

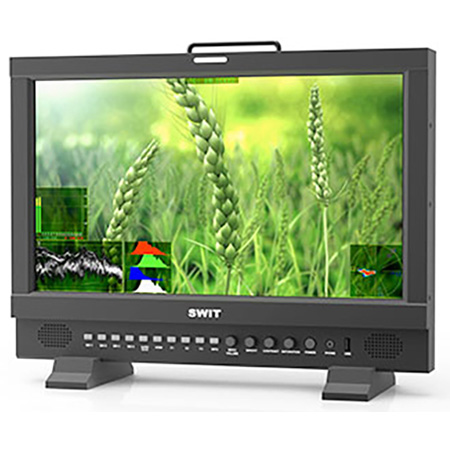

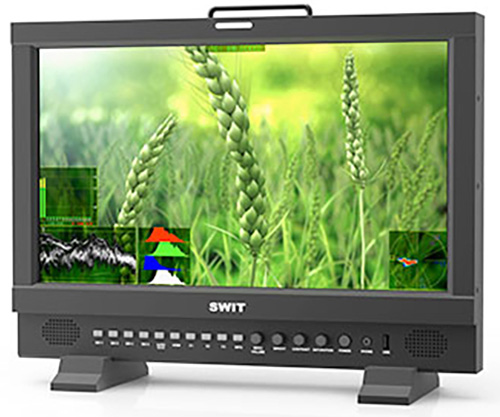

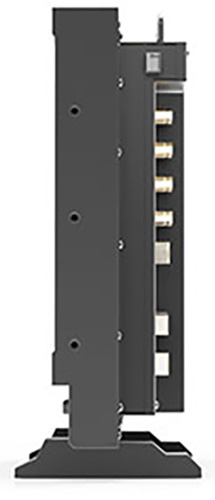

SWIT BM-U173 SWIT 17.3-inch 4K 12GSDI Studio LCD Monitor (Gold-mount/ V-mount for Battery Plate Option)
  • SWIT BM-U173 SWIT 17.3-inch 4K 12GSDI Studio LCD Monitor (Gold-mount/ V-mount for Battery Plate Option)
  • SWIT BM-U173 SWIT 17.3-inch 4K 12GSDI Studio LCD Monitor (Gold-mount/ V-mount for Battery Plate Option)
  • SWIT BM-U173 SWIT 17.3-inch 4K 12GSDI Studio LCD Monitor (Gold-mount/ V-mount for Battery Plate Option)
  • SWIT BM-U173 SWIT 17.3-inch 4K 12GSDI Studio LCD Monitor (Gold-mount/ V-mount for Battery Plate Option)

Questions? Ask a Markertek Expert:
800-522-2025 Email

SWIT BM-U173 SWIT 17.3-inch 4K 12GSDI Studio LCD Monitor (Gold-mount/ V-mount for Battery Plate Option)

Item #: SWIT-BM-U173   •   MFG #: BM-U173



List Price:$5,200.00
Our Price:$5,100.00

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The SWIT BM-U173 adopts a 17.3-inch 8-bit+2FRC LCD panel, UHD 3840x2160 resolution, 300nit LED backlight, 800:1 contrast, 100% REC709 and 91.5% DCI-P3 color gamut. The viewing angle is Horizontal: 178° / Vertical: 178°.
    Multi 4K Interfaces

    BM-U173 Monitor supports the following 4K interfaces:

    12GSDI (SDI 1&2)
    Quadlink 3GSDI (SDI 1-4)
    HDMI 2.0 (4K60P)
    SFP Fiber 12G (Output by 12GSDI)

    Notes:
    The Quadlink 3GSDI supports both Quad mode and 2SI interleave mode; The SFP optical fiber adaptor is optional purchased.

    HDR Monitoring
    BM-U173 support HLG (Hybrid Log Gamma) and Dolby Vision PQ HDR monitoring.

    3DLUT Auto Self-Calibration
    With built-in 3DLUT calibration software, (software copyright) support X-rite i1 and Jeti Specbos 1211 probes to directly connect with the monitor USB port. The monitor generates color patterns and the color probes read the color, send color info to monitor via USB. Then the monitor compares the color difference and generate 3DLUT and calibrate itself automatically. Calibration time: X-rite i1 15min, Specbos 1211 45min Calibration result: ΔE≤1.0

    Audio/Video Zero Latency
    Support Zero latency mode (less than 1/100 frame) under 4K input sources, for special image processing mode for lip-sync monitoring.

    De-log 3DLUTs
    The monitor has built-in multi camera logs to Rec 709 conversion 3DLUTs, including Log-C, C-log, S-log2, S-log3, V-log, J-log1, RedLogFilm. You can also import own 3DLUTs to monitor by USB stick, support 17x17x17 3DLUT cube files.

    Audio Meters and Lissajous
    Support Max 16-ch embedded audio meters display, with VU/PPM, and display audio abnormal alert. Support select any 2 channels audio to output via speaker or 3.5mm headphone socket. Support audio Lissajous pattern display for post production.

    Webserver IP Remote Control
    BM-U173 supports webserver remote control by Ethernet LAN connection. Use computer web browser to open the monitor control panel, and select input sources, adjust picture parameters, set up video / audio functions and assign function keys, etc, without install any APP.


    • Features

      • 17.3-inch LCD Panel, 3840x2160 resolution
      • 12G-SDI / Quadlink 3G-SDI / HDMI2.0
      • SFP Fiber 12G input converted to 12GSDI out
      • 3DLUT Auto Self-calibration without PC
      • Audio/Video 0 latency for lip-sync
      • HLG/PQ HDR capable
      • Built-in Multi camera Delog LUTs
      • User 3DLUTs upload via USB
      • Waveform / Vector / Histogram
      • Focus assist / False color / Zebra
      • 16-ch audio meters / Lissajous
      • IP webserver remote control
      • TSL UMD and text TALLY display
      • USB firmware upgrade
      • Provide 19" 7U rack bracket

    • Specifications

      • LCD Performance
      • Size: 17.3 inches
      • Display area: 381.89 x 214.81mm
      • Resolution: 3840 x 2160
      • Aspect ratio: 16:9
      • Brightness: 300nit
      • Contrast: 800:1
      • Color depth: 16.77M color
      • Signal process: 18bit
      • Viewing: 178°(H)/178°(V)

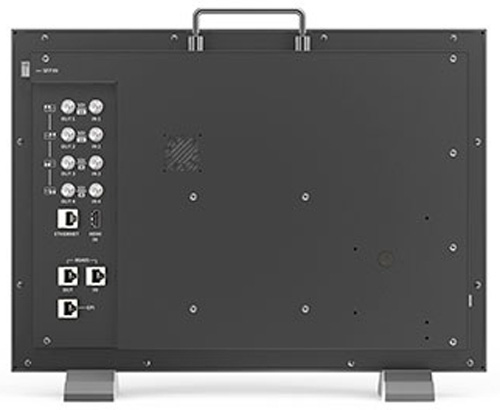

        Input
      • 2 x BNC: 12G/6G/3G/HD/SD-SDI input
      • 2 x BNC: 3G/HD/SD-SDI input
      • 1 x HDMI: HDMI 2.0 input
      • 1 x SFP: Optical Fiber 12G input (By optional SFP adaptor)
      • 1 x RS485: TSL 3.1/4.0 UMD input
      • 1 x RS485: GPI (Tally) input
      • 1 x RJ45: 1000M Ethernet input for Webserver IP control

        Output
      • 2 x BNC: 12G/6G/3G/HD/SD-SDI loop output, SFP Fiber input to 12G output
      • 2 x BNC: 3G/HD/SD-SDI loop output
      • 1 x RS485: TSL 3.1/4.0 UMD output
      • Analog Audio: 3.5mm headphone and speaker

        Video Format
      • SDI 1&2, SFP:
        4096x2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
        3840x2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
        2048x1080i (50 / 59.94 / 60)
        1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
        1080i (60 / 59.94 / 50)
        1080psf (30 / 29.97 / 25 / 24 / 23.98)
        720p (60 / 59.94 / 50)
        480i (59.94)
      • SDI 3&4:
        2048x1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
        2048x1080i (50 / 59.94 / 60)
        1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
        1080i (60 / 59.94 / 50)
        1080psf (30 / 29.97 / 25 / 24 / 23.98)
        720p (60 / 59.94 / 50)
        480i (59.94) 576i (50)
      • Quad Link SDI (Each channel):
        2048x1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
        1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
      • HDMI:
        1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
        4096x2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
        3840x2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
        1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
        1080i (60 / 59.94 / 50)
        720p (60 / 59.94 / 50)

        General
      • Input voltage: DC 12V-17V, AC 100-240V, 50/60Hz
      • Power consumption: 60W
      • Working temperature: 32° to 122°F (0°C to 50°C)
      • Working humidity: 10% to 90%
      • Storage temperature: 5° to 140°F (-15° to 60°C)
      • Storage humidity: 10% to 90%
      • Dimensions: 17 x 12.25 x 3.85" (431.7 x 311.3 x 97.9mm)
      • Net weight (w/o stand): 13.45LBs(6.1kg)

    • Item Includes

      • 1 x Monitor
      • 1 x Battery Plate (V-mount or Gold mount option)
      • 2 x Tabletop Stand
      • 1 x Power Cord
      • 2 x Left, Right Side Rack

    • Warranty

      • 2 Year Conditional Warranty

    • GTIN:

      0694819350751
