SWIT CURVE500 500 Foot HDMI Wireless Video Transmission System Set with KUWI 5.1-5.9GHz Wireless Technology

ITEM #: SWIT-CURVE500 MFG #: CURVE500

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$529.00

Our Price:

$399.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    CURVE500 - Overview

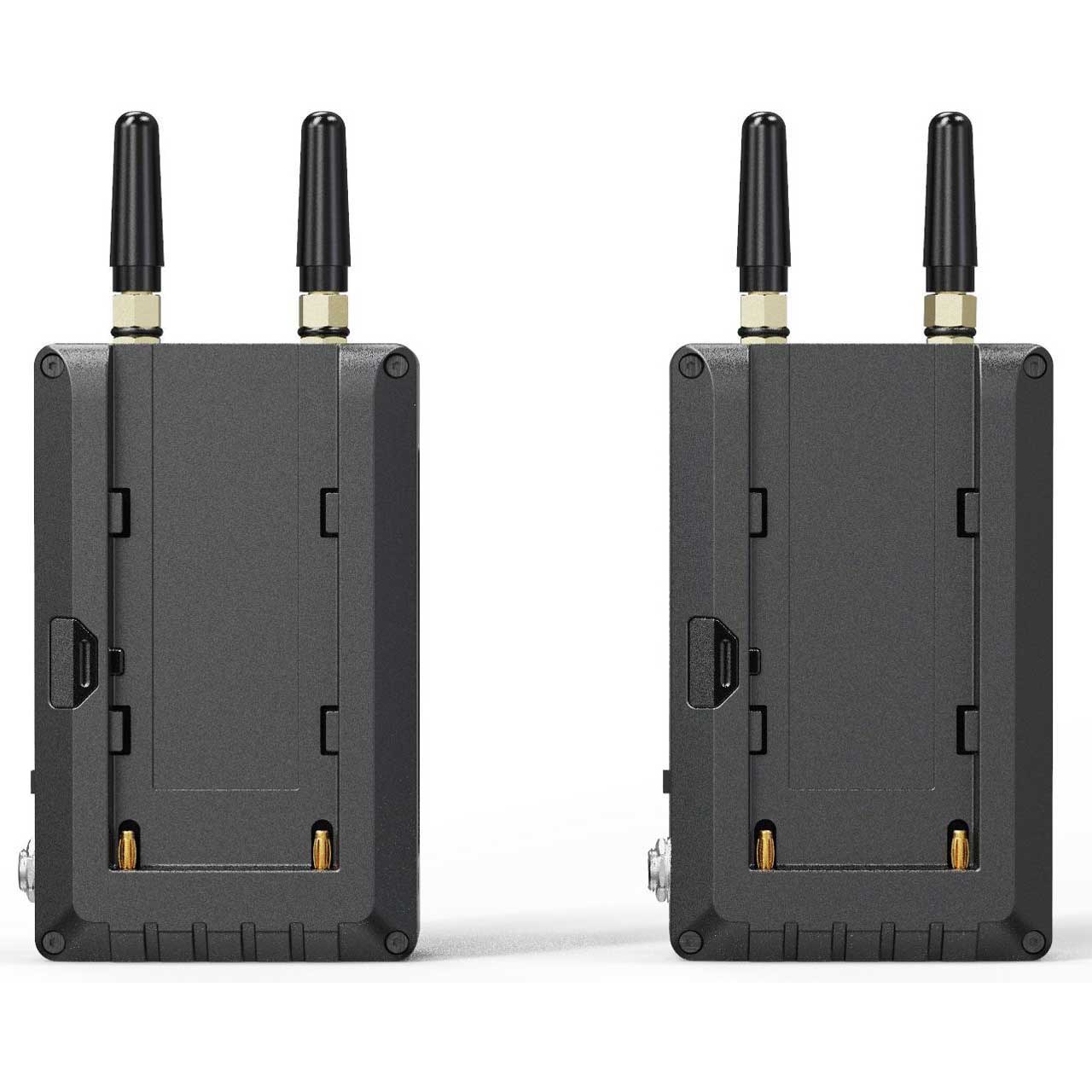

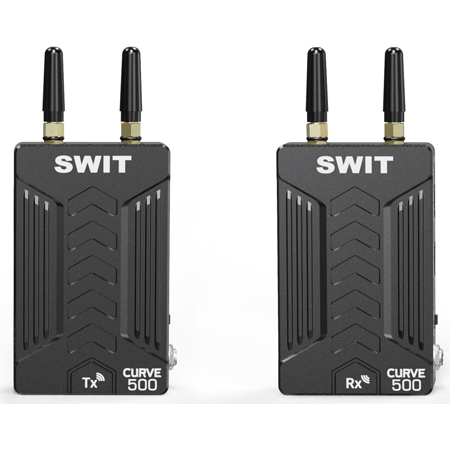

    The SWIT CURVE500 wireless system is based on SWITs latest KUWI wireless technology, not WiFi. With 5.1-5.9GHz license free bands and DFS comply it supports HDMI 1080p60 transmit within 500 feet (150 meters) Line-of-Sight distance. The transmitter and the receiver each have a built-in Sony L-series battery plate and a 7-17V DC power input. One power adapter is included in the package, batteries are sold separately.

    Input & Output
    The Transmitter (Tx) has 2 omni antennas, supports:
    1x HDMI input
    1x HDMI loop output

    The Receiver (Rx) has 2 omni antennas, supports:
    2x HDMI output

    HDMI Formats
    1080p60, 1080p59.94, 1080p50
    1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30;
    1080psf23.98, 1080psf24
    1080i60, 1080i59.94, 1080i50;
    720p60, 720p59.94, 720p50

    500ft/150m Transmission, Strong Wall-cross Performance
    CURVE500 wireless supports 500ft/150m (Line-of-sight) reliable wireless transmission, and featured stronger wall-cross performance due to both RF optimize and image quality optimize, so that will keep video transmission without date lost or crash comparing to regular 5GHz wireless transmitters.

    * Supports HDMI embedded audio (CH1&2) transmission.

    Auto Frequency Channel Switching, DFS Comply
    CURVE500 works between 5.1-5.9GHz, with built-in wireless scanner, detect wireless condition of all frequencies, and automatically jump to the best wireless channel to keep reliable connection and transmission, and DFS comply.

    • Features:

      • KUWI 5.1-5.9GHz Wireless Technology
      • DFS Comply
      • HDMI input and loop output
      • 500ft/150m (Line-of-Sight) distance
      • Strong Wall-Cross Performance
      • 2-ch HDMI audio transmission
      • Auto detecting wireless environment and switching
      • Support 3-4 pairs working in one location
      • Wireless protocol & content double encryption

    • Specifications:

      • Transmitter
      • Input: 1x HDMI
      • Output: 1x HDMI
      • Video Formats: 1068i (60/59.94/50)
      • Wireless Frequency: FULL - 5180-5220Mhz and 5760-5820Mhz
      • Modulation Mode: OFDM support 16QAM, 64QAM, QPSK, BPSK modulation mode
      • Transmission Distance: 500ft/150m (line-of-sight)
      • Power Consumption: ±7.5W
      • Input Voltage: 7~17V DC/Battery
      • Working Envrionment: 0°C ~ +40°C
      • Dimensions: 114.18 x 69.55 x 28mm
      • Net Weight (without antenna): 173.2g
      • Net weight (with antenna) 180.8g

        Receiver
      • Output: 1x HDMI
      • Video Formats: 1068i (60/59.94/50)
      • Wireless Frequency: FULL - 5180-5220Mhz and 5760-5820Mhz
      • Modulation Mode: OFDM support 16QAM, 64QAM, QPSK, BPSK modulation mode
      • Transmission Distance: 500ft/150m (line-of-sight)
      • Power Consumption: ±7W
      • Input Voltage: 7~17V DC/Battery
      • Working Envrionment: 0°C ~ +40°C
      • Dimensions: 114.18 x 69.55 x 28mm
      • Net Weight (without antenna): 173.6g
      • Net weight (with antenna) 181.2g

    • Item Includes:

      • 1x Transmitter
      • 1x Receiver
      • 4x Antenna
      • 1x D-tap to lockable Pole-tap cable
      • 1x AC-DC Adaptor

    • GTIN:

      6948193508139
