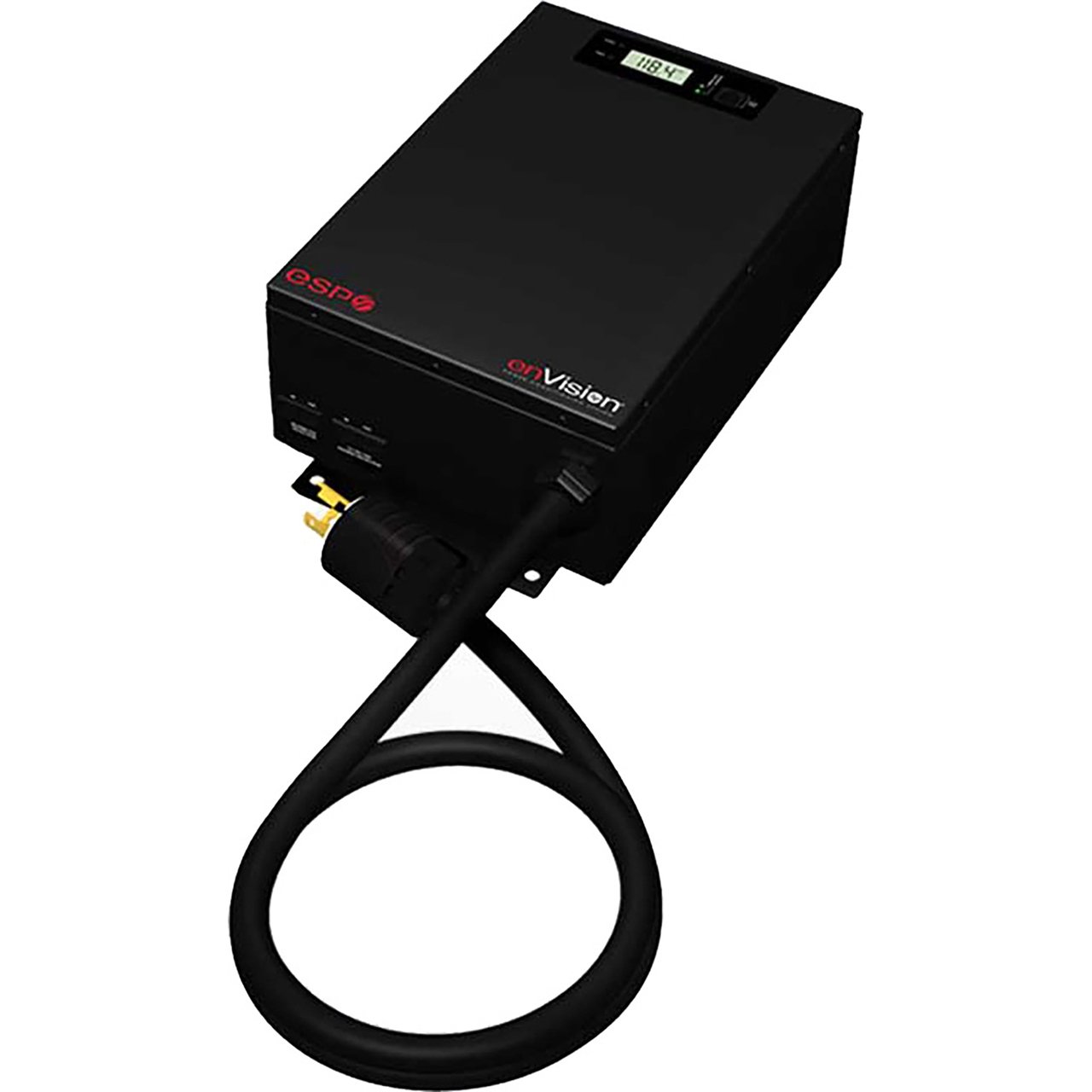

SurgeX enVision EV-20830-630 IC Diagnostic Power Conditioner w/Predictive Analysis Software - 30A/208V - NEMA 6-30

ITEM #: SX-EV-20830630IC MFG #: EV-20830-630 IC

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup

    EV-20830-630 IC - Overview

    The enVision's analytical software monitors, identifies, analyzes, and offers solutions to resolve power issues that can cause equipment error codes, malfunctions and downtime.

    SurgeX EV-20830-630 IC is an AC AC Diagnostic and Scope Meter Tool with Interface Cable & NEMA 6-30.

    enVision provides visibility and control into the power conditions at a installation site by gathering and analyzing data to facilitate root cause discussions with affected end users. It interprets the data into key metrics and trends, and baselines the factors that influences equipment operation, damage conditions, and inefficiencies.

    Using innovative algorithms and predictive analytics software, the enVision discovers anomalies, patterns, and gives solutions to resolve electrical problems. It attempts to identify issues that can lead to connected equipment failure in advance. This enables technicians to proactively remedy issues rather than reacting to disruption or downtime.

    • Features:

      • Measures line and neutral to ground voltage, crest factor, power factor, and line frequency metrics
      • 512 time stamped events with specific date and time
      • Historical max./min./avg. data up to 138 days
      • Customizable settings
      • Identifies pre-existing power issues
      • Internal battery
      • Remote access with optional Remote Portal module
    • Specifications:

      • Load Rating: 30 Amps at 208-240 Volts
      • Voltage Protection Rating (VPR): 500V Line-Line
      • Attenuation:
        Normal Mode: > 30 dB 80kHz - 50MHz
        Common Mode: > 30 dB 200 kHz - 20MHz
      • Power Requirement (no load): 6 Watts
      • Under-Voltage Shutdown: Adjustable from 0 V to 220 V. Default 160 V.
      • Under-Voltage Record: Adjustable from 0 V to 220 V. Default 180 V.
      • Under-Voltage Restore: Adjustable from 80 V to 220 V. Default 190 V.
      • Over-Voltage Shutdown: Adjustable from 220 V to 300 V *. Default 280 V.
      • Over-Voltage Record: Adjustable from 220 V to 300 V *. Default 270 V.
      • Over-Voltage Restore: Adjustable from 220 V to 300 V *. Default 260 V.
      • Internal Memory Capacity:
        512 Power Quality Events with Timestamp
        138 Day Electrical Parameter History at 30 minute intervals
        2.25 Day Electrical Parameters at 10 second intervals
      • Timestamp Accuracy: ± 1% Typical Product Accuracy
      • Measurement Accuracy: 208-240V Models ± 2% Typical product accuracy
      • Response Time:
        Over-Voltage 90 ms
        Under-Voltage 200 ms
      • Power Outage Event: Definition AC Voltage has dropped below 20V
      • Surge Event Definition: Filter has been exposed to a transient voltage in one of the 3 possible modes (between Live and Neutral, between Live and Ground, between Neutral and Ground) with a peak amplitude of 500V* or higher and a frequency of 20 kHz or higher. *500V surge voltage amplitude applies to IEEE C62.41 Category B Impulse; surge voltage amplitudes necessary for detection of other surge types may vary. *The allowed range was changed from 260-300V to 220-300V in firmware version 1.JB3, released in December 2016.
      • Modem/Fax Protection: Single telephone line surge suppression
      • Ethernet Protection: CAT6 network surge protection
      • Dimensions (WxDxH): 7.75 x 4 x 11.25"
      • Weight: 10Lbs
      • Temperature Range: 41° to 95°F
      • Humidity Range: 5 to 95% R.H. non-condensing
      • Agency Listings:
        ETL Certified to UL 1449 3rd Edition
        ETL Certified to UL 1283 5th Edition
        ETL Certified to CSA 22.2 No. 8-M1986 (R2008)
    • Warranty:

      • enVISION SERIES - Limited Lifetime Product Warranty - Limited Lifetime Connected Imaging Equipment Protection Warranty - Limited Five (5) Year Connected Non-Imaging Equipment Protection Warranty - See attached info for further details
