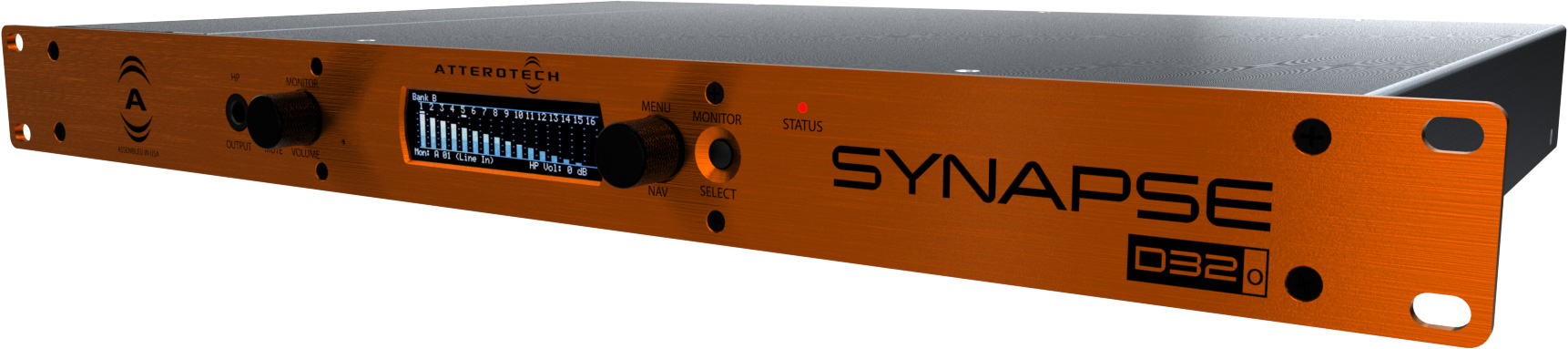

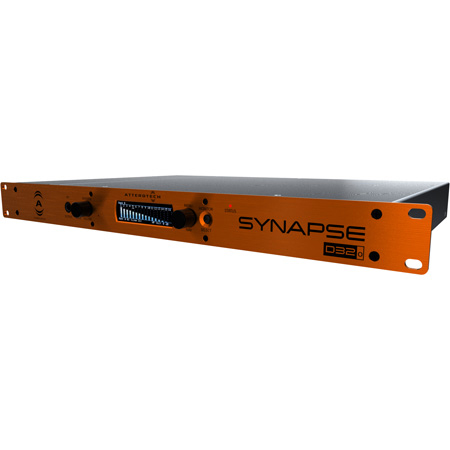

Attero Tech Synapse D32o-TB 32 Channel Line Level Break Out Interface - 1RU with Phoenix Terminal Block Inputs

SYNAPSE D32O-TB - Overview

• Features:

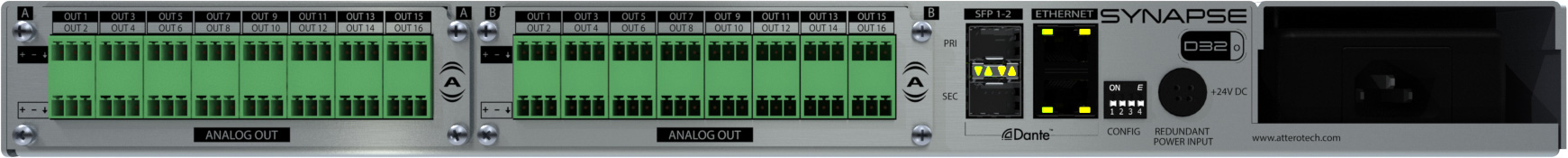

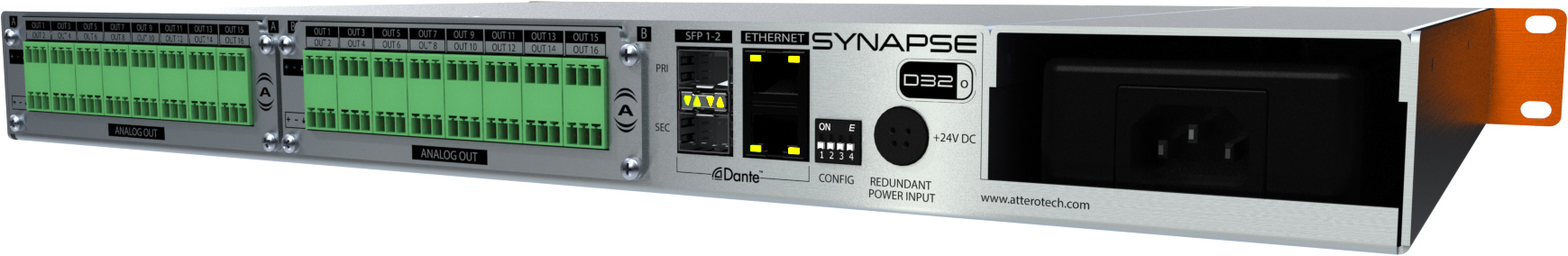

  • 32 balanced line level outputs - either DB-25 or 3-Pin Phoenix
  • Redundant (primary/secondary or daisy chain) RJ-45 connectors and SFP (fiber) connectors

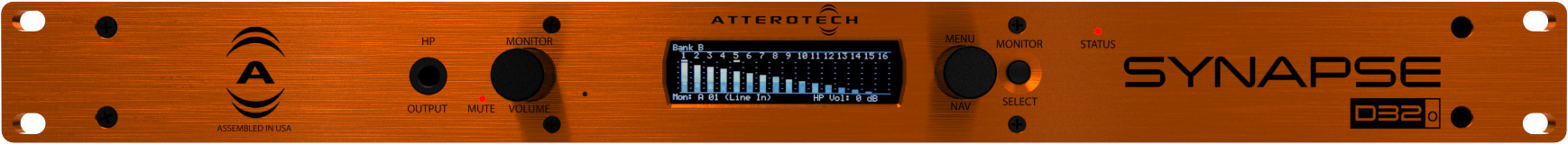

  • Individual channel selection and monitoring using the front panel headphone jack
  • Level metering on the front panel OLED display
  • Supports Dante and AES67


• Specifications:

  Analog Audio Outputs
  • Output Type: 32 - Balanced 3-pin line level (Terminal Block option) 4 - TASCAM-pinout compatible DB25 balanced analog (DB-25)
  • Output Impedance: 200 Ω Balanced / 100 Ω Unbalanced per channel
  • Maximum Output Levels: +24 dBu (+/- 0.5 dB)
  • THD+N: ≤ 0.05% at -3 dBFS
  • Dynamic Range: ≤ 100 dB
  • Frequency Response: 20-20kHz, +/- 0.5dB

    Headphone Output
  • Output Type: Stereo headphone on 1/4" TRS
  • Maximum output level: 25mW into 32 Ω
  • THD+N: < 0.01 % @ 25mW

    Dante Network
  • Physical Layer: Ethernet
  • Connector (s): Dual RJ-45 / Dual SFP Slots
  • Cable Quality: CAT-5e or better (Copper) / Fiber
  • Transmission Speed: All interfaces 1 Gbps
  • Supported Sample Rates: 44.1kHz /48kHz / 88.2 kHz / 96 kHz
  • Minimum Dante Network Latency: 250 us (1 ms AES67)
  • Supported Modes: Redundant / Switched
  • AES67 Support: Dante™ - AES67 Mode
  • Cable Quality: CAT-5e or better UTP

    Power Specifications
  • AC Power: 120V AC
  • Power Consumption: < 20W Max

    Physical Dimensions
  • Width: 19"
  • Height: 1.75" (1 RU Form Factor)
  • Depth: 12.5"
  • Weight: 6 lbs

    Regulatory Compliance
  • Certifications: FCC CFR 47 Parts 15B Class A, EN55011, ICES-003, CE (EN55022 / EN55024), RoHS, REACH

    Environmental Operating Specifcatons
  • Operating Temperature - 0 to 40° C


• Warranty:

  • 5 Year
