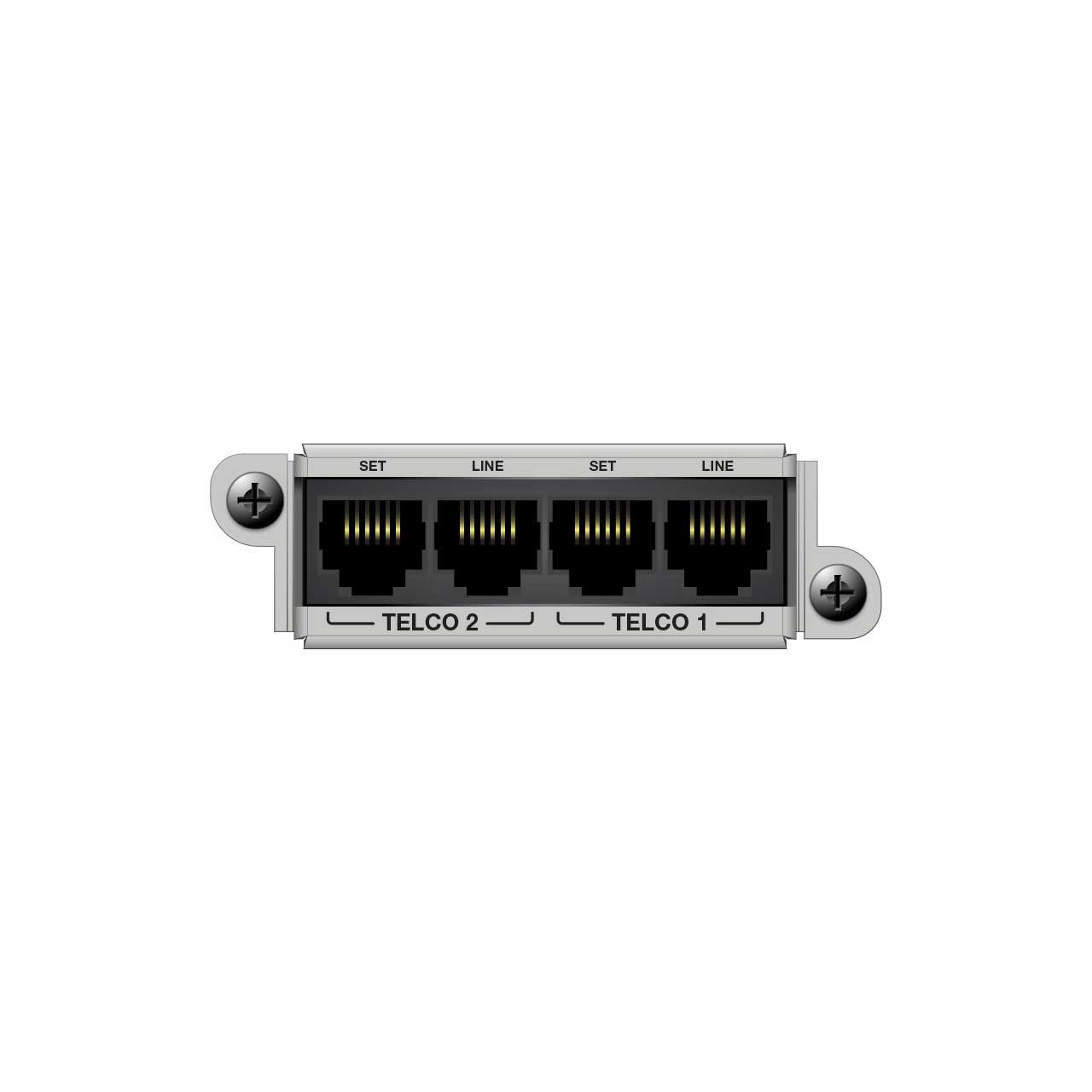

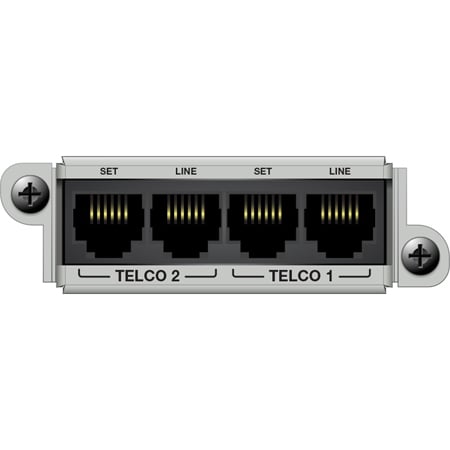

Symetrix 80-0066 2 Line Analog Telephone Interface Card - Radius & Edge Expansion Card - 2 POTS Lines

80-0066 - Overview

• Features:

  • 2 PSTN (POTS) lines - telco connections via RJ11.
  • Multiple applications - teleconferencing, paging, remote monitoring, broadcast.
  • Deskset functionality - answer, dial, redial, speed-dial, ignore (DND), decode (DTMF), ID callers, detect progress, monitor line status and faults, and more.
  • Compliance - EN 55103-1, EN 55103-2, FCC Part 15, FCC Part 68, RoHS, FCC 47-CFR Part 68, ACTA TIA-968-B, TIA-1096, IC CS-03 Part I, DC-01(E).
  • Field swappable by qualified technicians.
    Note: The 2 Line Analog Telephone Interface Card is only for use in North America at this time.


• Specifications:

  • Telco "Set" Connector: RJ11. Format: POTS (plain old telephone service) or analog extension from a PBX.
    Note: Relay bridged to Line port with option in software to isolate based on hook status
  • Telco "Line" Connector: RJ11. Format: POTS (plain old telephone service) or analog extension from a PBX
    Note: Relay bridged to Line port with option in software to isolate based on hook status
  • Frequency Response: 250 Hz to 3.3 kHz ±1.0 dB
  • THD+N: < 0.3%
  • Signal to Noise Ratio: > 62 dB
  • LEC Tail Time: 32 mS
  • Null: 55 dB nominal
  • Compliance: G.165, G.168 compliant
  • Tx Level: 10.0 dBm RMS average; +3.2 dBm maximum
  • Rx Level: -10.0 dBm RMS average; +3.2 dBm maximum
  • Transhybrid Loss: > 48 dB with LEC enabled
  • Ringer Equivalency Number: 0.0 dB


• Item Includes:

  • 1x Symetrix I/O card
  • 1x card bracket
  • 2x black 4-40 Phillips head screws,
  • 3x stainless steel 4-40 Phillis head screws
  • 1x quick start guide


• Warranty:

  • 5 years
