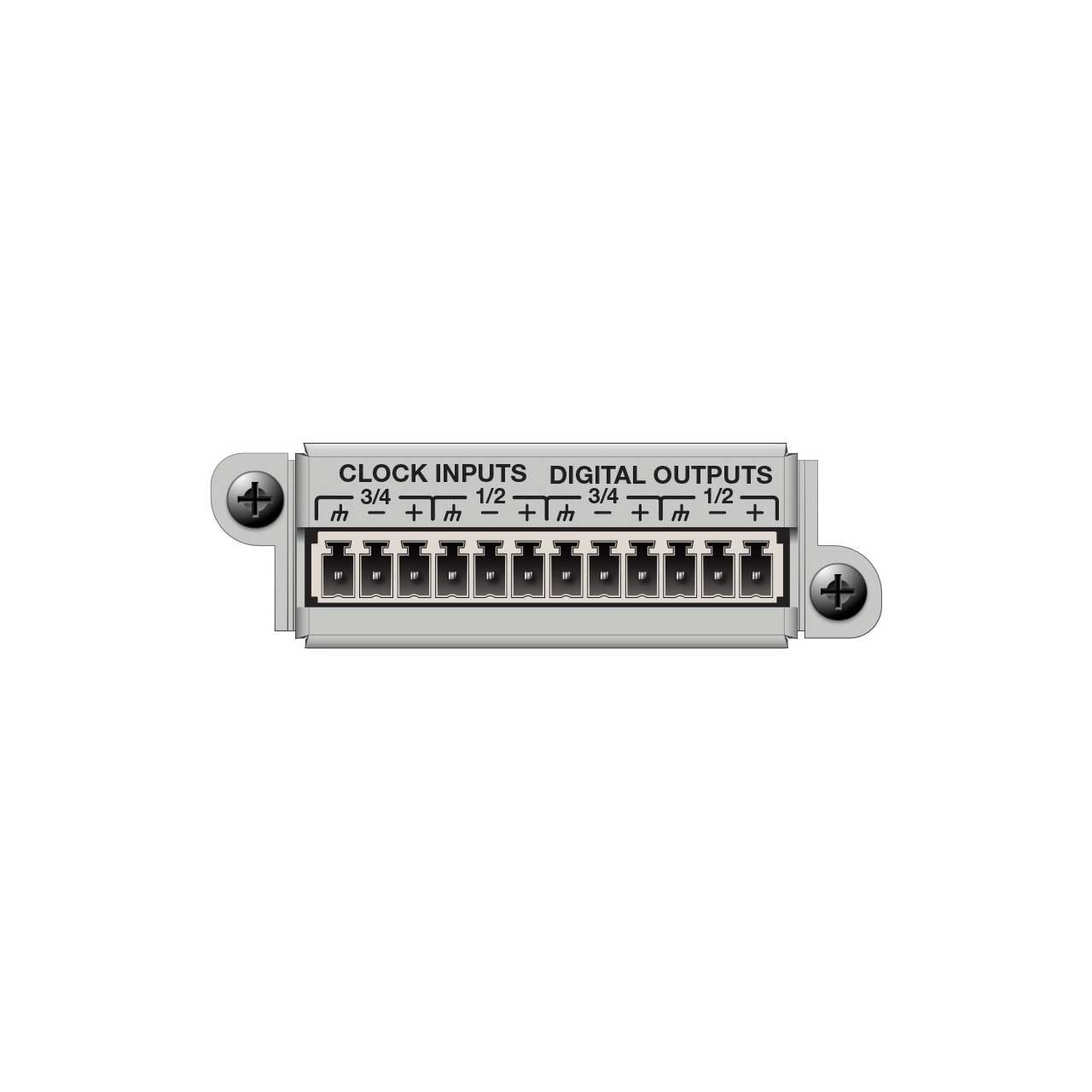

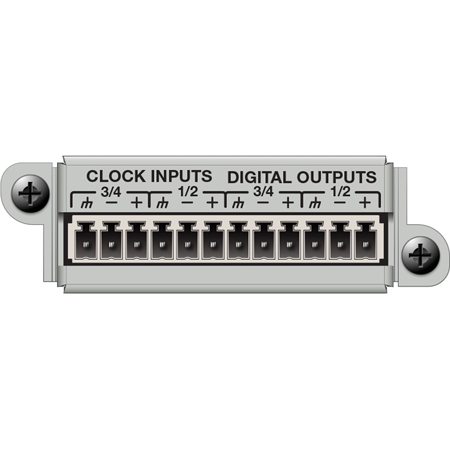

Symetrix 80-0068 4-Channel Ouput Card for Edge/Radius NX - 4 Digital Out - AES/EBU or S/PDIF - 4 Clock In

ITEM #: SYX-4CHDIGOUTCRD MFG #: 80-0068

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the SYX-4CHDIGOUTCRD

80-0068 - Overview

Symetrix 80-0068 is an I/O expansion card for Edge/Radius NX. Provides 4 digital out, AES/EBU or S/PDIF, and 4 clock in. 4 channels (2 stereo pairs), balanced S/PDIF or unbalanced AES. Flexible output sample rates - defaults to 48kHz or can be externally clocked from 12 to 192kHz.

  • Features:

    • 4 channels (2 stereo pairs), balanced S/PDIF or unbalanced AES.
    • Pro or consumer - AES/EBU or S/PDIF.
    • Flexible output sample rates - defaults to 48kHz or can be externally clocked from 12 to 192kHz.
    • Output trim - +12dB to full off.
    • Easy wiring - 3.81mm terminal blocks, 12 position plugs with strain relief pull tabs.
    • Field swappable by qualified technicians.

  • Specifications:

    • Number of Outputs: Two (2) pairs multi-channel digital stream inputs, in either AES or S/PDIF (4 Channels total; 2 per stream)
    • Connectors: 3.81 mm terminal blocks
    • Nominal Output Level: -20 dBFS (+4 dBu with 20 dB of headroom)
    • Maximum Output Level: 0 dBFS (+24 dBu)
    • Output Impedance: 110 Ohms (AES), 75 Ohms (S/PDIF)
    • Dynamic Range: > 128 dB, unweighted
    • THD + Noise: < -125 dB, unweighted
    • Nominal Sample Rate: 48 kHz
    • Sample Rate Sync Range: 12 to 96 kHz
    • Latency: 2.1 mS @ 48 kHz

  • Item Includes:

    • 1x Symetrix I/O card
    • 1x card bracket
    • 2x black 4-40 Phillips head screws,
    • 3x stainless steel 4-40 Phillis head screws
    • 1x quick start guide

  • Warranty:

    • 5 years
