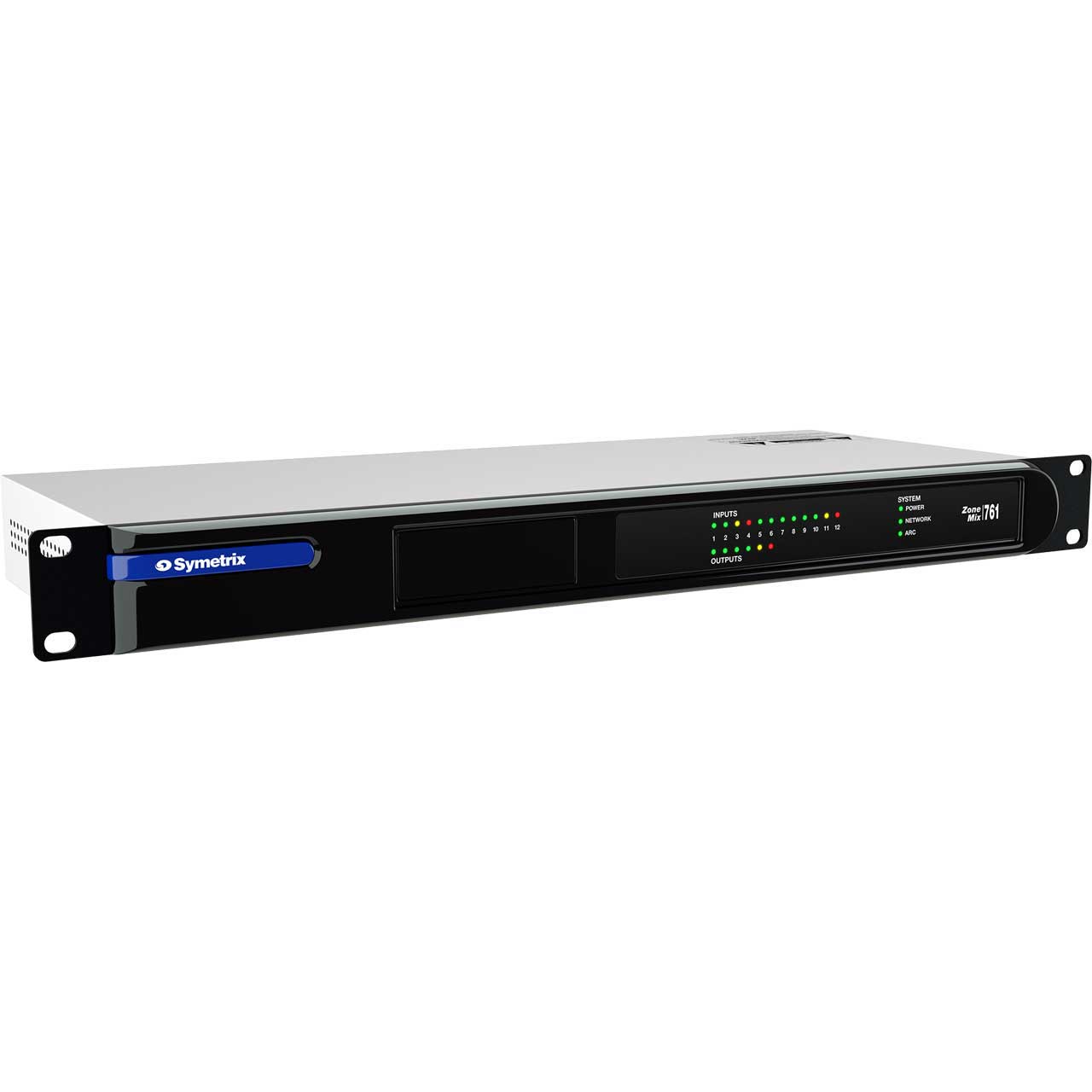

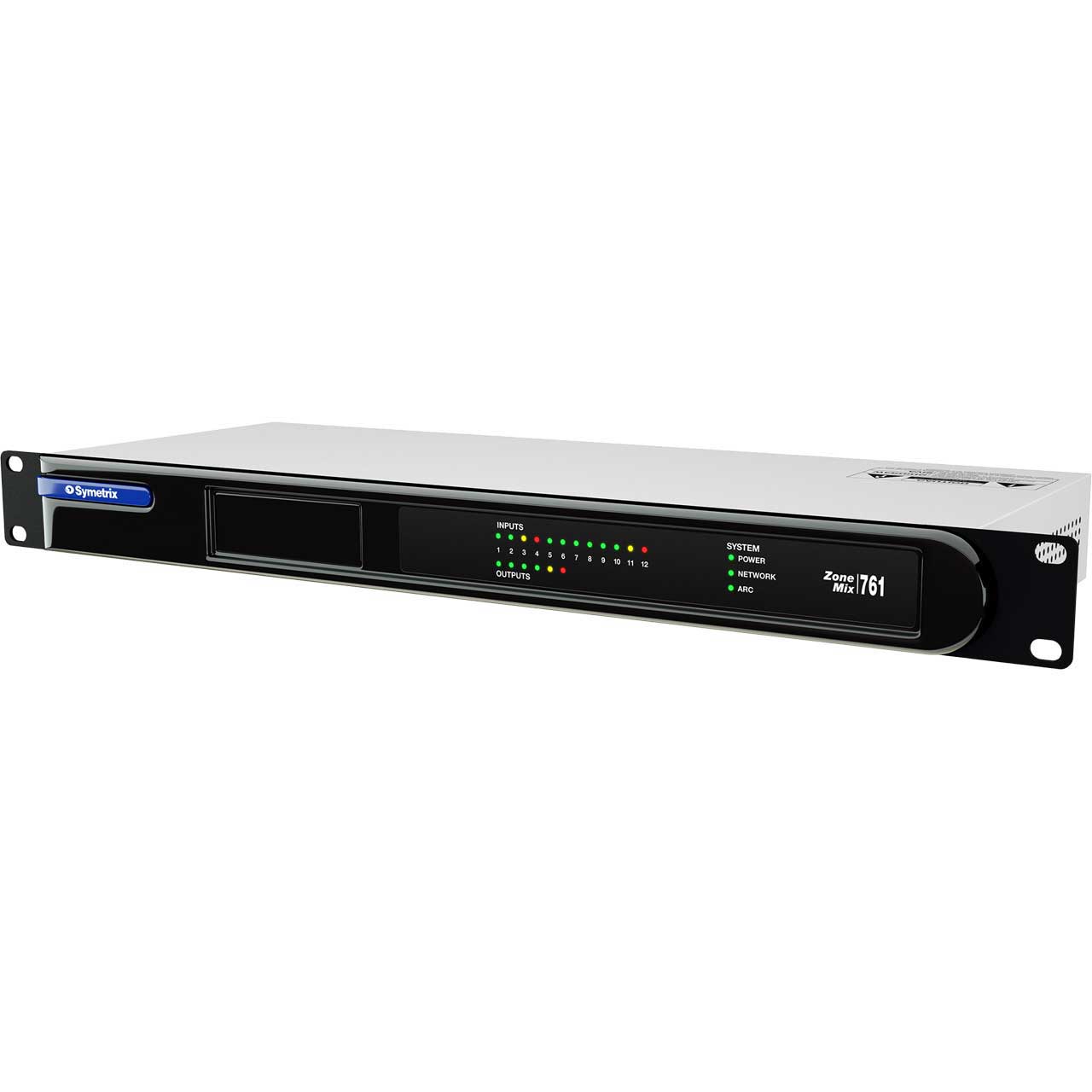

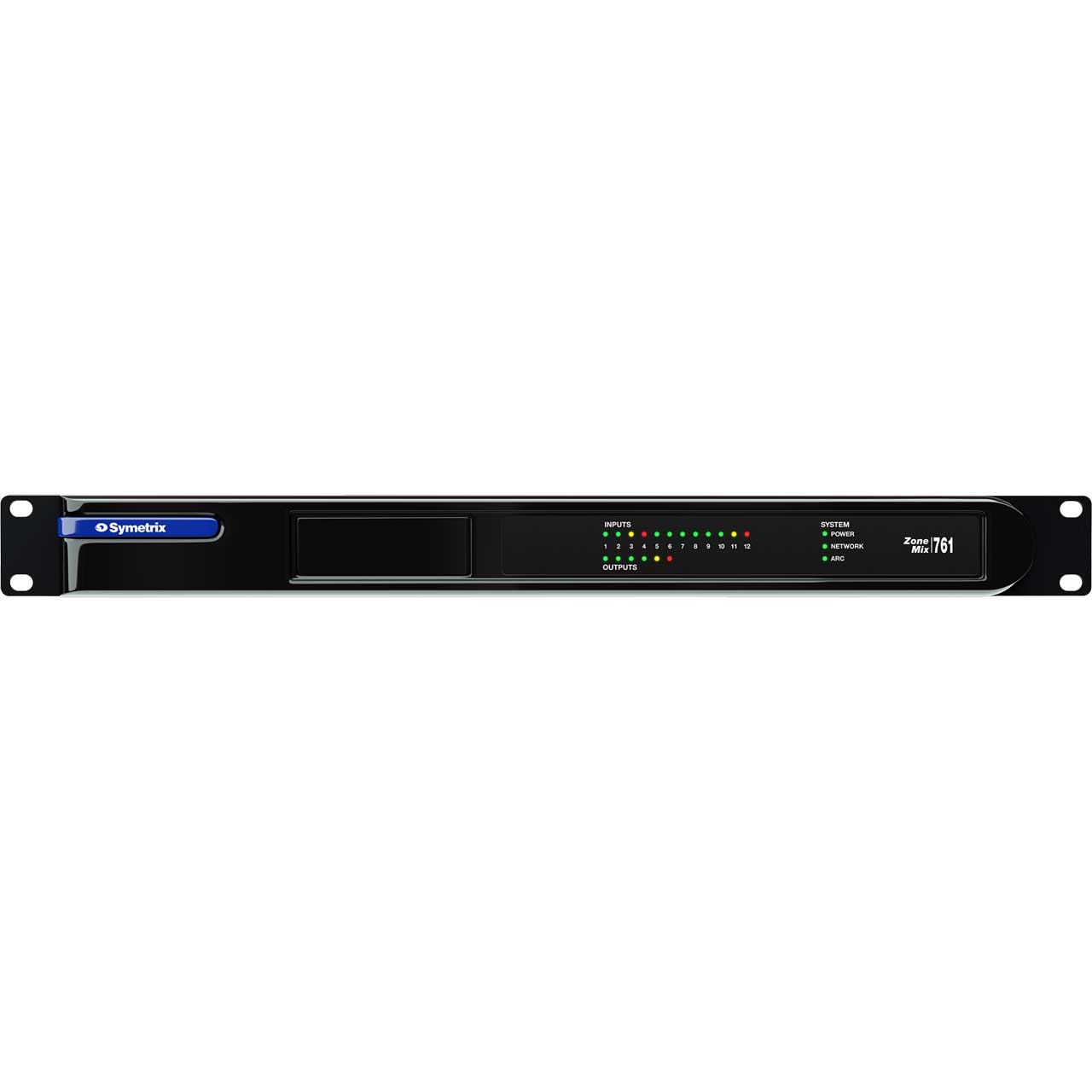

Symetrix ZONE MIX 761 6-Zone Paging and Background Music DSP - 4 Mic/Line In - 8 Stereo Line In - 6 Line Out - ARC

80-0070 - Overview

• Features:

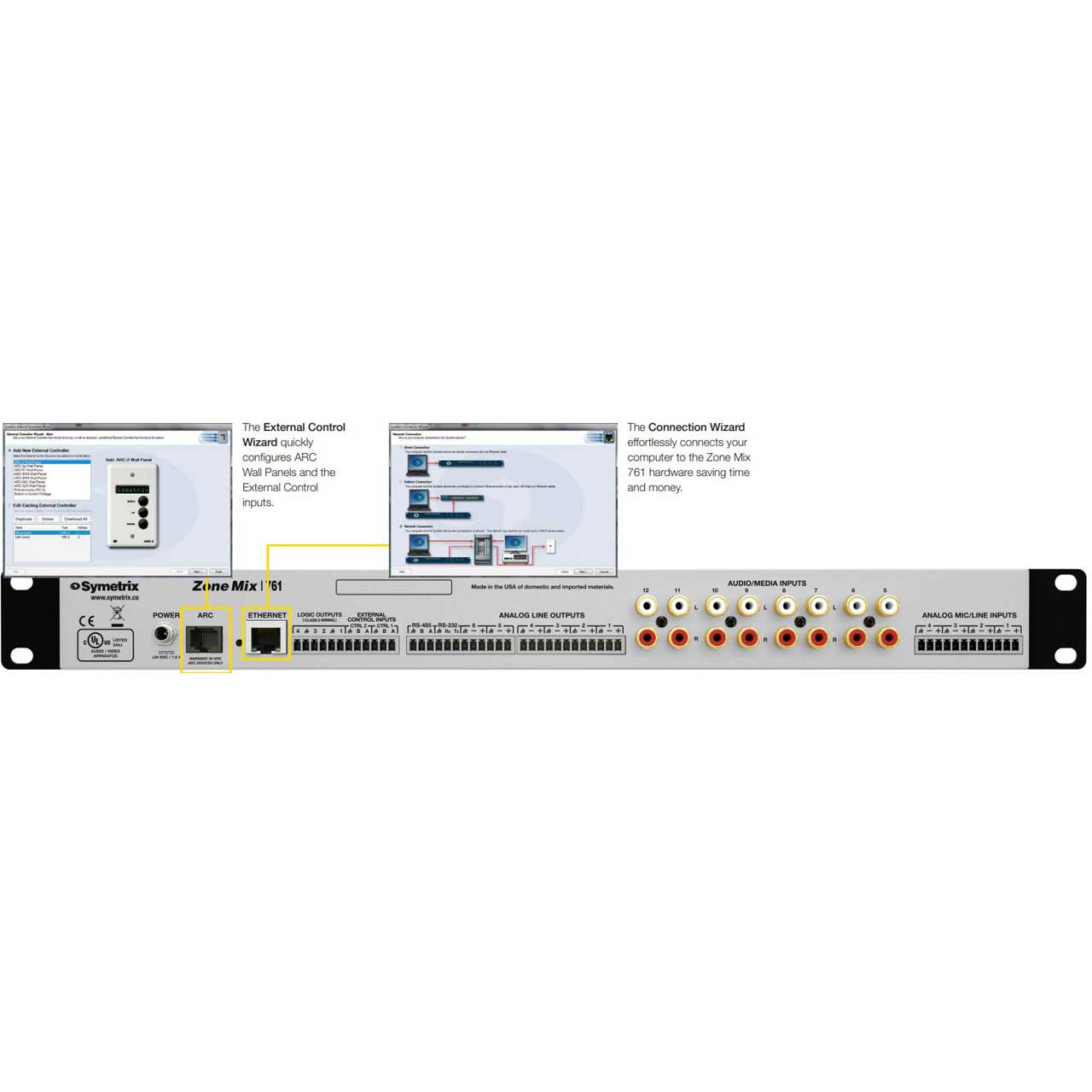

  • Efficient setup using a straightforward Windows-interface connected over Ethernet.
  • Optimal feature set with microphone preamplification, compression, and AGC, paging, feedback elimination, filters and equalization.
  • Support for Symetrix ARC wall panel remotes and ARC-WEB for simple, intuitive end-user operation.
  • 4 switchable mic or line inputs for paging from up to three locations plus emergency page, and 8 audio media inputs.
  • 6 outputs route audio media inputs plus paging to as many as 6 unique locations.


• Specifications:

  • Inputs
  • Number of Inputs: Twelve (12) total; Four (4) switchable balanced mic or line, Eight (8) mono-summed stereo -10 dBV line level.
  • Connectors: 3.81 mm terminal blocks (mic/ine), RCA (Audio Media source).
  • Nominal Input Level: +4 dBu line or -36 dBu mic level (software selectable) with 20 dB of headroom.
  • Mic Pre-amp Gain: +40 dB.
  • Maximum Input Level: +23 dBu mic/line, +8 dBV RCA.
  • Input Impedance: > 18 kΩ balanced, > 9 kΩ unbalanced, > 2 kΩ with phantom power engaged (Euroblock); > 20 kΩ unbalanced (RCA).
  • CMRR: > 50 dB @ 1 kHz, unity gain.
  • Mic Pre-amp EIN: < -125 dBu, 22 Hz - 22 kHz, 100 Ω source impedance.
  • Phantom Power: +20 VDC, 20 mA maximum per input.

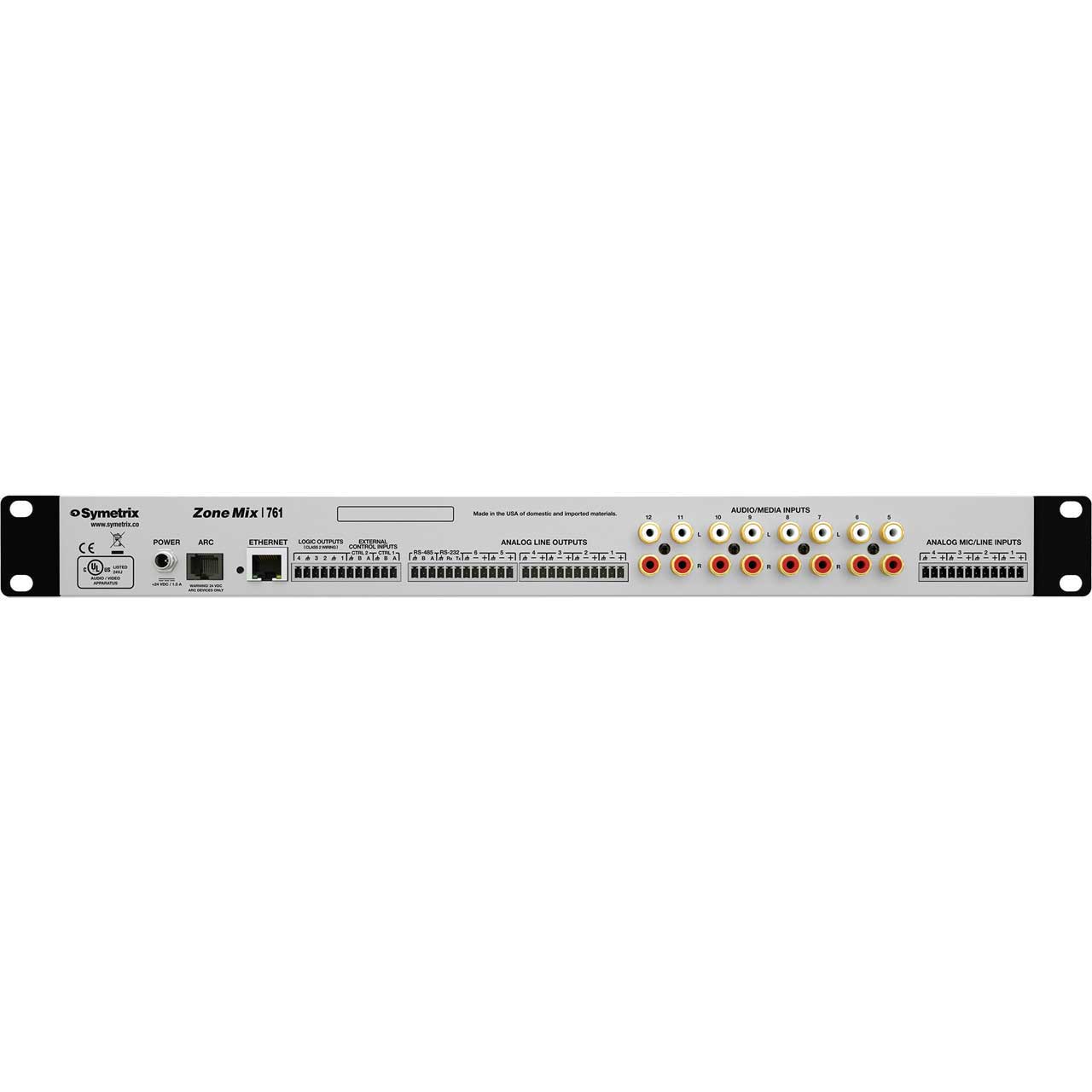

    Outputs
  • Number of Outputs: Six (6) balanced line level.
  • Connectors: 3.81 mm terminal blocks.
  • Nominal Output Level: +4 dBu line level with 20 dB of headroom. For unbalanced analog output, do not connect the minus output terminal. Unbalanced configuration results in 6 dB lower output level.
  • Maximum Output Level: +24 dBu.
  • Output Impedance: 200 Ω balanced, 100 Ω unbalanced.

    System
  • Sample Rate: 48 kHz.
  • Frequency Response: 20 Hz - 20 kHz, +/- 0.5 dB.
  • Dynamic Range: > 110 dB (A-Weighted), input to output.
  • THD+Noise: < -85 dB (un-weighted); 1 kHz @ +22 dBu with 0 dB gain.
  • Interchannel Crosstalk: < -90 dB @ 1 kHz, typical.
  • Latency: < 1.6 ms, input to output with all DSP inactive.

    Mechanical Data
  • Space Required: 1U (WDH: 18.91 in x 8.72 in x 1.72 in
  • Electrical: 100-240 VAC, 50/60 Hz, 25 Watts maximum. Universal input.
  • Ventilation: Maximum recommended ambient operating temperature is 86 F.
  • Certifications or Compliance: UL 60065, cUL 60065, IEC 60065, EN 55103-1, EN 55103-2, FCC Part 15, RoHS
  • Shipping Weight: 8.15 lbs


• Item Includes:

  • 1x 24 VDC @ 1 amps switching power supply (Symetrix part no. 12-0002-A)
  • 1x Power cable
  • 16x Detachable 3.81 mm terminal block connectors


• Warranty:

  • 5 years
