Tannoy AMS 6DC Surface Mount Loudspeaker - White - Pair

Questions? Ask a Markertek Expert:
800-522-2025 Email

Tannoy AMS 6DC Surface Mount Loudspeaker - White - Pair

Manufacturer: Tannoy Ltd.

Item #: TAN-AMS-6DC   •   MFG #: TAN-AMS-6DC




Our Price:$600.00

free ship


Color:



Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The Tannoy AMS 6DC is a wide bandwidth, high power-handling and high sensitivity surface mount loudspeaker designed with an aesthetic that is perfect for the architectural considerations of building design. The elegantly styled moulded enclosures blend beautifully into any decor with custom colour available on special order. Additionally the AMS 6DC has undergone the most punishing environmental testing of any product in Tannoy's history - achieving an IP65 rating, which is among the highest in the industry for outdoor use.

    Behind the unobtrusive, smoothly formed, weather-resistant zinc-plated nickel grilles and higher temperature polymer mouldings lies the technical heart of Tannoy's Dual Concentric Driver's revolutionary Omnimagnet technology and a unique patent-pending Torus Ogive Waveguide device. Together these innovations provide more consistent and controlled directivity along with improved high frequency response, as well as much improved time alignment and greater coherence between the low frequency and high frequency drivers.

    This latest generation of Dual Concentrics have their genesis in many of the world's high end recording studios, with that classic signature Tannoy technology being used to mix and master a rich history of recording industry classics, including The Beatles' most treasured recordings in London's Abbey Road. By extension, the new AMS models ensure that playback of recorded material sounds exactly as the engineer intended when it was mixed in the studio, making them perfect for entertainment and hospitality venues, as well as areas where true sonic clarity and reliability is required.

    The AMS range utilises a 16 ohm driver, making it ideal for use in high performance low-impedance systems (with optimized performance when used in conjunction with Lab.gruppen LUCIA amplifiers). Alternatively, for constant voltage systems, Tannoy have specified as standard, high quality low insertion loss 60 W transformers featuring switching for taps at 60 W, 30 W and 15 W, with an additional 7.5 W tap for traditional systems.

    APPLICATIONS

    Airports, Convention Centres, Hotels
    Boardrooms & Offices
    Business Music Systems
    Cruise Ships
    Houses Of Worship
    Multizone Foreground Music & Paging Systems


    • Features

      • Next-generation Dual Concentric driver featuring Omnimagnet technology
      • Torus Ogive waveguide for improved broadband directivity
      • 16-ohm drivers optimized for use with Lab.gruppen LUCIA amplifiers

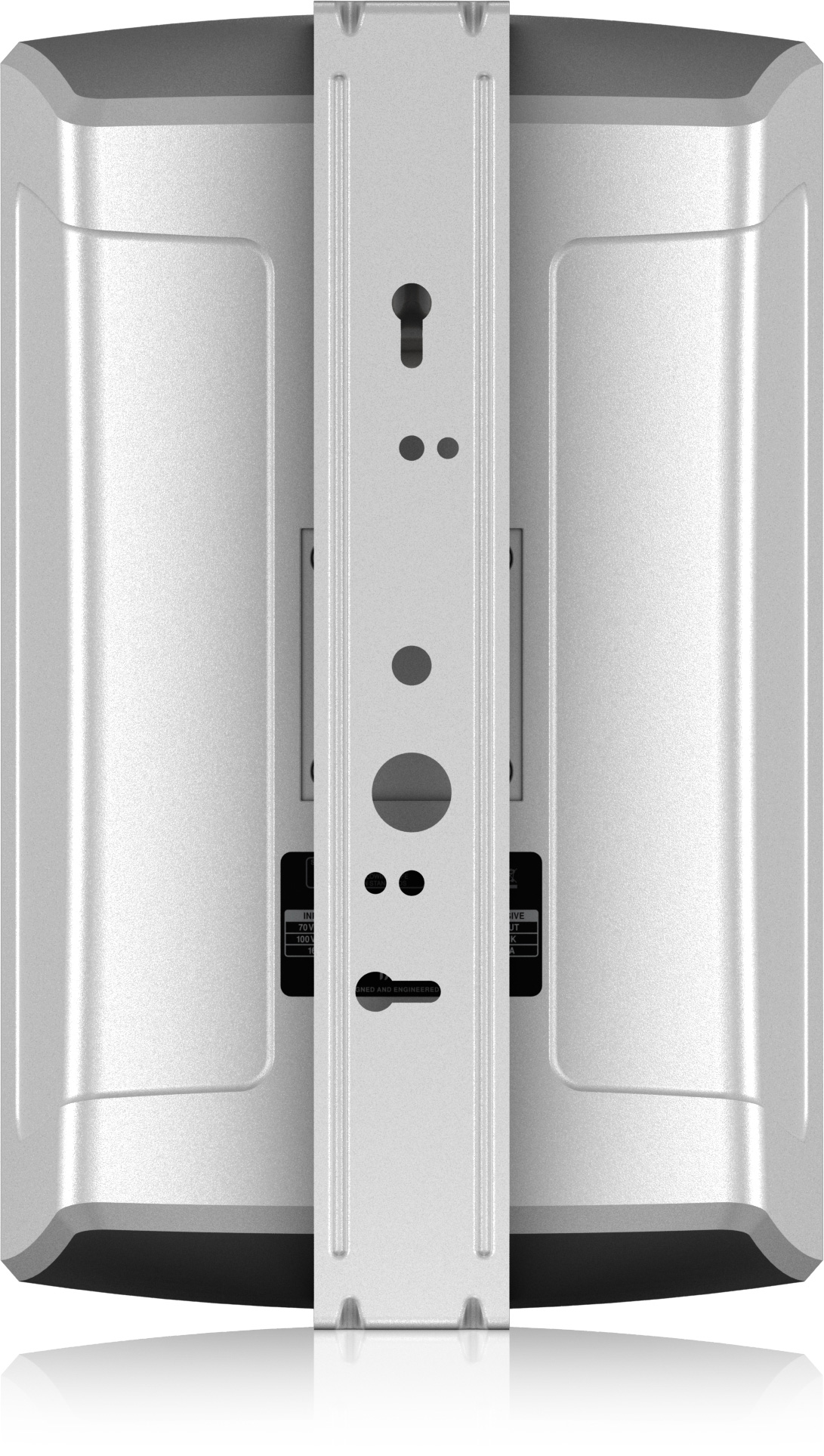

      • Yoke bracket included; optional any-angle accessory bracket available
      • Weather resistant rated IP65 to EN60529 (IEC529)
      • Thickened 4 mm high-temperature molded cabinets
      • Custom color options

    • Specifications

      • Frequency Response (-3dB) (1): 75 Hz - 30 kHz
      • Frequency Range (-10dB) (1): 55 Hz - 40 kHz
      • System Sensitivity (1W @1m) (2): 89 dB (1 W = 4 V for 16 Ohms)
      • Nominal Coverage Angle: 90 degrees conical
      • Power Handling (3):
      • - Average: 80 W
      • - Programme: 160 W
      • - Peak: 320 W
      • Recommended Amplifier Power: 160 W @ 16 ohms
      • Nominal Impedance (Lo,Z): 16 Ohms
      • Rated Maximum SPL:
      • - Average: 108 dB
      • - Peak: 114 dB
      • Transformer Taps (via front rotary switch):
      • - 70V: 60 W / 30 W / 15 W / 7.5 W / OFF & low impedance operation
      • - 100V: 60 W / 30 W / 15 W / OFF & low impedance operation

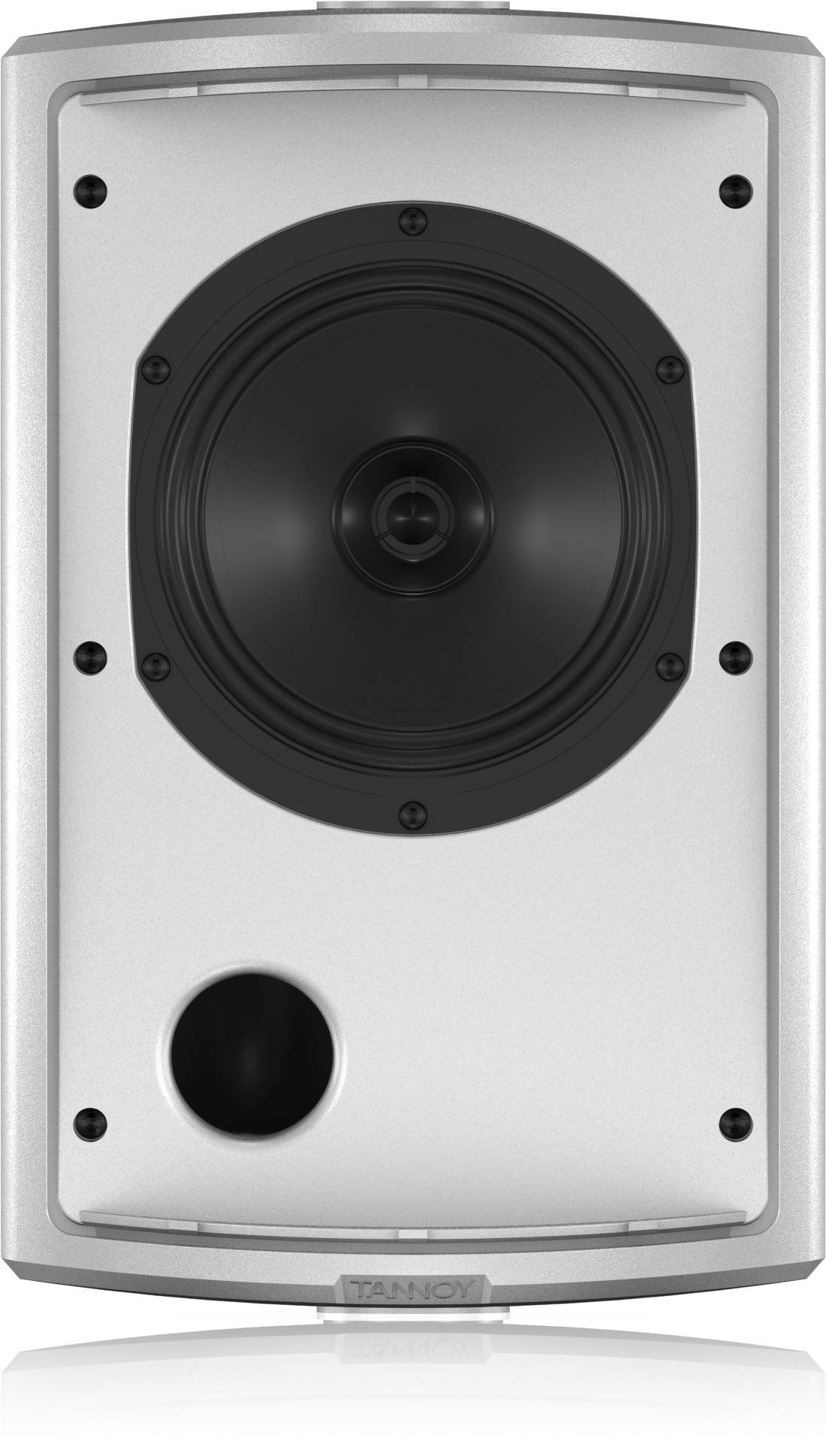

      • Dual Concentric point source driver: 1 x 165 mm (6.5") Dual Concentric driver, using Omnimagnet technology
      • Low Frequency: 44 mm (1.75") voice coil, treated multi fiber paper pulp cone
      • High Frequency: 25 mm (1.00") PEI dome
      • PHYSICAL
      • Enclosure: ABS
      • Grille: Steel, plated and painted
      • Connectors: Removable locking connector with screw terminals
      • Transformer setting: Rotary switch
      • Dimensions (H x W x D): 364.8 x 230.0 x 268.8 mm (14.36 x 9.05 x 10.58")
      • Net Weight (ea): 6.08 kg (13.40 lbs)
      • Shipped Weight: 6.76 kg (14.90 lbs)
      • Notes: (1) Average over stated Bandwidth. Measured in an IEC baffle in an Anechoic Chamber (2) Unweighted Pink noise input, measured at 1m on axis (3) Long term power handling capacity as defined in EIA - 426B test

    • Item Includes

      • 2 Loudspeakers
      • Yoke Bracket

    • GTIN:

      5035866179718
