Tannoy CMS 403ICTE 4 Inch Full Range Directional Ceiling Loudspeaker with ICT Driver - Pair

ITEM #: TAN-CMS-403ICTE MFG #: CMS 403ICTE

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$378.00

Our Price:

$349.95

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    CMS 403ICTE - Overview

    The Tannoy CMS 403ICTE is a wide bandwidth 160-Watt high sensitivity loudspeaker that utilises our third generation Ceiling Monitor System technology (CMS 3.0). Thanks to an all-new proprietary 4" ICT (Inductive Coupling Technology) point source driver with extended frequency range, the CMS 403ICTE delivers consistent broadband directivity with enhanced intelligibility. ICT drivers provide exceptional long-term reliability - and are ideal for constant-usage applications.

    Adjustable Tilt Angle

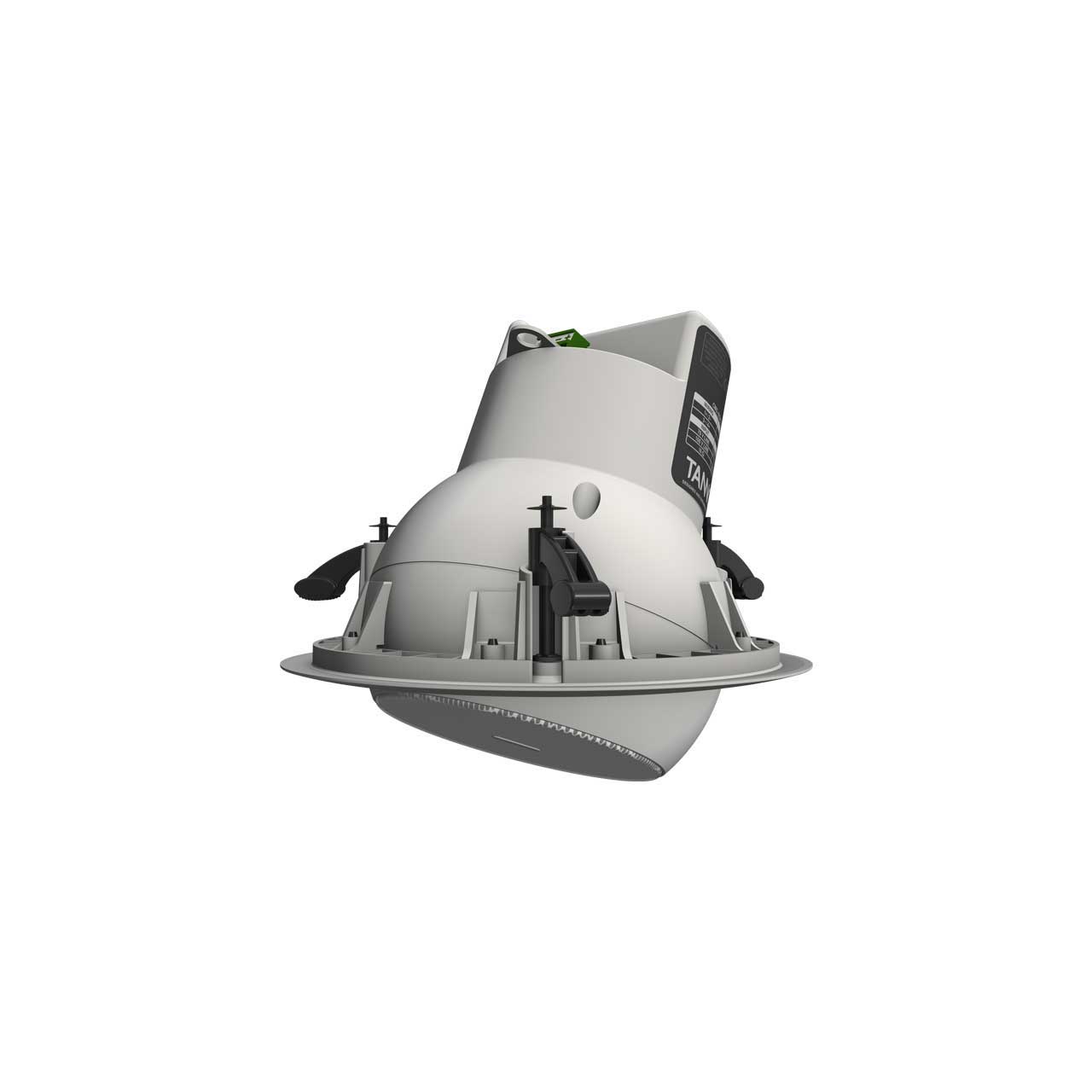

    Specifically designed with a self-aligning 3 way clamp system for fast, simple and cost effective installation, the CMS 403ICTE can be angled towards the listener within the fixed ceiling-mounting ring. By discreetly pivoting the loudspeaker towards the desired area of coverage, the challenge of speaker placement in a less than ideal room is easily overcome.

    Optimised for Installation

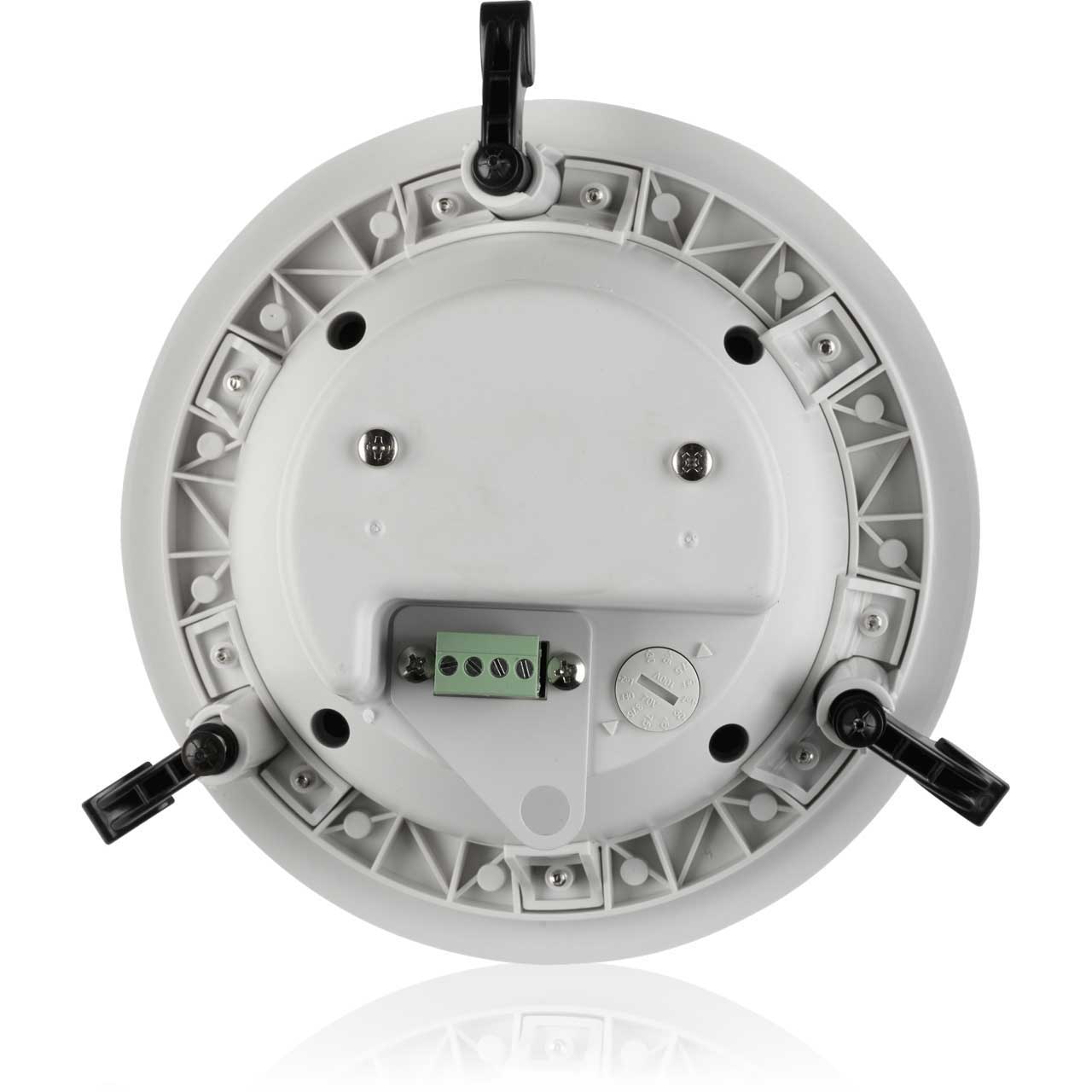

    Equipped with a low-insertion loss 30 W transformer with convenient front panel tap switching, CMS 403ICTE features an integral ABS back-can with removable locking screw terminal connector and loop-thru functionality. The paintable powder coated steel mesh grille with dust protection, two tile support rails and one C-ring are all included.

    LAB GRUPPEN Ready
    The CMS 403ICTE is finished in semi matt white and optimised for use with LAB GRUPPEN LUCIA amplifiers, which accommodate up to 8 CMS Series loudspeakers per channel.

    • Features:

      • Full range ceiling loudspeaker for installation applications
      • 40 Watts continuous, 160 Watts peak power
      • 4" ICT (Inductive Coupling Technology) point source driver for extended frequency range
      • Blind Mount enclosure supplied with integral moulded ABS back can
      • Integrated single unit construction for ease of installation
      • Adjustable tilt angle with 360° rotation to accommodate difficult loudspeaker placements
      • High durability design for constant heavy usage in demanding applications
      • Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input
      • Low insertion loss 30 W line transformer with easily accessible tapping switch
      • Optimised for LAB GRUPPEN low impedance LUCIA amplifiers with up to 8 CMS series loudspeakers per channel
      • Semi matt white finish fits unobtrusively in any environment
      • Powder coated UV resistant perforated steel mesh grille with dust protection
      • Removable grille for custom painting

    • Specifications:

      • Performance
      • Frequency response (-3 dB): 110 Hz - 22 kHz
      • Frequency range (-10 dB): 80 Hz - 24 kHz
      • System sensitivity (1 W @ 1 m): 88 dB (1 W = 4 V for 16 Ohms)
      • Nominal Coverage Angle: 90 degrees conical
      • Coverage Angle (1 kHz to 6 kHz): 120 degrees
      • Directivity Factor (Q): 5.26 averaged 1 kHz to 6 kHz
      • Directivity Index (DI): 6.30 averaged 1 kHz to 6 kHz
      • Recommended Amplifier Power: 80 W @ 16 Ohms
      • Nominal Impedance (Lo, Z): 16 Ohms
      • Transformer Taps (via front rotary switch)
      • Crossover: 7 kHz inductively coupled

        Transducers
      • Dual Concentric point source driver: 100 mm (4.00") mineral loaded polypropylene

        Physical
      • Safety Features: Safety ring located at rear of enclosure for load bearing safety bond
      • Clamping Design: Min / Max clamping range: 0.0 mm (0.0") / 20.0 mm (0.79"), Recommended clamp torque: 1.5 Nm
      • Dimensions: Hole cutout diameter: 187 mm (7.36")
      • Net Weight (ea): 3.0 kg (6.61 lbs)

    • Item Includes:

      • 1x C-Ring
      • 1x Tile-bridge kit
      • 1x Paint mask
      • 1x Cut-out template
      • 1x Grille
