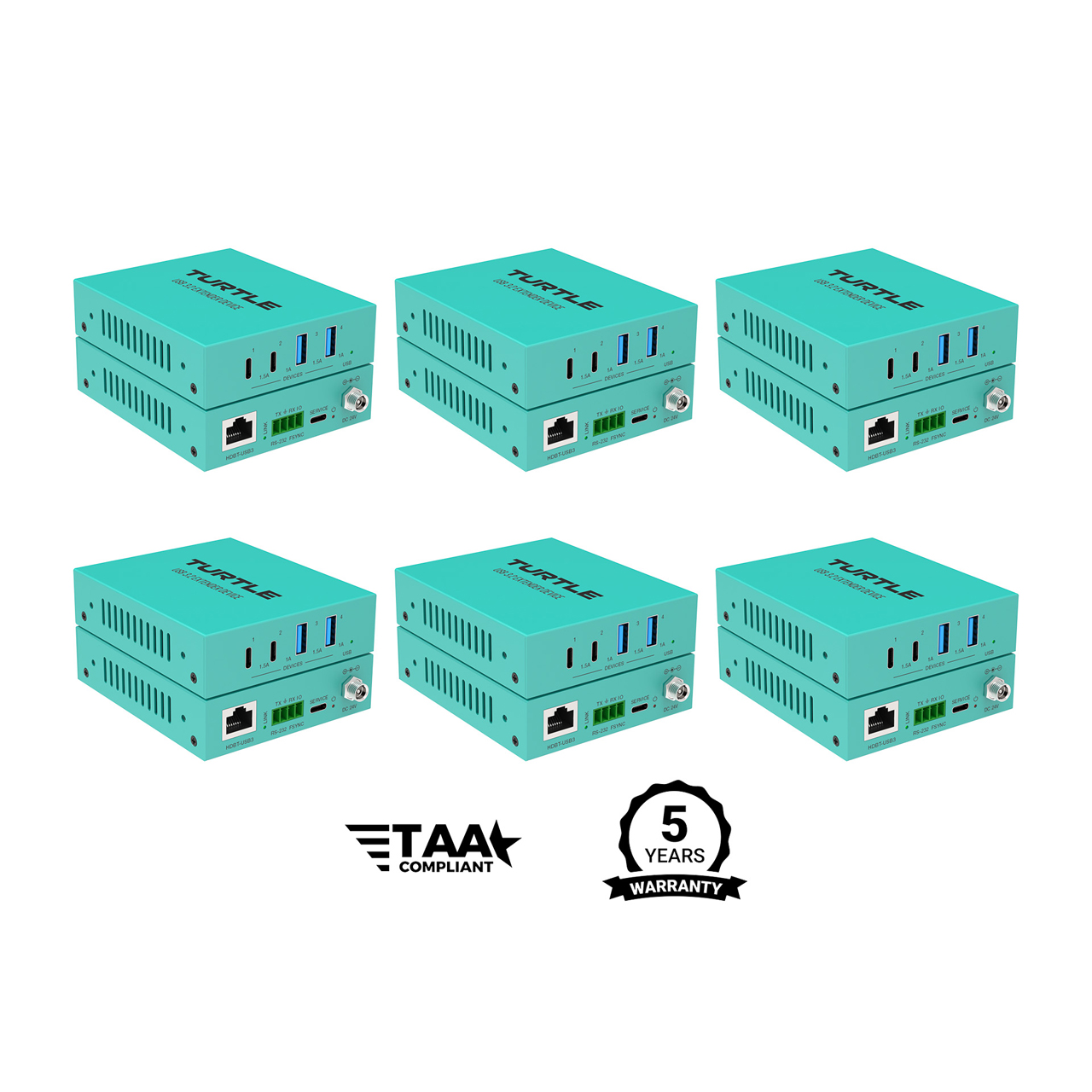

Turtle TAV-USBEXTKIT1 USB3 BYOD Extender Kit over CAT6 Ethernet - 328 Feet - Includes 6x TAV-USBEXTKIT1 Units

ITEM #: TAV-USBEXTKIT1-P MFG #: TAV-USBEXTKIT1-P

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$3,245.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Shipment of this item is subject to a separate oversized-package carrier surcharge.


TAV-USBEXTKIT1-P - Overview

Send USB 3.2 Gen 1 signals up to 328 feet over a single CAT6/6a/7 cable!

The Turtle AV TAV-USBEXTKIT1-P is a 6 pack of the USBEXTKIT1 which delivers high-speed USB 3.2 performance over distances up to 328 Feet (100 meters) using a single CAT6 cable, with data rates up to 5Gbps. BYOD with plug-and-play simplicity, universal device compatibility, and reliable low-latency performance make it the perfect solution for professional AV, conferencing, and live production environments.

328 Foot (100 Meter) USB 3.2 Extension
USB 3.2 Gen 1 signals up to 328 feet over a single CAT6/6a/7 cable, providing long-distance connectivity without compromising performance.

High-Speed 5Gbps
Supports USB 3.2 data rates up to 5Gbps, ensuring fast and reliable performance for devices like PTZ and conference

Plug-and-Play
No drivers. No software. Just connect the Host and Device Extenders, and the system is ready to use baby.

Tough amd Compact
Both Host and Device Extenders are built tough in full metal housing in a compact form factor making them ideal installation in AV racks, conference rooms, or behind equipment.

Power over Cable
With power over cable you only need to power either the Host or Device and it will power the other unit over the CAT cable. That's why they only included one power supply.

USB Flexibility
The Turtle USB Extender Kit is compatible with USB 3.2, USB 2.0, and USB 1.1 devices for ultimate flexibility and compatibility.

  • Features:

    • 328ft USB 3.2 Extension
    • High-Speed 5Gbps
    • Plug-and-Play, No drivers or software needed
    • Tough and Compact Full Metal Housing
    • TAA Compliant

  • Specifications:

      Connections
    • Input:
      - 1x HDBT-USB3 [RJ45 connector, 24V PoC] Output:
      - 2x USB-A DEVICE [USB Type A, 9-pin female]
      - 2x USB-C DEVICE [USB Type C, 24-pin female]
    • Control:
      - 1x RS-232 [3-pin 3.5mm phoenix connector]
      - 1x FSYNC [1-pin 3.5mm phoenix connector]
      - 1x SERVICE [USB Type C, firmware update port]

      Mechanical
    • Housing: Metal Enclosure
    • Color: Turtle Aqua
    • Dimensions: 3.93" x 3.34" x 1" (100mm x 85mm x 25.5mm)
    • Weight: 0.6lbs (275g)
    • Power Supply:
      - Input: AC 100V - 240V 50/60Hz
      - Output: DC 24V/3.75A
    • Power Consumption:
      - TX: 23W (Max)
      - RX: 35W(Max)
      - TX+RX: 68W (Max, including line loss)
    • Operating Temperature: 32°F - 104°F (-20°C - 60°C)
    • Relative Humidity: 20% - 90% RH (no condensing)

  • Item Includes:

    • 6x TAV-USBEXTKIT1 100m USB 3.2 5Gbps Extender Kit over CAT
    • 6x Power Supply

  • Warranty:

    • 5-Year Limited Warranty
