The TASCAM AP-10 features five playback modes - Direct, Single, Interval, Binary, and Program. These individual modes accommodate a wide range of applications. Binary playback supports up to 250 audio files, making the AP-10 well suited for multilingual guidance, zone-specific announcements and large-scale messaging systems. Program playback allows audio to be triggered in a preset sequence for applications such as exhibition tours, work-procedure guidance, and scenario-based presentations. All modes allow audio to be triggered automatically through external devices, while manual start and stop functions are workable from the face of the main unit.
For convenient content preparation and detailed playback control tailored to any facility, the free TASCAM Playlist Editor software allows users to create and edit playlists even when offline. Each audio file can be configured with a wide range of settings including volume, playback intervals, trigger start delay, fade times, and much more. The AP-10 also supports remote control from tablets or PCs through OSC, allowing users to build and customize control surfaces with tools such as TouchOSC which enables integration with video and lighting equipment.

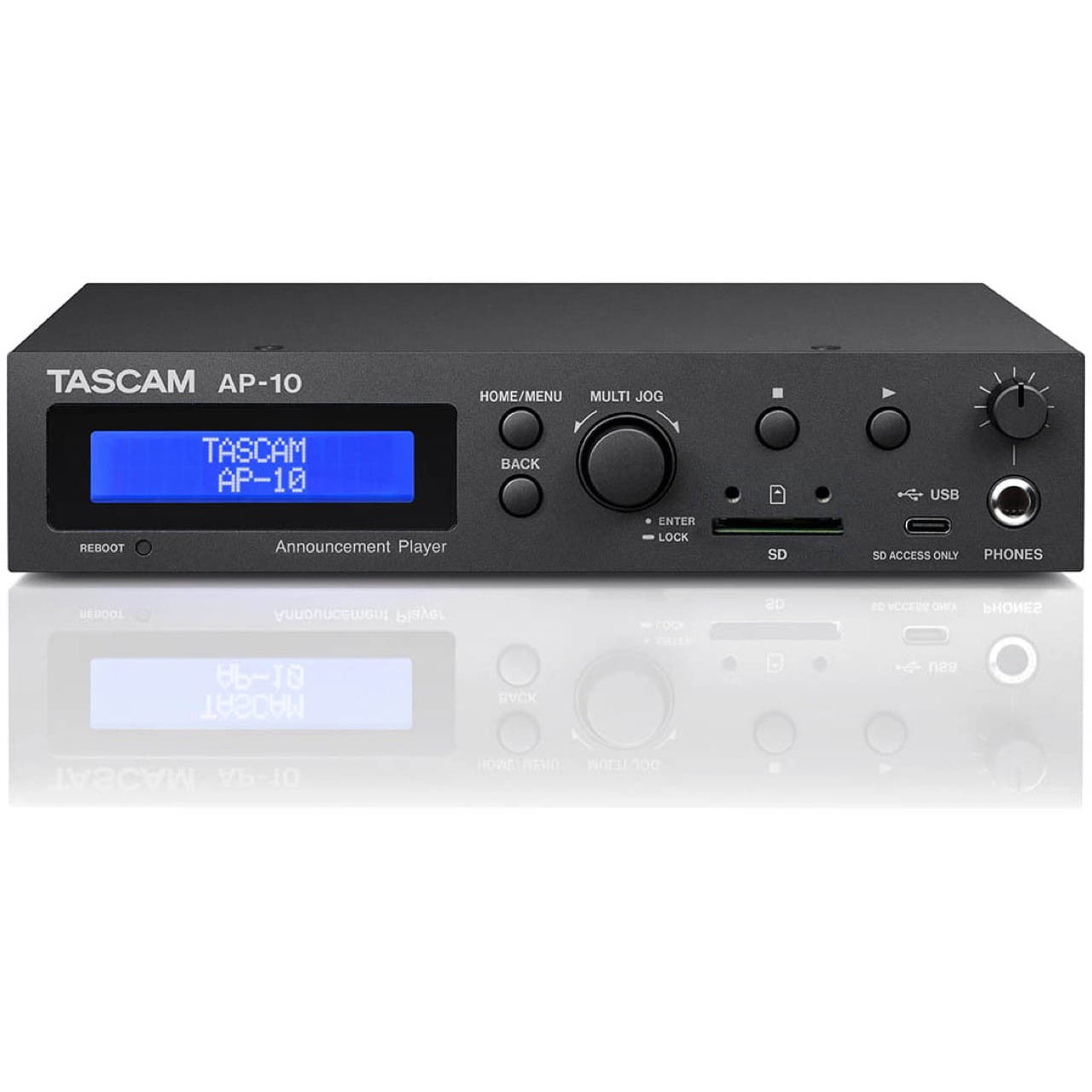

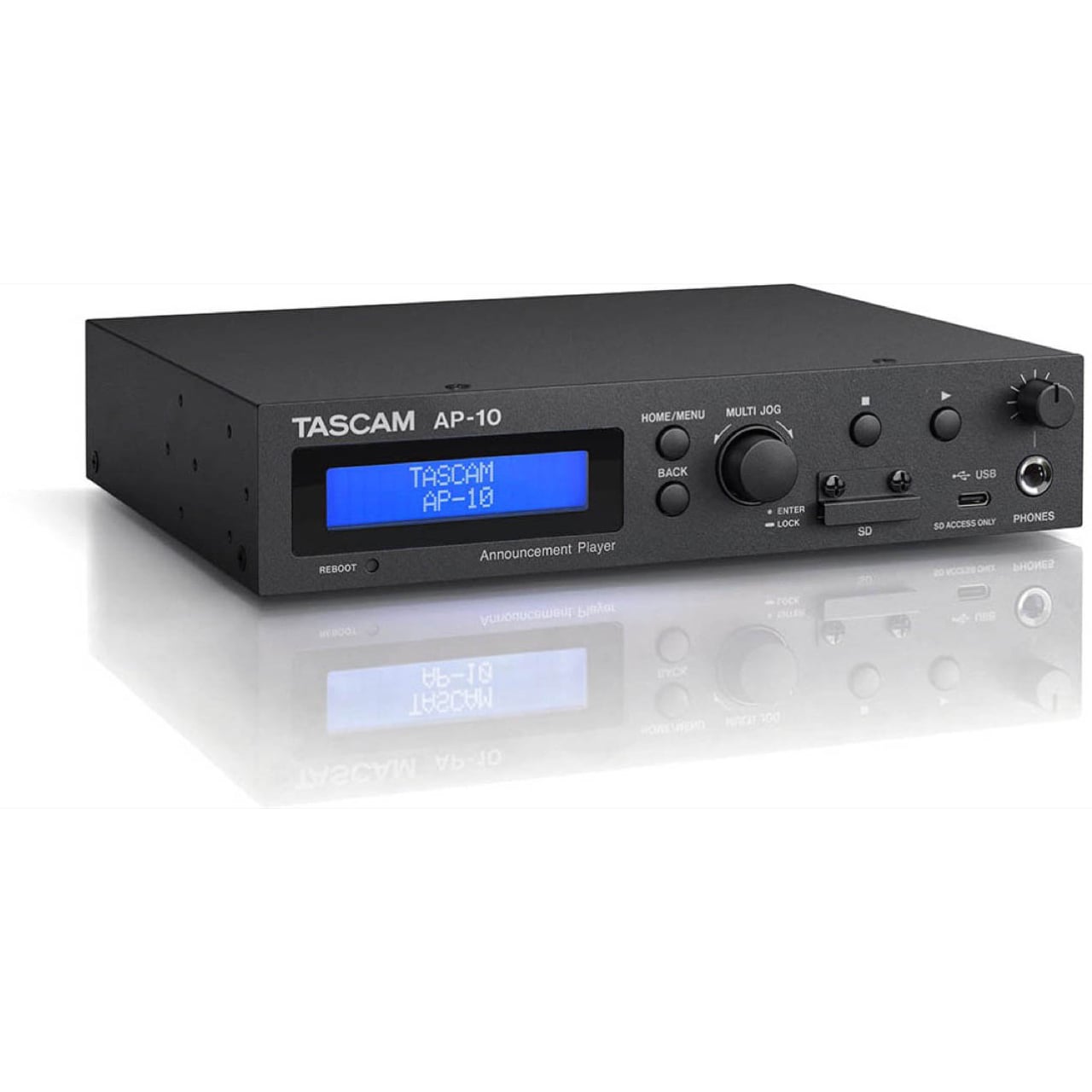

Compact 2-Channel SD Audio Player
The AP-10 is a compact 2-channel SD audio player. Its 1RU half-rack chassis enables flexible installation in a wide range of locations, even where space is limited.

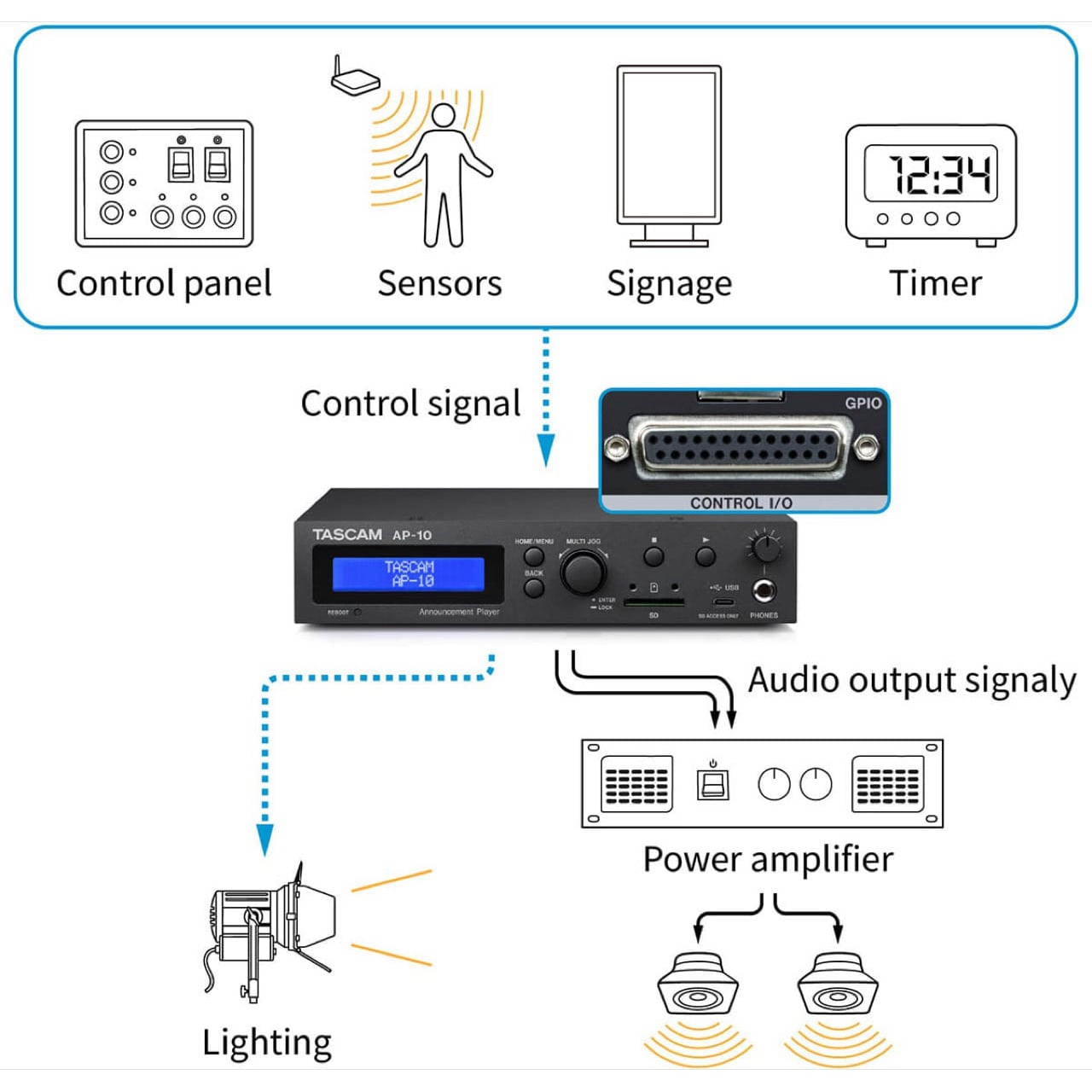

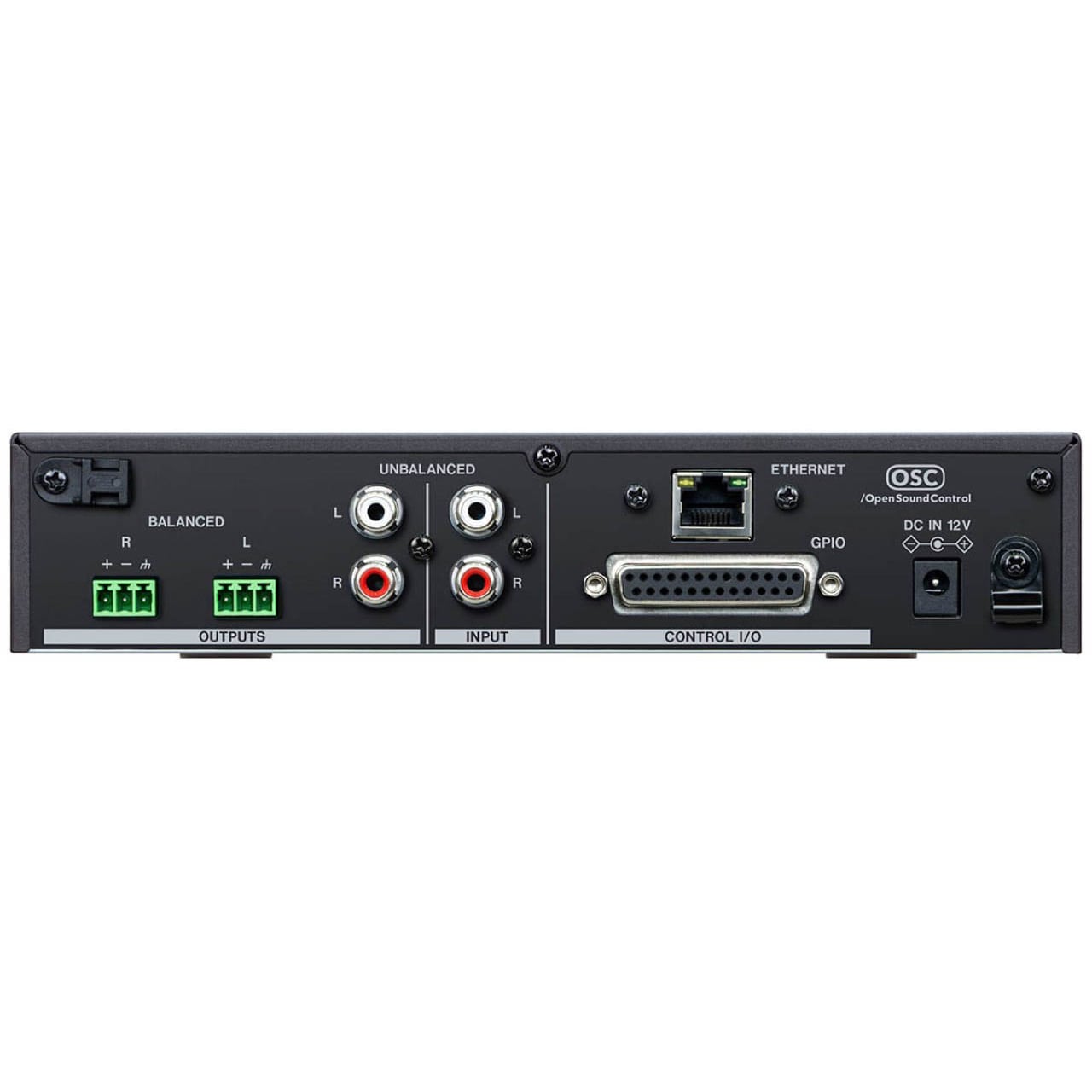

Flexible System Integration via GPIO
The GPIO port enables the AP-10 to integrate with external devices such as control panels, sensors, timers, and signage. Input signals can trigger automatic audio playback, while output signals can activate lighting, display and other connected devices based on playback status.

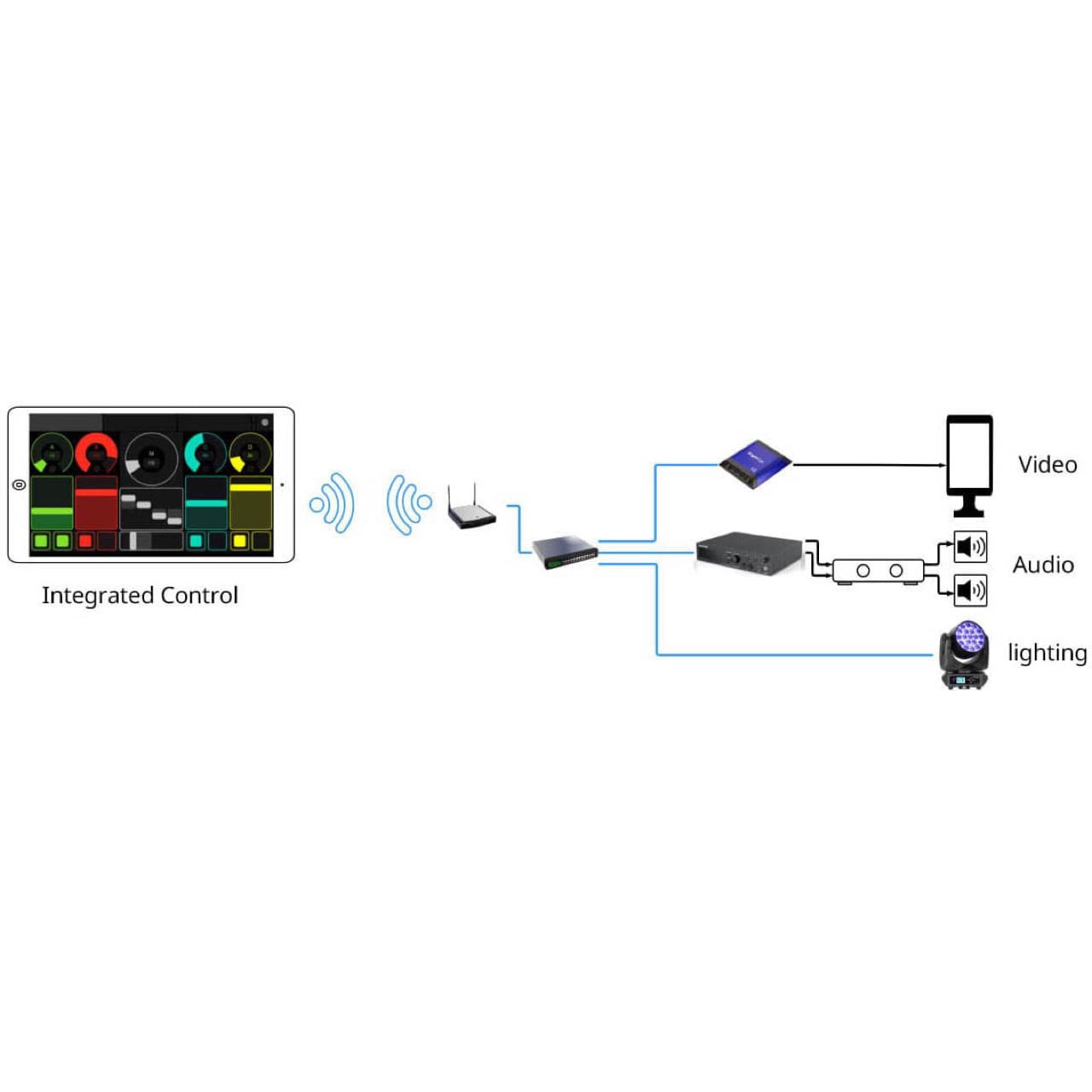

Remote Control via OSC
OSC (Open Sound Control) support makes it easy to create custom interfaces using TouchOSC or similar applications. Playback can be controlled remotely from tablets or PCs and integrated with video and lighting equipment.
Offline Content Management with Detailed Playback Control
Using the free TASCAM Playlist Editor software, audio files can be converted into formats compatible with the AP-10 while playlists can be created and edited efficiently. The software also provides detailed playback settings for each audio file, including volume, playback intervals, fade-in and fade-out times, trigger-start delay, and repeat count and interval. These flexible settings allow playback behavior to be tailored to the operational requirements of a wide range of facilities and applications.
Target Applications:
• Commercial Facilities
• Factories
• Offices
• Amusement Park Facilities
• Theme Parks
• Transit Stations and Airports
Use Cases:
• Spatial Audio Production
• Narration
• Audio Tours
• Announcements
• Alerts / Warnings
