ClearCom FSII-TCVR-IP-19-US FreeSpeak II 1.9GHz IP Transceiver for up to 10 FSII 1.9GHz Beltpacks

ITEM #: FSII-TCVR-IP19US MFG #: FSII-TCVR-IP-19-US

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$3,460.00

Availability: In Stock
iAvailability Description Popup


    FSII-TCVR-IP-19-US - Overview

    Supports 10 FSII 1.9GHz beltpacks per transceiver!

    The ClearCom FreeSpeak II Intercom System FSII-TCVR-IP-19-US is a 1.9GHz Intercom IP Transceiver that supports 10 FSII 1.9GHz beltpacks per transceiver. The FSII-TCVR-IP-19-US is for use with FreeSpeak II 1.9 GHz systems only. The transceiver connects to the Eclipse HX matrix system via the E-IPA interface card. Each transceiver can support up to 10 FSII-BP19 beltpacks. When supported with the E-IPA card, up to 50 1.9GHz beltpacks (in North America or 64 beltpacks in EU countries) and up to 64 transceivers can be supported on one Eclipse HX matrix system.

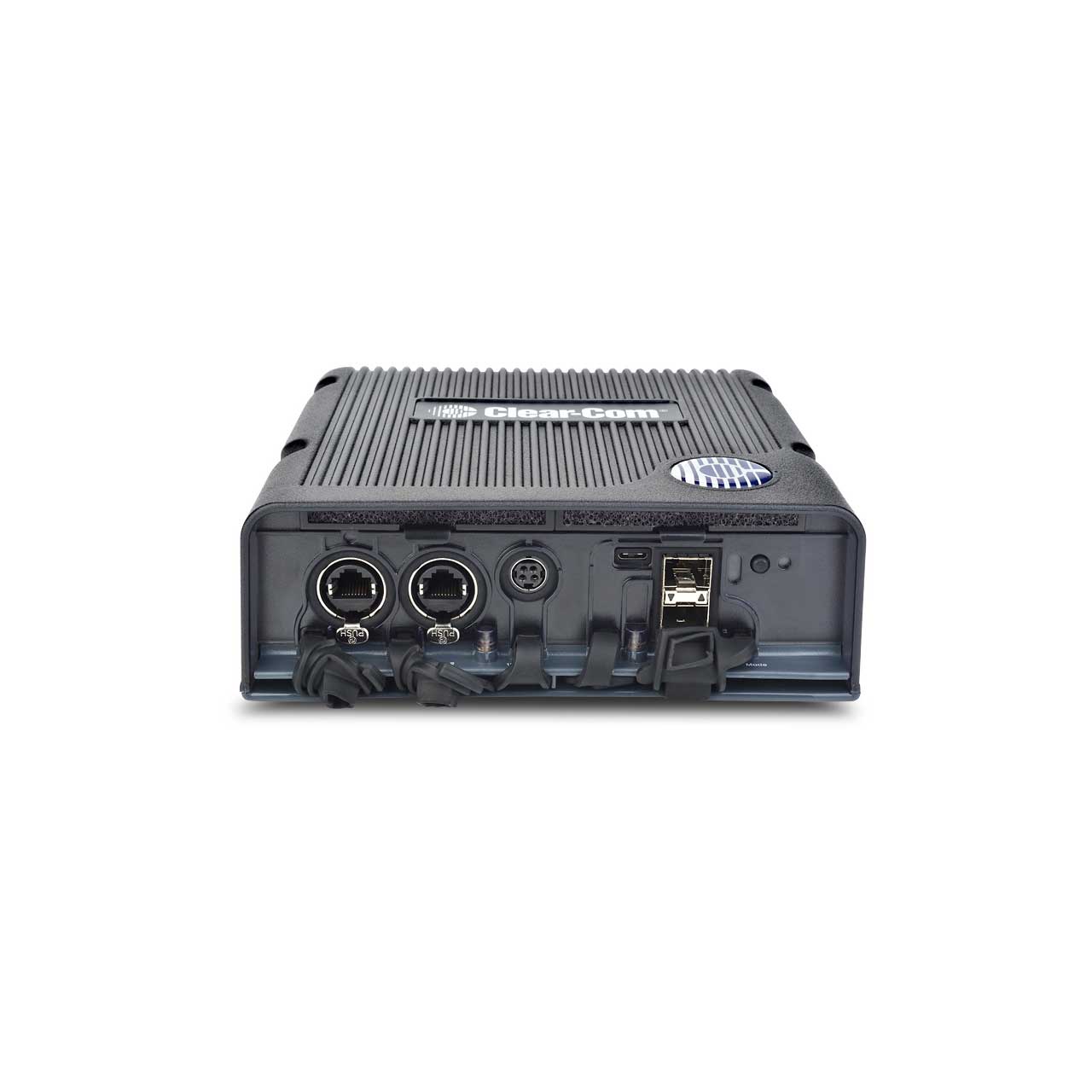

    The FSII-TCVR-IP-19 allows transceivers and beltpacks to be placed anywhere there is an AES67 IP network connection. It connects to the E-IPA-HX card via copper or fiber over an AES67 compliant network switch. Transceivers can be connected by copper (2 RJ45's) or fiber (2 high speed SFP cages).

    The FSII-TCVR-IP-19 can be powered from an Power-over-Ethernet switch, using the supplied external power supply, or it can be connected via fiber and will need to be locally powered. The unit is IP-53 rated for water and dust resistance and has a mount for wall or microphone stand. The green status light is visible from either mounting orientations.

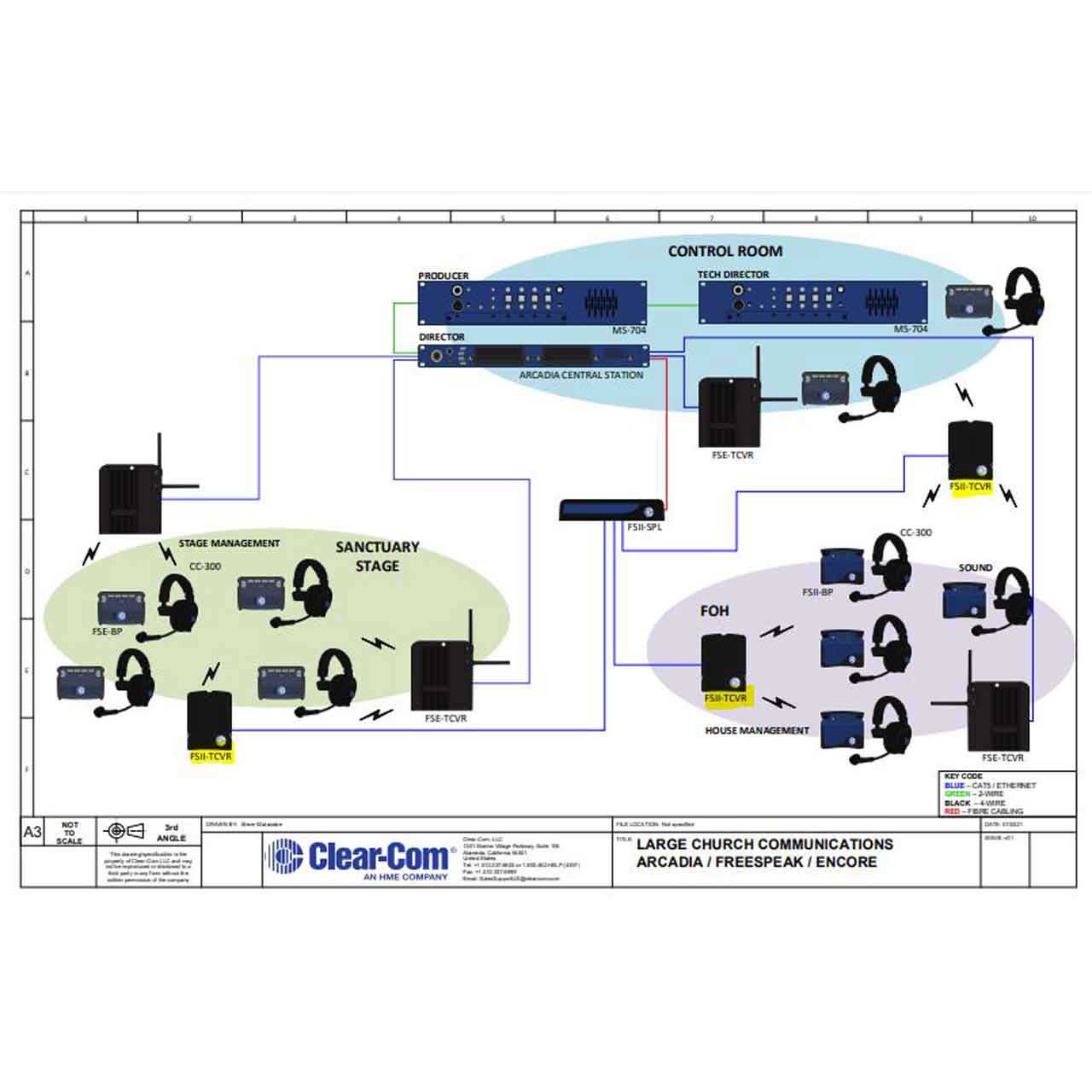

    Please Note! This item is just one component of a larger system. Please refer to the diagram for ideas and recommendations for your Clear-Com intercom system

    • Features:

      • FSII 1.9GHz IP Transceiver
      • Requires E-IPA-HX card and an Eclipse HX frame (not available for FSII-BASE-II)
      • For use with FreeSpeak II 1.9 GHz only
      • Operates over IP on an AES67 compatible network
      • Supports 10 FSII 1.9GHz beltpacks per transceiver
      • Up to 64 transceivers supported on Eclipse HX matrix system
      • Ethercon RJ45 network connections (2)
      • High speed fiber SFP cages (2)
      • Power-over-Ethernet (PoE) up to 300 ft (91 m)
      • Green LED status indicator on top and bottom
      • Mic stand or wall mount orientation (metric and imperial threads)
      • IP53 rating for wet and dry conditions

    • Specifications:

      • Frequency Spectrum
      • USA, Canada, Mexico:
      • 1920-1930 MHz (5 Channels)
      • Transceiver Range Output Power: 100mW

        EU, Russia, Singapore, Hong Kong, Australia, New Zealand, South Africa:
      • 1880-1900 MHz (5 Channels)
      • Transceiver Range Output Power: 250mW

        Japan:
      • 1893-1906 MHz (2 Channels)
      • Transceiver Range Output Power: 250mW

        Argentina, Bahamas:
      • 1910 MHz-1930 MHz (10 Channels)
      • Transceiver Range Output Power: 250mW

        Brazil:
      • 1910 MHz-1930 MHz (5 Channels)
      • Transceiver Range Output Power: 250mW

        Chile:
      • 1910 MHz-1930 MHz (5 Channels)
      • Transceiver Range Output Power: 70mW

        Taiwan:
      • 1880-1895 MHz (8 Channels)
      • Transceiver Range Output Power: 250mW

        Modulation:
      • GFSK, TDMA frame 10ms Full and Long slot

        Power
      • Output: (EU/Russia) 10dBm average, (US): 18-20dBm
      • AC Input: 100VAC-240VAC, 60/50Hz, -1.4A max
      • Max Power Consumption at 120V: 20W
      • PoE Class 3: 15.4W at PoE port, 12.95W at device
      • USB Power Source: 5V, 3A; max power consumption = 12.5W

        Environmental
      • Operating: 32§-125§F (0§-50§C)
      • Storage: 32§-150§F (0§-70§C)
      • Humidity: Between 20% and 90%, Non-Condensing

        Mounting

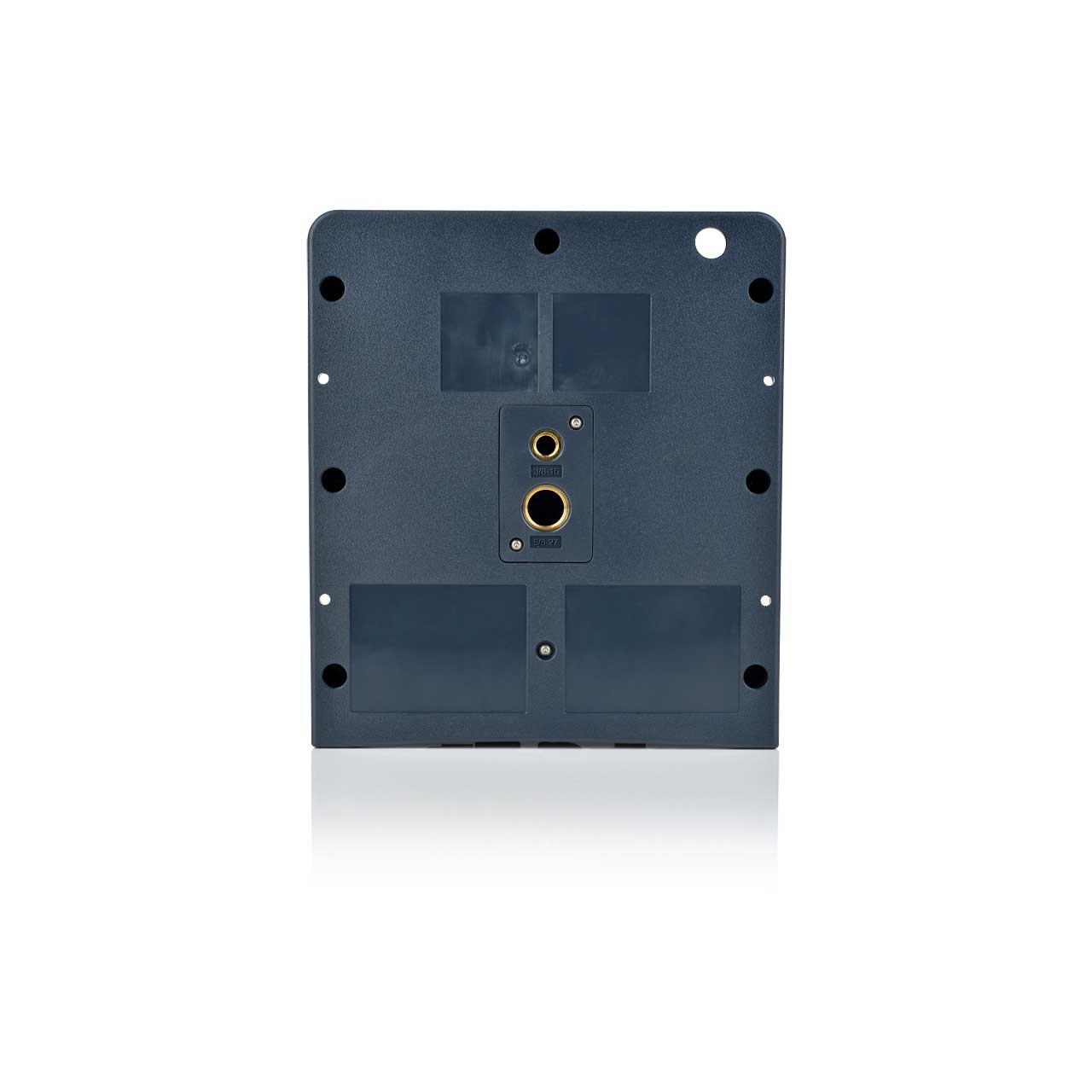

      • Rear Mic Stand Mounts: Mic stand threaded sockets 5/8" & 3/8"
      • Safety Harness Attachment
      • Ball Joint Mic Adapter

    • GTIN:

      0097652143629
