Tascam BO-16DX/IN 16CH D-Sub to XLRF Breakout Box

Manufacturer: Tascam

Item #: TCM-BO-16DX-IN   •   MFG #: BO-16DX/IN



List Price:$399.99
Our Price:$299.99

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    Required Accessories

        Show More

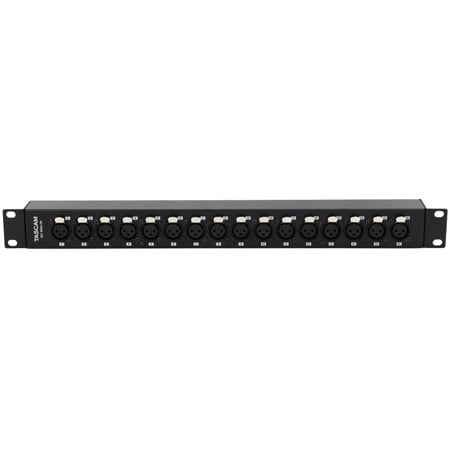

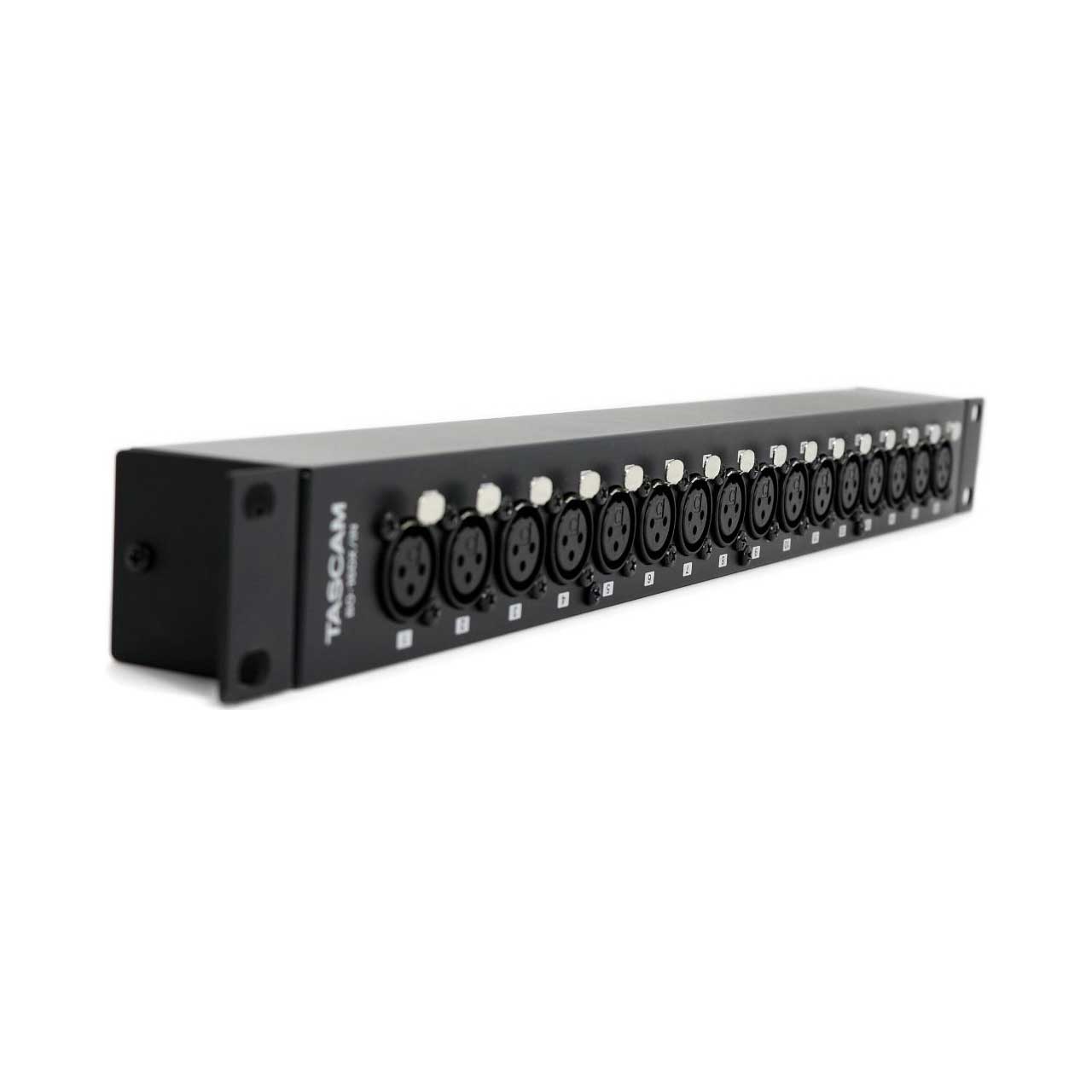

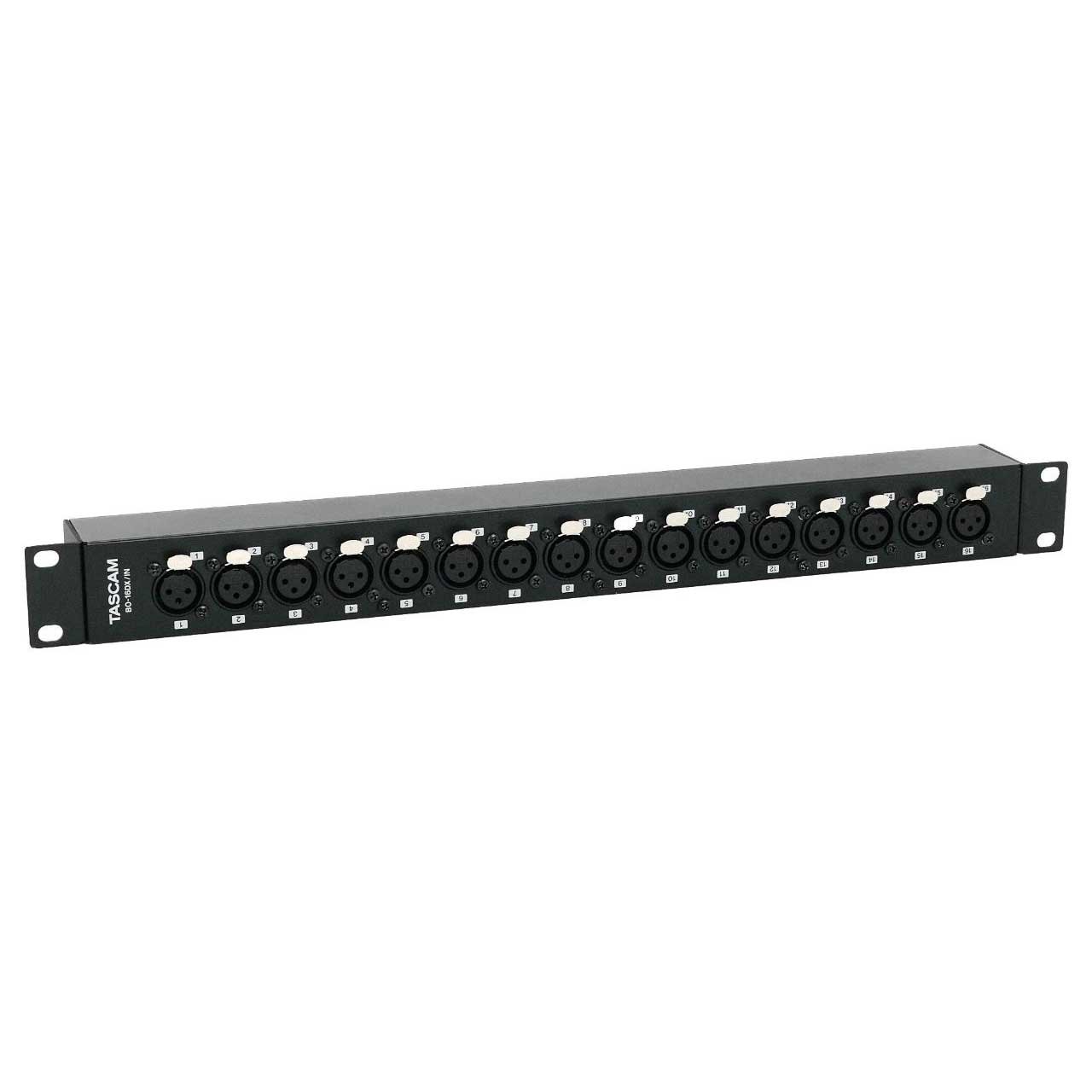

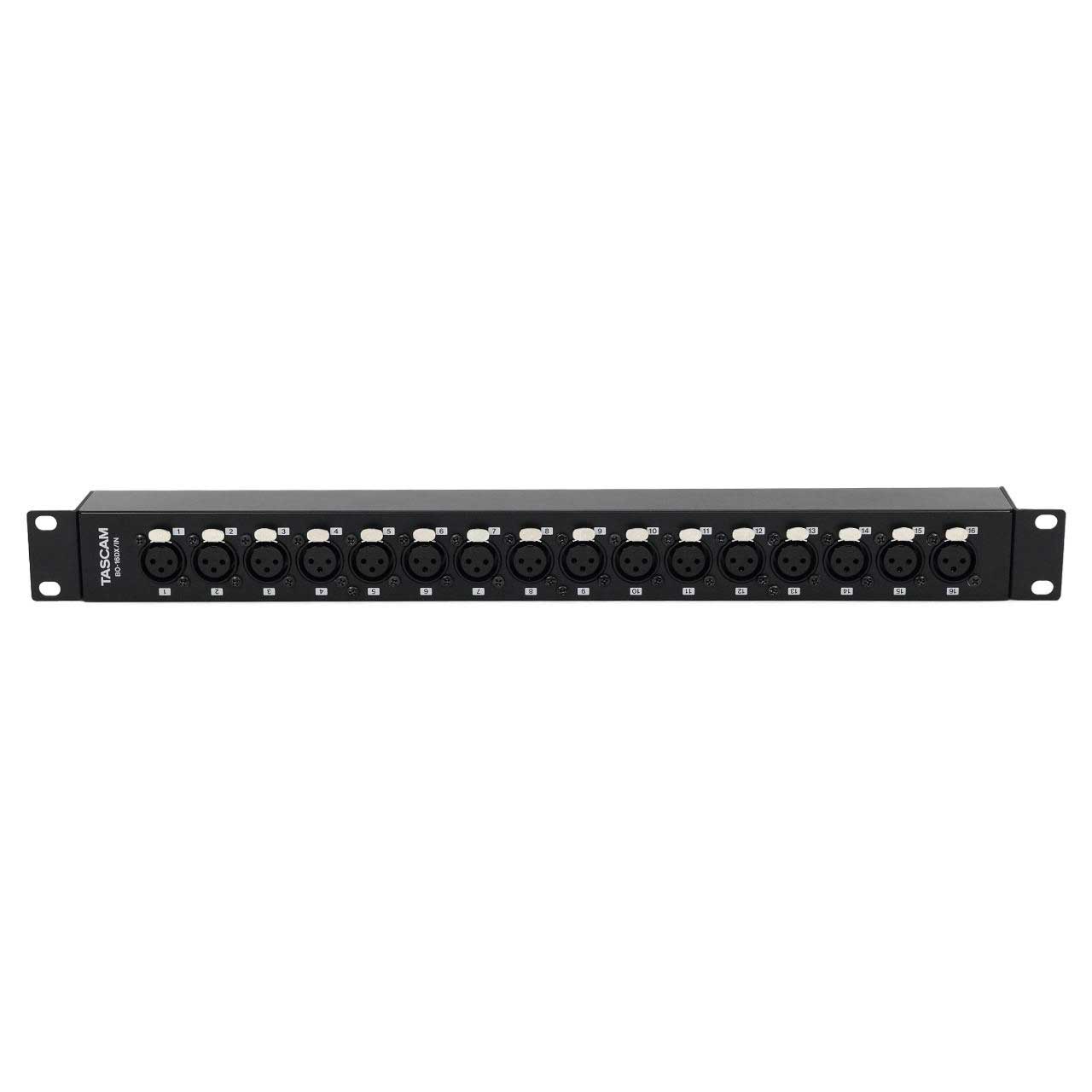

    The TASCAM BO-16DX/IN is a rugged, rackmounted audio adaptor designed for professional installation and live sound applications. 16 front-panel XLR Inputs are internally bridged to dual D-Sub output connectors on the rear panel, providing a fast and easy way to interface between stage boxes, FOH and monitor mixing consoles, audio over IP convertors and more.

    Designed as companion pieces for the TASCAM ML-16D and ML-32D Analog to Dante convertors, a combination of BO-16DX/IN and BO-16DX/OUT provide an elegant communication link between your Analog and Digital subsystems.

    The TASCAM BO-16DX/IN has been designed to mount in either of two 180 degree rotations to simplify cabling runs and avoid unnecessary twisting of D-Sub connector cables within the rack.

    For enhanced flexibility in rack design, the rack ears of the BO-DX16/IN can be repositioned to face "forward" or "backward" so that either the XLR or D-Sub connectors are front facing.


    • Features

      • 16 front-panel XLR input connectors

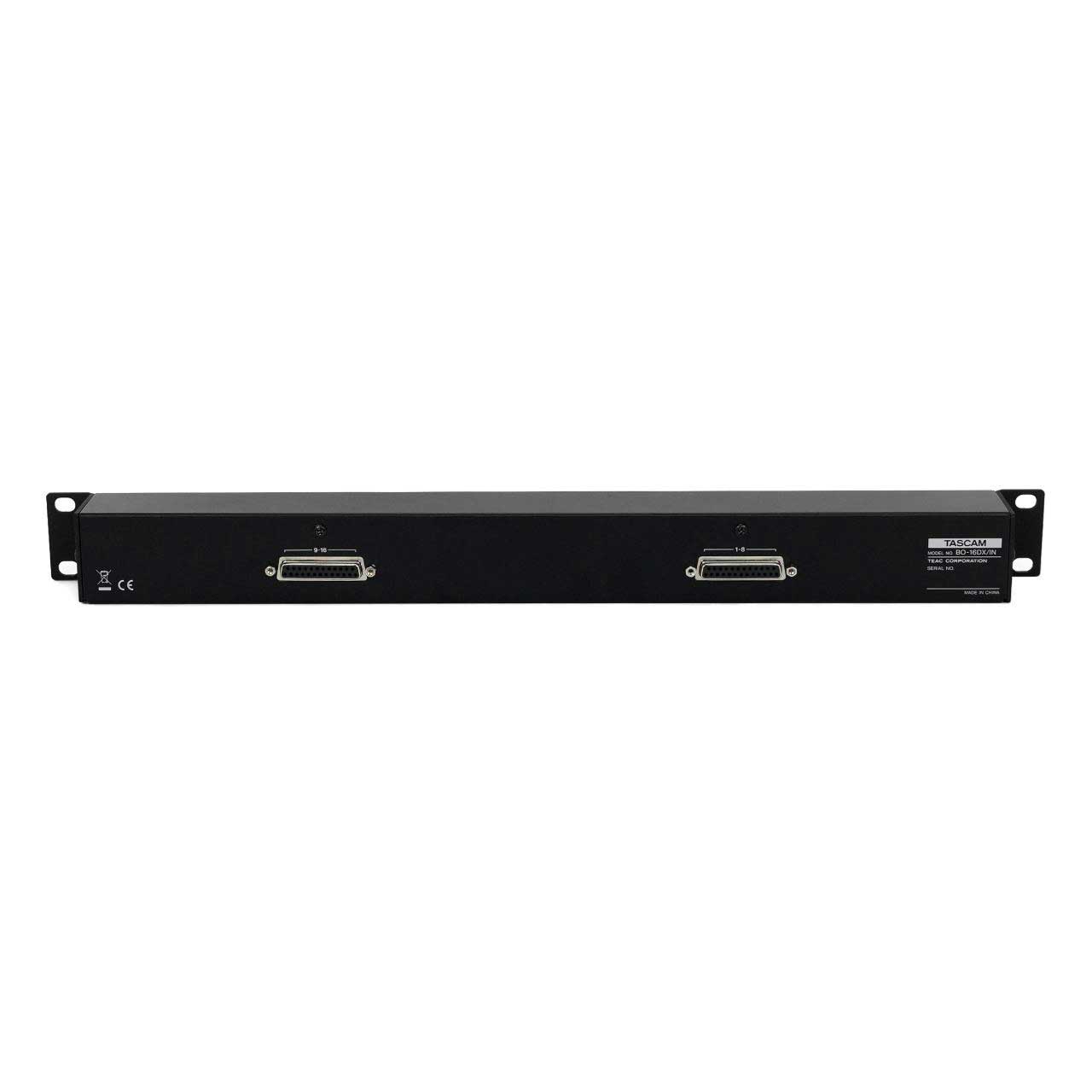

      • Dual rear-panel D-Sub output connectors
      • Multiple rackmounting options

    • Specifications

      • Front panel connectors: XLR-3-31 (1: GND, 2: HOT, 3: COLD) x 16
      • Rear panel connectors: D-sub 25pin female x 2
      • Attachment screws: No.4-40 UNC (inch-type) x 4
      • Dimensions (width x height x depth): 482.6mm (19") x 44.1mm (1.75") x 54.5mm (2.15")
      • Weight: 0.9kg (1.98 lb)

    • Item Includes

      • Rackmount screw kit
      • Owner's Manual including warranty
