Tascam ML-16D 16-Channel Analog to Dante Bidirectional Converter

ITEM #: TCM-ML-16D MFG #: ML-16D

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$2,299.00

Our Price:

$1,999.00

Availability: In Stock
iAvailability Description Popup


    ML-16D - Overview

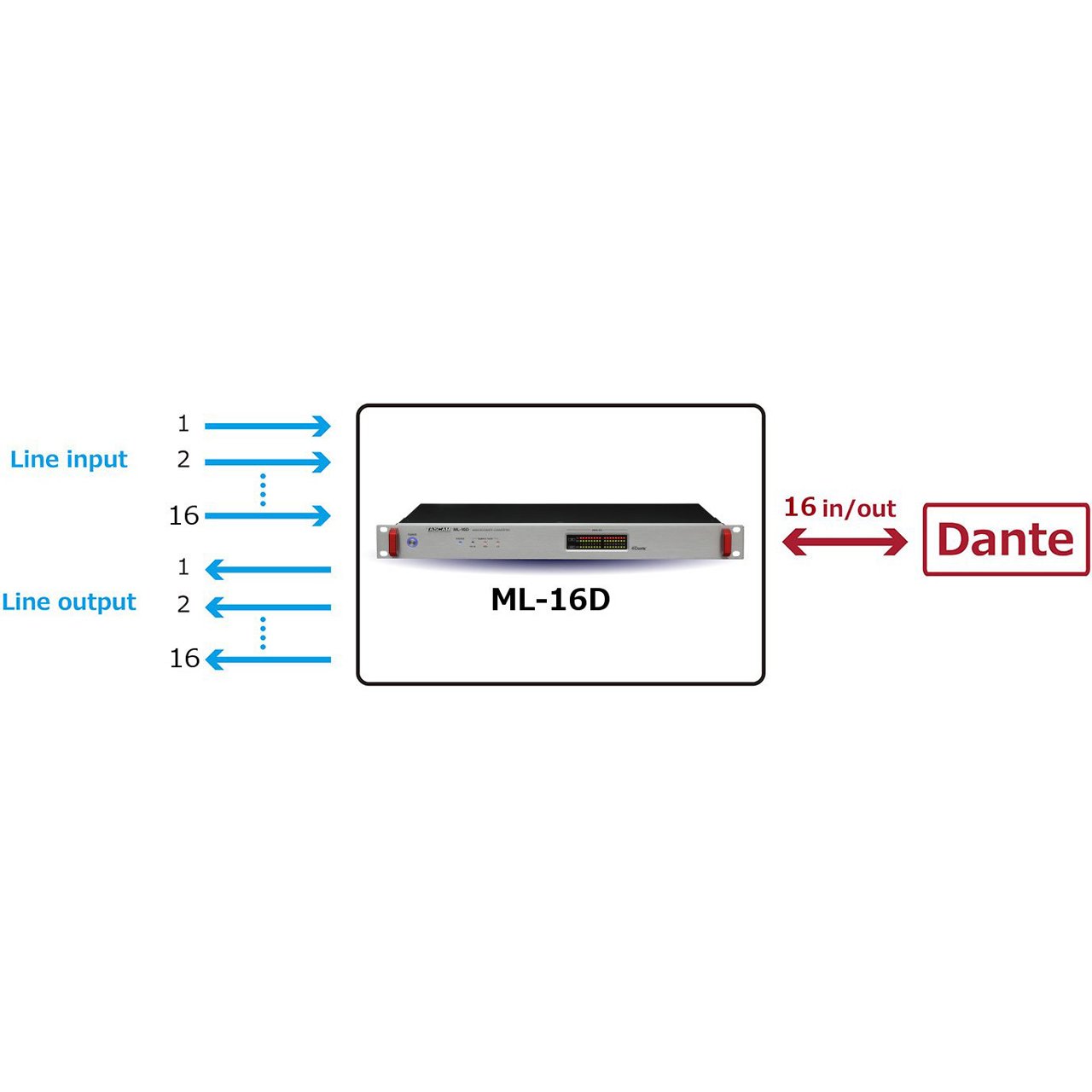

    The TASCAM ML-16D is a professional Dante-focused converter made specifically to insert or extract analog audio into or out of a Dante (Digital Audio Network Through Ethernet) network using external breakout devices that utilize Sub-D format connectors.

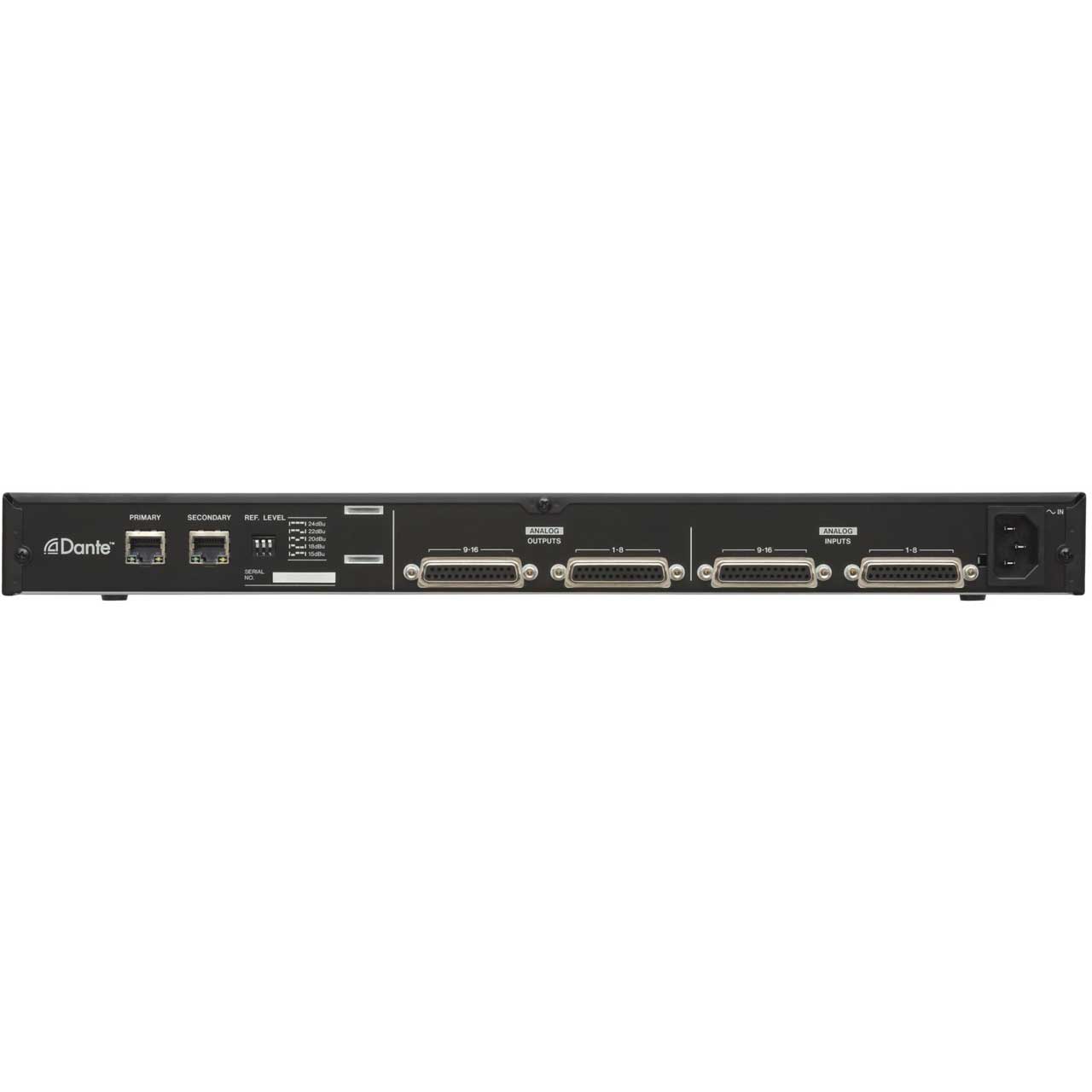

    A powerful and flexible solution, the TASCAM ML-316D has 2 D-Sub inputs and 2 D-Sub outputs, which can easily be connected to any of the many devices that utilize D-Sub connectors such as microphone preamplifiers, large and small format console mixers, audio interfaces, amplifiers, and euro block connector devices. This simple, yet elegant, solution enables audio to be quickly and easily inserted into - or extracted from - the Dante audio stream.

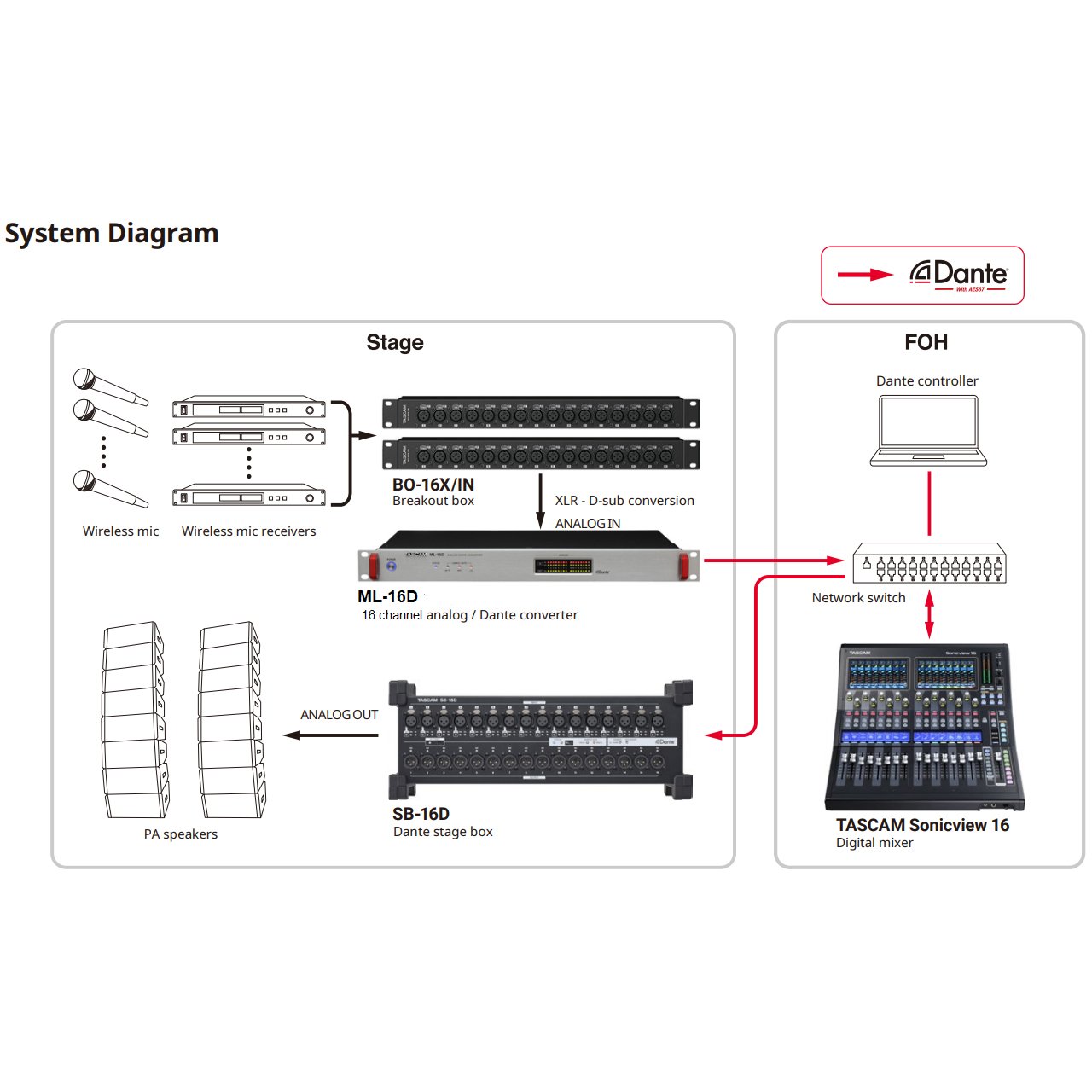

    Primary and secondary connectors enable building a redundant system with a duplex network. Should the primary network route fails the ML-16D automatically switches to the secondary network route. This highly secure system prevents interruption and introduces no noise during the switch.

    Since inception, Dante has seen steady adoption by a growing number of systems integrators, especially those specializing in AVB (Audio Video Bridging). In addition, Dante continues to gain a foothold in the live sound arena, with hundreds of hardware products from various manufacturers supporting this innovative communications protocol. These live sound applications include: House of Worship (HOW), institutional installations, theaters, audio for stadiums and other public facilities and broadcast.

    The TASCAM ML-16D features selectable reference level setting from 5 maximum level options: +24dBu, +22dBu, +20dBu, and +18dBu (the standard level is +4dBu) and +15dBu (the standard level is +6dBu), which can accommodate to a variety of purposes including professional use in broadcasting studios, public address systems and recording environments.

    • Features:

      • Dante focused interface for connection of external audio into or out of a Dante audio network
      • 16 channel analog line input and 16 analog line outputs (48kHz/96kHz) using 4 D-Sub connectors
      • Dual redundant Ethernet jacks which support both primary and secondary connections
      • Up to 24 bit/96kHz quality

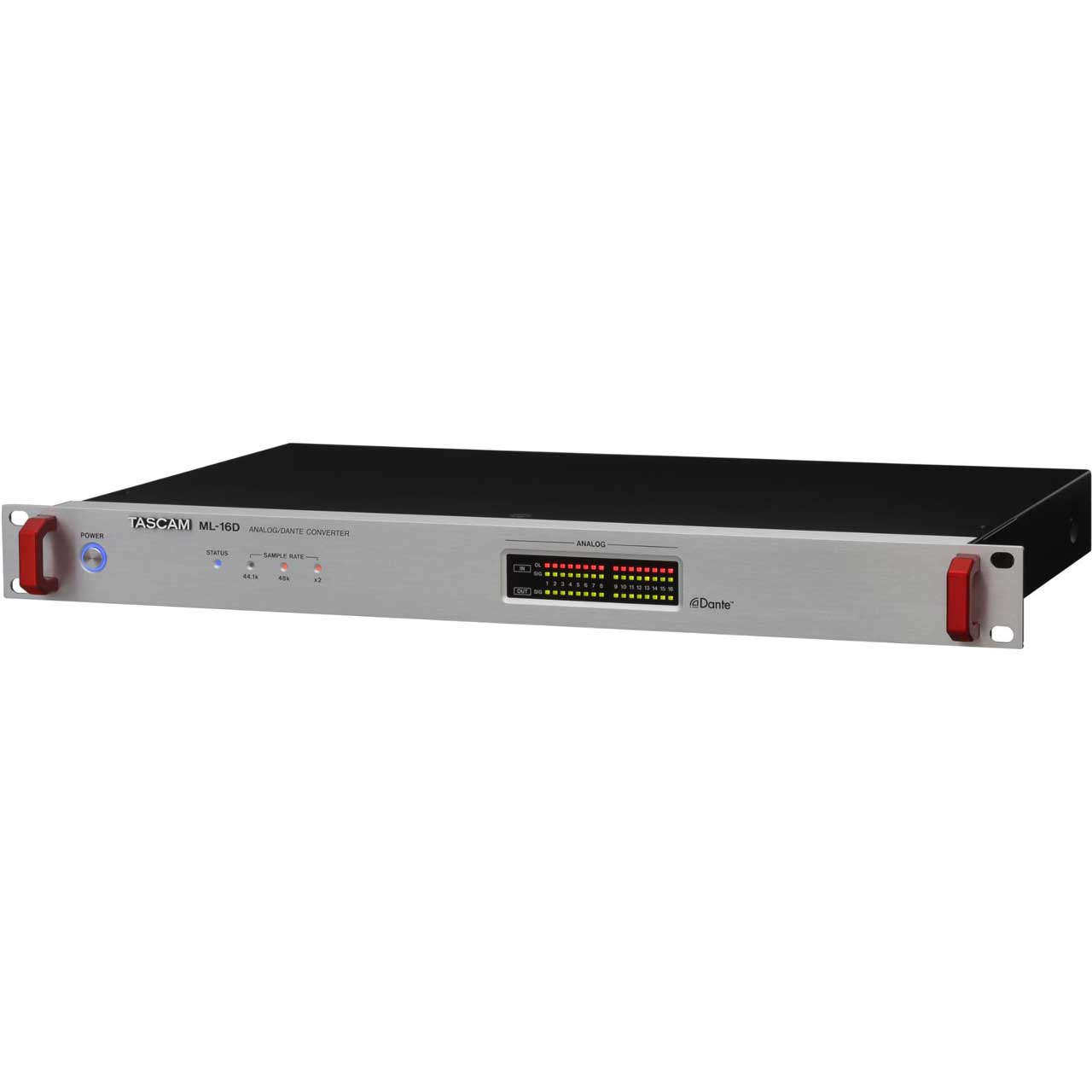

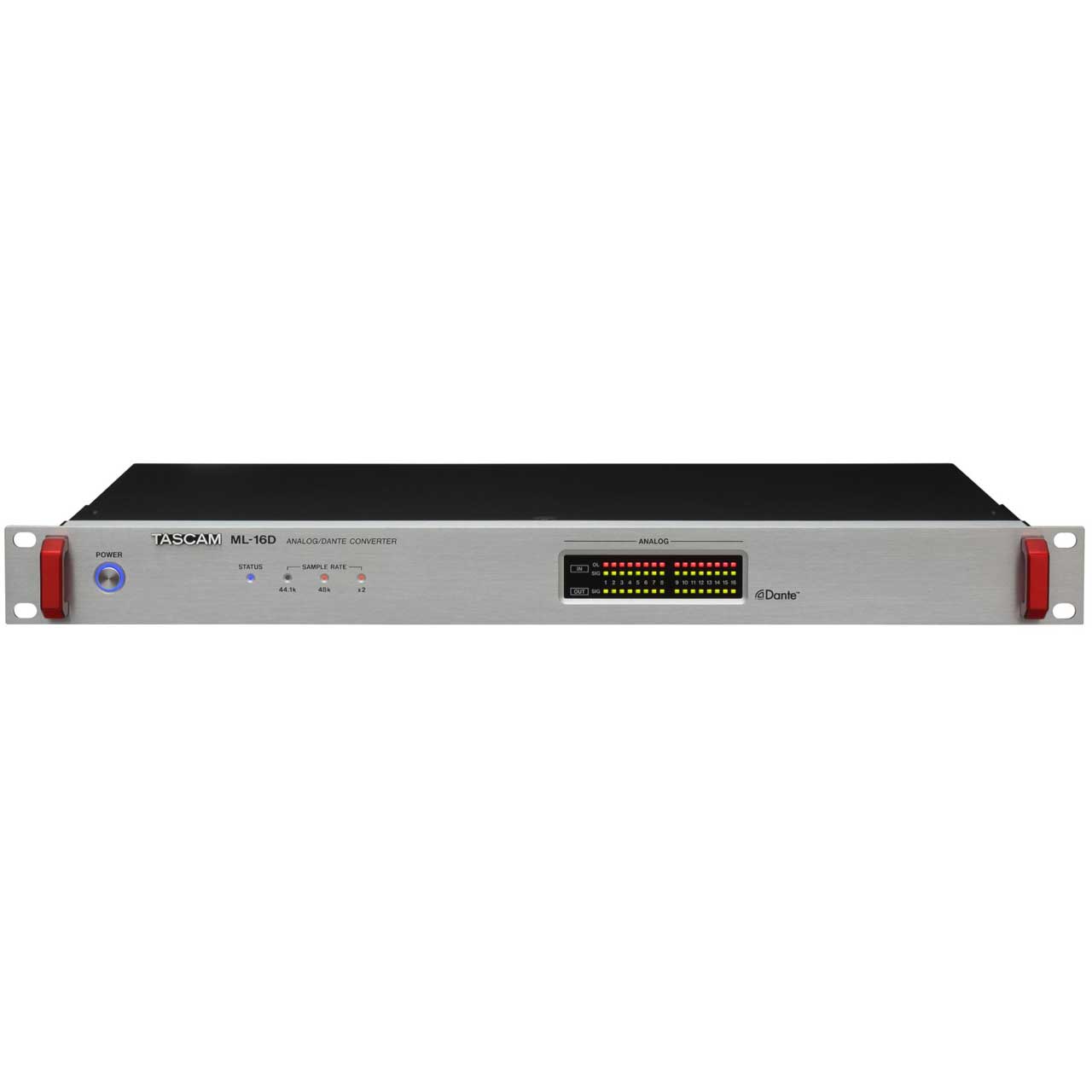

      • LED display for signal level and overload per input/output channel
      • Reference level dip switches for selectable DBu level metering
      • Firmware updatable via Dante port
      • AES67 and Ravenna compatible

    • Specifications:

      • PRIMARY/SECONDARY connectors
      • Connector: RJ-45
      • Transmission protocol: Dante
      • Gigabit Ethernet standard: 1000BASE-T (IEEE 802.3ab)
      • Cables: category 5e or faster STP cables

        ANALOG OUTPUT connectors
      • Connector: D-sub 25-pin
      • Locking screws: No. 4-40 UNC (inch type)
      • Nominal output levels: +4 dBu, +6 dBu (only when maximum output level is +15 dBu)
      • Maximum output levels: +24 dBu, +22 dBu, +20 dBu, +18 dBu, +15 dBu (set by REF. LEVEL switches)
      • Output impedance: 200 Ω or lower
      • Applicable load impedance: 2 kΩ or higher

        ANALOG INPUT connectors
      • Connector: D-sub 25-pin
      • Locking screws: No. 4-40 UNC (inch type)
      • Nominal input levels: +4 dBu, +6 dBu (only when maximum input level is +15 dBu)
      • Maximum input levels: +24 dBu, +22 dBu, +20 dBu, +18 dBu, +15 dBu (set by REF. LEVEL switches)
      • Input impedance: 10 kΩ or higher

        ANALOG IN to DANTE OUT
      • Frequency response: +0.1 dB/-0.5 dB: 20 Hz/20 kHz (-16 dBFS input, 44.1/48 kHz sampling frequency, JEITA), +0.1 dB/-0.5 dB: 20 Hz/40 kHz (-16 dBFS input, 88.2/96 kHz sampling frequency, JEITA)
      • Distortion (THD+N): 0.001% or less (-1 dBFS input, 1 kHz, 44.1/48/88.2/96 kHz sampling frequency, JEITA)
      • S/N ratio: 113 dB or higher (44.1/48/88.2/96 kHz sampling frequency, JEITA)
      • Crosstalk: 115 dB or higher (1 kHz, 44.1/48/88.2/96 kHz sampling frequency, JEITA)

        DANTE IN to ANALOG OUT
      • Frequency response: +0.1 dB/-0.5 dB: 20 Hz/20 kHz (-16 dBFS input, 44.1/48 kHz sampling frequency, JEITA), +0.1 dB/-1.0 dB: 20 Hz/40 kHz (-16 dBFS input, 88.2/96 kHz sampling frequency, JEITA)
      • Distortion (THD+N): 0.001% or less (-1 dBFS input, 1 kHz, 44.1/48/88.2/96 kHz sampling frequency, JEITA)
      • S/N ratio: 110 dB or higher (44.1/48/88.2/96 kHz sampling frequency, JEITA)
      • Crosstalk: 115 dB or higher (1 kHz, 44.1/48/88.2/96 kHz sampling frequency, JEITA)

        General
      • Formats: 44.1/48 kHz, 16/24 bit; 88.2/96 kHz, 16/24 bit
      • Power: AC100-240 V, 50/60 Hz
      • Power consumption: 22W
      • Dimensions (W x H x D): 19.01" x 1.8" x 12" (483 x 45 x 303.8 mm)
      • Weight: 7.7 lbs (3.5 kg)
      • Operating temperature range: 0 - 40° C

    • Item Includes:

      • Power cord
      • Rackmount screw kit
      • Owner's Manual (including warranty)

    • GTIN:

      0043774033430
