Tascam BO-16DX/OUT 16CH D-Sub to XLRM Breakout Box


Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: In Stock
iAvailability Description Popup

    BO-16DX/OUT - Overview

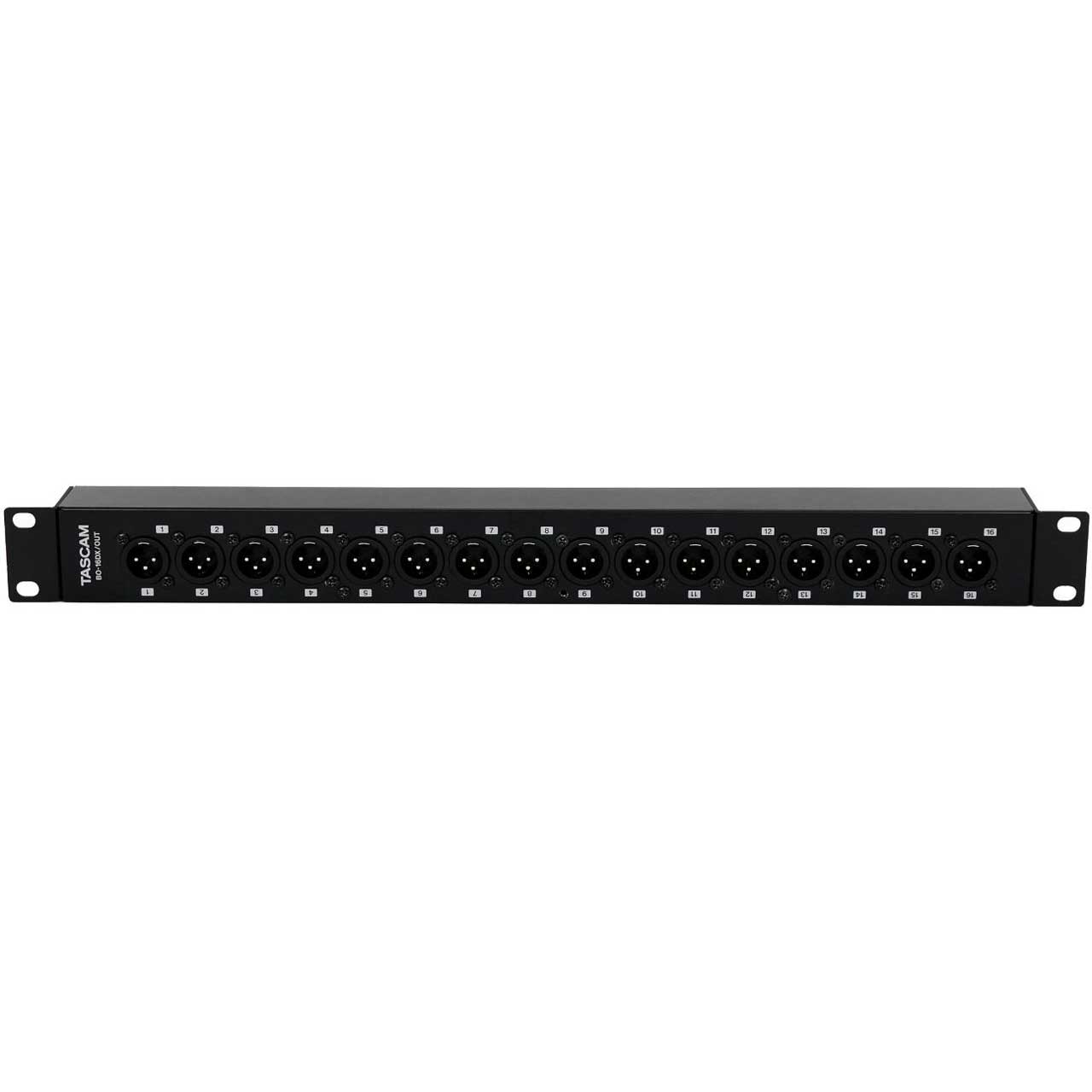

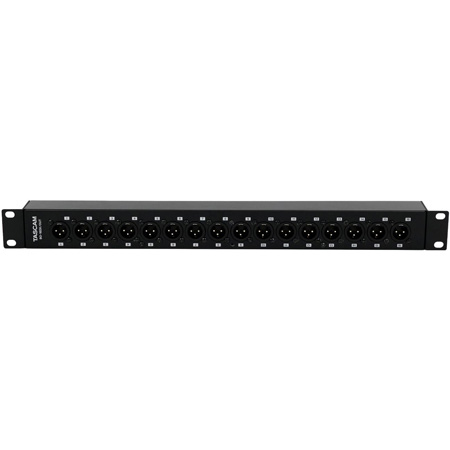

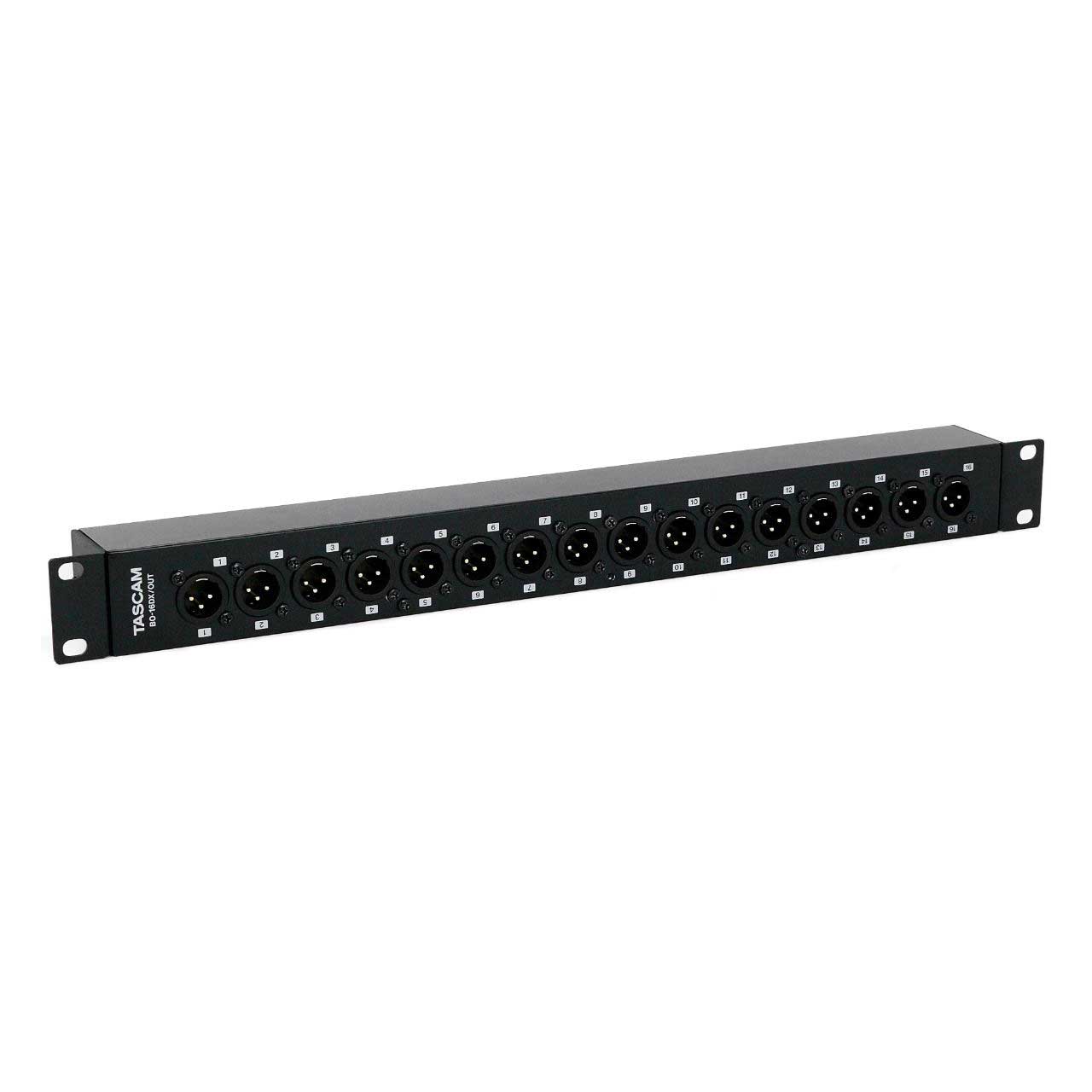

    The TASCAM BO-16DX/OUT is a rugged, rackmounted audio adaptor designed for professional installation and live sound applications. 16 front-panel XLR outputs are internally bridged to dual D-Sub input connectors on the rear panel, providing a fast and easy way to interface between stage boxes, FOH and monitor mixing consoles, audio over IP convertors and more.

    Designed as companion pieces for the TASCAM ML-16D and ML-32D Analog to Dante convertors, a combination of BO-16DX/IN and BO-16DX/OUT provide an elegant communication link between your Analog and Digital subsystems.

    The TASCAM BO-16DX/OUT has been designed to mount in either of two 180 degree rotations to simplify cabling runs and avoid unnecessary twisting of D-Sub connector cables within the rack.

    For enhanced flexibility in rack design, the rack ears of the BO-DX16/OUT can be repositioned to face "forward" or "backward" so that either the XLR or D-Sub connectors are front facing.

    • Features:

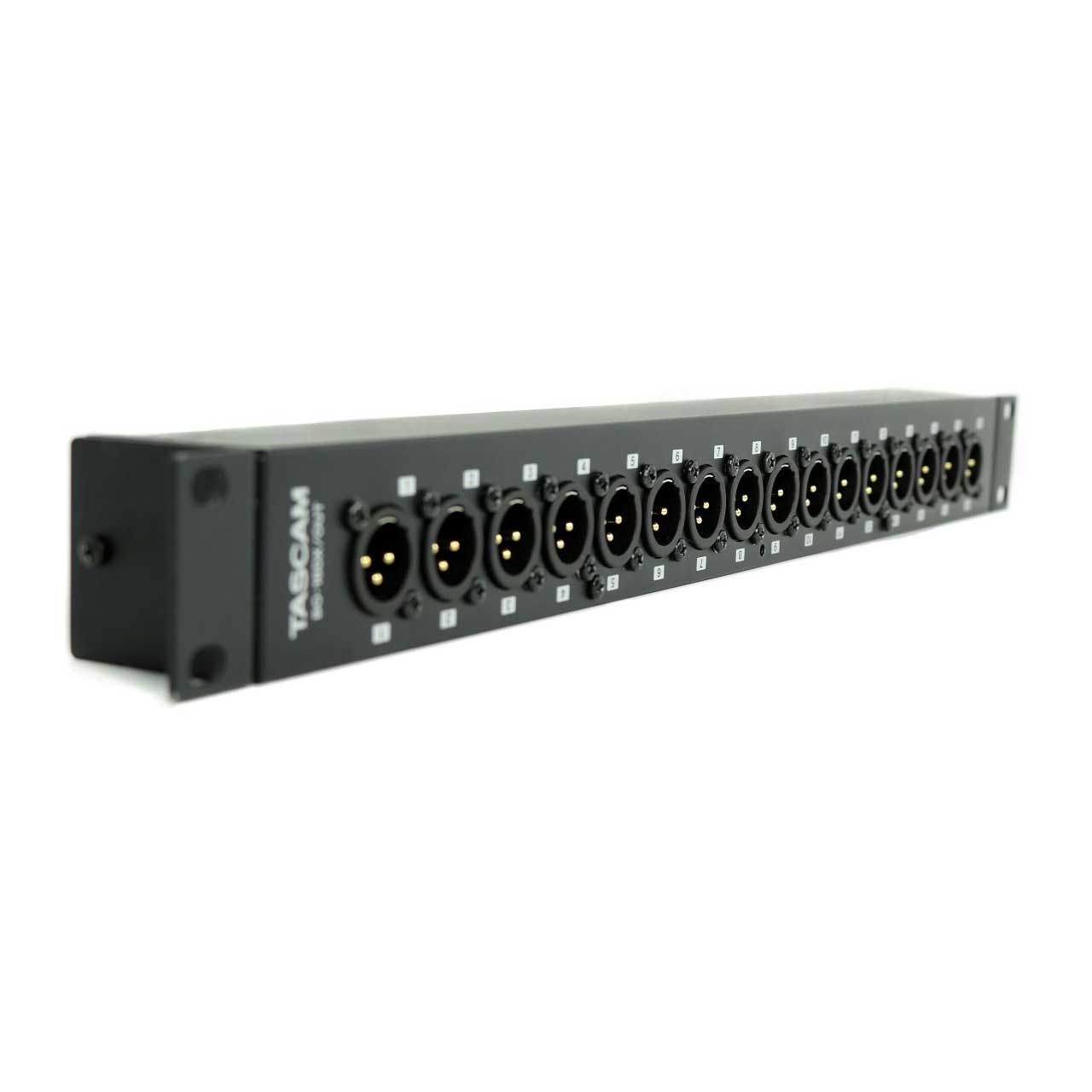

      • 16 front-panel XLR output connectors

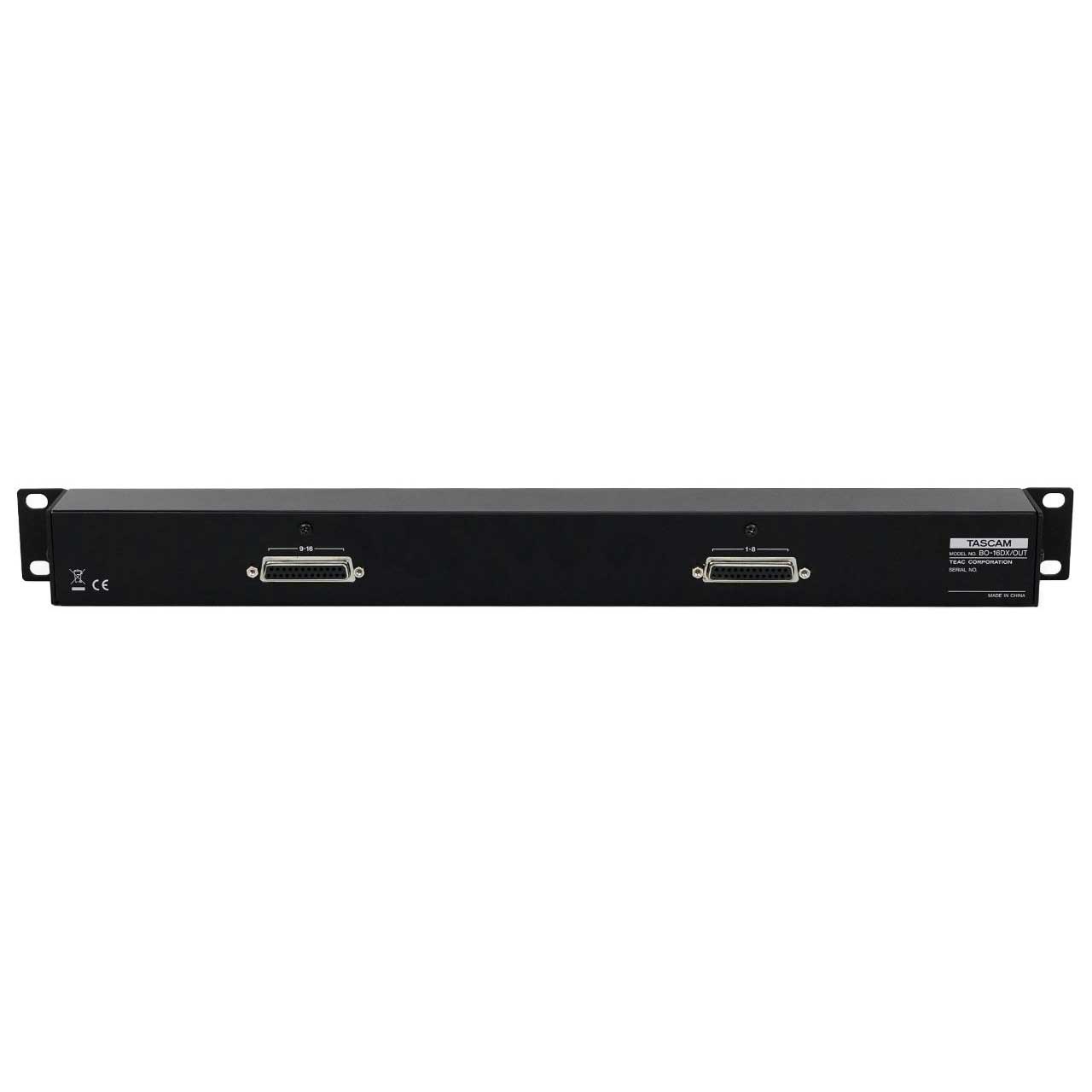

      • Dual rear-panel D-Sub input connectors
      • Multiple rackmounting options
    • Specifications:

      • Front panel connectors: XLR-3-32 (1: GND, 2: HOT, 3: COLD) x 16
      • Rear panel connectors: D-sub 25pin female x 2
      • Attachment screws: No.4-40 UNC (inch-type) x 4
      • Dimensions (width x height x depth): 482.6mm (19") x 44.1mm (1.75") x 51.5mm (2.3")
      • Weight: 0.9kg (1.98 lbs)
    • Item Includes:

      • Rackmount screw kit
      • Owner's Manual including warranty
