Tascam BO-32DE 32CH D-Sub to Euroblock Breakout Box Companion Piece for TASCAM ML-16D and ML-32D

ITEM #: TCM-BO-32DE MFG #: BO-32DE

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with Minimum Order Banner

List Price:

$499.00

Our Price:

$319.00

Availability: In Stock
iAvailability Description Popup


    BO-32DE - Overview

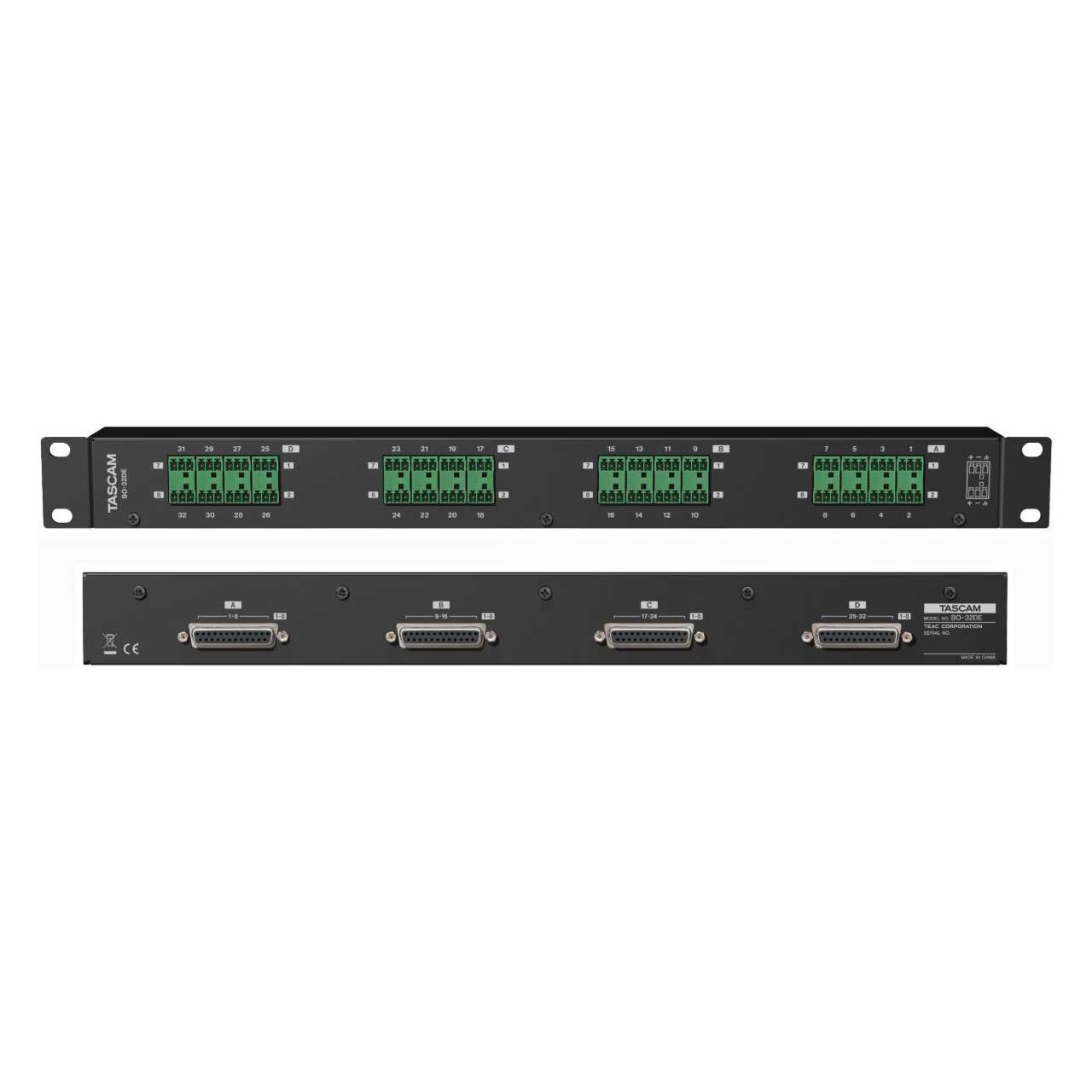

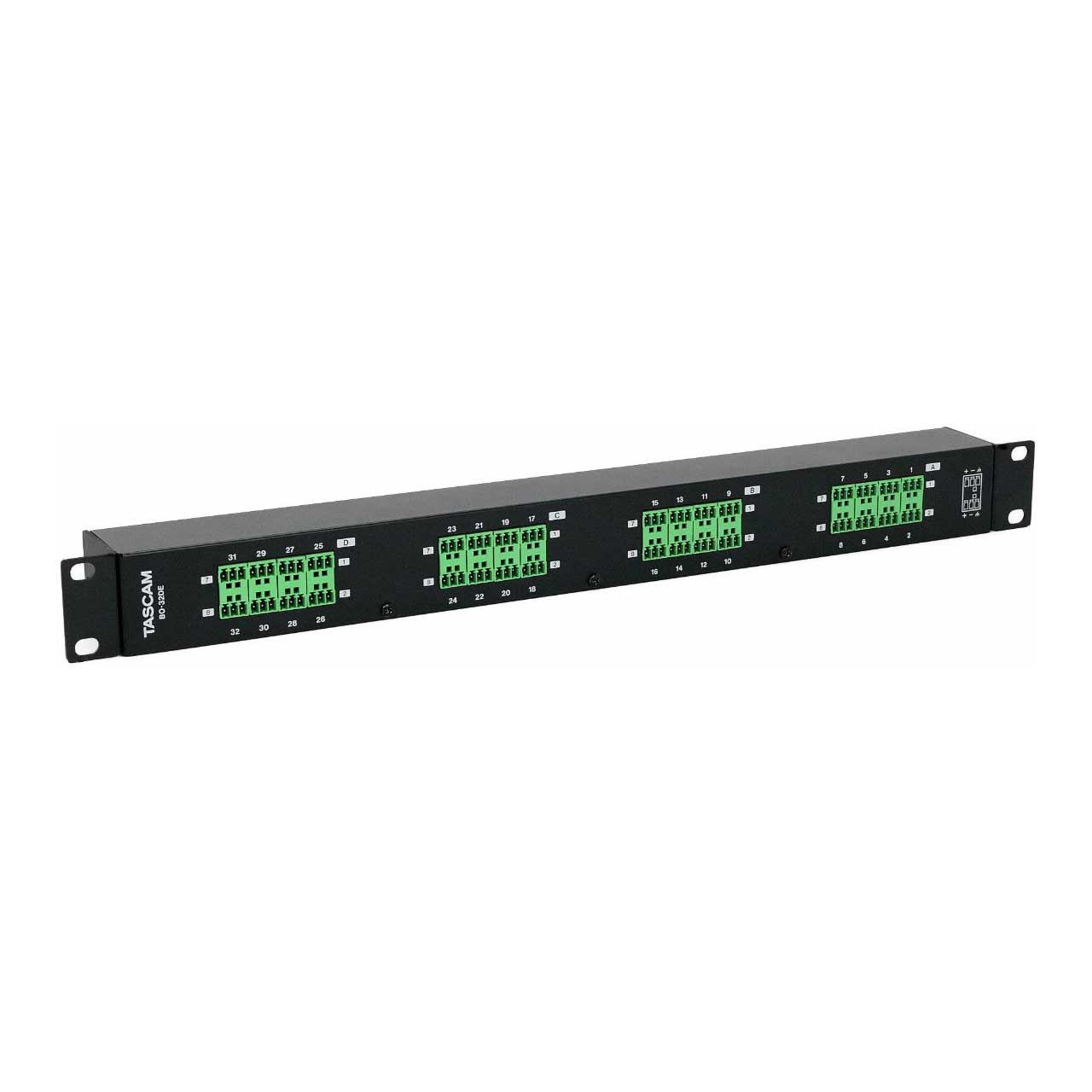

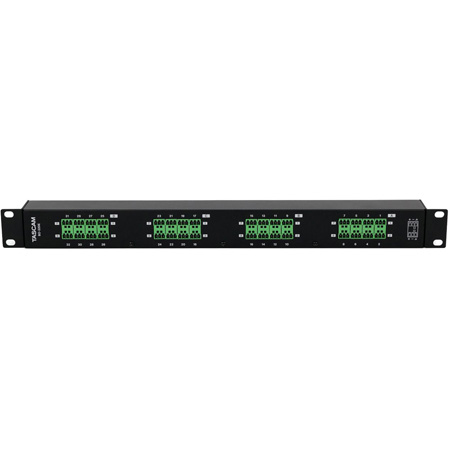

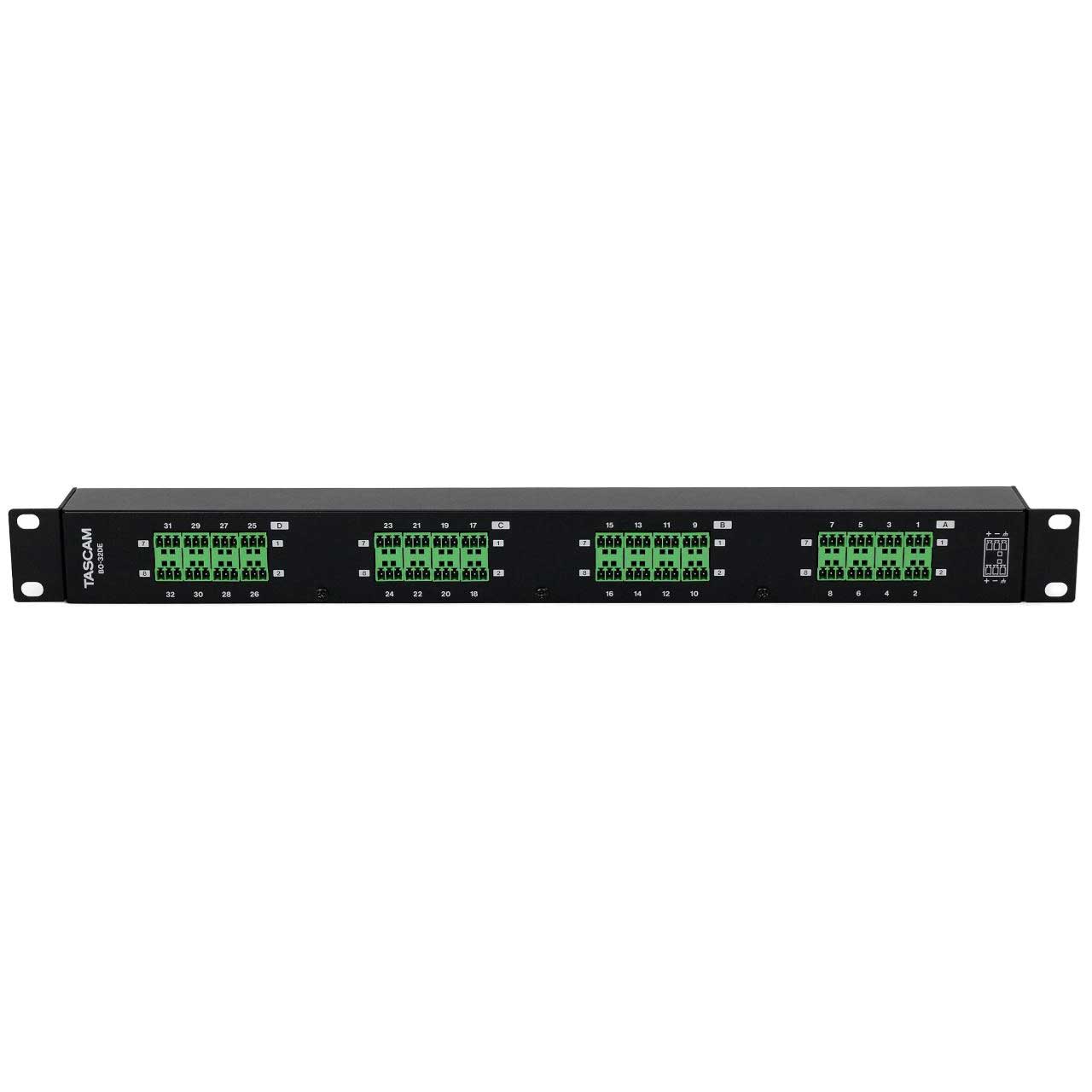

    The TASCAM BO-32DE is a rugged, rackmounted audio adaptor designed for professional installation. 32 front-panel Eruoblock connectors are internally bridged to four D-Sub output connectors on the rear panel, providing fast and easy I/O and interconnectivity between CD players, Digital Audio players, Mic Preamps, Zone Mixers, Distribution Amplifiers Audio over IP Convertors and more.

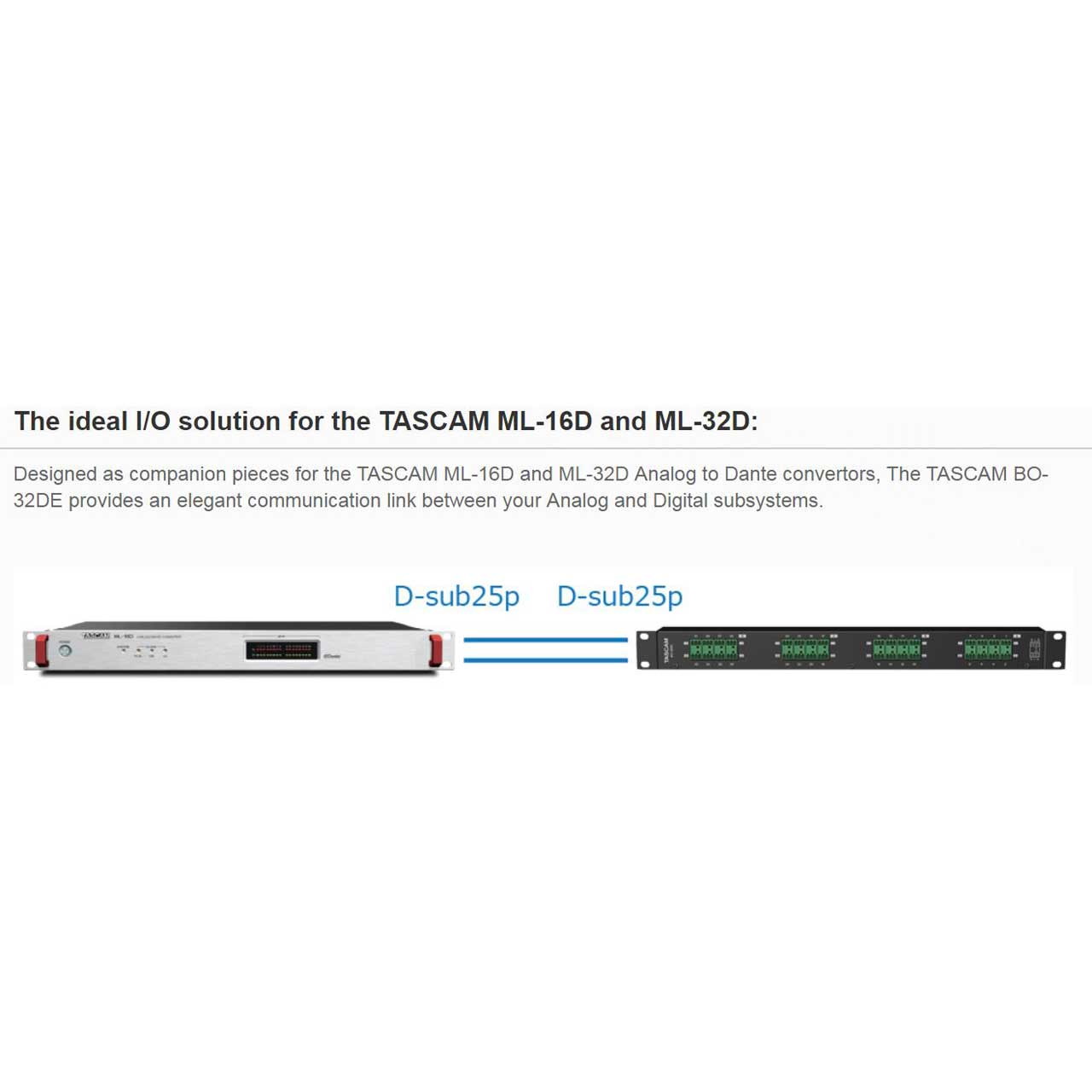

    Designed as companion pieces for the TASCAM ML-16D and ML-32D Analog to Dante convertors, The TASCAM BO-32DE provides an elegant communication link between your Analog and Digital subsystems. The TASCAM BO-32DE has been designed to mount in either of two 180 degree rotations to simplify cabling runs and avoid unnecessary twisting of D-Sub connector cables within the rack.

    For enhanced flexibility in rack design, the rack ears of the BO-32DE can be repositioned to face "forward" or "backward" so that either the Euroblock or D-Sub connectors are front facing.

    • Features:

      • 16 front-panel Euroblock I/O connectors
      • 32 channels of I/O
      • Four rear-panel D-Sub input and output connectors
      • Multiple rackmounting options

    • Specifications:

      • Input and output connectors
      • Front panel connectors: Euroblock (balanced) 3.81mm pitch x 16 (32 channels)

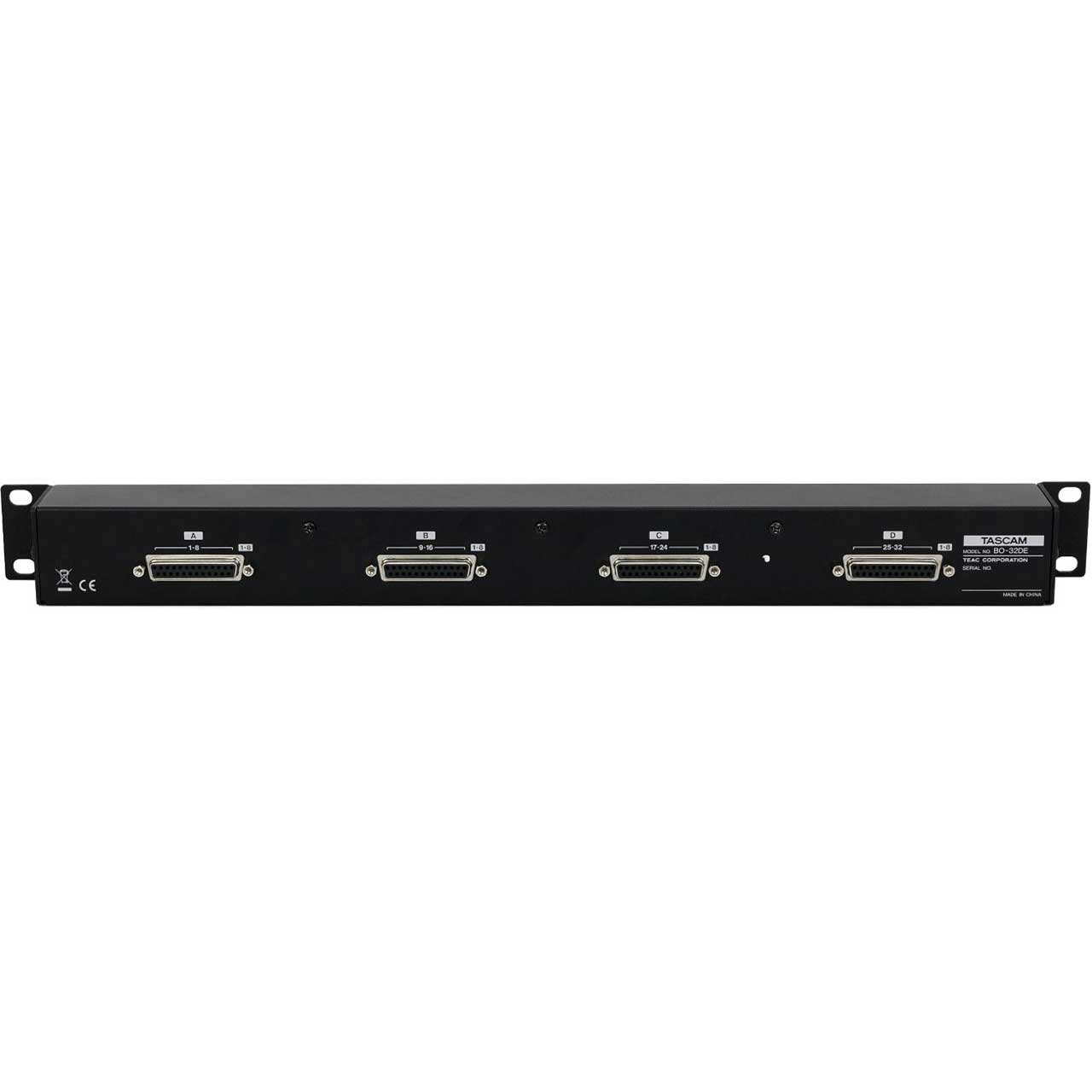

      • Rear panel connectors: D-sub 25pin female x 4
      • Attachment screws: No.4-40 UNC (inch-type) x 8

        Other
      • Dimensions (width x height x depth): 482.6mm (19") x 44.1mm 1.75") x 50.8mm (2.0")
      • Weight: 0.9kg (1.98 lb)

    • Item Includes:

      • 32x Euroblock plug tab
      • 1x Cable kit
      • 1x Rackmount screw kit
      • 1x Owner's Manual including warranty

    • GTIN:

      0043774033546
