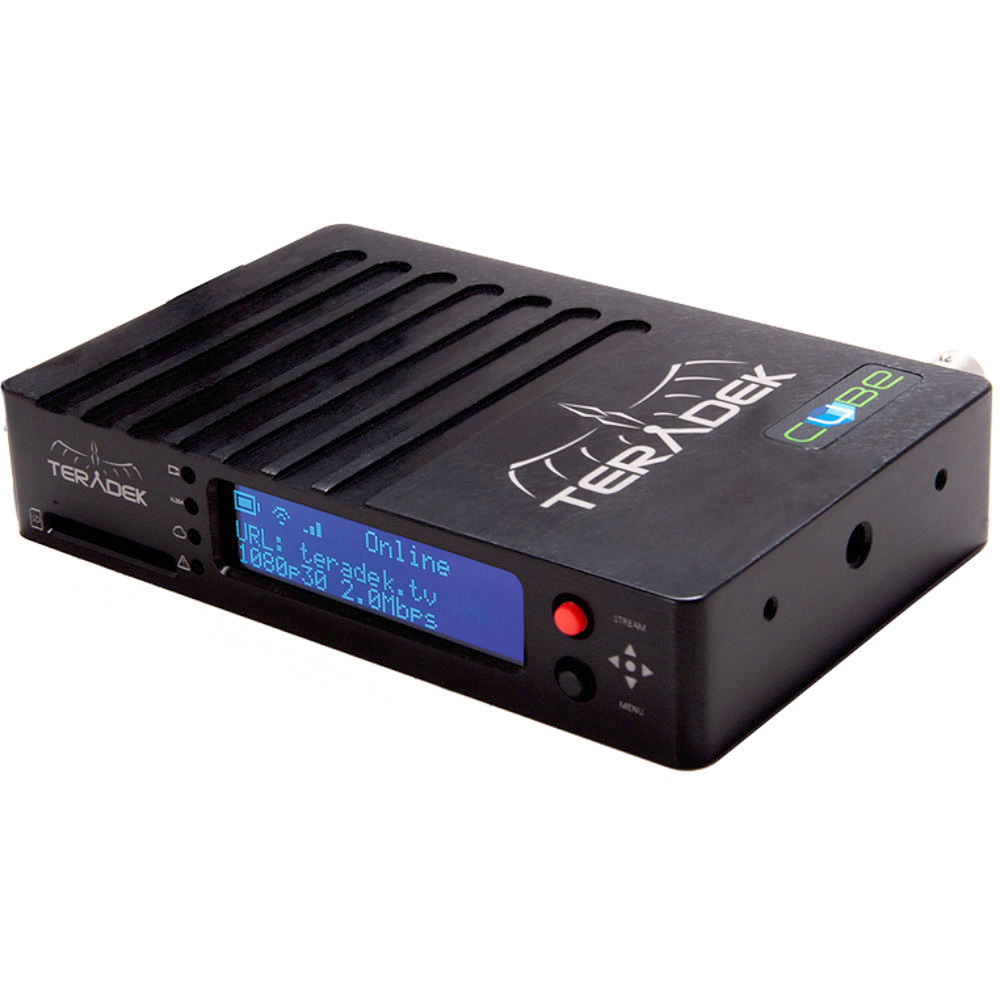

  • Product Image Thumbnail 1 of 3

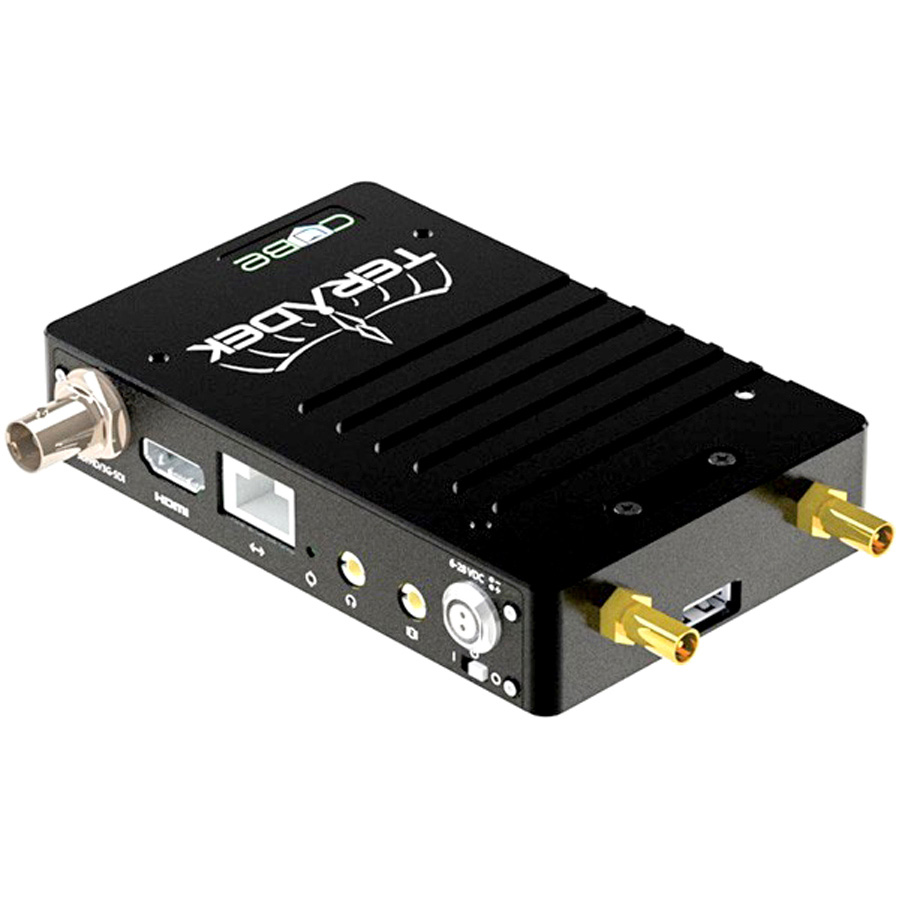

  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

Our Price:


Availability: In Stock
iAvailability Description Popup

    10-0605 - Overview

    Teradek's Cube line of H.264 codecs offer a powerful all-in-one solution for live streaming, iOS monitoring and point to point broadcasting for SDI and HDMI video sources. The 600 series features dual inputs: HDMI and 3G-SDI , a Wireless Range of up to 600 ft (depending on WiFi network setup), Up to 15 Mbits/s , No Internal Battery, Full Size SD Card Recording, Bonding with Teralink , WiFi, Ethernet, USB 3G/4G/LTE connectivity, RTMP, MPEG-TS, HLS, RTP/RTSP, TDS compatible, Core Compatible!

    Designed for Professionals
    Cube is manufactured in the USA and features 3G-SDI and HDMI inputs. Cube’s rugged aluminum chassis and professional locking LEMO connector ensure it’s ready for constant use in any environment.

    Higher Bitrates
    The Cube 600 series encodes video at bitrates up to 15 Mbps for pristine quality in any application. When bandwidth is limited, adaptive bitrate allows Cube to automatically adjust and stream at the highest quality achievable.

    iPad Monitoring for All
    Cube 600 supports monitoring on up to 6 devices iOS devices simultaneously so clients, crew, and director can all see the action.

    Built-in Color Grading
    Support for 33 point 3D LUTs and Pomfort LiveGrade integration allows your creative team to monitor graded footage on set or off. Looks can be applied to the stream itself or controlled independently within the TeraView app.

    All New User Interface
    Cube's intuitive new user interface makes it easier than ever to configure your device. Pages load more quickly, configuration changes apply instantly, and all encoder statuses are updated dynamically.

    Onboard Recording
    Cube’s built-in SD card slot gives you the option to save high quality backup recordings for post-event editing.*

    *Recorded video file bitrate and resolution match encoded stream quality.

    Test Pattern Generator
    A configurable test pattern generator allows you to test your stream without connecting a video source and prevents interruptions if video sync is lost.

    Bi-directional IFB
    Bi-directional IFB allows camera operators and crew to communicate in real-time, even if they’re half a world away.

    • Features:

      • Real-Time H.264 (AVC) Encoder
      • Ethernet and USB Interfaces (No WiFi)
      • HDMI and SDI Video Inputs
      • Camera Top Form Factor
      • Built-In Color Grading
      • On-Board SD Card Recording
      • Two-Pin Connector-Type Power Input
    • Specifications:

      • Video Inputs: 1 x SD/HD-SDI (75 Ohm BNC); 1 x HDMI Type-A receptacle
      • Bonding: TeraLink
      • Video Compression: H.264, Baseline, Main and High Profile
      • Supported Video Bitrate: 250 Kbps to 15 Mbps* (*15 Mbps wired)
      • Test Pattern Generator Support: Supports Custom Test Pattern
      • Video Format Conversion Support: Built in Video Scaler and Deinterlacer
      • Color Correction: CDL/1024 1D LUT (supports 10-bit color); 33x33x33 3D LUT (supports 10-bit color)
      • Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
      • Supported Video Transport Protocols: RTMP, RTP, RTSP, RTSP over HTTP, MPEG-TS (MPEG-TS is an optional paid license)
      • Remote Control: Teradek Core
      • Software Or Platform Integration: Ustream, YouTube Live, Facebook & new Livestream
      • Audio Compression: AAC-LC, MPEG Layer 2
      • Audio Input: Embedded Audio Input, Analog Line or Mic in, adjustable gain
      • Audio Output: 3.5mm Headphone output
      • Mountability: Can be mounted horizontally or vertically with 1/4" 20 mounting holes
      • Http Interface: WebUI for Configuration and Control
      • Configuration Interfaces: OLED Display with joystick Navigation buttons; Feature-rich WebUI for configuration and control
      • Switches: On/Off and Reset Switch
      • Recording Storage: SD Card: Full Size
      • Mobile App: Vuer, Live:Air
      • Usb Interface Functionality: Powered USB 2.0 host port
      • Ethernet: 10/100/1000 BASE-T Gigabit
      • Wireless: None
      • USB: USB 3G/4G Modem support - refer to this article on which modems are known to be supported: https://support.teradek.com/hc/en-us/articles/217447037-What-3G-4G-USB-Modems-are-supported-
      • Rf Channel Selection:None
      • Encryption: None
      • Power Input: 2 Pin Connector Power input
      • Battery:No Battery Included
      • Nominal Power Consumption: 7W (no WiFi)
      • Auxilary Power Input: 6-28V DC
      • Size: 4.75"W x 3"D x 1.1"H

        Supported Resolutions
      • 1080p 23.98/24/25/29.97/30/50/59.94/60*
      • 1080i 50/59.94/60
      • 1080PsF 23/24/25/29/30
      • 720p 50/59.94/60
      • 576i
      • 480i
      • 480p (for HDMI input only)
      • 576p (for HDMI input only)
      • *Ingests 1080p50/59/60
    • Item Includes:

      • 1 x 2pin Lemo to 18W AC Power Adapter
      • 1 x Ethernet Cable
      • 1 x USB Stick with TeraCentral Desktop Software
      • 1 x SDI 10 inch Cable (BNC to BNC)
      • 1 x HDMI 18 inch Cable (Full Type A to Full Type A)
      • 1 x 1-Year Warranty
