Techflex NRN0.75 3/4-Inch Flexo Noise Reduction Biaxially Braided Hybrid Sleeving - Black - 75-Foot

ITEM #: TFX-NRN075BK MFG #: NRN0.75BK 75FT

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$99.00

Our Price:

$89.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    NRN0.75BK 75FT - Overview

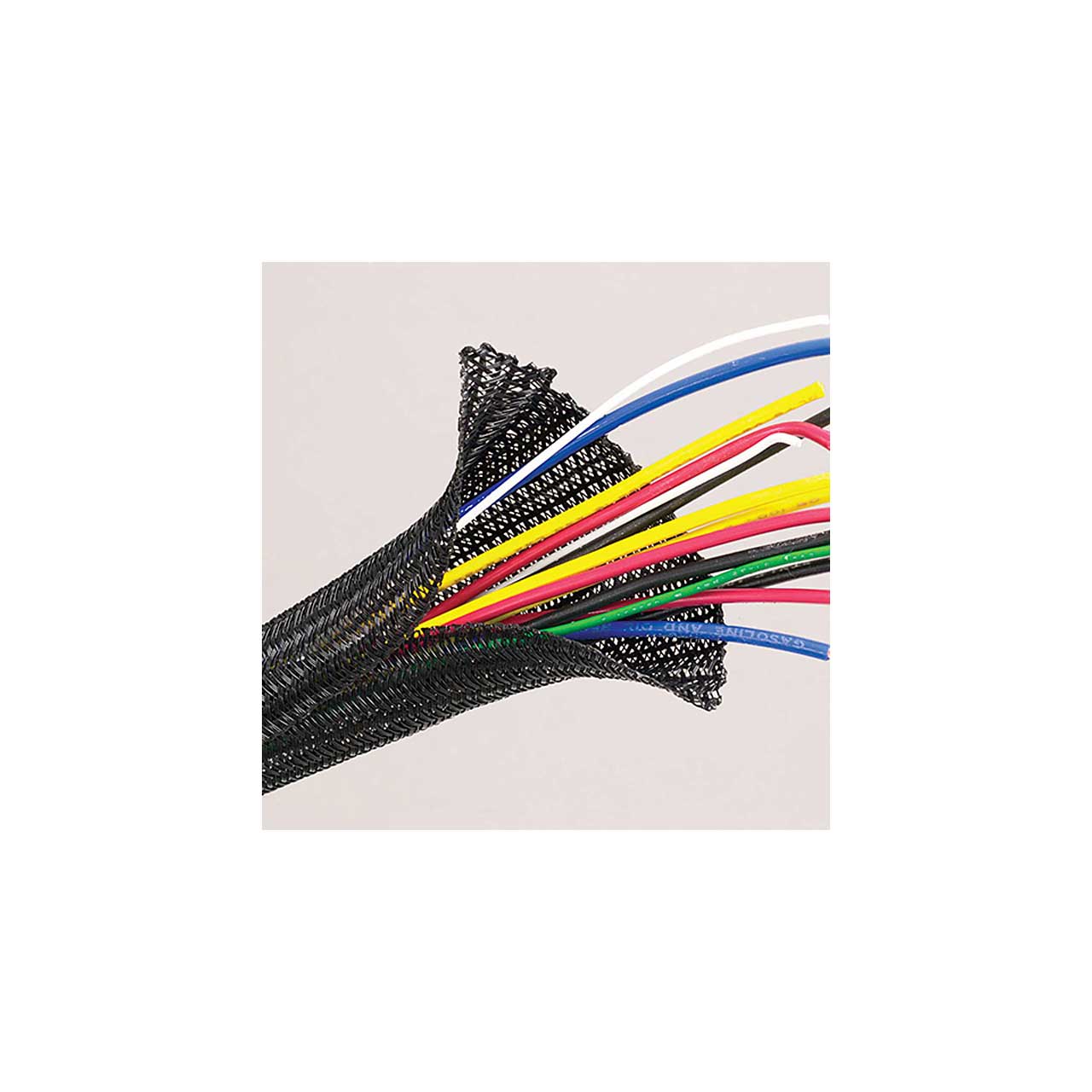

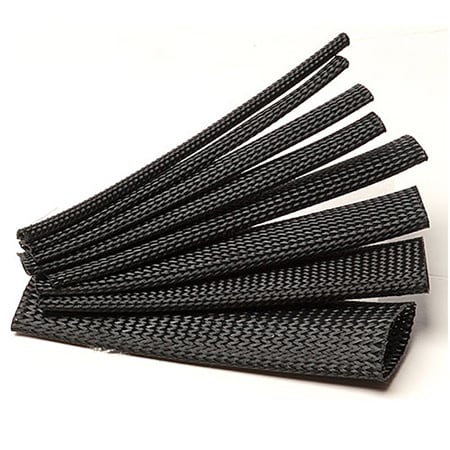

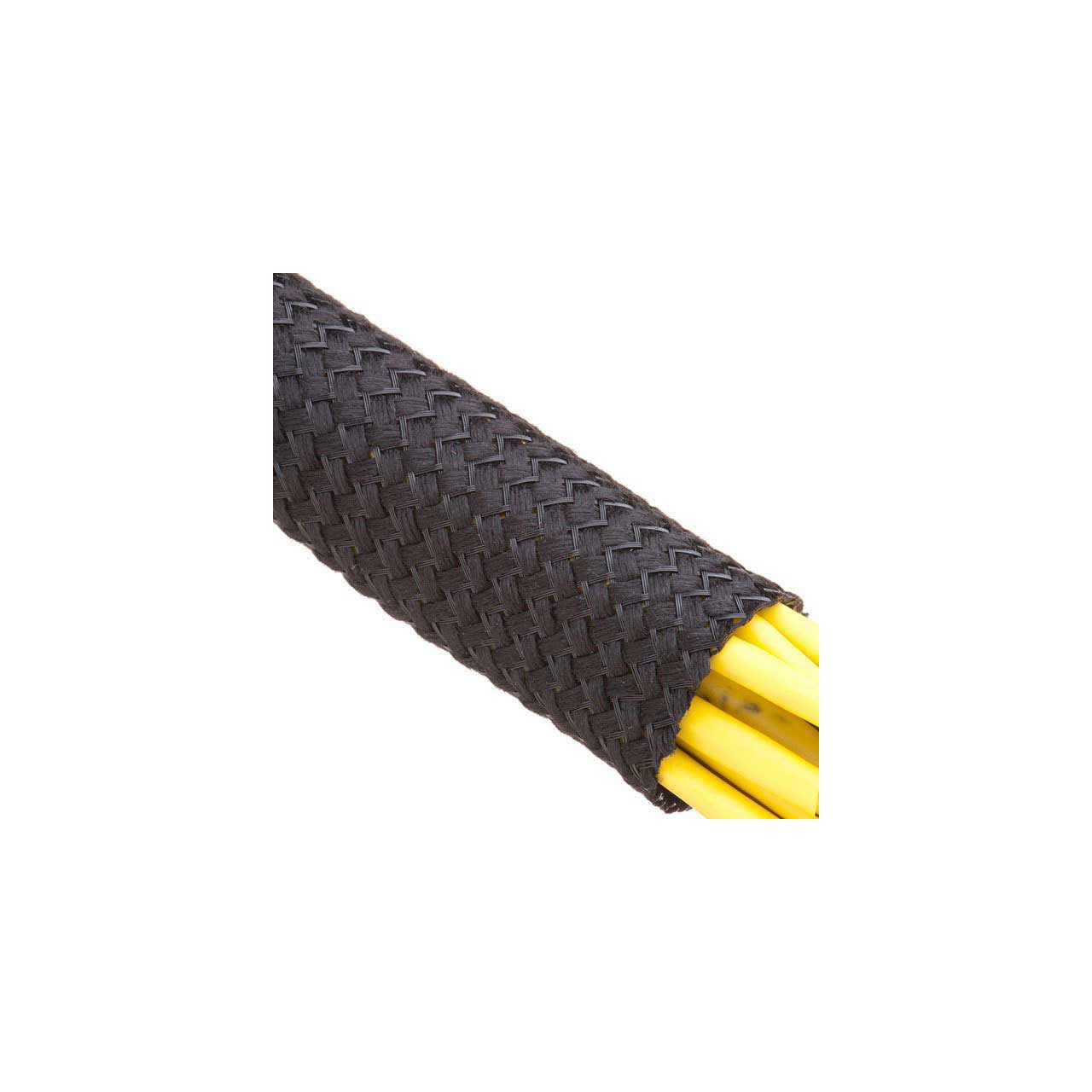

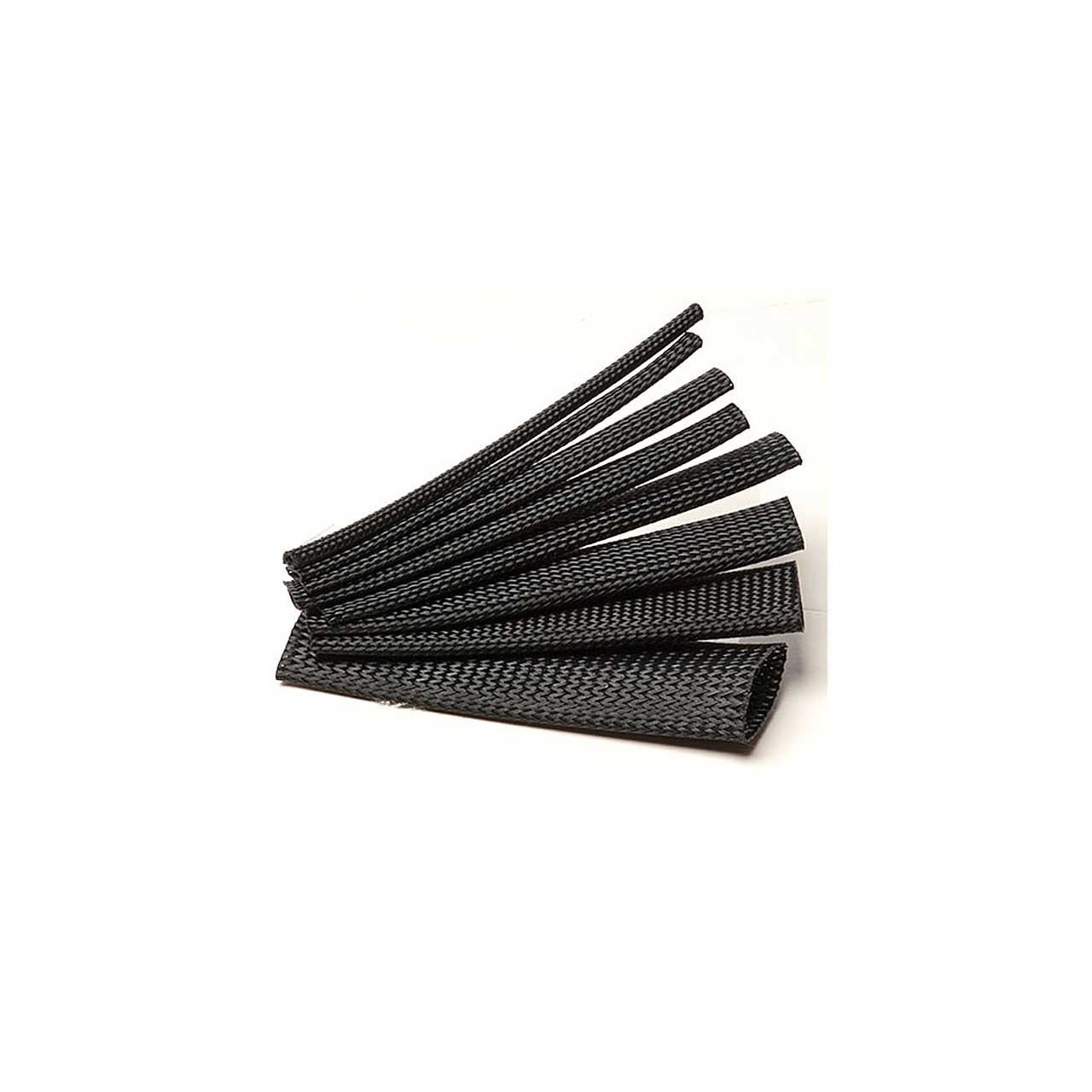

    Flexo Noise Reduction is a biaxially braided hybrid sleeving combining monofilament and multifilament PET yarns to create a full coverage expandable sleeve that substantially reduces noise on wires, tubes and hoses. The lightweight, rugged construction also provides protection from abrasion and vibration that is far superior to foam harness sleeves. Noise Reduction expands for easy installation over splices and connectors and is flexible enough for tight radius applications. The braided construction will not hold moisture and drains quickly when immersed. Noise Reduction is used in body wiring harnesses, instrument panel and lighting wiring, cable & hose assemblies, and other limited access applications where noise reduction is desirable. In retrofit applications or when component or harness disassembly is impractical, our unique F6 Quiet hybrid wraparound sleeving provides identical noise reduction and protection characteristics.

    • Features:

      • Excellent Noise Suppression
      • Abrasion Resistant
      • Extremely Lightweight
      • Cuts Cleanly with Hot Knife
      • Attractive Appearance
      • Does Not Trap Heat Or Moisture

    • Specifications:

      • Physical Properties
      • Monofilament Thickness (ASTM D-204): 0.010
      • Flammability Rating: UL94
      • Recommended Cutting: Hot Knife
      • Color: Black
      • Wall Thickness: 0.025
      • Tensile Strength - Yarn (ASTM D-2265) lbs.: 7.5
      • Abrasion Resistance: Medium
      • Specific Gravity: 1.38
      • Moisture Absorption % (ASTM D-570): 0.1 - 0.2
        Hard Vacuum Data (ASTM E-595 at 10-5 torr)
      • TML: 0.19
      • CVCM: 0.00
      • WVR: 0.16
      • Smoke D-Max (ASTM E-662): 56
      • Outgassing: Medium
      • Oxygen Index (ASTM D-2863): 0.21
        Operating Temperatures
      • Minimum Continuous: -94°F
      • Maximum Continuous (MIL-I-23053): 257°F
      • Melt (ASTM D-2117): 446°F
        Other Information
      • Halogen Free: Yes
      • RoHS: Yes
      • UL/CSA: No
      • SVHC: None
