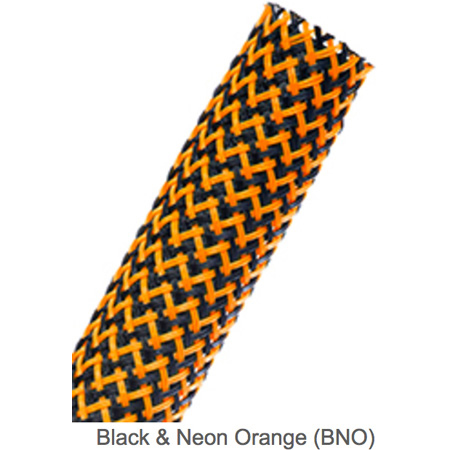

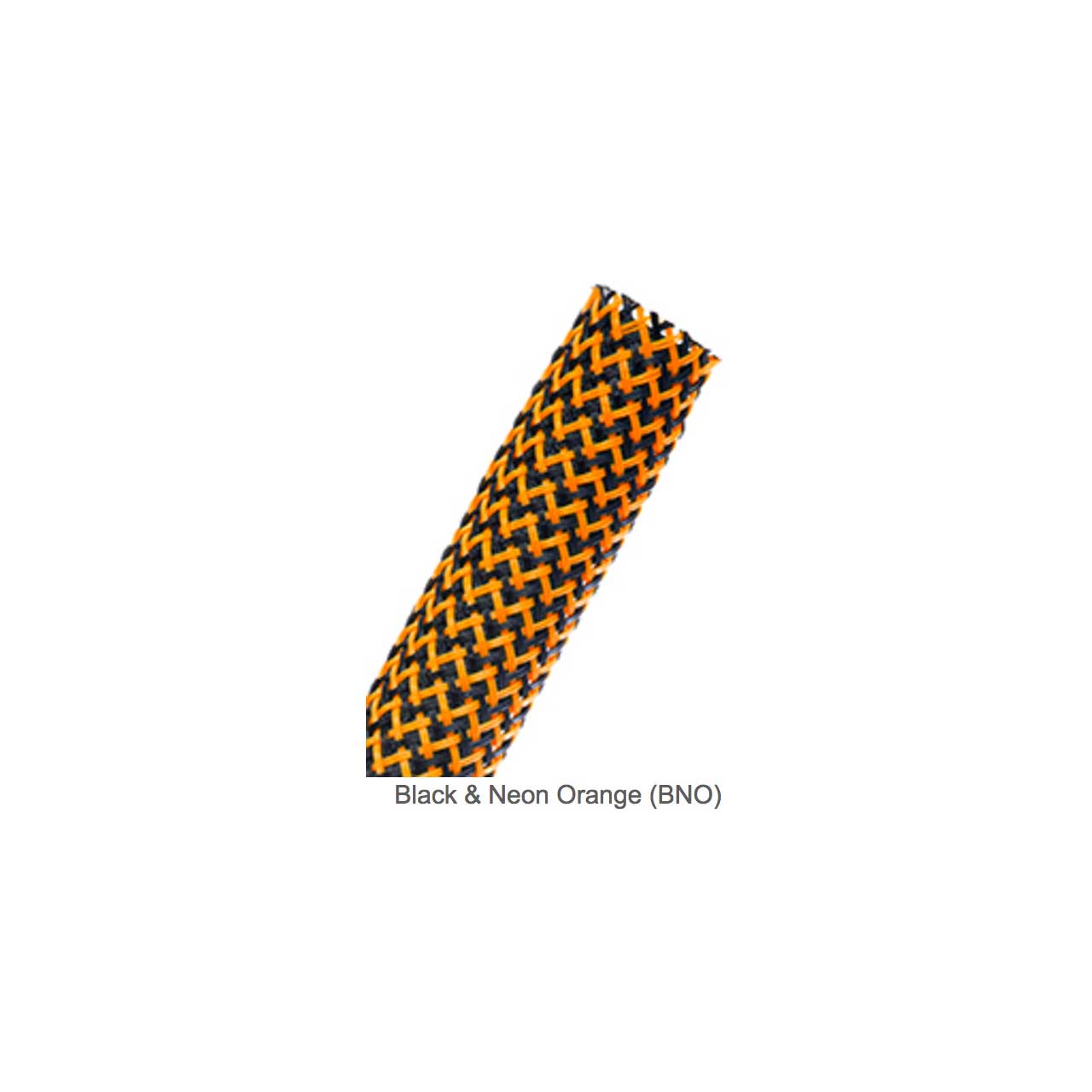

Techflex PTT0.25 1/4-Inch Flexo Tight Weave Extra Coverage & Protection - Black & Neon Orange - 200-Foot

PTT0.25BNO 200FT - Overview

• Specifications:

  • Physical Properties
  • Monofilament Thickness (ASTM D-204): .010
  • Flammability Rating: UL-94
  • Recommended Cutting: Hot Knife
  • Colors: 5
  • Wall Thickness: .025
  • Tensile Strength - Yarn (ASTM D-2265) lbs: 7.5
  • Abrasion Resistance: Medium
  • Specific Gravity: 1.38
  • Moisture Absorption % (ASTM D-570): .1 - .2
  • Minimum Continuous: -94°F / -70°C
  • Maximum Continuous (MIL-I-23053): 257° F/ 125° C
  • Melt (ASTM D-2117): 482° F / 250°C

    Hard Vacuum Data (ASTM E-595 at 10-5 torr)
  • TML: .19
  • CVCM: .00
  • WVR: .16
  • Smoke D-Max (ASTM E-662): 56
  • Outgassing: Medium
  • Oxygen Index (ASTM D-2863): 21
