Thor H-8ASI-MUX 8x2 DVB-ASI Transport Stream Multiplexer with PID Add/Drop
  • Thor H-8ASI-MUX 8x2 DVB-ASI Transport Stream Multiplexer with PID Add/Drop
  • Thor H-8ASI-MUX 8x2 DVB-ASI Transport Stream Multiplexer with PID Add/Drop
Questions? Ask a Markertek Expert:
800-522-2025 Email

Thor H-8ASI-MUX 8x2 DVB-ASI Transport Stream Multiplexer with PID Add/Drop

Manufacturer: Thor Fiber

Item #: THR-8ASI-MUX   •   MFG #: H-8ASI-MUX


List Price:$6,187.50
Our Price:$4,950.00

free ship
Availability: Direct Ship From Manufacturer
Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.
  • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.

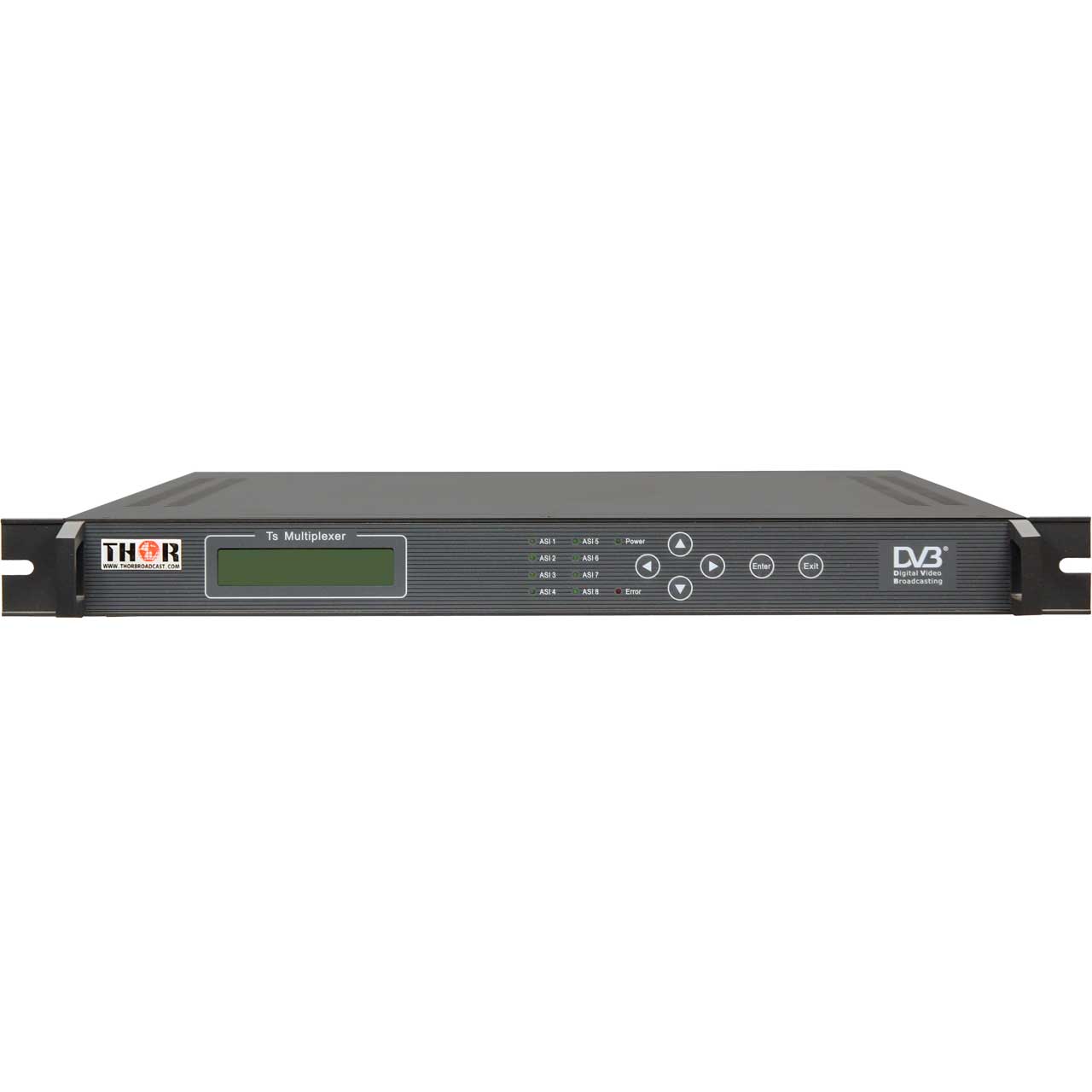

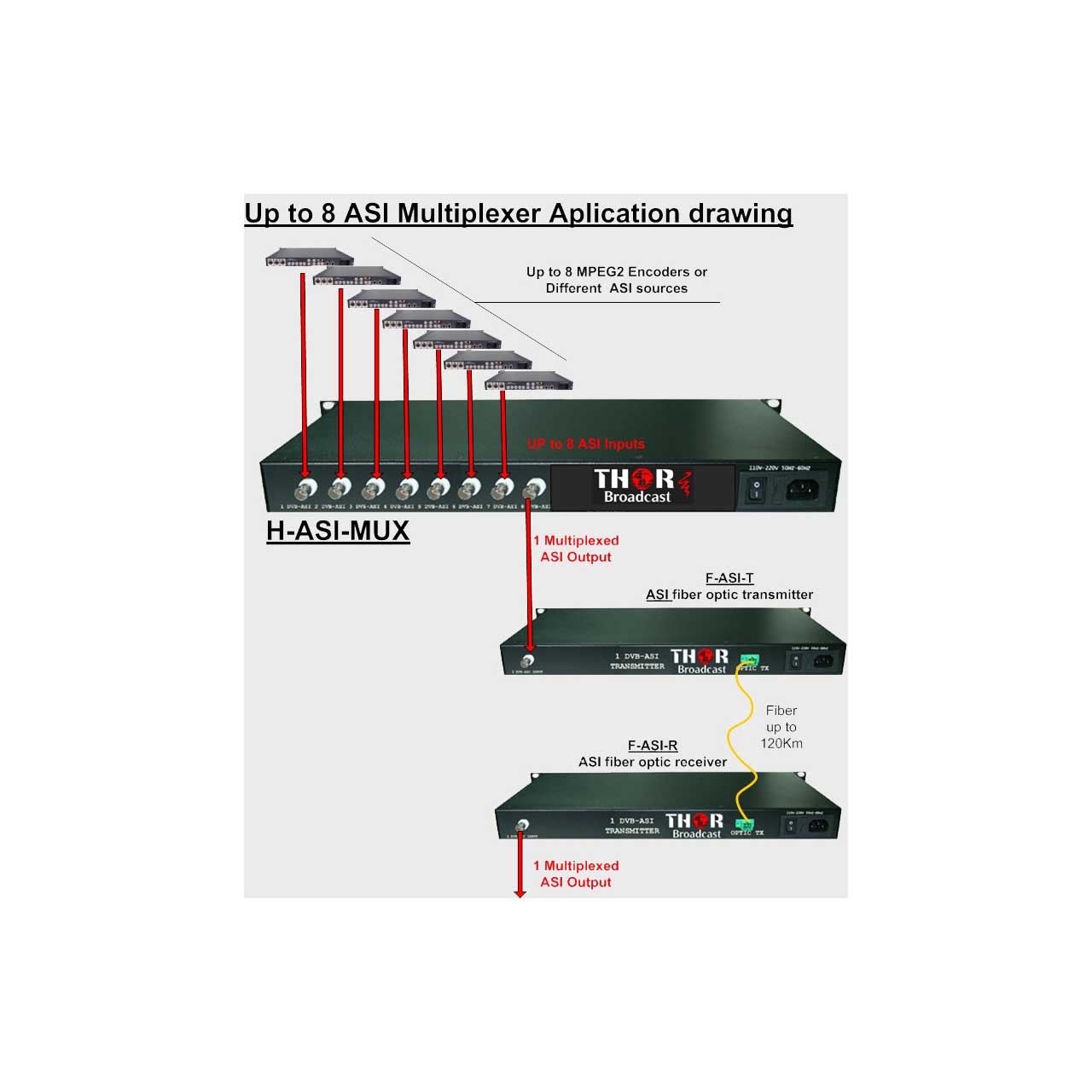

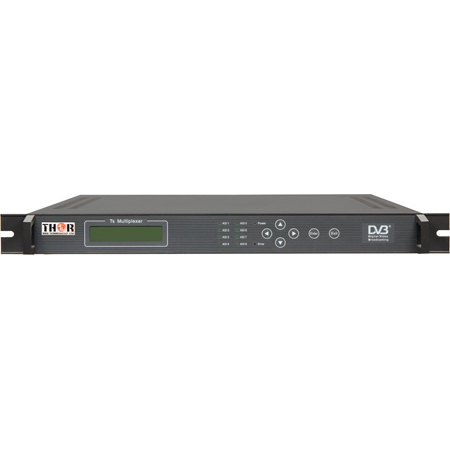

The H-8ASI-MUX is an ASI transport stream multiplexer for up to 8 inputs. The unit takes the 8 ASI inputs and multiplexes them onto a single ASI output. The output is a DVB-ASI Multi Program Transport Stream (MPTS). The H-8ASI-MUX has an easy to read LCD display for easy configuration and status. The unit also offers an Ethernet port for remote management and monitoring. The H-8ASI-MUX has the ability to insert Electronic Programming Guide (EPG) information and offers Conditional Access (CA). Featuring auto generation of PSI/SI information, re-mapping of PID, service filtering, and editing of PSI/SI information. The H-8ASI-MUX is an ideal solution for digital TV Broadcasters who need to multiplex multiple transport streams onto a single DVB-ASI

  • Features

    • Combine MPTS or SPTS program streams from 8 ASI
    • Fully network managed with program information
    • Remap PIDs and drop programs from MPTS streams

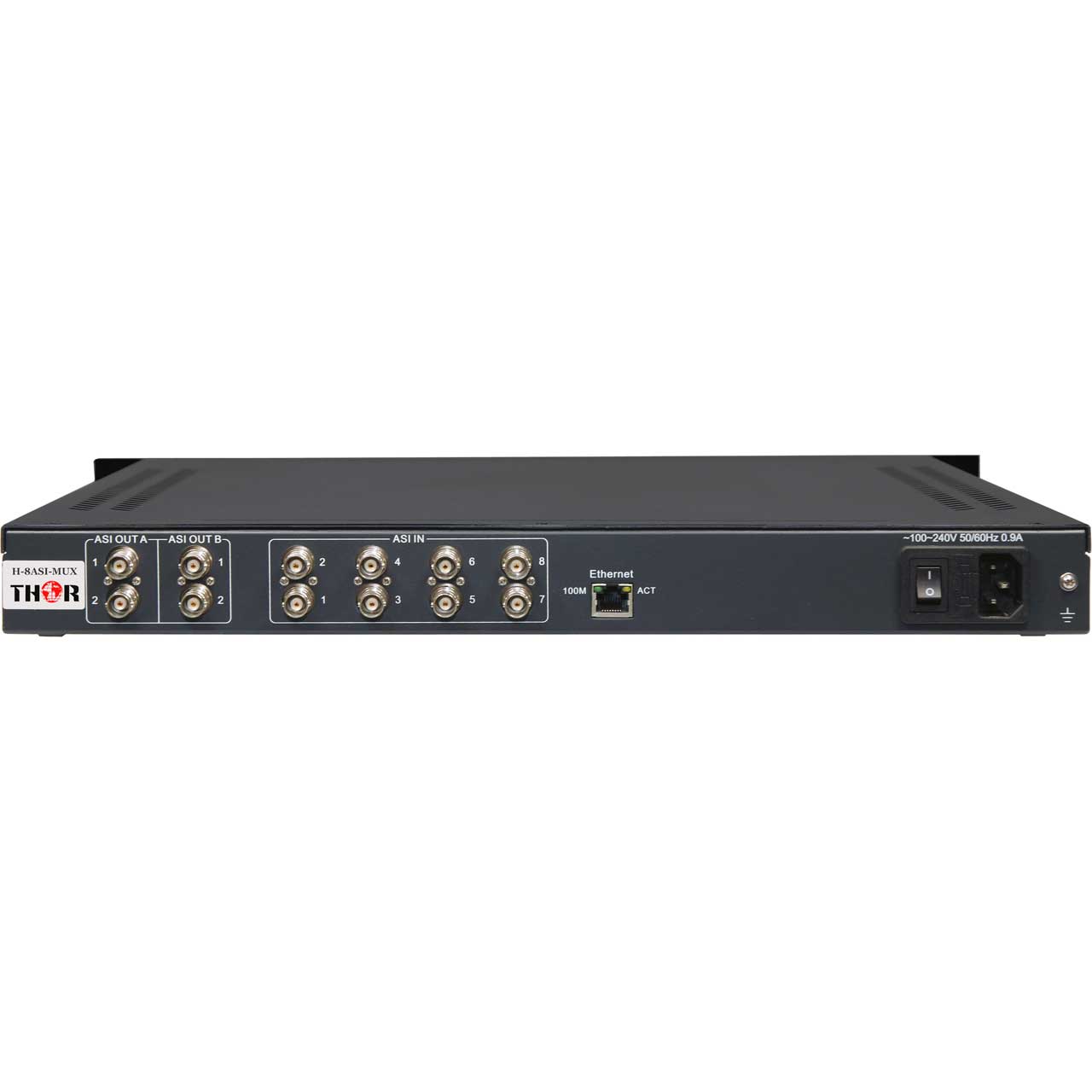

    • Dual ASI output channels on mirrored BNC connectors
    • Intelligently choose programs to multiplex to output
  • Specifications

    • Input Interface
    • ASI 8 ASI Input Ports (Maximum 216Mbps/Route)
    • Re-Multiplexing MPEG-2 input TS stream re-multiplexing
    • PID Remapping
    • PCR Correction
    • Automatically Generates PSI/SI Table
    • Output Interface
    • ASI One Multiplexed Output Port (1x2 ASI out, one as mirror)
    • Ethernet Port 10/100Mbps NMS Ethernet Port
    • Dimensions 44mm x 482mm x 360mm
    • Environment 0 - 45 C (operation) -20 - 80 C (Storage)
    • Power 220VAC, 50Hz, 25W
  • Item Includes

    • DVB-ASI Multiplexer
    • US Power Cable
    • User Manual
