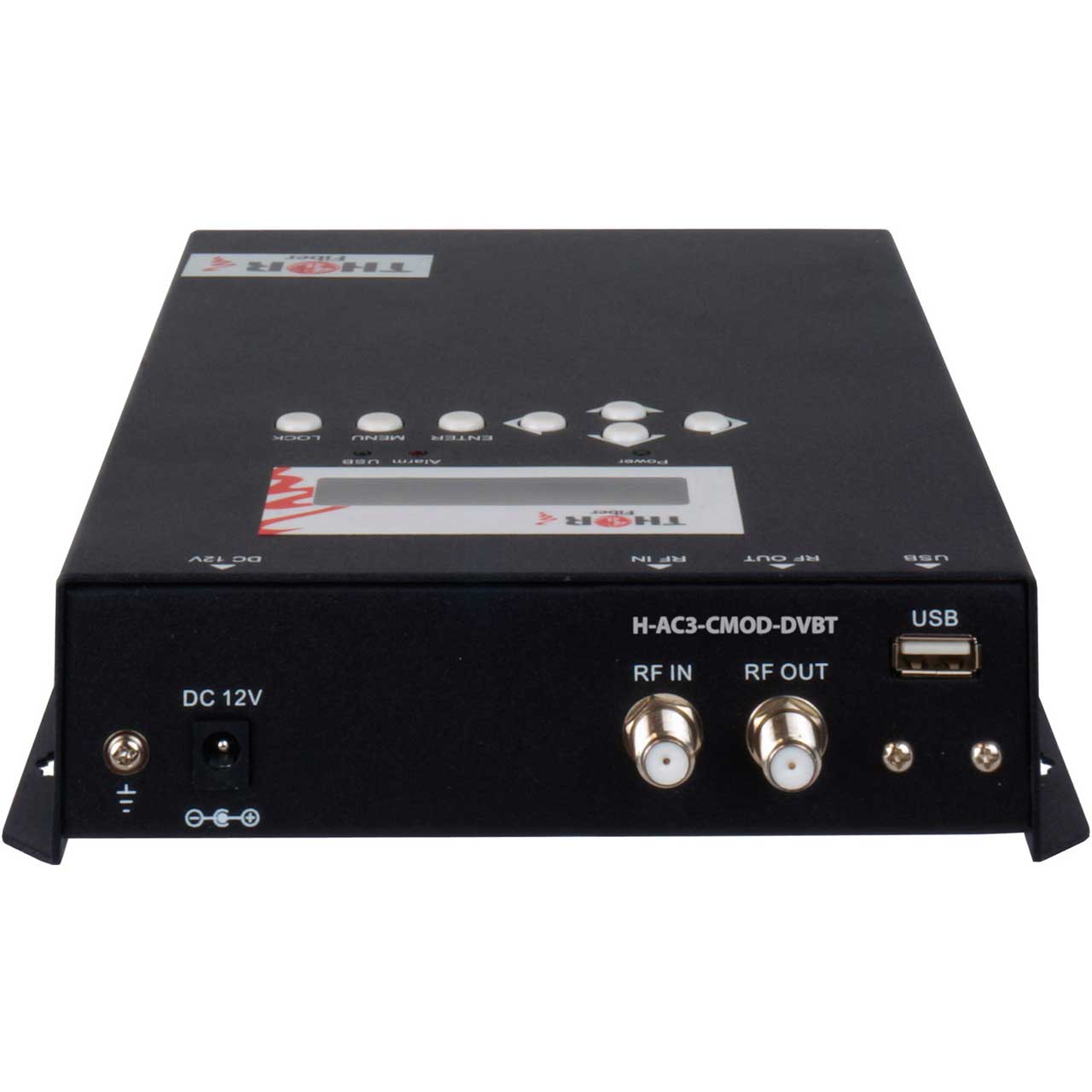

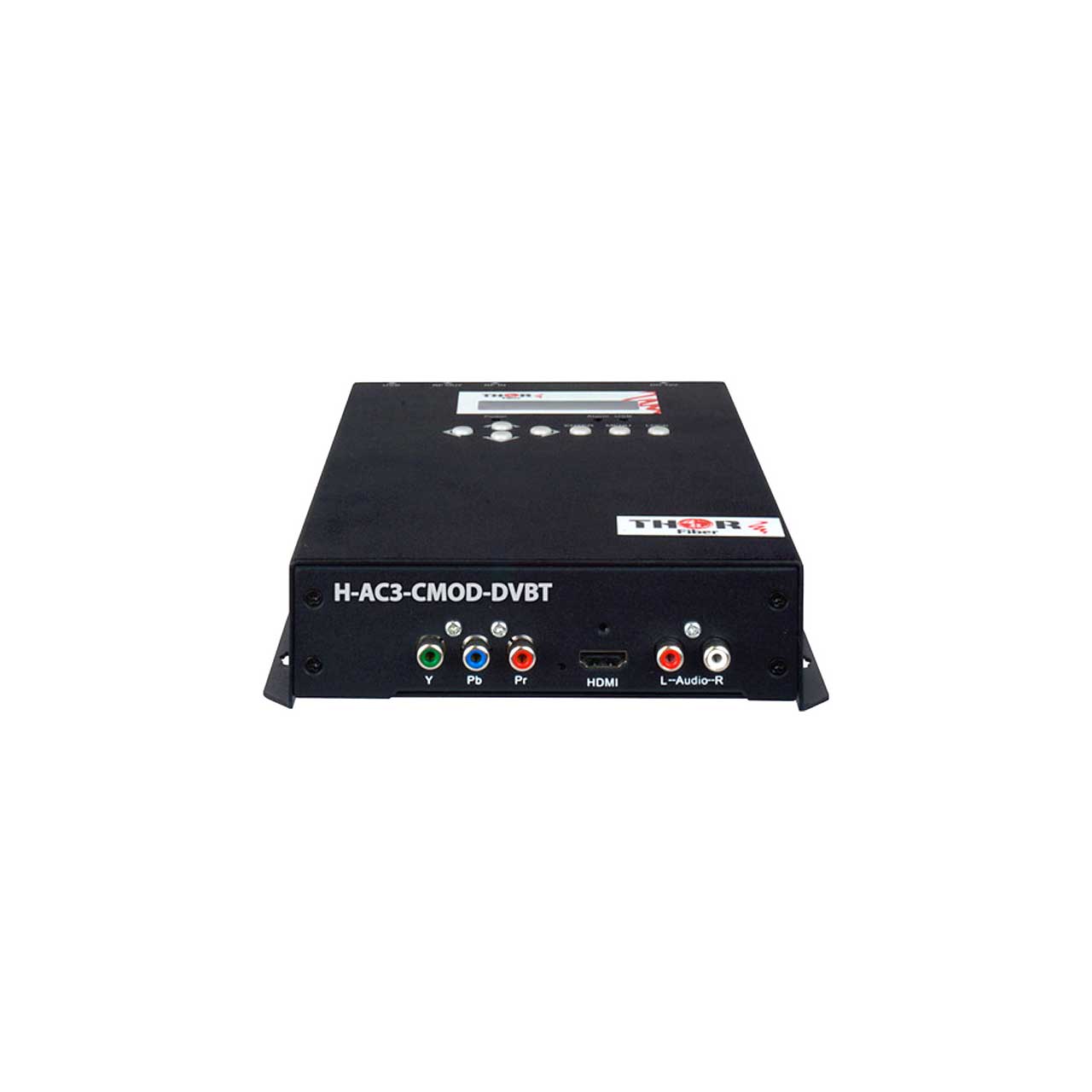

Thor Fiber H-AC3-CMOD-DVBT Compact HD DVB-T Modulator with Dolby AC/3

Manufacturer: Thor Fiber

Item #: THR-AC3-CM-DVBT   •   MFG #: H-AC3-CMD-DVBT


List Price:$1,248.75
Our Price:$999.00

free ship
Availability: Direct Ship From Manufacturer
Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.
  • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.



CMOD compact encoder modulator system with licensed Dolby AC/3 audio codec & digital HDTV DVB-T output. Ideal for video distribution in existing systems or buildings wired with coax for terrestrial TV. Converts live video to a digital HDTV channel compatible with any DVB-T (QPSK or QAM) set top box, tuner, or digital TV. Inputs are provided for HDMI or Component video up to 1080p60 for H.264 or 1080i60 for MPEG-2. Provides same quality encoding as larger 19in rack systems without the advanced features seldom needed in most installations; such as ASI or IP interfaces. USB file storage interface is provided for recording the encoded video transport stream from live sources. These *.ts files can then be transferred to a computer or played back through the modulator output on loop. This feature is ideally suited for digital signage applications or for system information channels. All features are available through the front panel LCD & back lit keypad for convenient programming. This unit can generate digital TV channels compatible with all world DVB-T systems or QPSK receivers.

  • Features

    • Licensed Dolby AC3 Audio Codec for Compatibility
    • Encode Live Video or Play from USB local storage devicve

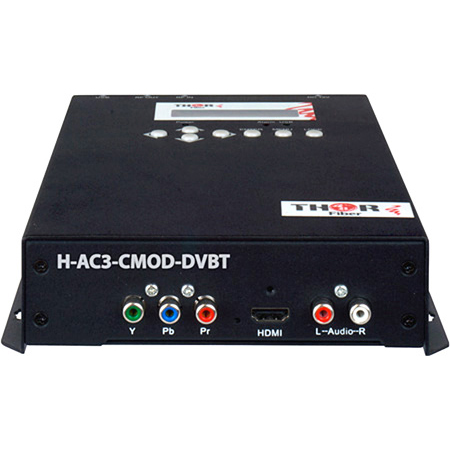

    • Provides inputs for Component HD & HDMI to 1080p
    • Encodes in MPEG-2 or H.264 video codecs at 0.5 - 19 Mbps
  • Specifications

    • Video Formats: 1080p, 1080i, 720p
    • Video Types:YPbPr,HDMI
    • Frame Rates: 50, 59.94, 60, 30 fps
    • Video Codecs: MPEG-2, H.264
    • Video Bit Rates: 0.5 - 19.5 Mbps, CBR or VBR
    • Audio Codecs: MPEG2 Layer2, AAC, Dolby AC3
    • Audio Bit Rates: 64 - 32 kbps (6 steps)
    • RF Output: QAM16, QAM256, QPSK
    • Power Input: 100-240 VAC Auto Switching 20W
    • Weight: 2 kg
    • Operating Temperature: 0 - 45 C
