Thor F-16TEL 16 Analog Telephone Lines Over Fiber Transceiver

ITEM #: THR-F-16TEL MFG #: F-16TEL

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$4,194.00

Our Price:

$3,495.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    F-16TEL - Overview

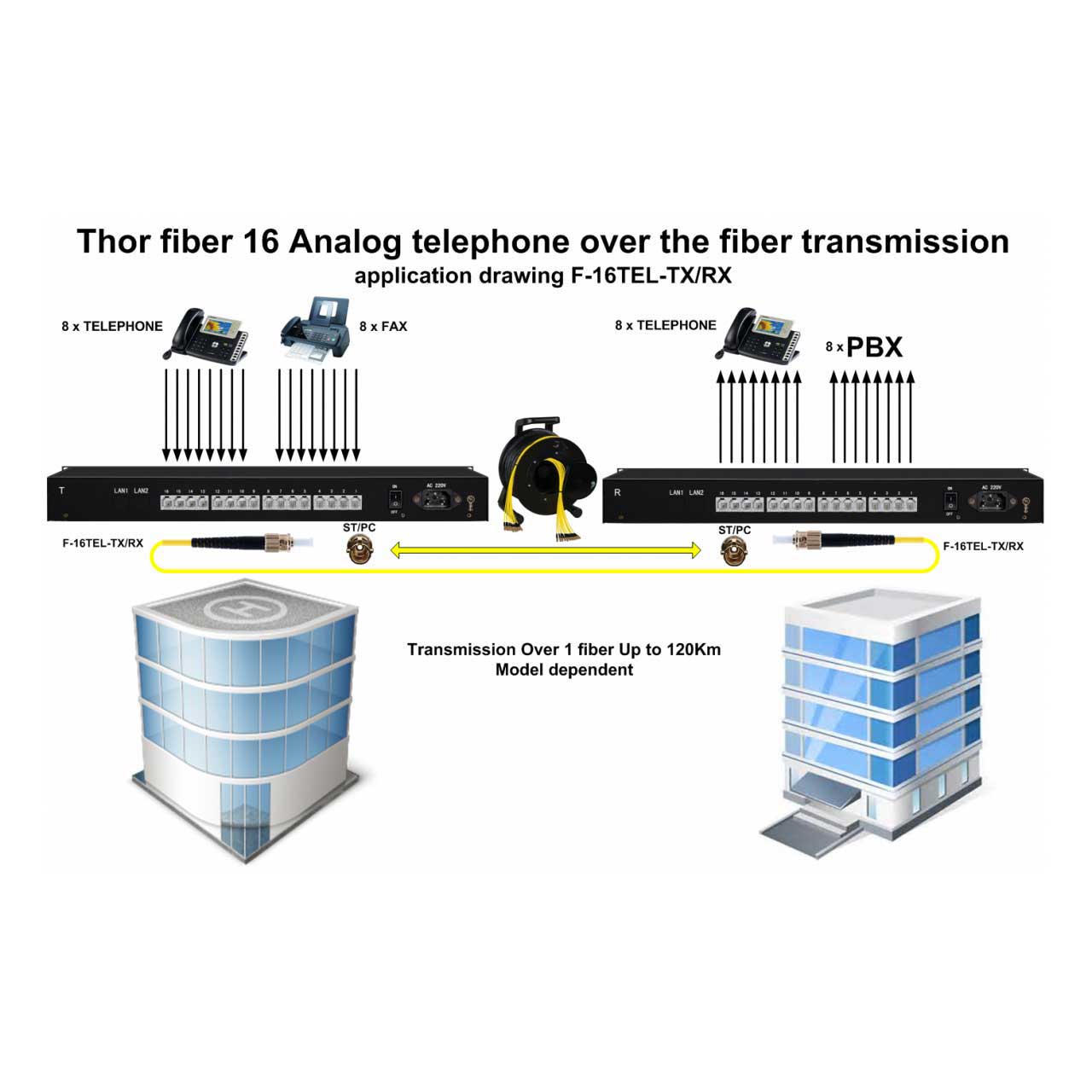

    The Thor Fiber F-16TEL is used for carrying 16 phone lines over fiber optic cable. Extend Telephone over Fiber applications offer a secure connection that is impossible to bug. The PSTN two-wire POTS telephone port can be configured either as an FXO (PBX trunk) or FXS (telephone set/fax machine/dial-up modem) device just by a simple DIP switch setting. Using a pair of these devices, 16 independent telephone lines can be extended over a fiber link. The F-16TEL provides full service for features like caller ID. The converter can be used in service mode, allowing the connection of 16 telephone sets. The F-16TEL is a simple and reliable solution for data carriers and service providers for Telephone over Fiber links.

    • Features:

      • Extend telephone voice transmission up to 20 / 40 / 80km over fiber (model dependent)
      • The base model works up to 20Km over singlemode fiber or up to 3000 feet over multimode fiber
      • Supports telephone voice transmission
      • Supports caller ID pass through
      • Selectable FXO or FXS mode
      • Supports FXS to FXS hot line

    • Specifications:

      • Optical Interface
      • Connector: ST/PC
      • Cable Length: SM 20/40/80120km MM up to 3000feet
      • Wavelength: MM 1310nm, SM 1310, 1550nm, WDM 1310Tx/1550Rx, 1550Tx/1310Rx

        Electrical Interface

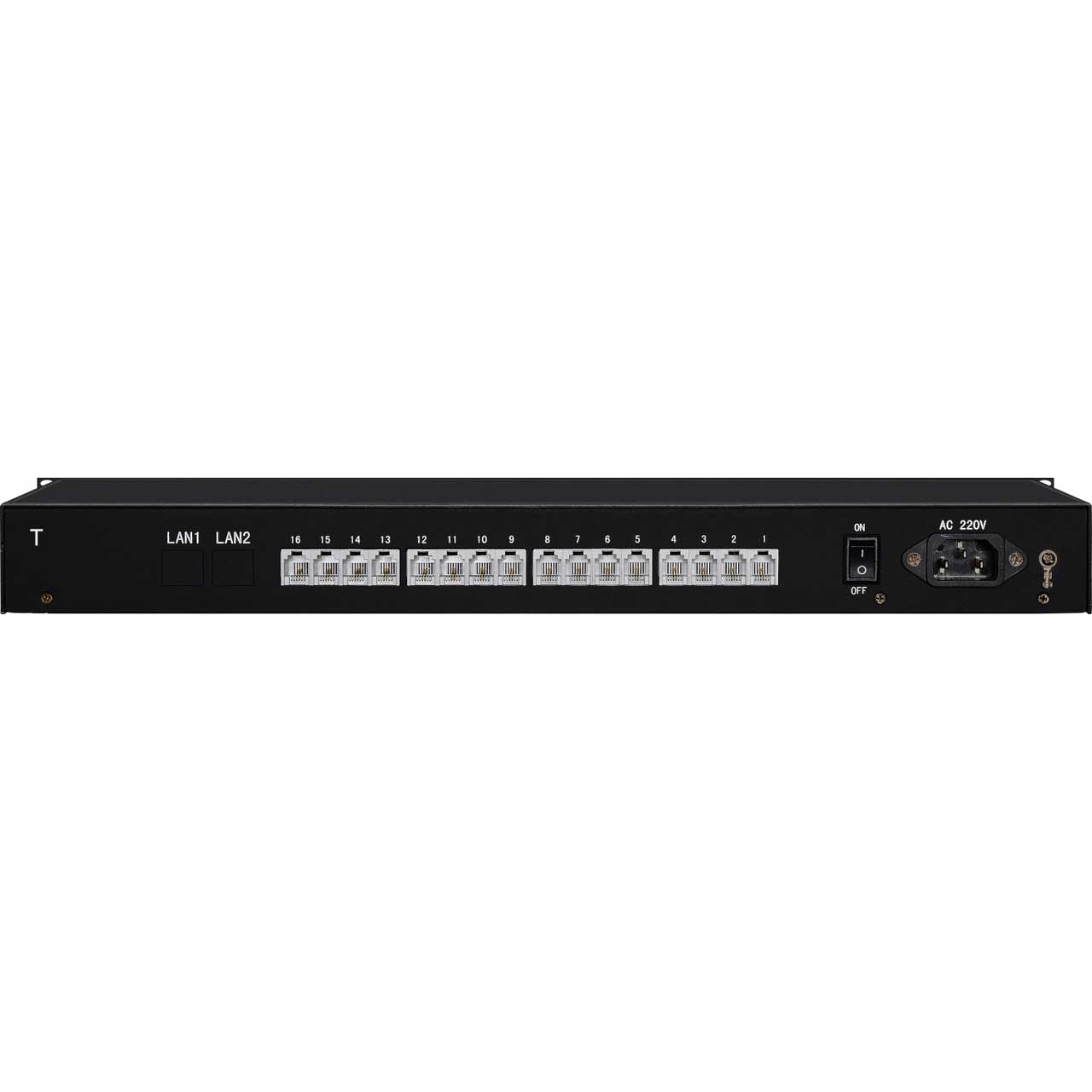

      • Connector: RJ-11
      • FXO Mode: 600 ohms, Coding: 16 bits liner, Loop Current: 10~100mA,Ring Frequency: Acceptable 20 ~50Hz, Insertion Loss: 0.0 ± 1.0dB at 1000H
      • FSX Mode: Impedance: 600 ohms, Coding: 16 bits liner, Dial: DTMF and Dial Paul, Battery Source: 48VDC ± 4
      • Ringing Waveform: Sine Wave
      • Ringing Frequency: 20/25/30/50 Hz selectable
      • Ring Cadence: FXS to FXS: On / 1 sec, Off / 2 sec
      • FXO to FXS: Reproduces the cadence detected by FXO Insertion Loss 0.0 ± 1.0dB at 1000Hz
      • REN: 4.0B(Ring Equivalence Number

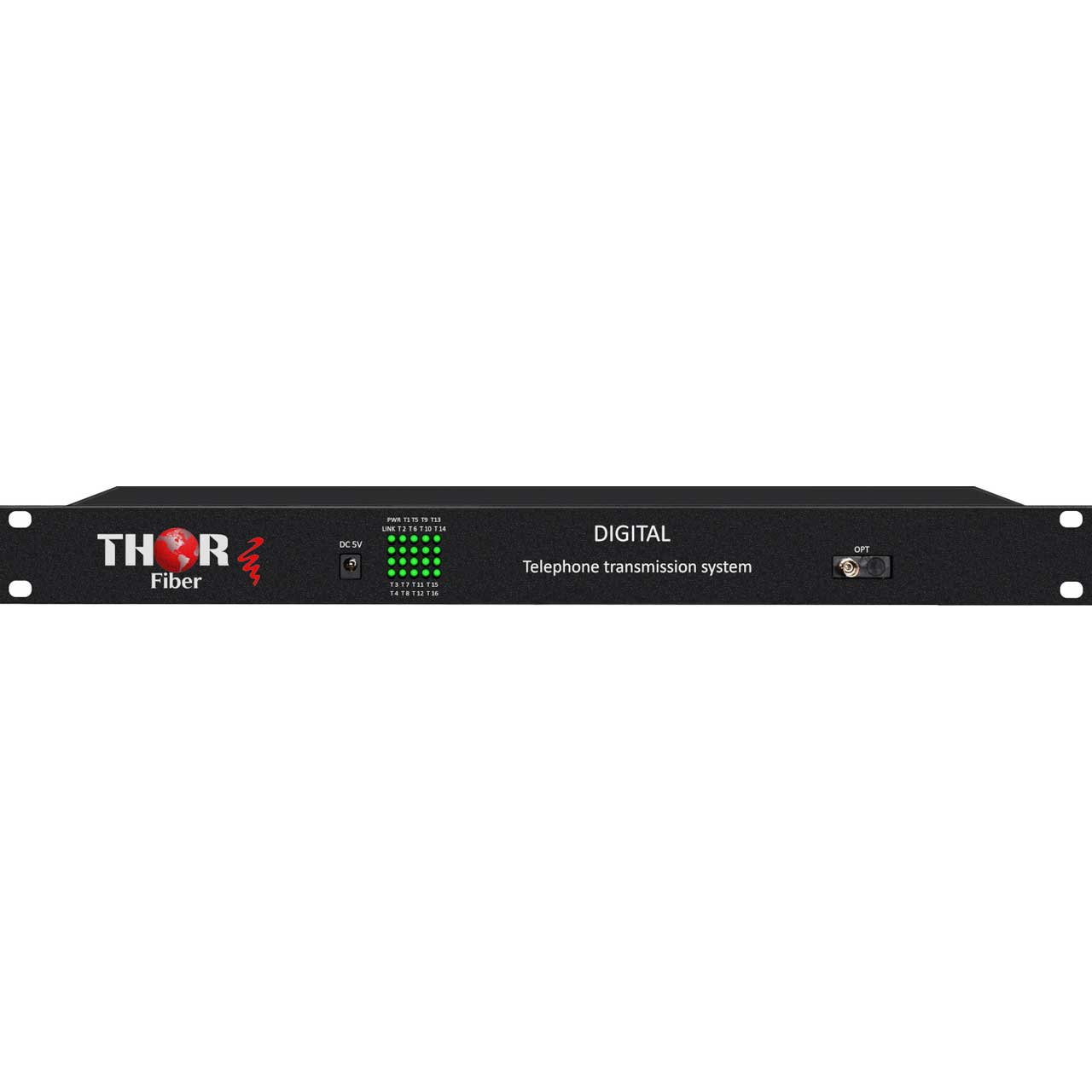

      • LED Indicators: Power, FX Link, Phone Act, Test
      • Power Requirments: DC IN 12V
      • Power Consumption: 5 W
      • Dimensions: 480mm x 225mm x 44mm
      • Temperature: 0~50°C (Operating) 0~70°C (Storage)
      • Certifications: CE, FCC, LVD, RoHS
      • MTBF: 125,000 h (25°C)
