H-IPTV-GATEWAY - Overview

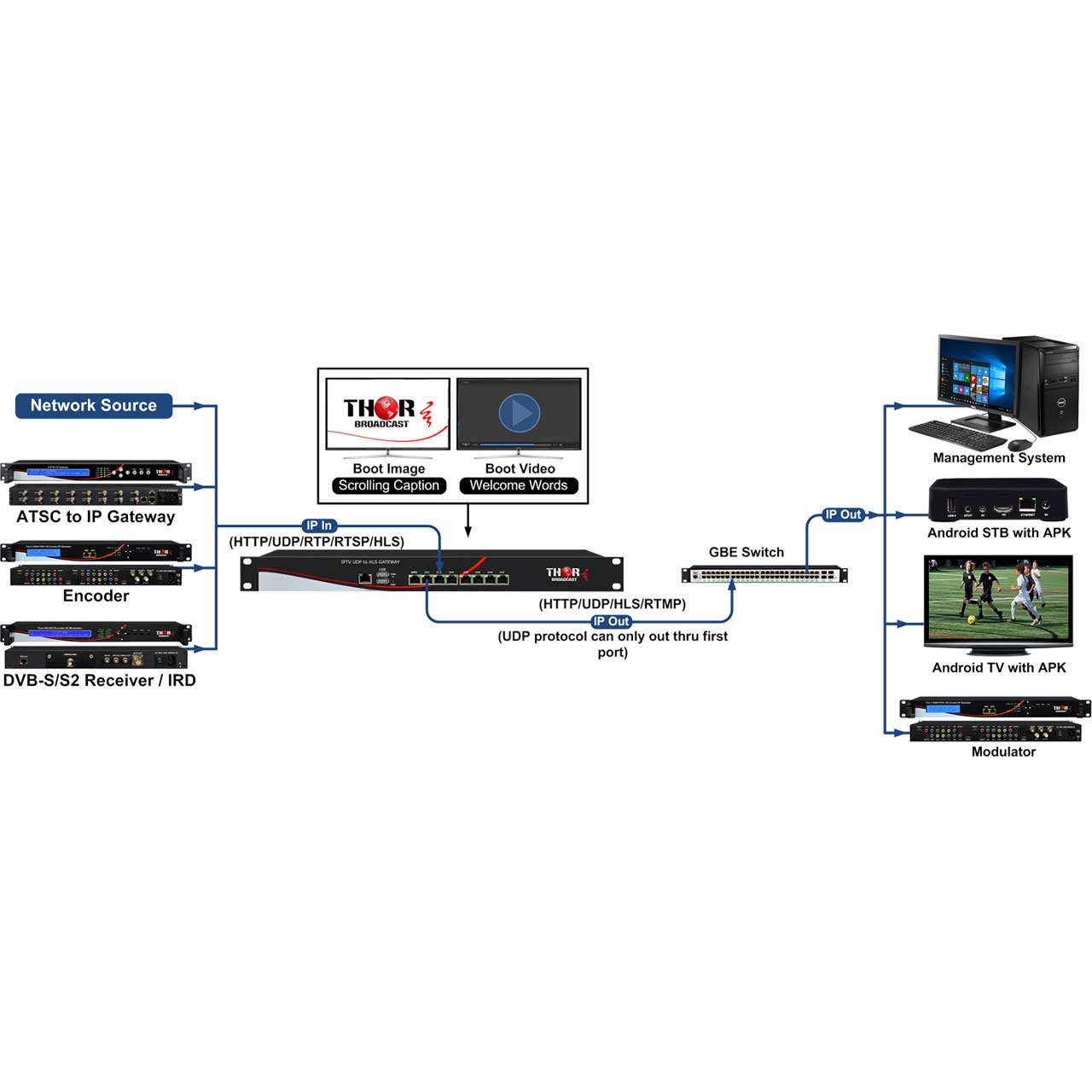

The Thor Fiber H-IPTV-GATEWAY can convert the broadcast network IP stream over HTTP, UDP, RTP, RTSP and HLS and TS file into HTTP, UDP, HLS and RTMP protocol. This is a swiss army knife of converting IPTV protocols, all in one chassis, Thor Fiber has effectively replaced the need for specific encoders to output specific TS streams. 1RU and easy to use GUI have allowed us to turn your LAN UDP protocols into HLS for viewing you output directly into IP format for anyone to see. The system can provide streaming media services directly as well.

  • Features:

    • 8 Data ports:
    • - First Data port: IP out over HTTP, UDP (SPTS), HLS and RTMP
    • - Data CH1-7 ports: IP in over HTTP, UDP (SPTS), RTP (SPTS), RTSP and HLS
    • - IP out over HTTP, HLS and RTMP (Unicast)
    • TS files uploading through Web management
    • IP anti- jitter function
    • Adding scrolling caption, welcome words, boot image and boot video (this function is only applicable to IP out application and the STB/Android TV must be installed IPTV APK)
    • Downloading Thor IPTV APK directly from this device
    • About 80 HD/SD programs (Bitrate:2Mbps) When HTTP/RTP/RTSP/HLS is converted into UDP (Multicast),the actual application shall prevail, and suggest maximum 80% CPU utilization
    • Program playing with APK downloaded android STB and TV, maximum 150 terminals
    • Control via web-based NMS management through DATA port


  • Specifications:

    • Input:
      - IP input thru CH 1-7(1000M) over HTTP, UDP(SPTS), RTP(SPTS), RTSP (over UDP, payload: mpeg TS) and HLS
      - TS files uploading through Web management
    • IP output:
      - IP out thru Data port (1000M) over HTTP (Unicast), UDP(SPTS, Multicast) HLS and RTMP (Program source should be H.264 and AAC encoding)
      - IP out thru CH 1-7(1000M) over HTTP/ HLS/RTMP (Unicast)
    • System:
      - Memory: 4G
      - Solid-State Disk(SSD): 16G
      - Channel switching time with THOR IP STB: HTTP (1-3s), HLS (0.4-0.7s)
      - Supports adding scrolling caption, welcome words, boot image and boot video (this function is only applicable to IP out an application and the STB/Android TV must be installed Thor IPTV APK)
      - Play programs with APK downloaded android STB and TV, maximum of 150 terminals
      - About 80 HD/SD programs (Bitrate: 2Mbps) When HTTP/RTP/RTSP/HLS is converted into UDP (Multicast), the actual application shall prevail, and suggest maximum 80% CPU utilization
      - web-based NMS management thru DATA port
    • General
      - Demission: 482mmx324mmx44mm (WxLxH)
      - Temperature: 0~45°C (32°F ~ 113°F) (operation), -20~80°C (-4°F ~ 176°F) (storage)
      - Power Supply: AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz


  • Warranty:

    • 2 Year Warranty
