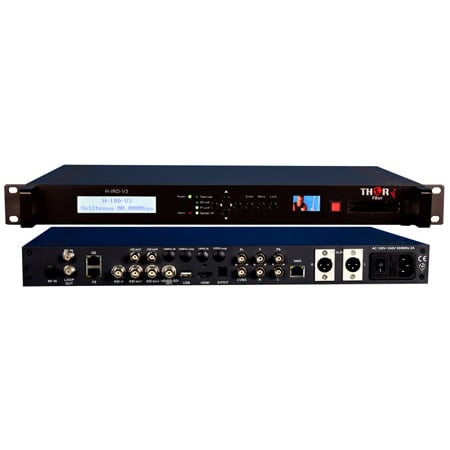

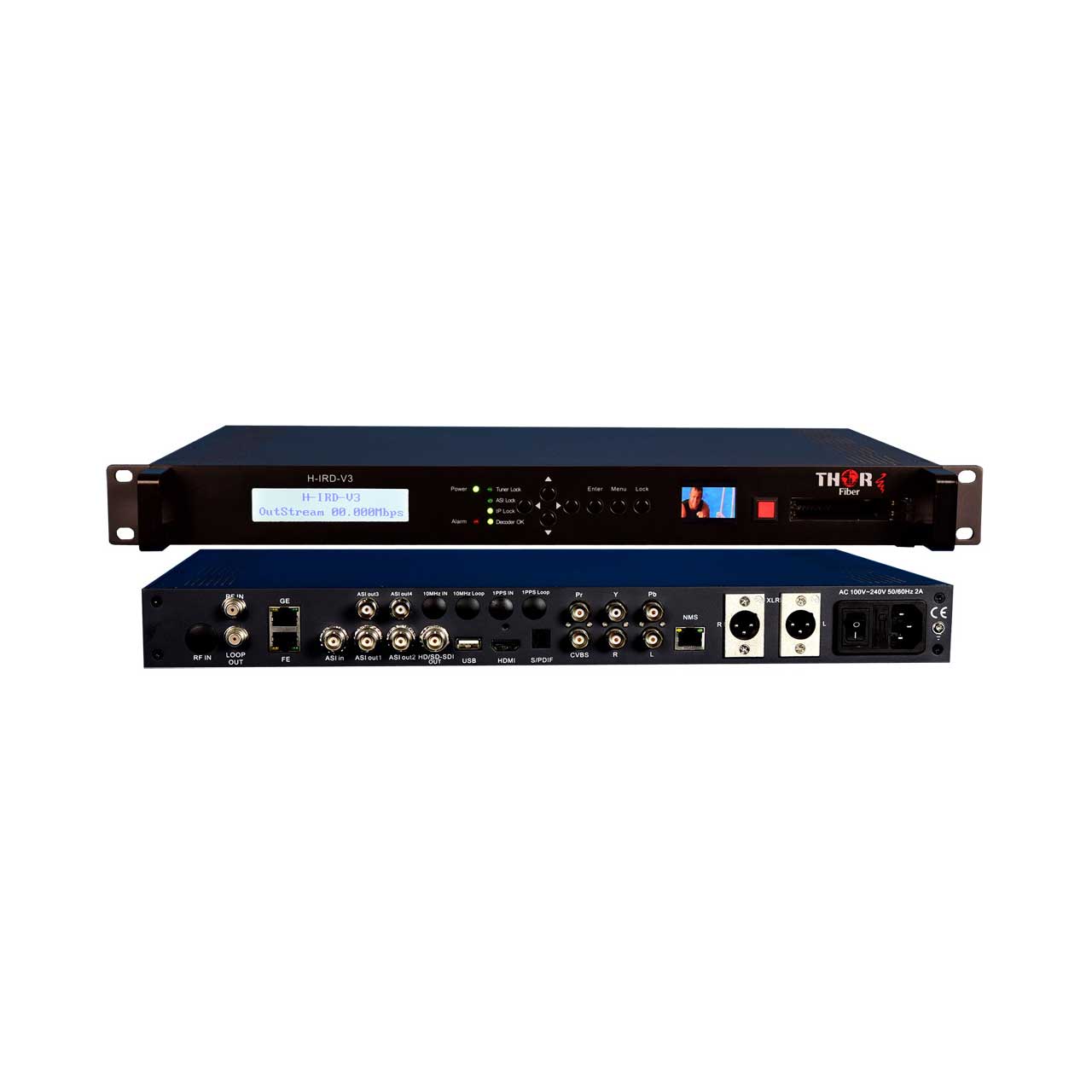

Thor Fiber H-IRD-V3s Integrated Receiver Decoder for DVB-S2/ ASI/ or IP
  • Thor Fiber H-IRD-V3s Integrated Receiver Decoder for DVB-S2/ ASI/ or IP
  • Thor Fiber H-IRD-V3s Integrated Receiver Decoder for DVB-S2/ ASI/ or IP
Questions? Ask a Markertek Expert:
800-522-2025 Email

Thor Fiber H-IRD-V3s Integrated Receiver Decoder for DVB-S2/ ASI/ or IP

Manufacturer: Thor Fiber

Item #: THR-IRD-V3S   •   MFG #: H-IRD-V3S


List Price:$2,368.75
Our Price:$1,895.00

free ship
Direct Ship from manufacturer, contact us for availability
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.

    California Residents:
    Cancer and Reproductive Harm -


    Thor H-HD-IRD series Integrated Receiver Decoders have several applications for decoding program content to broadcast quality video. Equipped with every major video signal output, including HD-SDI, Thor H-HD-IRD units can provide HD video to any display or professional video system. Also available are modern digital audio outputs on both optical Toslink and XLR connectors. Dolby AC/3 audio pass through is standard, and closed caption support for both 608 and 708 captioning systems is present. The V3 platform adds a front panel LCD video display for confidence monitoring, as well as an internal program multiplexer for combining content from both ASI and IP sources simultaneously. The web interface displays all available programs and corresponding PID's. Each program can be independently added to either the ASI or IP outputs. The all selected programs are multiplexed into a single MPTS output. Additionally, the IP output can be configured for up to 32 SPTS single program stream outputs, each with different address and port settings. This allows the V3 system to be used as an intelligent ASI to IP or RF to IP Gateway with add drop and ASI multiplexing capabilities. Combined multi program transport streams carried over IP can also be separated into their corresponding single program streams. The RF tuner can be configured for QAM, 8VSB (ATSC), DVB-T, DVB-C, or DVB-S2 signal sources. Two CAS card slots allow decoded of encrypted programming. Thor HD-IRD units can be used for converting broadband programming to uncompressed HD video, as well as multiplexing and retransmitting programs to both ASI and IP outputs. Thor HD-IRD systems are a reliable and versatile platform for broadcast program decoding and TS protocol conversion.

    • Features

      • Broadcast Integrated Receiver Decoder System
      • Integrated RF Tuner DVB-S2 Standard satellite TV
      • Decodes any IP or ASI program from SPTS or MPTS
      • Network managed on decidated network interface
      • Supports 608 closed captions & 708 on HD-SDI out
      • Remap PIDs from any TS input to any TS output
      • Process, remap, and remultiplex up to 32 streams
    • Specifications

      • Video Codecs: MPEG-2, H.264
      • Input Types: ASI, IP, RF
      • Audio Codecs: MPEG1/MPEG2 Layer1 & 2
      • Output Types: Video, ASI, IP
      • Video Types: CVBS, YPbPr, HDMI, HD-SDI
      • Audio Types: Baseband Analog, AES/EBU
      • Conditional Access: PCMCIA CAM/CAS
