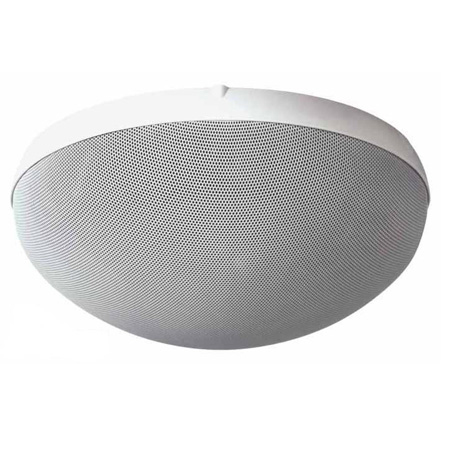

TOA H-2 EX Interior Design Speaker - 2-Way Dome-Shaped Wall/Ceiling-Mount 12 W - 70.7/100 V Transformer - Paintable

ITEM #: TOA-H-2EX MFG #: H-2EX

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$234.50

Our Price:

$189.50

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    H-2EX - Overview

    THE H SERIES INTERIOR DESIGN SPEAKERS are the latest example of TOA's modern, innovative approach to commercial speaker design. The unique, stylish appearance and superb sound quality of the three new models, the H-1, H-2 and H-2WP, provide a welcome alternative to conventional wall-and ceiling-mount speakers. Applications include speaker systems for houses of worship, hotels, offices, museums, restaurants, retail stores, residential spaces and many others. The H-2WP is a weather-proof version of the H-2 for outdoor wall-mount applications such as terraces, gardens, patios and swimming pools.

    The H Series Minimum Reflection design significantly reduces sound wave reflections and the resulting sound coloration that occurs with conventional bracket-mounted "box" type speakers. Wall- or ceiling-mount installation is fast and easy using standard electrical gang-boxes, and you can rotate and aim the loudspeaker components without altering the enclosure's external appearance. Each H Series speaker has a paintable grille and features a high quality Ferrofluid-cooled dome tweeter, Neodymium woofer, 70.7/100 V matching transformer and removable terminal block. 900MK2 Processor Modules are also available for convenient system equalization using the industry-standard TOA 900MK2 Series Mixer/Amplifiers.

    Note: For outdoor installation, it is recommended that they are installed under roofs, eaves, or in other locations not directly exposed to rain or snow.

    • Features:

      • Sleek, Stylish Appearance blends well with modern architecture for background/foreground music and paging systems.
      • Wide Variety of Applications including wall- or ceiling-mount speaker systems for houses of worship, hotels, museums, offices, restaurants, retail stores and residential spaces.
      • Weather-Proof Version Available, Model H-2WP, for outdoor applications such as terraces, gardens, patios and swimming pools.
      • Minimum Reflection Design reduces sound wave reflections typical of conventional bracket-mounted "box" type speakers.
      • Loudspeaker Components Rotate to allow flexible aiming without altering the enclosure's external appearance.
      • Two-Way, Sealed Enclosure with High-Quality Components:
      • 1" balanced-dome tweeter, Ferrofluid-cooled
      • 3" x 2" cone woofer (H-1) or 4" cone woofer (H-2/H-2WP) with Neodymium magnets for improved low frequency response.
      • Built-In 70.7/100 V Matching Transformer (12 W max.) for distributed speaker systems.
      • Protection Circuit to prevent loudspeaker damage from excessive input.
      • Built-In Passive Crossover with optimized filter slopes.
      • High Power Handling: 90 W for the H-1 and 120 W for the H-2/H-2WP (Continuous Program).
      • Fast and Easy Installation using supplied mounting hardware.
      • Push-On Grilles with Paintable Finish allow custom-matching to any environment.
      • Removable Terminal Block accepts up to AWG #14 wire with loop-through terminations for distributed speaker systems.
      • Convenient System Equalization with 900MK2 Series Modules, E-04R (H-1) and E-05R (H-2/H-2WP). Equalization parameters for DACsys II or similar digital signal processors also available.
      • Fire-Rated ABS Enclosure (H-1/H-2)

    • Specifications:

      • Enclosure Type: Sealed type
      • Power Handling: 120 W (continuous program input, 4 Ωloaded), 40 W (continuous pink noise input, 4 Ωloaded)*¹
      • Rated Input: 12 W (16 or high impedance)
      • Rated Impedance: 4 Ω, 16 Ω
      • 70 V line: 420 Ω (12 W), 830 Ω (6 W), 1.7 k Ω (3 W), 3.3 k Ω (1.5 W)
      • 100 V line: 830 Ω (12 W), 1.7k Ω (6 W), 3.3k Ω (3 W)
      • Output Sound Pressure Level: 88 dB (1 W, 1 m, 2 loading)*²
      • Frequency Response: 100 Hz to 20 kHz (-10 dB, 2 π loading)
      • Crossover Frequency: 5,000 Hz
      • Speaker Element: Low frequency: 10 cm cone woofer (neodymium magnet), High frequency: Balanced dome tweeter
      • Input Terminal: Detachable screw terminal, (+)/(-) 2 each (for bridging connection)
      • Usable Cable: Solid cable or stranded cable: 0.2 mm2
      • - 2.5 mm2 (Corresponding to AWG No. 24-14)
      • Material and Finish:
      • Enclosure: Fire-resistant ABS resin (UL 94V-0), black,
      • Grille frame: Fire-resistant ABS resin (UL 94V-0), white,
      • Grille: Rolled steel plate, white, paint
      • Base frame: Rolled steel plate, pre-coating
      • Dimensions: 10.55" x 4.37"
      • Weight: 4.6 lbs (including base frame)

        *¹Continuous 24 hours, band-limited pink noise (50 to 20,000 Hz)

        *²Pink noise (1,000 Hz to 10,000 Hz)

    • Warranty:

      • 5 Years
