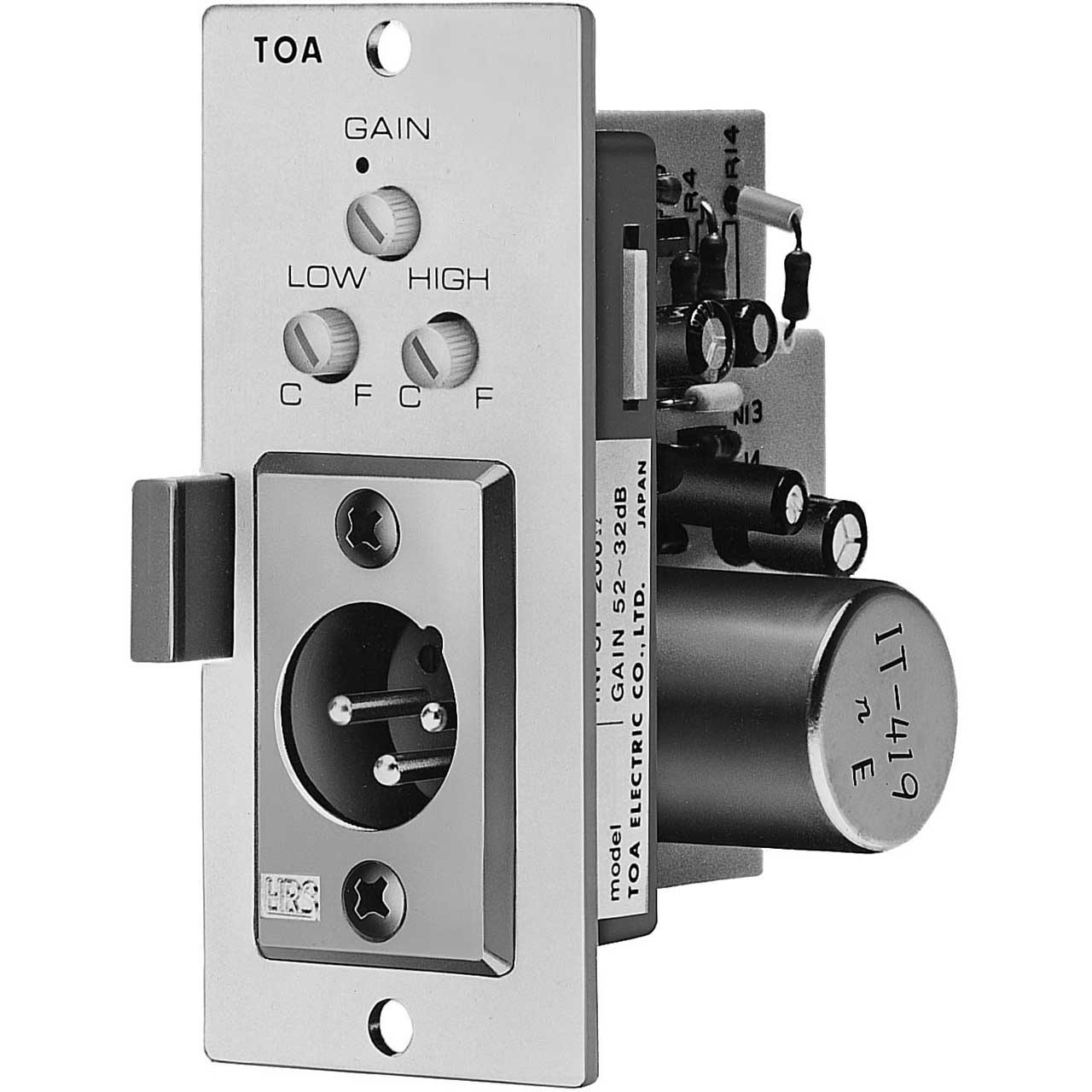

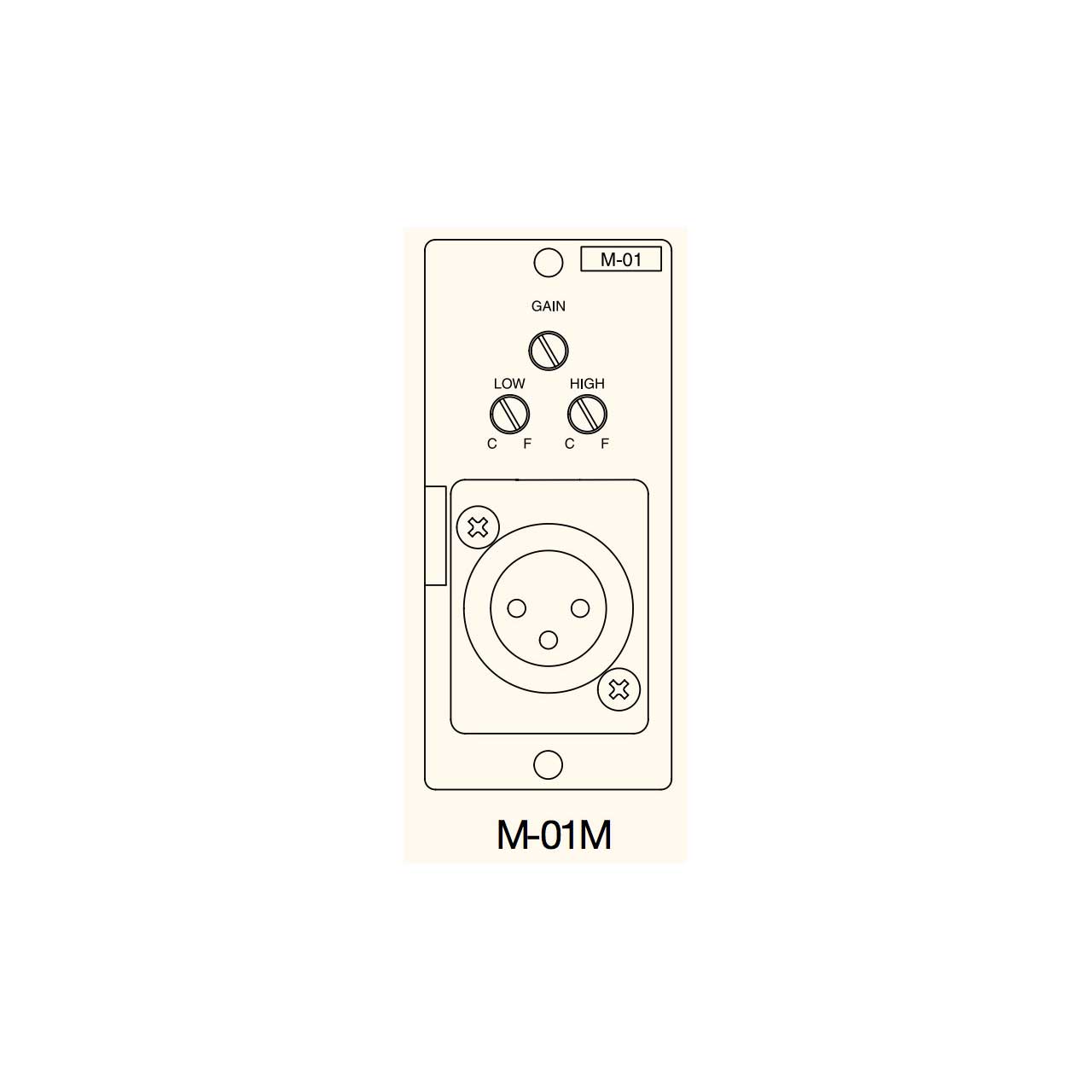

TOA M-01M Balanced Mic Input Module w/Lo/High Cut Filters & XLR-M

M-01M - Overview

• Specifications:

  • Power Source: 24 V DC (supplied from the main frame)
  • Current Consumption: 9 mA
  • Input Sensitivity: -60 dB* (rated output: -20 dB*), adjustable: -72 to -52 dB*
  • Input Impedance: 600 Ω, balanced transformer-isolated
  • Frequency Response: 25 Hz - 20 kHz ±2.0 dB
  • Distortion: 0.05 % or less (1 kHz, output: 0 dB*)
  • Noise Level: -86 dB* (20 Hz - 20 kHz BPF), input equivalent noise: -126 dB*
  • Gain: 32 - 52 dB
  • Phantom Power: +22 V DC (active or disable selectable)
  • Tone Control: 100 Hz: 0 to -10 dB, 10 kHz: 0 to -10 dB
  • Connector: Male XLR connector (XLR-3-32 equivalent)
  • Dimensions: 35 (W) x 78 (H) x 88 (D) mm (1.38 x 3.07" x 3.46")"
  • Weight: Max. 110 g (0.24 lb)
