TOA PE-304WU Pendant Ceiling Speaker - 70.7/100V Transformer - 30W - Black/UL 1480 UUMW

ITEM #: TOA-PE-304BU MFG #: PE-304BU

Primary Image
TOA Electronics, Inc.
Free Shipping with $49 Minimum Order

List Price:

$247.80

Our Price:

$200.30

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    PE-304BU - Overview

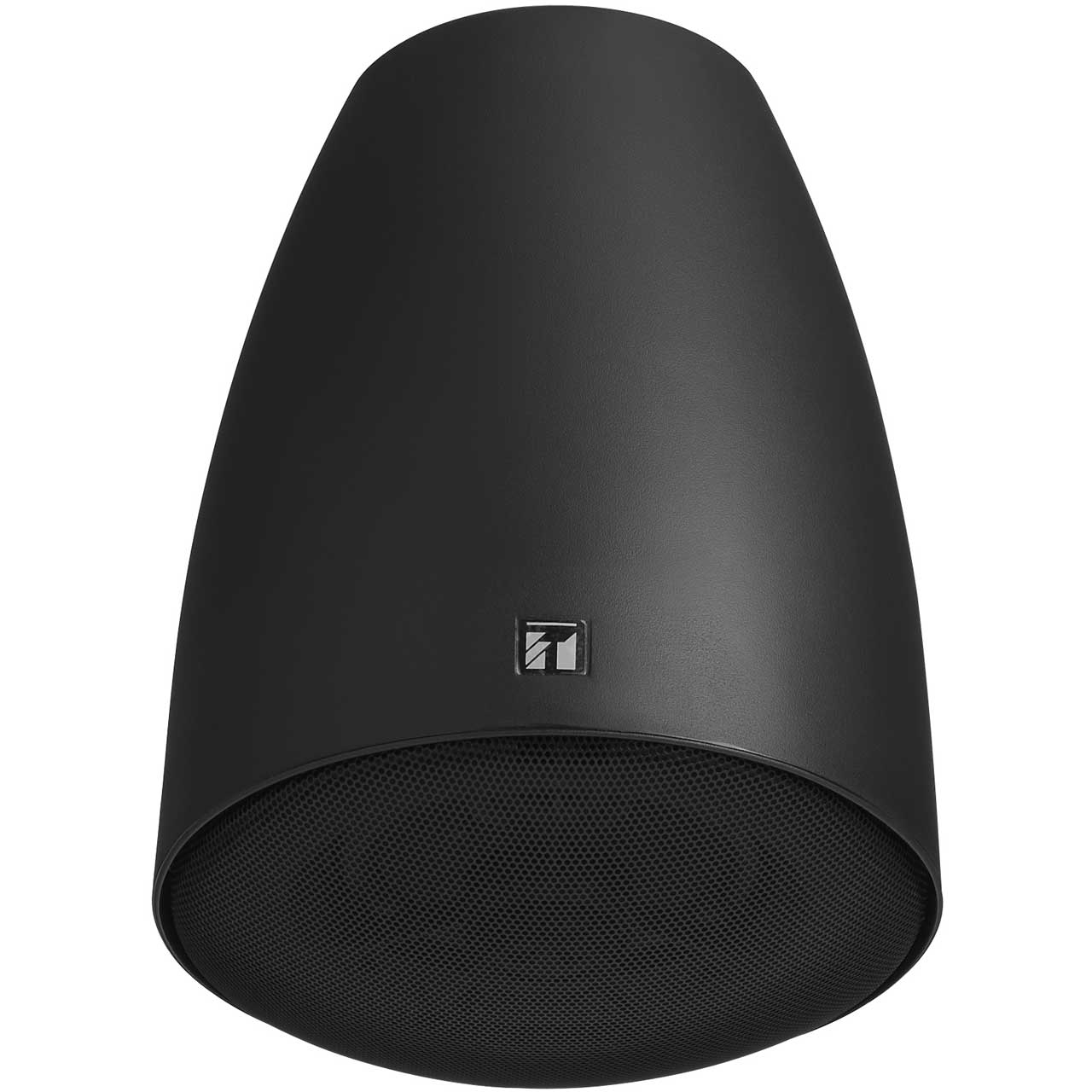

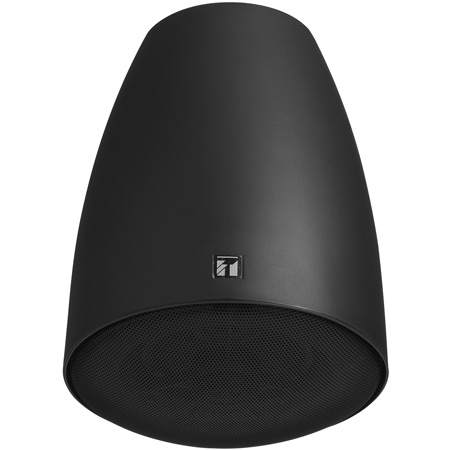

    The TOA PE-304BU is an ABS resin bass-reflex enclosure with a 12cm (5") cone-type woofer and a balanced-dome tweeter. These pendant speakers are intended to be installed suspended from a ceiling. They are very lightweight, with a stylish design inspired by modern lighting fixtures, allowing them to harmoniously blend in with a room design. These speakers are ideally suited for applications such as Background Music (BGM) and announcements in high-ceiling venues such as airports, factories and shopping malls, and, in addition, certification to UL 1480 UUMW (Mass Notification System) and ULC-S541 standards enables them to work in emergency announcement systems.

    The speakers can be driven on both high-impedance (100V, 70V and 25V) and low-impedance (8Ω) lines. Input impedance is adjustable with a rotary switch on the top of the speaker. The hanging wire, safety wire and speaker cable are pre-attached, for quick and easy installation. GRIPPLE® hangers facilitate speaker mounting height adjustment.

    Applications:
    Shopping malls
    Airports
    Factories
    Office buildings

    • Features:

      • Remarkably lightweight with stylish design inspired by modern lighting fixtures
      • Ideally suited for BGM & mass notification announcements
      • 8Ω and 25V/70V/100V operation
      • Input impedance is easily changed with a rotary switch on the top of the speaker
      • With speaker cable, GRIPPLE hanging wire & safety wire pre-attached, for faster, easier and more secure installation


    • Specifications:

      • Enclosure: Bass-reflex type
      • Rated Input: 30 W (100 V, 70 V line, 8 Ω), 3.7 W (25 V line)

        Rated Impedance:
      • 100 V line: 330 Ω (30 W), 1 kΩ (10 W), 3.3 kΩ (3 W), 10 kΩ (1 W)
      • 70 V line: 170 Ω (30 W), 330 Ω (15 W), 1 kΩ (5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
      • 25 V line: 170 Ω (3.7 W), 330 Ω (1.9 W), 1 kΩ (0.6 W), 3.3 kΩ (0.2 W), 10 kΩ (0.1 W)
      • Low: 8 Ω

      • Sensitivity: 90 dB (1 W, 1 m) (330 - 3.3 kHz, pink noise)
      • Frequency Response: 95 Hz - 20 kHz (peak -10 dB)
      • Operating Temperature: -10°C to +50°C (14°F to 122°F)
      • Speaker Component: 12 cm (5") cone-type + balanced dome-tweeter (coaxial)
      • UL Code: UL1480 UUMW, ULC-S541
      • Finish: Enclosure: ABS resin, black
      • Grille: Surface-treated steel plate mesh, black, paint
      • Dimensions: 186 x 275 (H) mm (7.32" x 10.83") (unit only)
      • Weight: 2 kg (4.41 lb) (unit only)


    • Item Includes:

      • 1x GRIPPLE No. 1
      • 1x GRIPPLE No. 2
      • 1x Release Key (for GRIPPLE)
      • 1x Safety Wire (0.06")
      • 1x Hanging wire (0.08")
      • 1x Speaker Cable (4-core FPL listed cable 15.09ft)
