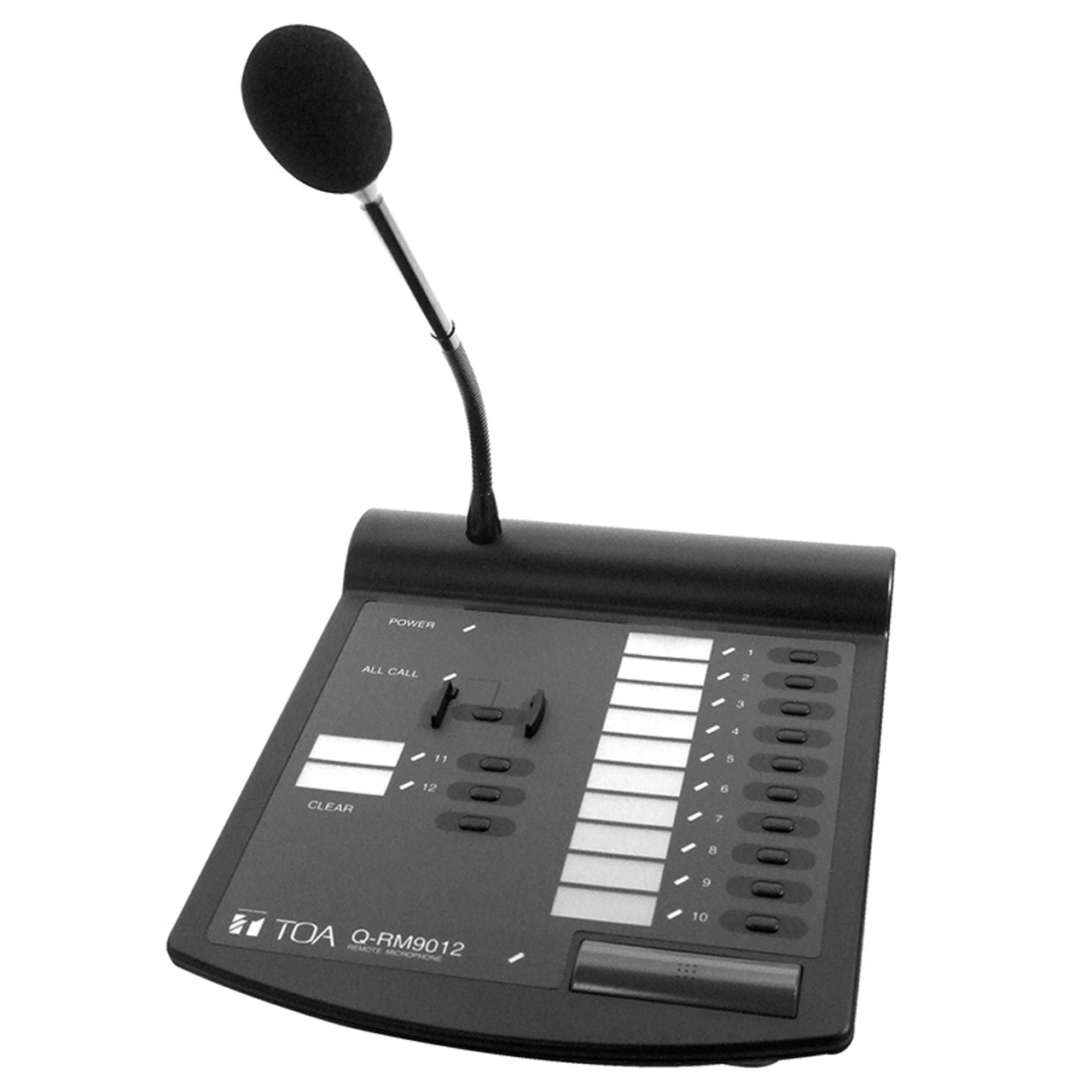

TOA Q-RM9012PS Remote Paging Microphone for up to 12 Zones - AD-246 Power Supply Included

Q-RM9012PS - Overview

• Features:

  • Announcement to the selected zones out of a maximum of 12 zones
  • Paging zones may be selected individually or in groups
  • An All-Call button for selecting all zones
  • A clear button for clearing all zone selections
  • Unidirectional electret condenser microphone with balanced audio output
  • AD-246 power supply included


• Specifications:

  • Type: Gooseneck
  • Element: Unidirectional electret condenser microphone
  • Power Source: 24V DC from AC adaptor AD-246 or the equivalent
  • Frequency Response: 100Hz - 20kHz

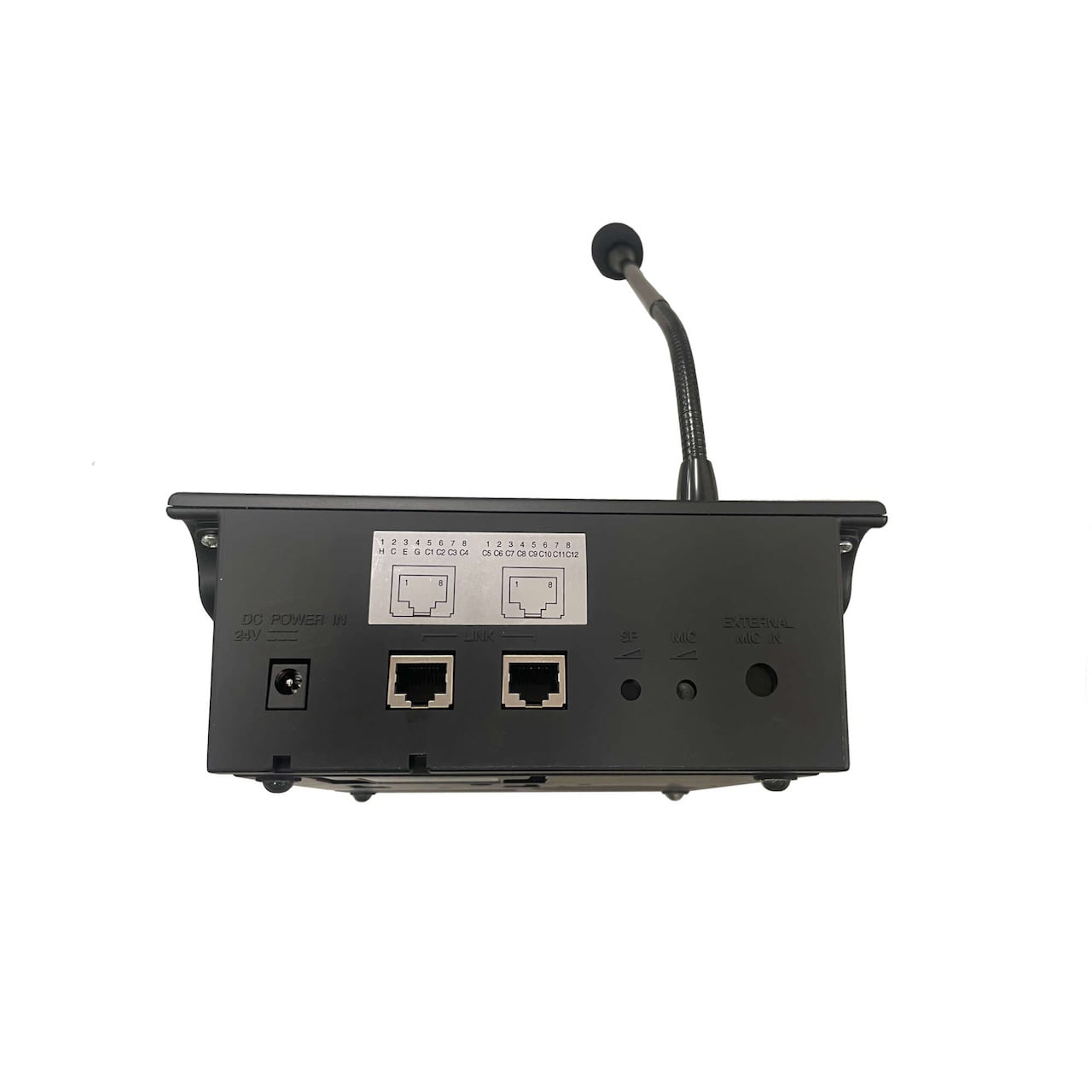

  • Output Terminal: 0dB*, 600Ω transformer balanced, RJ45 connector
  • Talk Switch: 12 zone selection keys, all call key, cancel key, talk key
  • Output: 12 channels, open collector output
  • Withstand Voltage: 27V DC
  • Control Current: max. 50mA, 2x RJ45 connectors
  • Operating Temperature: 14°F - 104°F (-10°C - 40°C)
  • Finish: ABS resin, black
  • Dimensions (HxWxD): 3.01" x 7.48" x 8.46" (76.5mm x 190mm x 215mm)(Gooseneck microphone excluded)
  • Weight: 1.65lbs (750g)
  • Optional Accessories: AC- Adaptor (AD-246)


• Item Includes:

  • Toa Electronics Q-RM9012PS Remote Paging Microphone
  • Toa Electronics AD-246 - AC Power Supply for NX-100, EV-20R, and PM-20EV
  • Limited 5-Year Manufacturer Warranty (Part and Labor)
