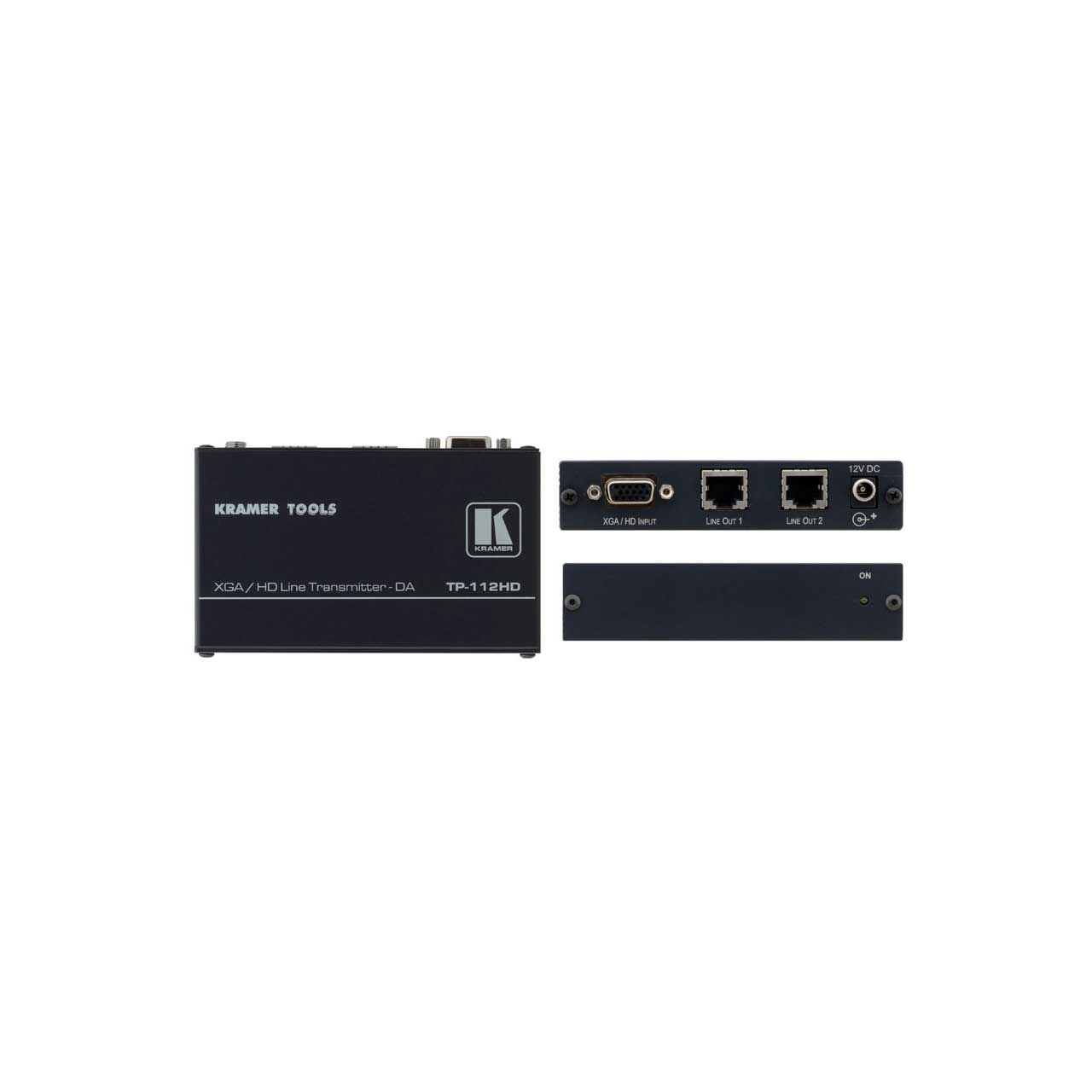

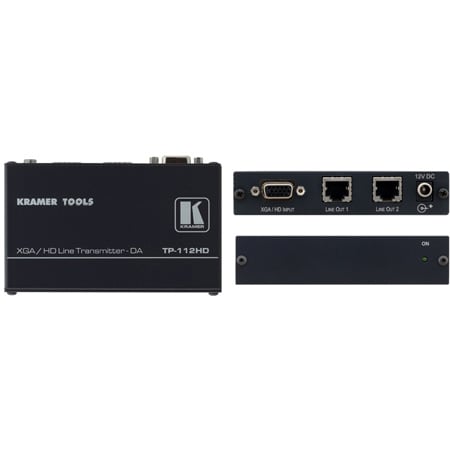

Kramer TP-112HD 1:2 Computer Graphics Video & HDTV Signals Over Twisted Pair Transmitter and DA

ITEM #: TP-112HD MFG #: TP-112HD

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

List Price:

$270.00

Our Price:

$216.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


TP-112HD - Overview

Resolution - Up to WUXGA/1080p!

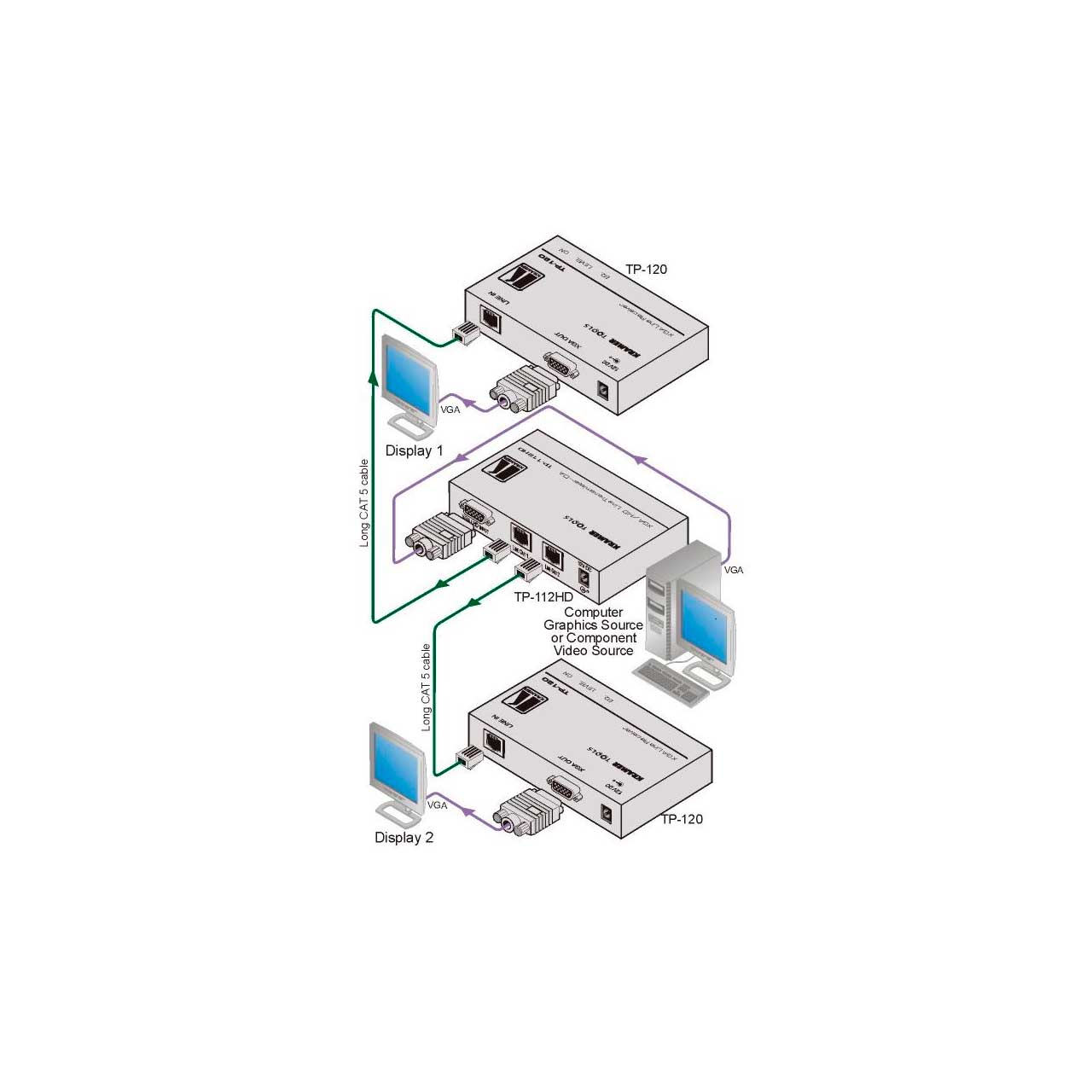

The Kramer TP-112HD is a twisted pair transmitter for computer graphics video and HDTV signals. It converts a computer graphics video or HDTV signal on a 15-Pin HD connector to two identical twisted pair signals.

Perfect for:
Presentation and multimedia applications.
Long range graphics distribution for schools, hospitals, security, and stores.

  • Features:

    • HDTV Compatible.
    • Max. Resolution - WUXGA & 1080p.
    • Power Connect™ System - A single connection to the transmitter or the receiver powers both units when the devices are within 150ft (50m) of each other.
    • Long System Range - Up to 100m (320ft). Greater distances possible depending on signal resolution and cable.
    • Cable Type - Uses UTP (unshielded twisted pair) or STP (shielded twisted pair) cable such as CAT 5.
    • Sync Polarity Settings - H & V switches for improved HDTV compatibility with the CAT 5 outputs.

  • Specifications:

    • INPUT
    • 1 XGA/HD on a 15-pin HD connector

      OUTPUTS
    • 2 twisted pair on RJ-45 connectors

      MAX. OUTPUT LEVEL
    • 1.7Vpp

      MAX. RESOLUTION
    • WUXGA & 1080p

      DIFF. GAIN
    • 4%

      DIFF. PHASE
    • 0.3Deg

      K-FACTOR
    • 0.1%

      S/N RATIO
    • 65dB

      CONTROLS
    • 2 switches for sync inversion

      COUPLING
    • AC

      POWER CONSUMPTION
    • 12V DC, 522mA

  • Item Includes:

    • TP-112HD Transmitter
    • Power Supply

  • Warranty:

    • Limited 7 Year Warranty

  • GTIN:

    7291063028374
