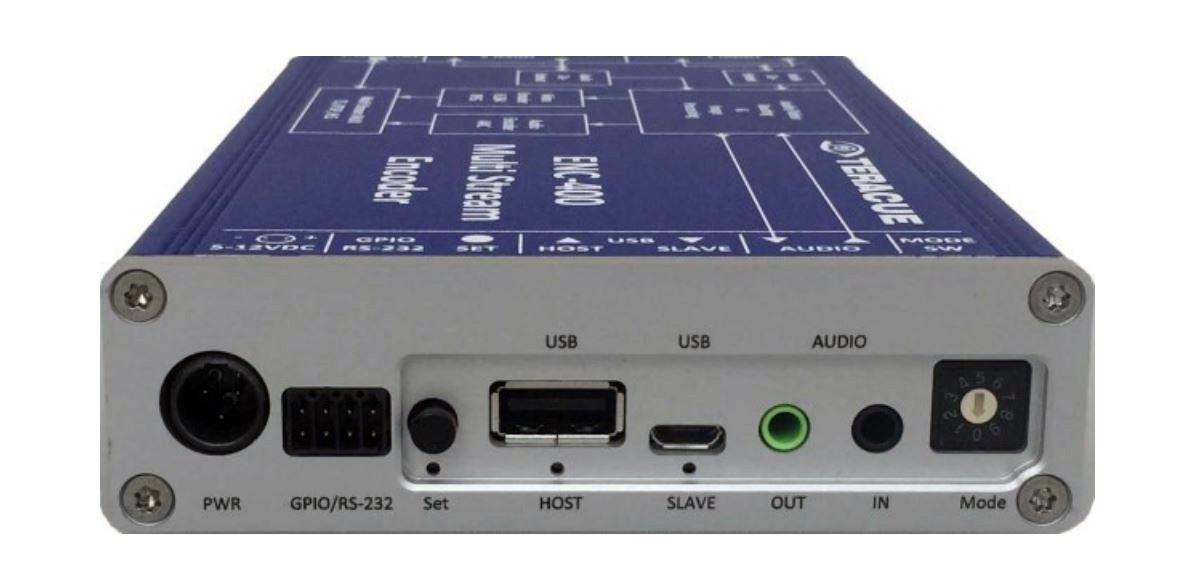

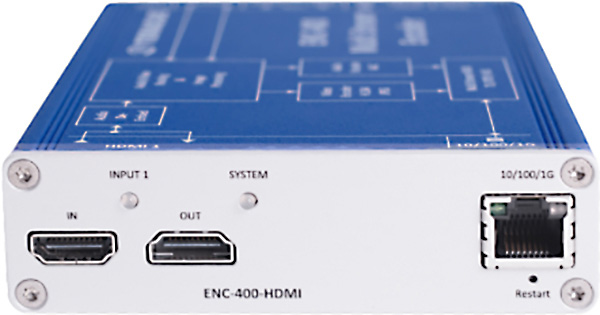

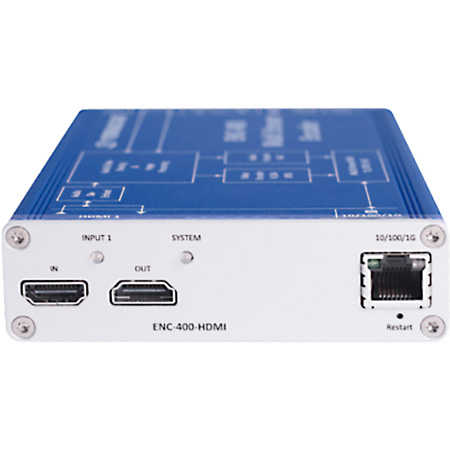

Teracue ENC-400-HDMI-PORTABLE HDMI to H.264 and MJPEG Encoder - Single HDMI Input/Output
  • Teracue ENC-400-HDMI-PORTABLE HDMI to H.264 and MJPEG Encoder - Single HDMI Input/Output
  • Teracue ENC-400-HDMI-PORTABLE HDMI to H.264 and MJPEG Encoder - Single HDMI Input/Output
  • Teracue ENC-400-HDMI-PORTABLE HDMI to H.264 and MJPEG Encoder - Single HDMI Input/Output

Questions? Ask a Markertek Expert:
800-522-2025 Email

Teracue ENC-400-HDMI-PORTABLE HDMI to H.264 and MJPEG Encoder - Single HDMI Input/Output

Manufacturer: Teracue

Item #: TRCU-ENC-400HDMI   •   MFG #: ENC-400-HDMI-PORTABLE




Our Price:$1,823.46

free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

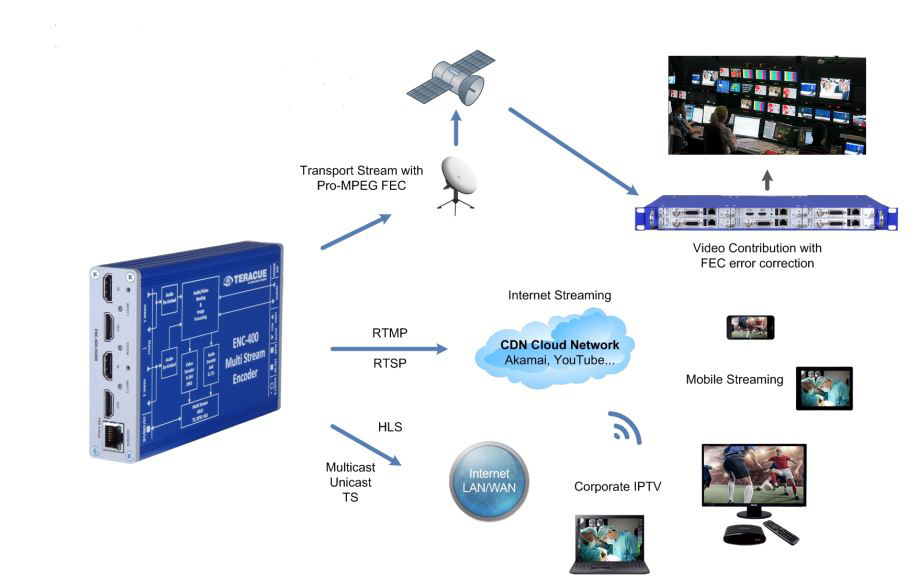

    The ENC-400-HDMI HD/SD H.264 fanless video encoder is able to deliver multiple streams in multiple bitrates and protocols to multiple destinations. The built-in frame synchronizer guarantees stable signal processing. Both inputs provide loop through outputs and can be used for redundancy switching or as sources for two individual encodings. Besides the latest in H.264 encoding technology, the ENC-400 features MJPEG for legacy as well. Both for live streaming and recording. The compact fanless and lightweight aluminum PORTABLE unit is ideal for broadcast contribution, IPTV and webcasting.


    • Features

      • H.264 Baseline, main, high profile and MJPEG
      • Up to [email protected], [email protected] or [email protected]
      • Embedded and analog audio inputs
      • Logo, time and text inserter
      • Adjustable frame rate and auto scaler
      • Up- and downscaling with cropping
      • Frame synchronizer for seamless switching
      • Teracrypt and AES encryption
      • Motion detection app
      • Pro MPEG FEC
      • TS, RSTP and RTMP streaming
      • HLS with adaptive bitrate support
      • Simultaneous stream & record in various formats
      • Fanless, lightweight aluminum chassis
      • Low power consumption < 5 Watt, 5-12 Volt
      • Web GUI, Telnet and SNMP configuration

    • Specifications

      • Technical
      • Single HDMI input: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2; loop through (without HDCP)
      • Video encoding: H.264 (MPEG-4 AVC Part 10; ISO/IEC 14496-10) and MJPEG (ISO/ITU)
      • Profiles: Baseline, Main Profile, High Profile, encoder can be scaled up to 3 instances
      • Video encoding bitrates: 300Kb/s - 16Mb/s, low latency support, adaptive CBR
      • HDMI resolutions: [email protected], [email protected], [email protected], [email protected]
      • HDMI resolutions: p60 2048x1080, 1920x1200, 1680x1050, 1600x1200, 1600x900,1280x1024, 1280x960, 1280x800, 1280x768, 1024x768, 800x600, 640x480
      • HD Video resolutions: [email protected]/59,94/50/30/29,97/25/24, i60/i59,94/i50 [email protected]/59.94/50
      • SD Video resolutions: [email protected], [email protected],94
      • Audio inputs: 1x Stereo embedded HDMI for Single version, 2x Stereo embedded HDMI for Dual version; 1x Stereo, unbalanced, AC-coupled, mini-jack 3.5, 10 kOhm
      • MIC/LINE level: +4/0/-3/-6 dBU selectable
      • Audio encoding: MPEG-4 AAC LC (ISO/IEC 14496-3), 48 kHz, 16Bit sample rate, 32-256 kbit data rate
      • Audio outputs (TALKBACK): 1x Stereo, unbalanced, AC-coupled, via mini-jack 3.5,
      • Output gain: -78 dB to +9 dB 16 bit stereo, PCM, sample rate 48/24/12/6 kHz
      • TS Multiplexer: ISO/IEC 13818-1 Transport, ISO/IEC 14496-10 NAL (Network Abstraction Layer)
      • Streaming types: Up to 3 simultaneous unicast or multicast streams
      • TS over UDP, TS over RTP, TS with Pro-MPEG FEC, TS video only, TS audio only, TS over
      • TCP, RTP/RTSP (UDP or interleaved, RFC 3984), RTMP push, HLS
      • IP protocols: HTTP, TCP/IP control protocol, UDP/RTP/TCP streaming, IGMP, SAP, unicast/multicast,
      • SNMPv2, DHCP, IPV4, DNS, NTP
      • USB: USB host and slave device (Recording or KVM mode)
      • Network: 10/100/1000 TX Ethernet, RJ45, half/full duplex, auto sensing or manual control
      • Scaling and frame synchronizer Up- and downscaling and cropping for each encoder, adjustable frame rate divider, auto scaling
      • for seamless switching and fixed resolution or output follows input
      • Additional features: Inserter for Logo, Text, Time and Date
      • Error correction with Pro-MPEG FEC or proprietary TCP correction
      • Recording: Simultaneous streaming and recording to USB drive (TS and MP4)
      • RS-232: RS-232 console mode for local control, com-server mode for RS-232 IP bridging
      • GPIO: 1x GPI in TTL level, 1x GPO out 20mA TTL
      • Management and security: Web browser, SNMP, SSH/Telnet and RS-232, software updates via web browser
      • Fault measurement with log generation, authorization via user password, IEEE802.1X, RTC,
      • (Real Time Clock) support

        Environmental
      • Housing: 100% lightweight closed aluminum case, no fan
      • Agency approvals: CE, RoHS
      • Humidity: Up to 90%, non-condensing
      • Temperature: -0 to +45°C
      • Dimensions (H x W x D): 1.18 x 4.13 x 6.69 Inches
      • Weight: approx. 14.10 Oz
      • Power: 5-12 VDC <5W per blade
      • Limited Warranty: 1 year standard limited warranty. Warranty extensions for up to 5 years available

        Other
      • HDMI graphics interface: 1x in 1x loop out
      • Up to: 1x 1920x1200p60
      • Encoding up to:1x 1920x1200p60 or 1x 1920x1080p30, 1x 1280x70p60 or 1x 1920x1080p60, 1x 720x480p30
      • Simultaneous encodings video/audio: 3/1
      • Simultaneous streams: 3
      • Telnet/SSH/SNMP Yes
      • A/V multiplexer, stream container: RTSP, RTMP, TS, HLS
      • Resolutions: up to 1920x1200
      • Keyboard, mouse over USB: option
      • Pro-MPEG FEC: option
      • USB recording: option
      • Stream synchronization, time stamping: Source
      • Adaptive bitrate switching: Yes
      • Motion analysis: Yes
      • Transport stream with constant bitrate: Yes
      • Teracrypt/AES encryption: Yes/No
