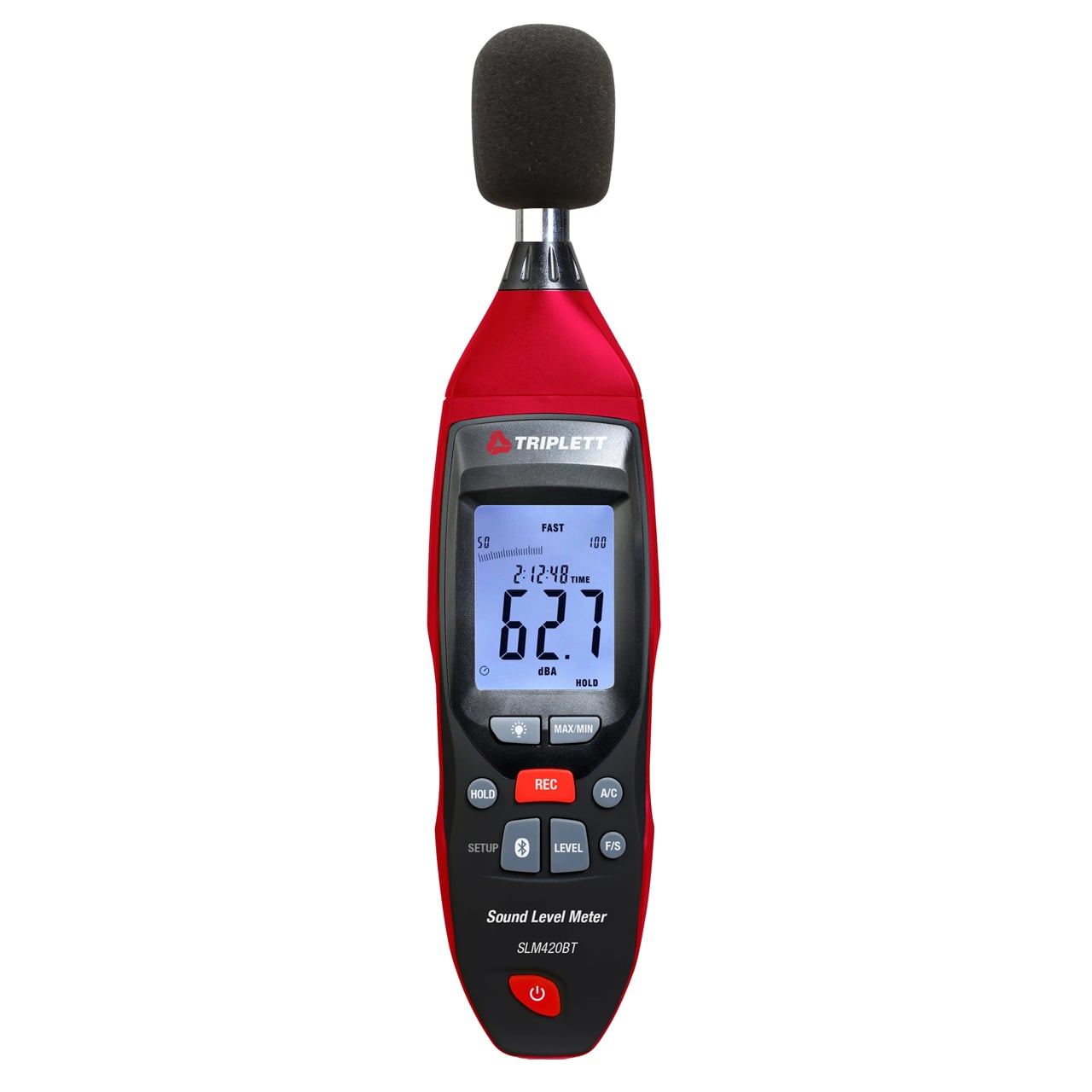

Triplett SLM420BT Sound Level Meter with Bluetooth Connectivity

ITEM #: TRIPL-SLM420BT MFG #: SLM420BT

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$279.99

Our Price:

$249.95

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


SLM420BT - Overview

The Triplett SLM420BT Sound Level Meter/Datalogger with Bluetooth can be used to test and verify sound levels for worker safety (OSHA), community noise ordinances, night clubs/concerts, airports, mines, athletic events, construction sites, vehicle testing, wind farms, new product noise reduction, and other applications.

It conforms to IEC 61672-1 Class 2 with ±1.4dB accuracy. It features a 30dB to 130dB range (3 ranges) plus A and C weighting with selectable fast/slow response time. You can datalog up to 32,690 readings with user programmable sampling rate and date/time stamp.

Readings can be viewed on your mobile device using the iOS/Android apps or download and view them on your PC via the USB interface.

  • Features:

    • Conforms to IEC 61672-1 Class 2
    • ±1.4dB accuracy
    • 30dB to 130dB over 3 ranges with auto/manual ranging
    • A and C weighting
    • Selectable fast/slow response time
    • Datalogs up to 32,690 readings
    • Analog AC/DC outputs for connection to frequency analyzers or X-Y recorders
    • Min/Max stores/recalls highest and lowest readings
    • Auto power off with disable
    • USB and Bluetooth interfaces with iOS/Android apps
    • Includes windscreen, USB cable, software and 9V battery

  • Specifications:

    • Measurement Ranges:
      - Auto: 30dB - 130dB
      - Low: 30dB - 80dB
      - Medium: 50dB - 100dB
      - High: 80dB - 130dB
    • Bandwidth: 31.5Hz - 8kHz
    • Resolution: 0.1dB
    • Accuracy: ±1.4dB
    • Standards: Conforms to IEC 61672-1 Class 2
    • Frequency Weighting: A and C (selectable)
    • Response Time:
      - Fast: 125ms
      - Slow: 1s
    • Analog Output:
      - AC = 1Vrms
      - DC = 10mV/dB
    • Interface: USB; Bluetooth
    • Memory: Datalogs up to 32,690 data points
    • Power: 9V Battery
    • Dimensions: 11" x 2.4" x 1.8" (280mm x 60mm x 45mm)
    • Weight: 1.01lbs (459g)

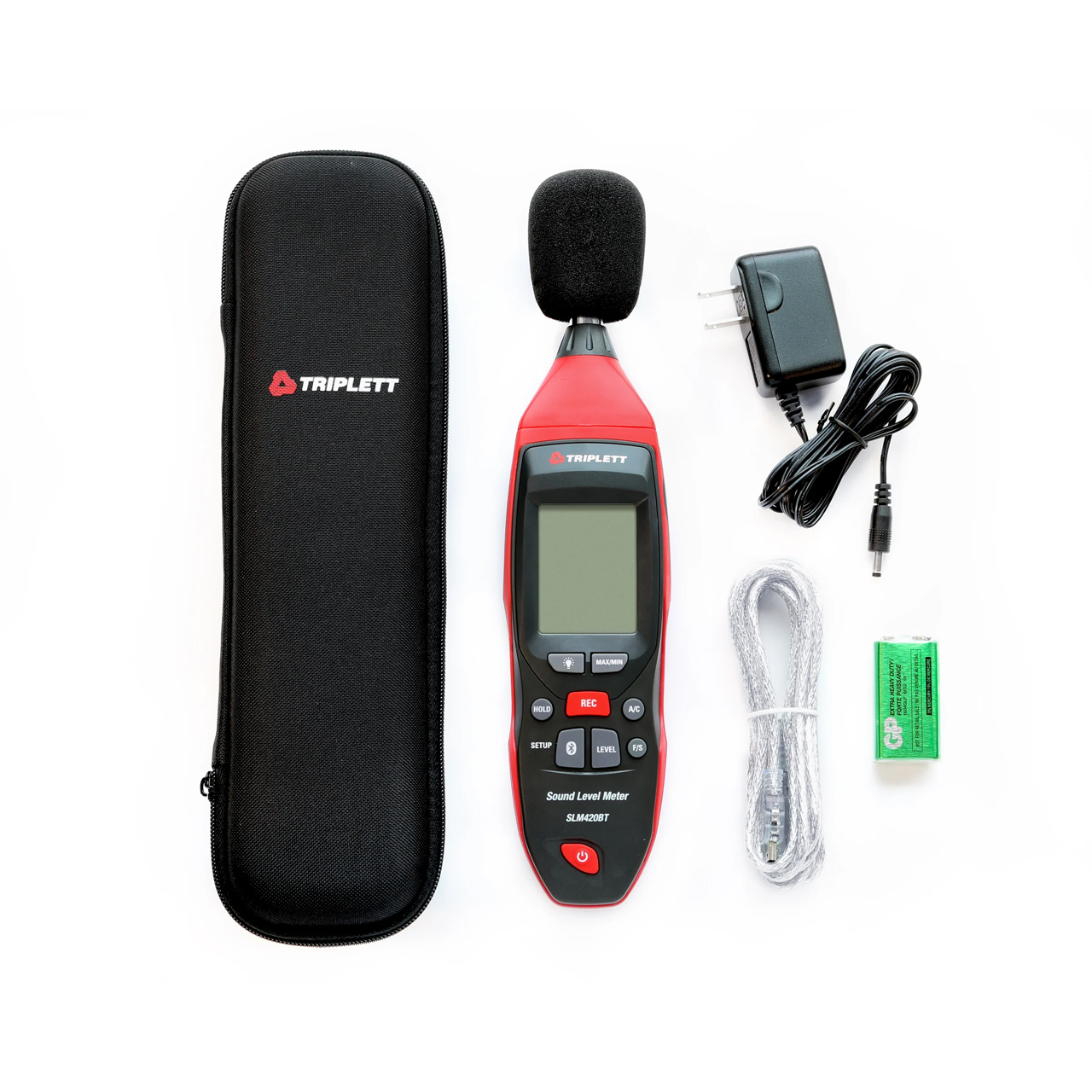

  • Item Includes:

    • 1x SLM420BT
    • 1x User Manual
    • 1x USB Interface Cable
    • 1x Wind Screen
    • 1x 9V Battery
    • 1x Calibration Pot Screwdriver

  • Warranty:

    • 1 Year Limited Warranty
