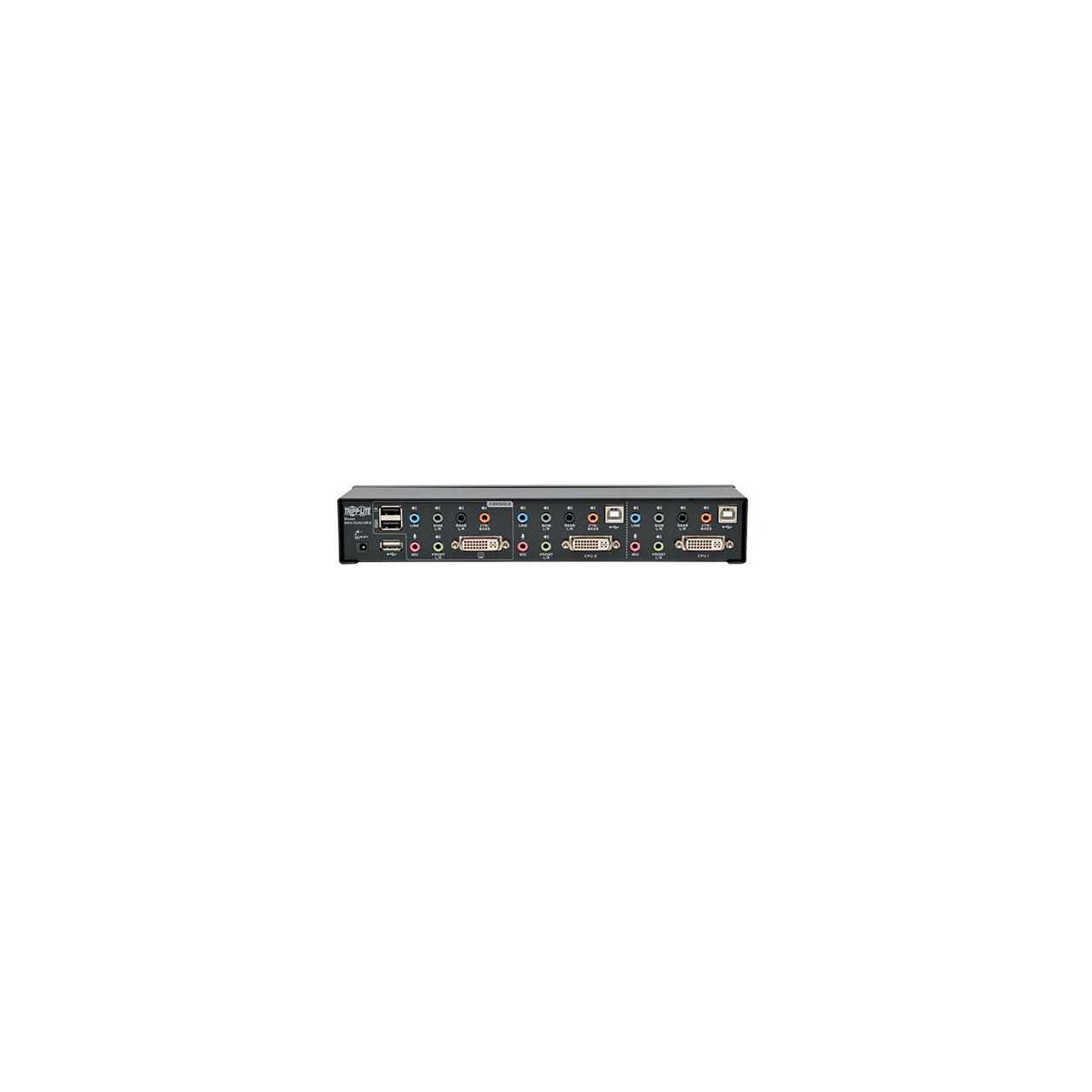

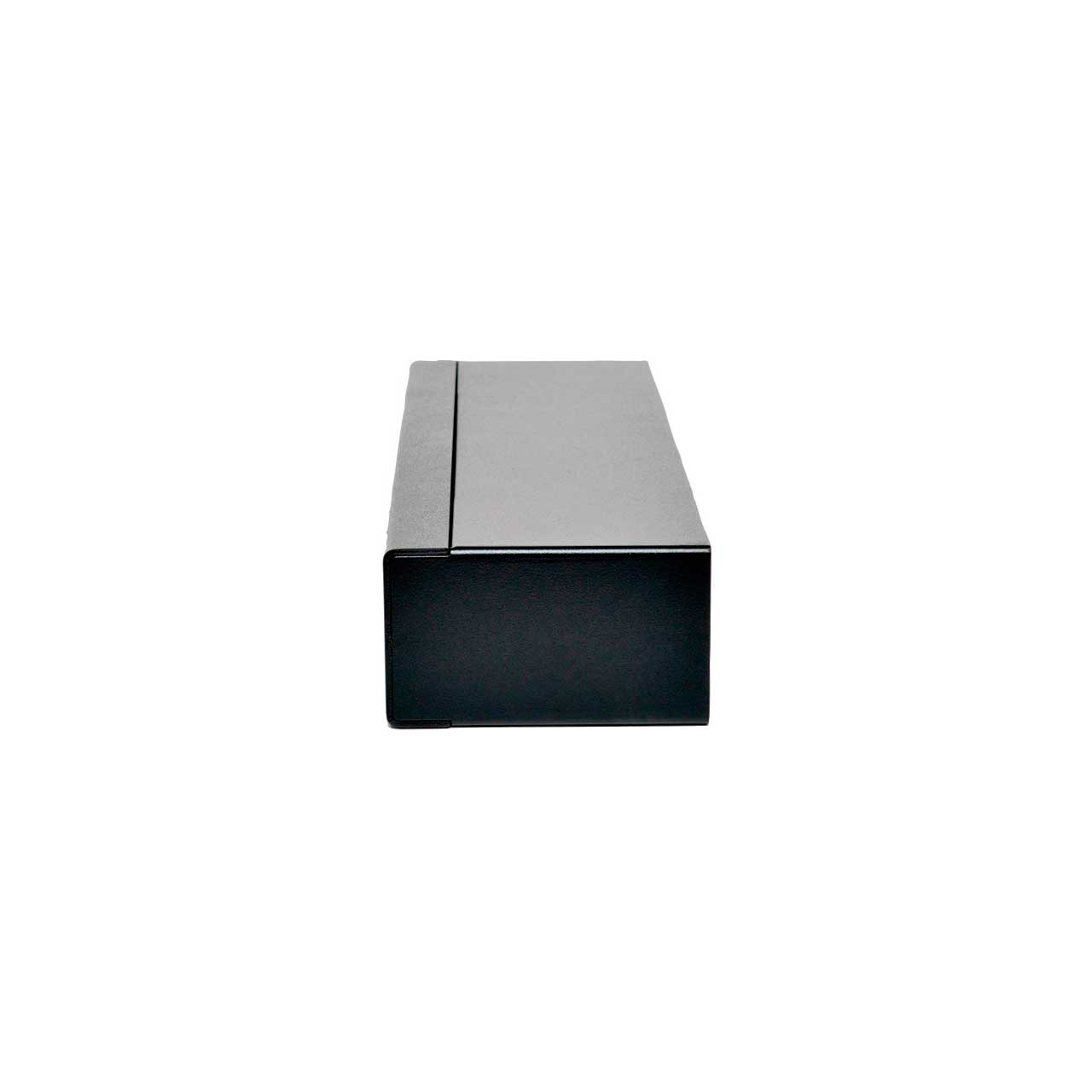

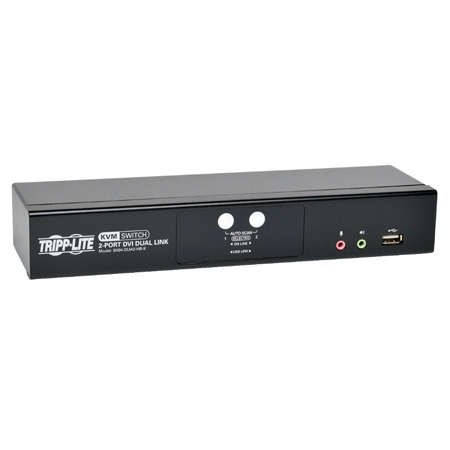

Tripp Lite B004-DUA2-HR-K 2-Port DVI Dual-Link / USB KVM Switch with Audio & Cables

B004-DUA2-HR-K - Overview

• Features:

  • Control 2 computers with a single DVI monitor, USB keyboard and USB mouse
  • Supports DVI Dual Link resolution 2560 x 1600
  • 2 sets 6ft cables included
  • 2-Port DVI Dual Link/USB KVM switch with 7.1 channel surround-sound audio and USB 2.0 peripheral sharing (B004-DUA2-HR-K)
  • Built-in 2-Port USB 2.0 hub allows USB devices to be shared amongst computers connected to the KVM switch
  • 3.5 mm Mini Stereo Speaker and Microphone jacks allow a single microphone to provide audio input to each of the connected computers, and let you listen to the audio output of each computer on a single set of speakers
  • B004-DUA2-HR-K features additional audio jacks for use with 7.1 channel surround-sound
  • An additional set of console audio jacks are conveniently located on the front panel of the KVM switch, making them ideal for use with IP phones
  • The KVM, USB and Audio can be switched independently of each other
  • Features mouse port switching functionality, which allows users accessing the KVM switch with a scroll mouse to switch between ports by double-clicking the mouse’s scroll wheel
  • Switch between connected computers via front panel pushbuttons, keyboard hotkeys, and the mouse switching function
  • Auto Scan mode allows you to scan the connected computers without having to manually switch between them
  • Supports both analog and digital video signals, allowing for the connection of a VGA computer and/or monitor with a DVI to VGA adapter
  • Supports digital video resolutions up to 2560 x 1600 and analog video resolutions up to 2048 x 1536
  • Multi-platform support – Compatible with Windows, Mac, Sun and Linux
  • Supports hot-plugging – Computers and devices can be unplugged and re-plugged without having to shut down the KVM switch
  • The KVM switch stores the monitor’s EDID (Extended Display Identification Data) to optimize display resolution
  • LEDs provide for easy monitoring of connected computers
  • Power-On-Detection recognizes when a connected computer has been powered-off and automatically switches to the next powered-on computer
  • HDCP compliant
  • Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
  • Console keyboard port emulation/bypass feature supports most gaming/multimedia keyboards
  • Complete keyboard emulation for error-free booting
  • Multilingual keyboard mapping – supports English, Japanese, and French keyboards
  • Quick installation without the need for software
  • Sun/Mac keyboard support and emulation
  • Firmware upgradeable
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases


• Specifications:

  • Users: 1
  • AC Adapter: Input: 100-240V, 50/60Hz, 0.5A Output: 5.3V, 2.4A
  • Max CPU: 2
  • Color: Black
  • Port Control: Push Buttons, Hotkeys
  • IP Remote Access: No
  • Ports: 2
  • PC/Server Connections: DVI; USB
  • Cat5 KVM Switch: No
  • Certifications: FCC, CE, RoHS Compliant
  • Product Warranty Period (Worldwide): 1-year limited warranty

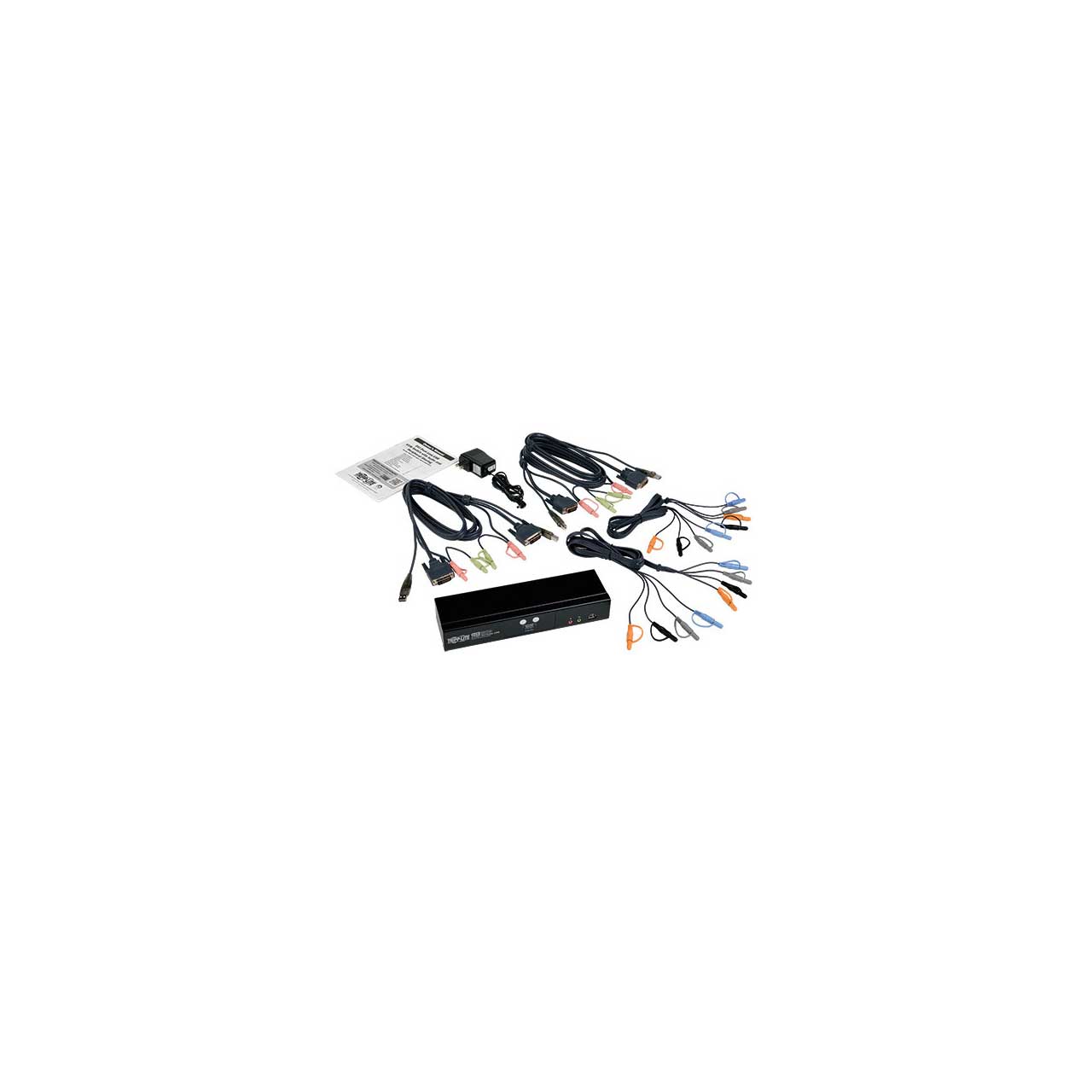

• Item Includes:

  • B004-DUA2-HR-K KVM Switch
  • (x2) 6 ft. USB KVM Cable Kits
  • (x2) 6 ft. 7.1 Surround Sound Cables
  • External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.5A Output: 5.3V, 2.4A)
  • Owner’s Manual


• Warranty:

  • 1 Year


• GTIN:

  0037332183033
