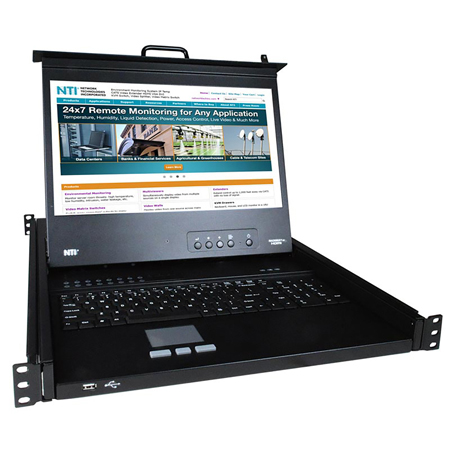

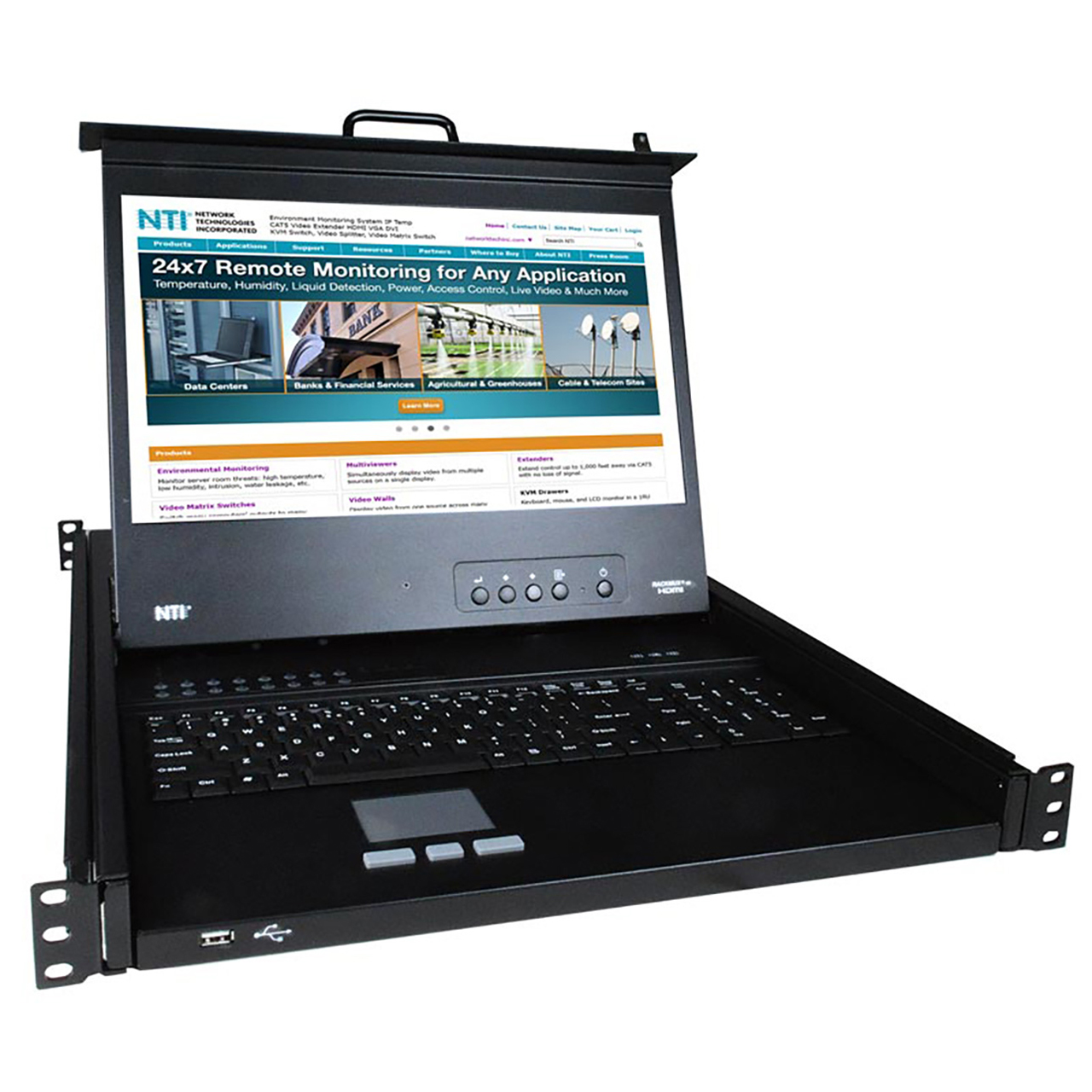

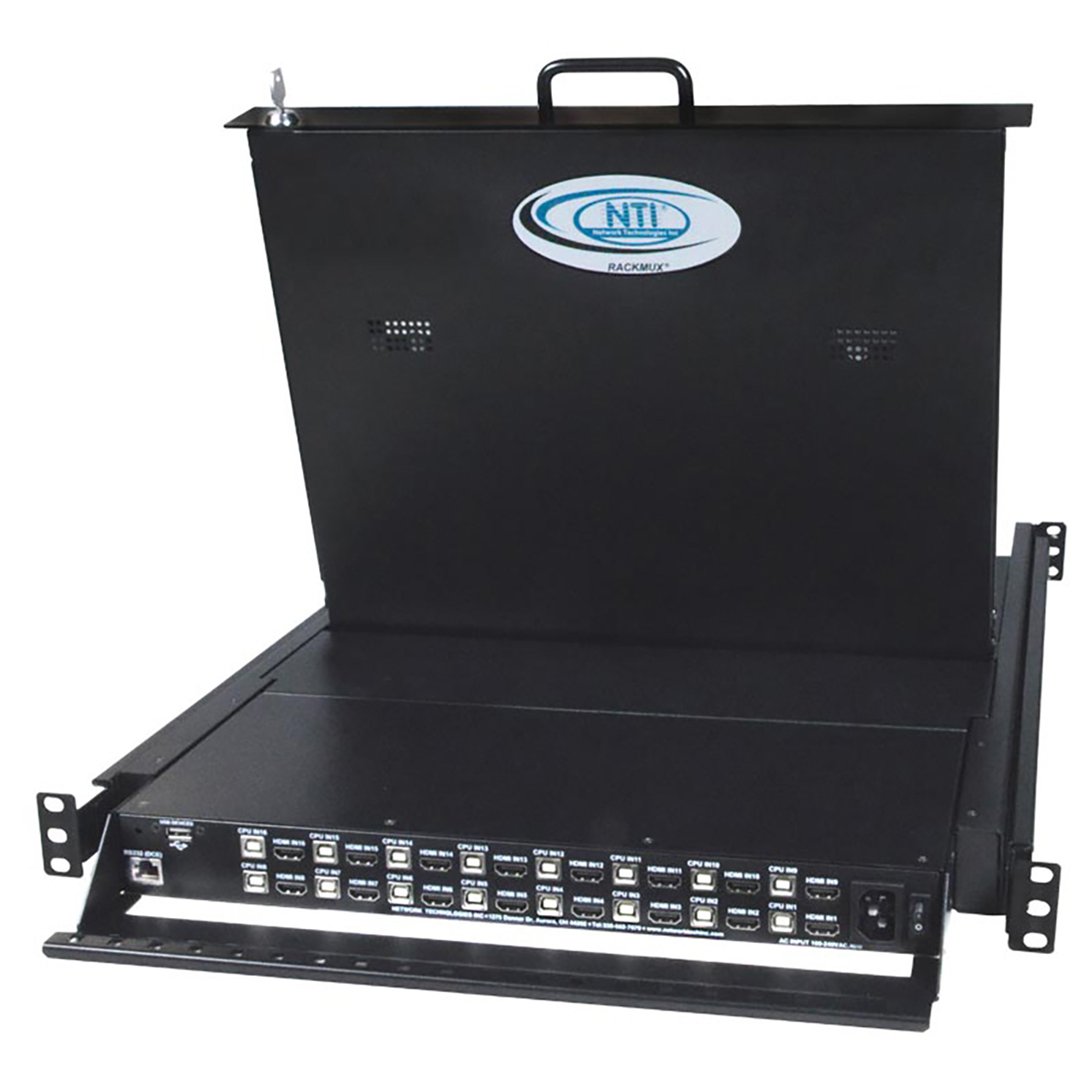

NTI RACKMUX-4K17-N-4HD18GB 1RU 4-CPU 4K KVM Drawer with 4K 60 Hz HDMI USB KVM Switch

RACKMUX-4K17-N-4HD18GB - Overview

Control up to sixteen Ultra-HD 4Kx2K 60Hz HDMI USB computers

• Features:

  • Available with forward-folding 17.3" TFT/LCD monitor
  • Supports resolutions up to Ultra-HD 4Kx2K (3840x2160 @24/30/60Hz RGB/YUV 4:4:4)
  • Available with a 4-, 8-, or 16-port 4K 18Gbps HDMI USB KVM Switch
  • Control up to 16 Ultra-HD 4Kx2K 60Hz USB computers
  • Supports Windows 7/8/10/11, Windows Server 2008/2012/2016/2019/2022, Linux, FreeBSD, and MAC OS 10/11/12/13
  • Control the switch through the front panel buttons, keyboard commands, OSD, or RS232
  • Torque-friction hinges - monitor does not wobble, spring, or slam shut
  • Compact, heavy-duty tactile keyboard with 17-key numeric keypad
  • Three-button touchpad mouse supports single-finger gestures
  • Two transparent USB 2.0 ports for connecting USB devices, such as USB flash drives, printers, CAC card readers, touch screen monitors, whiteboards, and so on
  • Rugged steel construction with durable powder coat finish
  • LCD auto-shutoff in closed position
  • Drawer locks into place when open to prevent it from sliding in and out of the rack
  • Designed to be a one-person job when installing the drawer
  • Cable management tray included


• Specifications:

  • Power: 100V - 240V AC at 50 or 60Hz via IEC connector
  • Power Consumption: 45W
  • Dimensions:
    - Without Cable Management Tray (WxDxH): 19" x 24.7" x 1.75" (483mm x 627mm x 44mm)
    - With Cable Management Tray (WxDxH): 19" x 28.3" x 1.75" (483mm x 719mm x 44mm)
    - Handle adds an additional 1.5" to the depth when monitor is in closed position.
    - Drawer is adjustable to various rack depths from 25" (635mm) deep to 41" (1,041mm) deep
  • Environmental:
    - Operating Temperature: 32°F - 104°F (0°C - 40°C)
    - Storage Temperature: -4°F - 140°F (-20°C - 60°C)
    - Operating and Storage Relative Humidity: 20% - 90% non-condensing RH.
  • MTBF: RACKMUX-4K17-N-4HD18GB: 26,167 hours
  • Regulatory Approvals: CE, RoHS,
  • TAA Compliant: Yes


• Item Includes:

  • 1x RACKMUX NVM Drawer
  • 1x IEC power cord
  • 1x Single-person installation mounting kit
  • 1x DB9 Female-to-RJ45 female adapter
  • 1x 5' RJ45-to-RJ45 CAT5 patch cable
  • 1x URL to user manual
  • 1x Cable management tray
  • 4x #6-32 x 1/4" flat head black screws
  • 18x 6" cable ties


• Warranty:

  • 2 Year Limited Warranty
