Tripp Lite B004-HUA4-K HDMI/USB KVM Switch 4-Port Audio Video Peripheral Sharing 1080p

ITEM #: TRL-B004-HUA4-K MFG #: B004-HUA4-K

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

List Price:

$600.00

Our Price:

$404.84

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    B004-HUA4-K - Overview

    Connects 4 HDMI-Enabled Devices to a Single HDMI Monitor, Keyboard and Mouse
    Tripp Lite B004-HUA4-K compact four-port KVM switch lets you access, control, boot and reboot four computers or other devices with HDMI ports at the same time. In addition to desktop and notebook computers, the switch also connects up to four media centers, gaming systems, Blu-ray and DVD players, cable and satellite boxes and DVRs, and other HDMI-enabled devices. All four computers share one HDMI monitor, USB keyboard and USB mouse, which saves space on your desk or workspace.

    Switching Between Computers Is Fast and Easy
    Use the front-panel push buttons or hotkey commands for quick and easy toggling between computers. Or you can use Auto Scan mode to scan all four connected computers in five-second intervals automatically. Orange LEDs indicate which computer is currently selected.

    Cables Are Included for Fast and Simple Setup
    Connect your HDMI monitor, keyboard, mouse, and speakers to the switch's console ports. Then, use the included HDMI, USB-B and 3.5 mm audio cables to connect your computers to the KVM switch. The plug-and-play KVM switch requires no software or drivers, so you can connect and use it immediately. The B004-HUA4-K works with all major operating systems, including Windows, Mac and Linux.

    USB Hub Lets You Share Peripherals between Computers
    The built-in two-port USB 2.0 hub allows you to share USB peripherals, such as printers, hard drives, scanners, webcams and flash drives, between the four connected computers. Because the USB ports operate independently, you can print documents from one computer while working on a different computer. The hub is backward compatible with USB 1.1 devices. Green LEDs indicate which computer is using the connected USB device.

    Transmits Crystal-Clear 1080p Video and Digital Audio
    The B004-HUA4-K KVM switch supports high-definition video resolutions up to 1920 x 1200 (including 1080p) at 60 Hz, 2.1-channel surround sound audio, and USB 2.0 data transfer rates up to 480 Mbps. With independent audio switching, you can listen to music or other audio from one computer while working on a different computer. The front-panel audio jacks have priority over the rear-panel jacks.

    Typical Applications:
    Share the keyboard, mouse and HDMI display of a desktop computer with multiple laptop computers
    Connect up to 4 gaming consoles, media centers and other A/V devices for a home theater system with 1080p resolution
    Improve productivity at work with 4-way system control
    Save money and space by sharing USB peripherals, such as a printer and external hard drive, among all computers

    System Requirements:
    Console Requirements:
    Monitor with HDMI connector (should support the highest resolution of any connected computer)
    USB keyboard/mouse
    Microphone/speakers with 3.5 mm mini stereo connectors (optional)
    Computer Requirements:
    HDMI connector
    USB-A connector
    3.5 mm mini stereo jacks (optional)
    Windows, Mac, Novell, UNIX or Linux operating system

    • Features:

      • Supports HD resolutions up to 1920 x 1200 (@ 60 Hz) for crystal-clear 1080p video
      • Manual push buttons and hotkey commands allow easy toggling between computers
      • Built-in 2-port USB 2.0 hub lets you share USB peripherals among connected computers
      • 3.5 mm stereo jacks provide 2.1-channel surround sound audio input to each computer
      • Widely compatible KVM switch works with Windows, Mac and Linux operating systems

    • Specifications:

      • Video
      • Max Supported Video Resolution: 1920 x 1200 @60Hz

        Audio
      • Audio Specification: 2.1-channel surround sound

        Input
      • External Power Supply Plug(s): NEMA 1-15P North America

        Power
      • External Power Supply Input Specs (V / Hz / A): 100-240V~50/60 Hz, 0.5A
      • External Power Supply Output Specs (V / A): 5.3V, 2.4A
      • External Power Supply Cord Length (ft.): 5
      • External Power Supply Certifications: FCC; RoHS; TUV; UL; cUL

        User Interface, Alerts & Controls
      • LED Indicators: ORANGE (ON LINE), GREEN (USB LINK)

        Physical
      • Color: Black
      • Unit Dimensions (hwd / in.): 1.8 x 10.3 x 2.8
      • Unit Packaging Type: Box
      • Unit Weight (lbs.): 5.3

        Environmental
      • Operating Temperature Range: 32 to 122°F (0 to 50°C)
      • Storage Temperature Range: -4 to 140°F (-20 to 60°C)
      • Relative Humidity: 0 to 80% RH, Non-Condensing

        Communications
      • IP Remote Access: No

        Connections
      • Ports: 4
      • PC/Server Connections: HDMI; USB
      • Side A - Connector 1: (4) HDMI (Female)
      • Side A - Connector 2: (4) USB B (Female)
      • Side A - Connector 3: (8) 3.5MM (Female)
      • Side B - Connector 1: (1) HDMI (Female)
      • Side B - Connector 2: (4) USB A (Female)
      • Side B - Connector 3: (4) 3.5MM (Female)
      • Computer Keyboard and Mouse Interface: USB
      • Computer Monitor Interface: HDMI
      • Console Keyboard and Mouse Interface: USB
      • Console Monitor Interface: HDMI

        Features & Specifications
      • Autoscan (Y,N): Y
      • Autoscan Duration: 5 seconds (Default)
      • Number of Users: 1
      • NIAP-Certified Secure: No
      • Port Selection: Hotkey; Pushbutton
      • HDMI Specification: 1.3
      • HDCP Specification: 1.4
      • USB Hub Ports: Yes
      • Number of USB Hub Ports: 2
      • USB Specification: USB 2.0 (up to 480 Mbps)
      • Cat5 KVM Switch: No

        Standards & Compliance
      • Certifications: Tested to FCC, RoHS, REACH

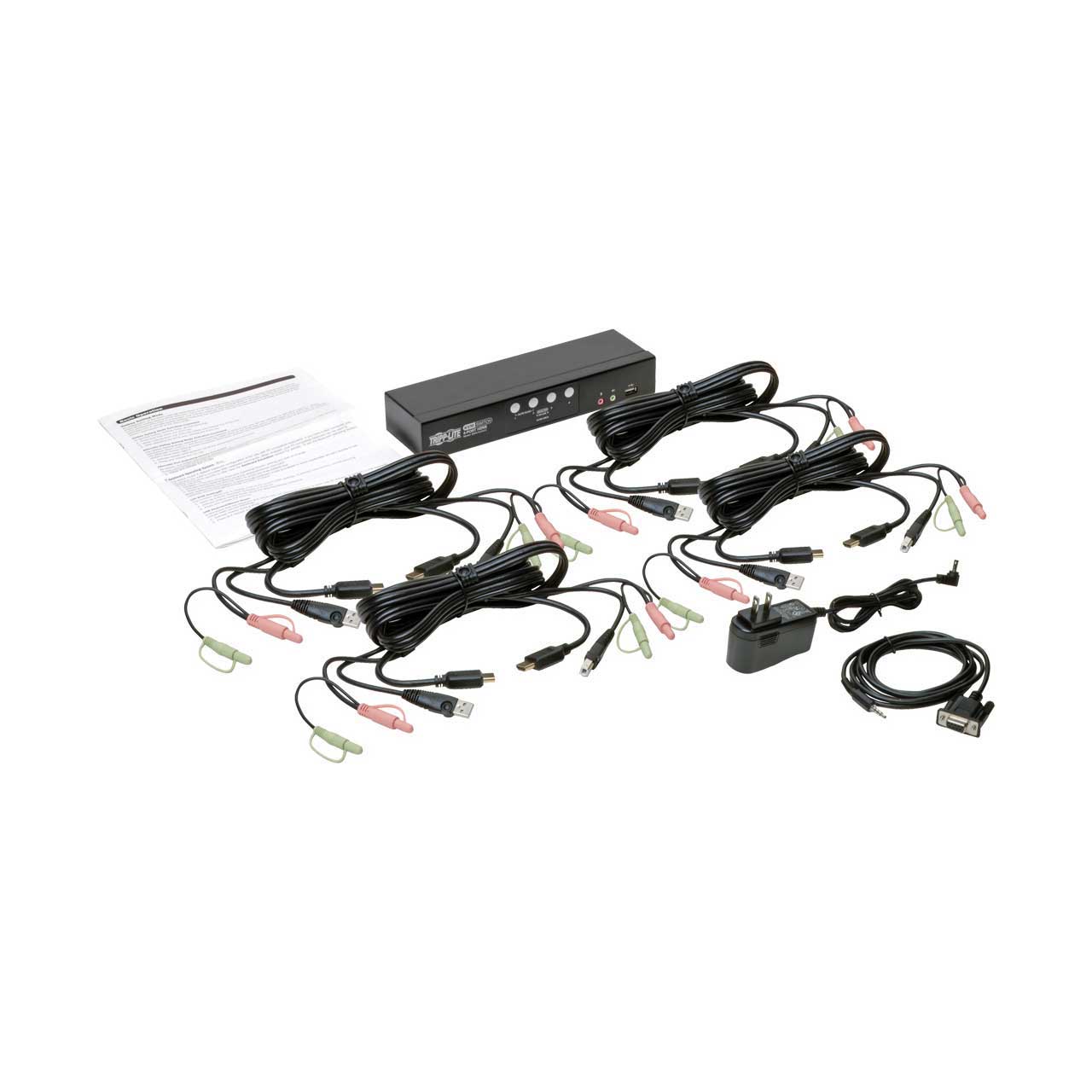

    • Item Includes:

      • 1x B004-HUA4-K 4-Port HDMI/USB KVM Switch
      • 4x HDMI/USB KVM cable kits, 6-ft. (1.83 m)
      • 1x Firmware upgrade cable
      • 1x External power supply w/NEMA 1-15P plug & 5-ft. (1.52 m) cord (Input: 100-240V, 50/60 Hz, 0.5A; Output: 5.3V 2.4A)
      • 1x Owner's manual

    • Warranty:

      • 3-year limited warranty

    • GTIN:

      0037332226129
