Tripp Lite B070-008-19-IP NetCommander 8-Port Cat5 - 1U Rackmount 1 plus 1 Console KVM Switch - 19 in. LCD

ITEM #: TRL-B070-00819IP MFG #: B070-008-19-IP

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

List Price:


Our Price:


Availability: Typically Ships in 3-10 Days
iAvailability Description Popup

    B070-008-19-IP - Overview

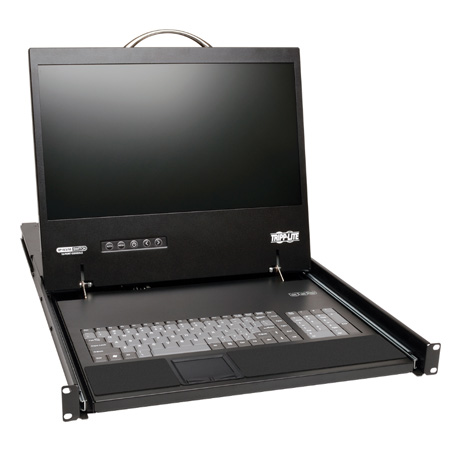

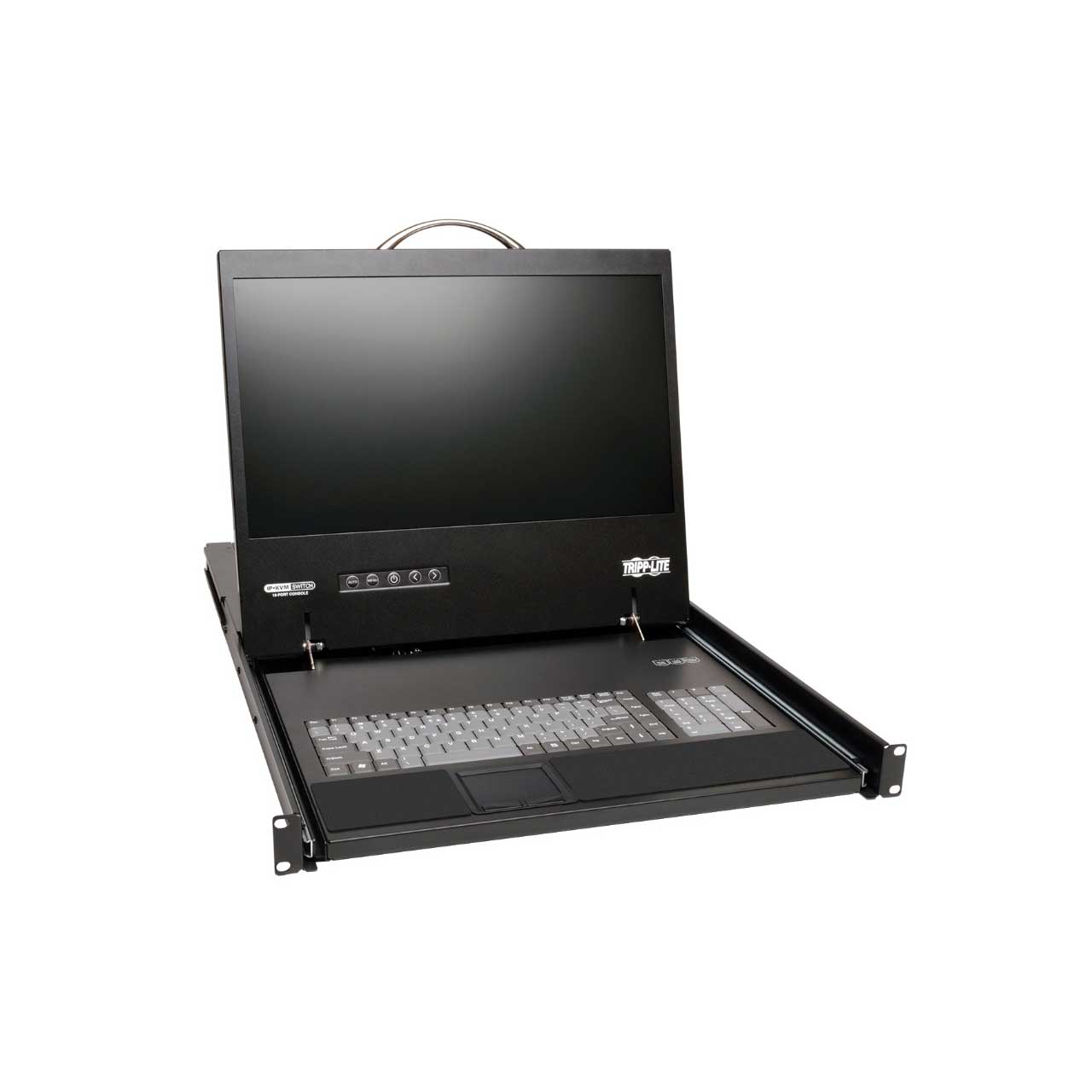

    Tripp Lite’s B070-008-19-IP KVM Switch gives you a rack-mountable full keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it’s the optimal solution for controlling up to 8 computers/servers locally, from across the room, down the street or halfway around the globe on a LAN, WAN or Internet.

    The B070-008-19-IP uses inexpensive, user-supplied Cat5e/6/6a cabling with Server Interface Units so you can control computers/servers located up to 100 ft. away from the switch. This switch features two 10/100 Mbps LAN ports, so if one fails, the other takes over, keeping remote access uninterrupted. Users can switch easily between the 8 ports using an on-screen display (OSD). Multi-level password protection prohibits unauthorized users from accessing the connected computers, and a local user and a remote user can be logged on simultaneously. The built-in 19“ LCD screen supports video resolutions up to 1366 x 768.

    Two serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers; you can assign individual ports to an IP PDU port to power on/off the server connected to that port. The B070-008-19-IP stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with both Windows and Linux operating systems. Heavy-duty steel housing stands up to frequent use. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

    • Features:

      • Control computers/servers locally or via LAN, WAN or Internet
      • Occupies just 1U of space in a rack-mountable drawer
      • Low-cost Cat5 cabling allows longer distances, reduces cable clutter
      • 19” LCD screen supports video resolutions up to 1366 x 768
      • Simultaneous support for 2 users – 1 local, 1 remote
      • Combines 8-port KVM switch, 19” LCD screen, keyboard and touchpad in a single 1U rack-mountable drawer
      • Mounts into 19”-wide rack, 27”-42” deep; to mount in a 2-post rack, use Tripp Lite’s B019-000
      • Inexpensive Cat5e/6/6a cabling lets you locate servers up to 100 ft. from the switch
      • Use a Server Interface Unit, B078-101-USB-1 (for USB) or 0SU51078 (for PS/2) with each server that will be connected with Cat5 cable IP Remote Access for Fewer Trips to the Server Room
      • Remote access means there’s no need to travel to the server room or network closet
      • Java-based application allows access via web browser; non-browser client that can bypass browser-related Java Security prompts is available
      • 1 local + 1 remote user can access different ports concurrently; up to 5 users can share a single session
      • Supports both IPv4 and IPv6 Simplifies IT Tasks
      • On-screen display, hot keys and remote toolbar for easy use
      • 2 serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers
      • Add IP PDUs as devices that can be controlled by the KVM; assign individual ports to an IP PDU port to power on/off the server connected to that port
      • Virtual Media allows a .iso file to be mounted to a target server and accessed as if it were directly stored on it
      • System-sent messages to SNMP server notify you of LAN failures
      • Supports RADIUS and LDAP/S authentication
      • Log tracks events on your installation Large 19” LCD
      • Supports video resolutions up to 1366 x 768; 1920 x 1080 remotely
      • DDC emulation allows for optimal output to LCD Advanced Security Features
      • Multi-level password protection: create administrator accounts with full access and user accounts with limited access
      • 128-bit AES and HTTPS encryption for highest security standards
      • You can install SSL certificates to ensure secure transactions between web servers and browsers Expandability and Long-Lasting Reliability
      • Flash-upgradeable firmware over the network
      • Heavy-duty steel housing stands up to use TAA Compliant
      • Complies with the Federal Trade Agreements Act for GSA Schedule purchases
    • Specifications:

      • Users: 2
      • Console: Yes
      • Nominal Input Voltage(s) Supported: 100V AC; 110V AC; 115V AC; 120V AC; 127V AC; 140V AC; 200V AC; 208V AC; 220V AC; 230V AC; 240V AC
      • Electrical Consumption: (Line Mode) 30W / (Standby Mode) 5W
      • Nominal Input Voltage Description: Internal Switching 100-240 VAC 50/60Hz
      • Input Frequency: 50/60Hz
      • Input Current: 120V (1.2A) / 230V (0.7A)
      • Unit Dimensions (hwd / in.): 1.71 x 17.36 x 28.43
      • Unit Dimensions (hwd / cm): 4.34 x 44.1 x 72.21
      • Unit Weight (lbs.): 28.66
      • Unit Weight (kg): 13
      • Color: Black
      • LCD Monitor (in.): 19
      • LCD Monitor (cm): 48.26
      • Storage Temperature Range: -20 to 60 C (-4 to 140 F)
      • Relative Humidity: 0 to 80% RH, Non-Condensing
      • Operating Temperature: 0 to 40 C (32 to 104 F)
      • BTUs: (Line Mode) 102 BTU/Hr / (Standby Mode) 17.06 BTU/Hr
      • Port Control: Hotkeys, OSD, Remote Toolbar
      • IP Remote Access: Yes
      • Ports: 8
      • PC/Server Connections: VGA; USB; PS/2
      • Cat5 KVM Switch: Yes
      • Autoscan (Y,N): N
      • Certifications: UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1
      • Product Warranty Period (Worldwide): 1-year limited warranty
    • Item Includes:

      • B070-008-19-IP 1U rackmount console KVM switch with 19" LCD

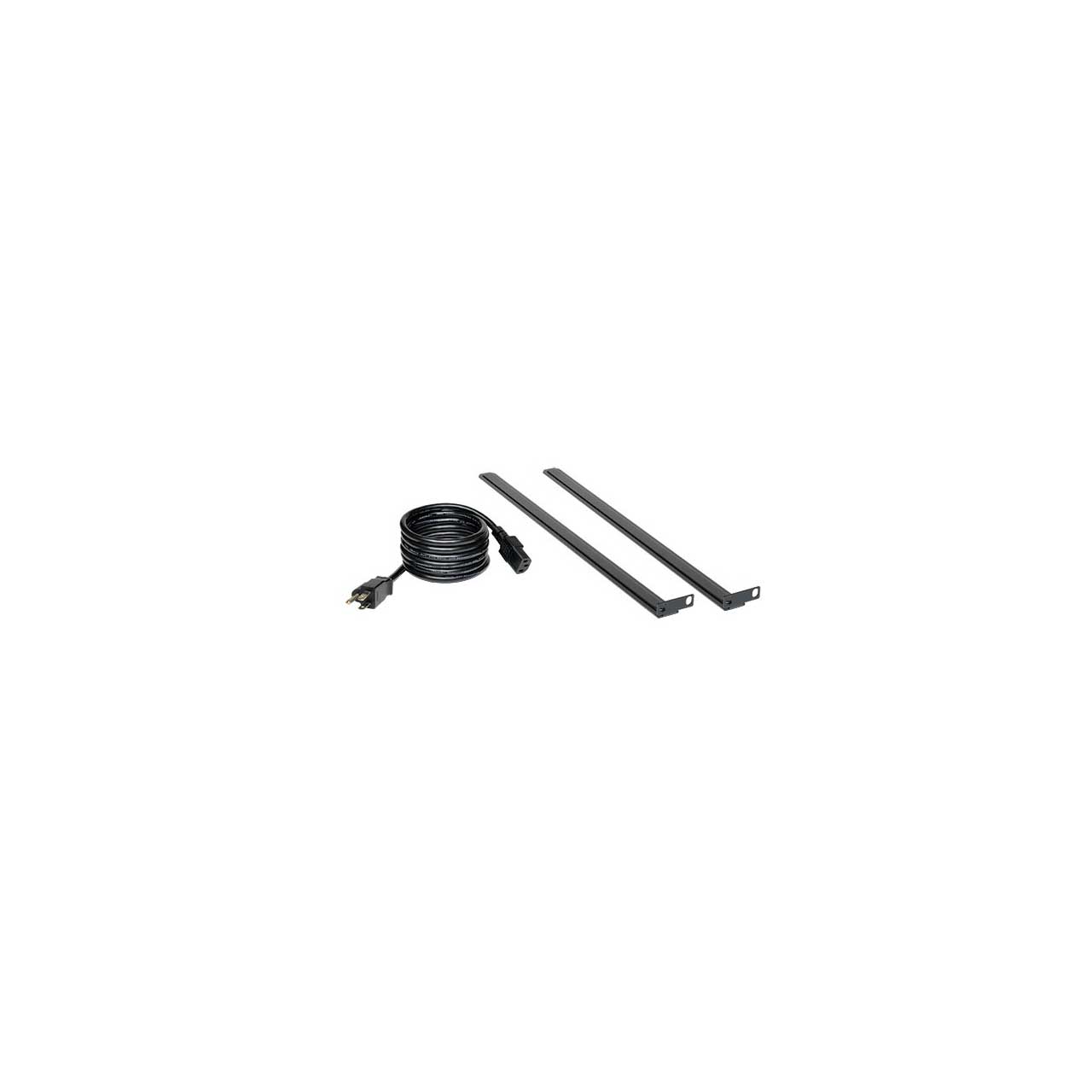

      • C13 to 5-15P power cord
      • Rackmount hardware
      • CD with owner's manual
      • Quick start guide
    • Warranty:

      • 1 Year
    • GTIN:
