Tripp Lite B130-101A-2 VGA & Audio Over Cat5 Extender Kit

ITEM #: TRL-B130-101A-2 MFG #: B130-101A-2

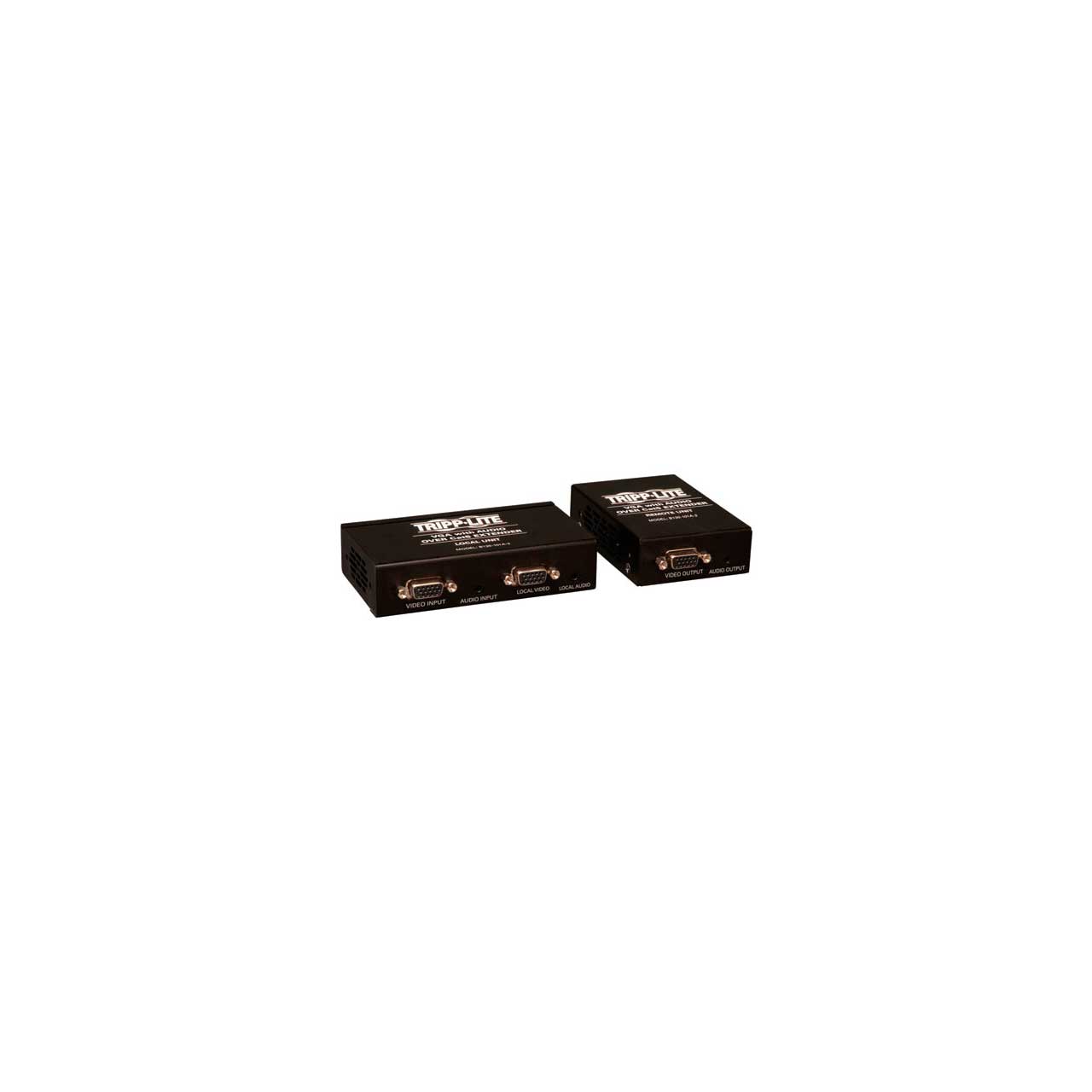

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$200.00

Our Price:

$145.23

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    B130-101A-2 - Overview

    Tripp Lite's B130-101A-2 allows you to extend a 1920 x 1440 (60Hz) video and audio signal up to 500 ft., or a 1024 x 768 (60Hz) video and audio signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6). The range and number of monitors/speakers can be further expanded by adding B132-110A repeater units. Connect up to 3 repeaters, with the B130-101A-2 receiver at the end of the chain, for a total of 4 sets of monitors and speakers. A 1920 x 1440 (60Hz) Video and Audio signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. A 1024 x 768 (60Hz) Video and Audio signal can be extended up to 1,000 ft. from the first repeater in the chain to the last receiver. For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K. The transmitter unit features functionality that allows for the EDID information from a connected display to be copied and sent to the connected computer, providing optimal compatibility. The remote (Receiver) unit features built-in Equalization and Gain controls to adjust the video image. Includes mounting hardware for both local and remote units, allowing them to be wallmounted, rackmounted or pole mounted. Ideal for digital signage situations, such as retail, schools, churches, etc.

    • Features:

      • Extends a 1920 x 1440 (60Hz) video and audio signal up to 500 ft., or a 1024 x 768 (60Hz) video and audio signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6)
      • EDID copy feature ensures optimal display compatibility
      • Can further expand the range and number of monitors/speakers by adding B132-110A repeaters
      • For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K
      • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
      • 1-year limited warranty
      • For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K
      • The remote (Receiver) unit features built-in Equalization and Gain controls to adjust the video image
      • Includes mounting hardware for both local and remote units, allowing them to be wallmounted, rackmounted or pole mounted
      • Ideal for digital signage situations, such as retail, schools, churches, etc.
      • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

    • Specifications:

      • Physical
      • Color: Black
      • Shipping Dimensions (hwd / in.): 2.20 x 8.40 x 6.50
      • Shipping Weight (lbs.): 1.80

        Communications
      • Max 1024 x 768 Range (ft): 1000
      • Max 480P Range (ft): 1000
      • Max 1440 x 900 Range (ft): 500
      • Max 1080i Range (ft): 500
      • Max 1080P Range (ft): 500
      • Max 1920 x 1440 Range (ft): 500
      • Max 480i Range (ft): 1000
      • Max 640 x 480 Range (ft): 1000
      • Max 800 x 600 Range (ft): 1000
      • Max 1600 x 1200 Range (ft): 500
      • Max 1920 x 1200 Range (ft): 500
      • Max 720P Range (ft): 500

        Connections
      • Ports: 1

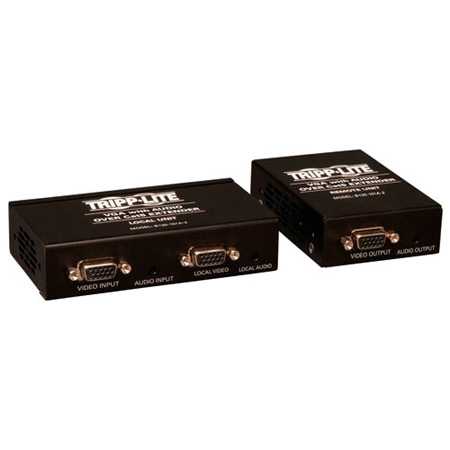

      • Side A - Connector 1: (2) HD15 (FEMALE)

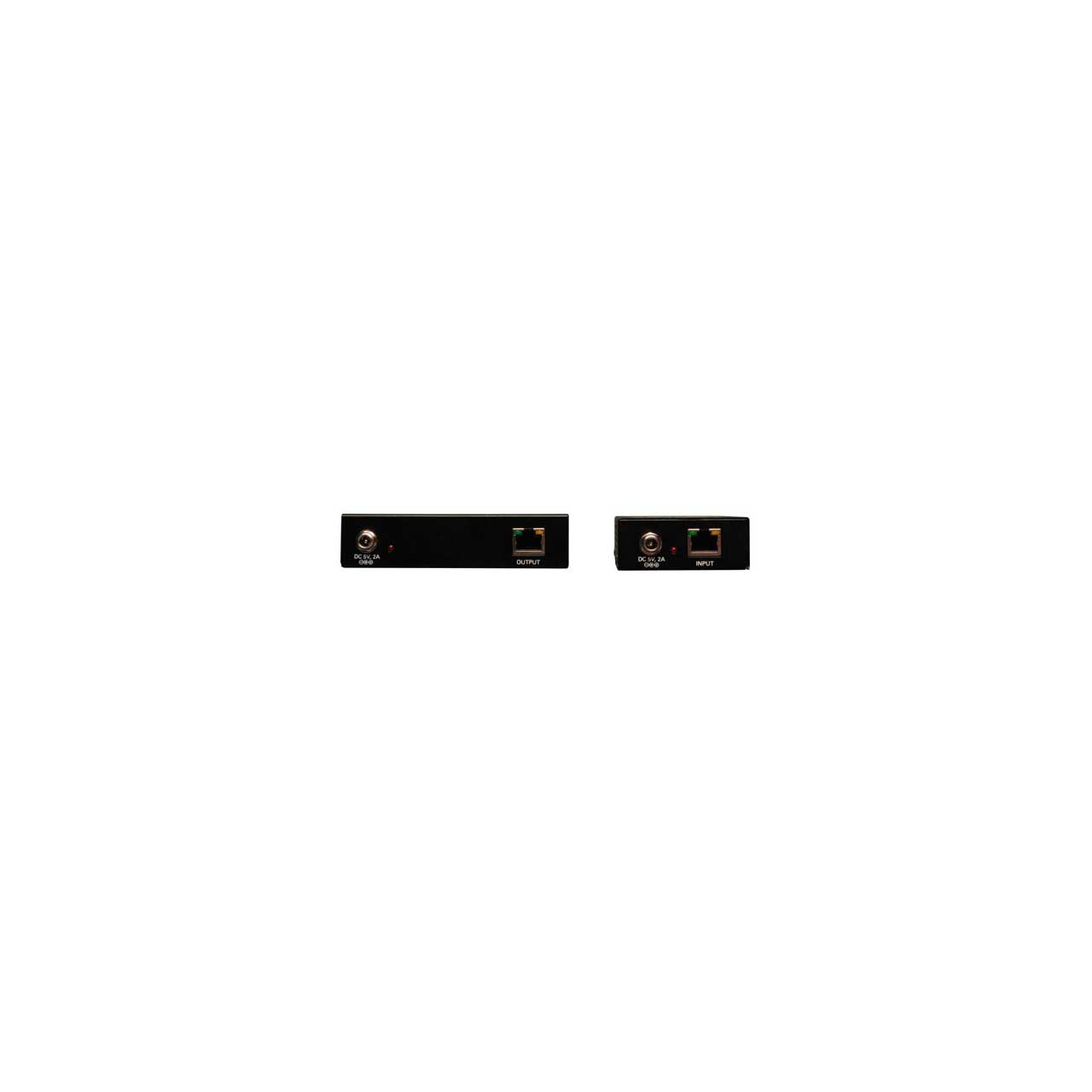

      • Side A - Connector 2: RJ45 (FEMALE)
      • Side A - Connector 3: (2) 3.5MM (FEMALE)
      • Side B - Connector 1: HD15 (FEMALE)
      • Side B - Connector 2: 3.5MM (FEMALE)
      • Side B - Connector 3: RJ45 (FEMALE)

        Features & Specifications
      • Technology: VGA/SVGA; Stereo Audio

    • Item Includes:

      • x1 Local (Transmitter) unit 1 x 4.5 x 2.5 (in.)
      • x1 Remote (Receiver) unit 1 x 2.5 x 3.5 (in.)
      • x1 Mini-Screwdriver for EQ/Gain adjustment
      • x2 Mounting Hardware Kits
      • x2 External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
      • x1 Owner's Manual

    • GTIN:

      0037332178398
