Tripp Lite B203-101-PNP 1-Port Plug-and-Play USB 2.0 over Cat5/Cat6 Extender Kit - Transmitter & Receiver/ Hi-Speed USB

ITEM #: TRL-B203-101-PNP MFG #: B203-101-PNP

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$210.00

Our Price:

$152.10

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    B203-101-PNP - Overview

    Tripp Lite's B203-101-PNP 1-Port Plug-and-Play USB 2.0 over Cat5/Cat6 Extender Kit transmits data from your computer to a USB 2.0 peripheral up to 164 ft. (50 m) away. It has plug-and-play functionality, meaning you don't have to install drivers or software. For added convenience, the transmitter has a built-in USB A/B cable for connection to your computer. The USB signals travel between the transmitter and receiver units over user-supplied Cat5/Cat6 cable. It's a simple, cost-effective solution for connecting your computer to a printer or other USB peripheral that lacks network connectivity and is farther than 16 feet away from your computer, which is the distance limitation for USB cables. For example, you can use the B203-101-PNP to connect an impact printer to a server in another room. This extender kit is also convenient for making connections in areas without network availability.

    By using Cat5/Cat6 cable to carry signals, the B203-101-PNP extends your installation farther than is possible with standard USB cables. Plus, Cat5/Cat6 cabling is readily available at low cost. For maximum signal integrity, use solid-conductor Cat5/Cat6 UTP cabling, such as Tripp Lite's N202-series. The B203-101-PNP extender kit can achieve data transfer rates up to 480 Mbps. It's backward compatible with USB 1.1 peripherals, but at USB 1.1 speeds. The B203-101-PNP works with all major operating systems (Windows and Mac). Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

    • Features:

      • Long-Distance Data Transfer to 1 Device-Up to 164 ft. (50 m) from the Source
      • Send data to a USB 2.0 device located up to 164 ft. from the source
      • USB signals travel over a single user-supplied Cat5/Cat6 cable
      • Includes transmitter with built-in USB A/B cable and a 1-port receiver
      • Supports data transfer rates up to 480 Mbps

        Greater Distance over Cat5/Cat6 Cable Provides Greater Flexibility
      • at5/Cat6 cabling exceeds the 16 ft. distance limitation of USB cables
      • Allows connection to devices that lack network connectivity in areas beyond the reach of standard USB cables
      • Makes connections in areas without network availability
      • Allows source to be in a secure location, separate from peripherals
      • Cat5/Cat6 cabling is cost-effective and readily available
      • For best results, use solid-conductor Cat5/Cat6 UTP cable, such as Tripp Lite's N202-series cable

        Convenient Plug-and-Play Installation
      • Plug-and-play functionality; no software or drivers required
      • Built-in 1 ft. USB A/B cable connects source and transmitter
      • User-supplied Cat5/Cat6 cable connects transmitter and receiver
      • Receiver unit has an external power supply

        Widely Compatible
      • Compatible with all major operating systems (Windows and Mac)
      • Backward compatible with USB 1.1 devices (at USB 1.1 speeds)

    • Specifications:

      • System Requirements
      • USB-equipped Windows, Mac or Chromebook computer
      • Cat5/Cat6 cable
      • Available AC outlet in receiver location
      • Cable type: USB; UTP (Cat5, Cat5e, Cat6, Cat6a)
      • Color: Black
      • Connector A USB A (MALE)
      • Connector B RJ45 (FEMALE)
      • Connector C USB B (FEMALE)
      • Connector D RJ45 (FEMALE)
      • Ports 1

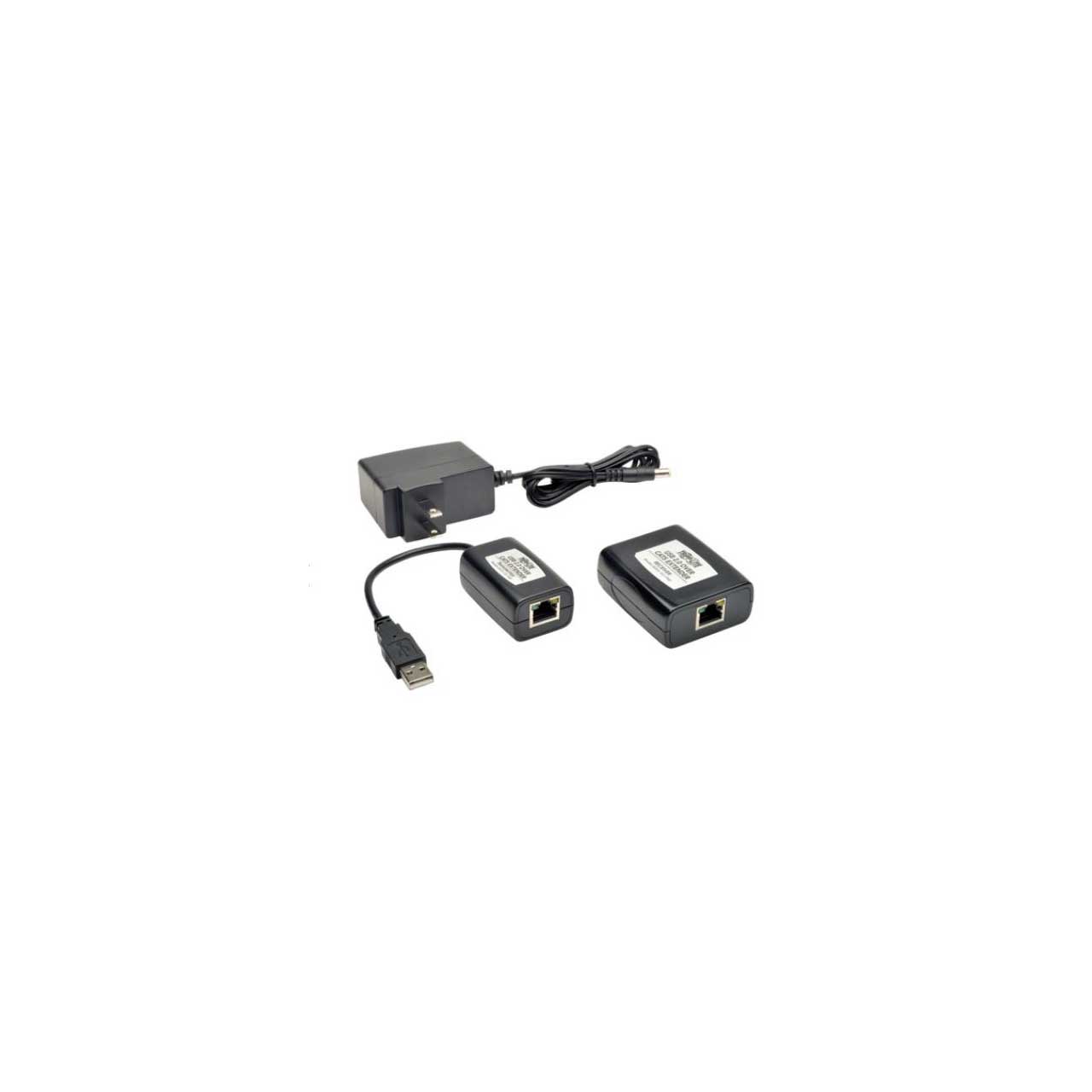

    • Item Includes:

      • B203-101-PNP local transmitter
      • with built-in USB cable
      • B203-101-PNP 1-port remote receiver
      • External power supply for receiver (Input: 100-240V, 50/60 Hz, 0.5A; Output: 5V, 2A)
      • Owner's Manual

    • GTIN:

      0037332185211
