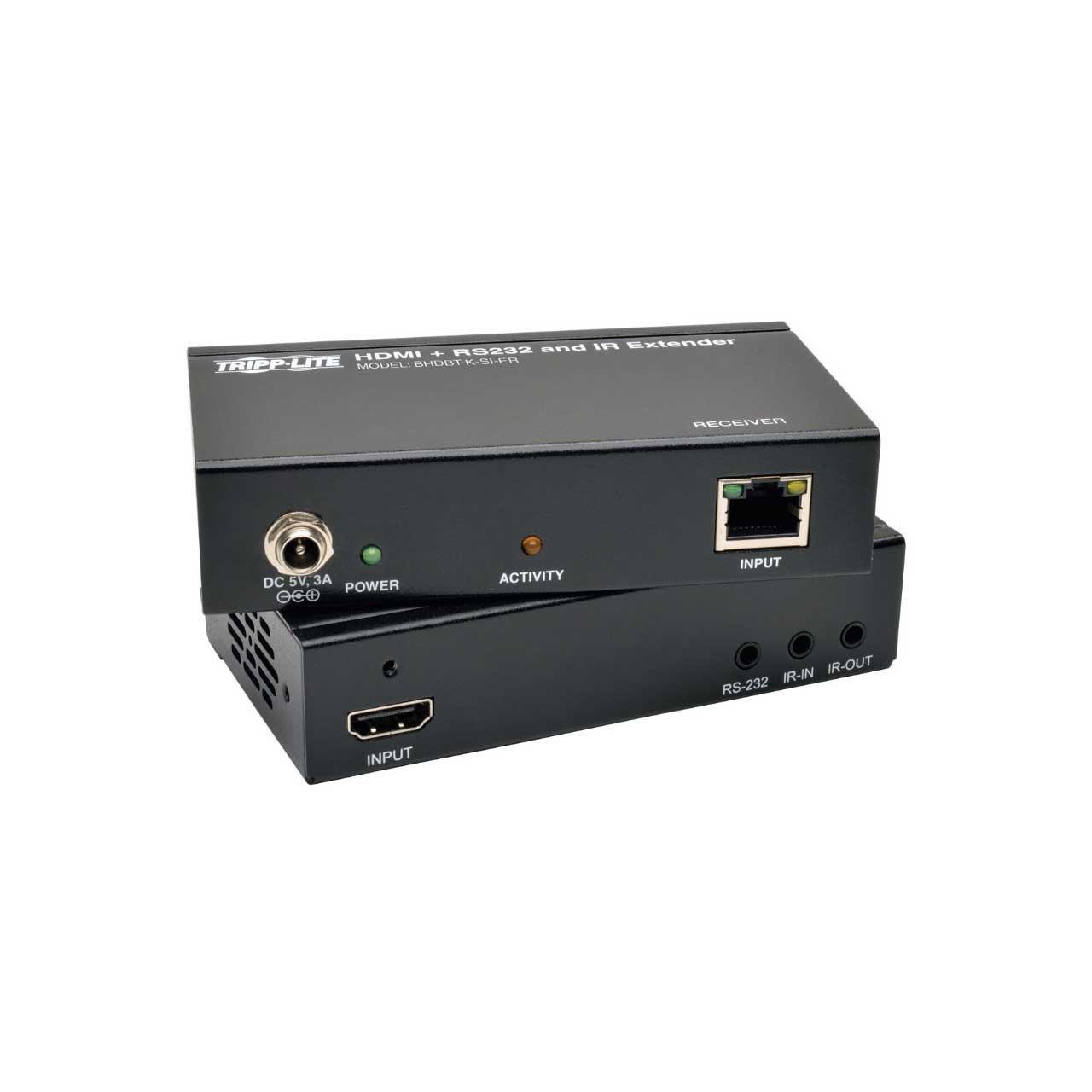

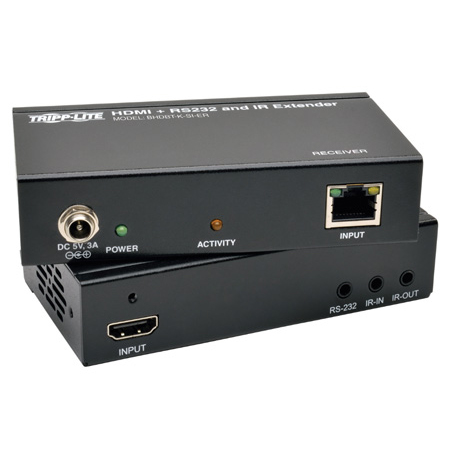

Tripp Lite BHDBT-K-SI-ER HDBaseT HDMI Over Cat5e/6/6a Extender Kit with Serial and IR Control 1080p Up to 500 Feet

ITEM #: TRL-BHDBT-K-SIER MFG #: BHDBT-K-SI-ER

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$566.40

Our Price:

$377.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    BHDBT-K-SI-ER - Overview

    The BHDBT-K-SI-ER HDBaseT Extender Kit allows you to transmit HDMI audio and video, RS-232 serial and IR Remote Control signals up to 500 feet (150 m) over a single Cat5e/6/6a cable, including a 1920 x 1080 (1080p) signal @ 60 Hz. Add up to five Tripp Lite BHDBT-TR-SI-ER transceivers (sold separately) between the transmitter and receiver units to further expand the range up to 3,000 feet (900 m) with a monitor connected via HDMI port to each transceiver. You can also control RS-232 serial devices, such as touchscreen displays or scanners, at baud rates up to 115 Kbps. The BHDBT-K-SI-ER’s 2-way IR Remote Control feature (@ 39 KHz) lets you control your Blu-ray player using its remote when at the remote monitor or control your remote monitor using its remote when at the Blu-ray player.

    Locking HDMI ports (ideal for use with Tripp Lite’s High-Speed HDMI cables with locking connectors, such as P569-006-LOCK) on both the transmitter and receiver prevent cables from coming loose or undone, ensuring an intact signal. The BHDBT-K-SI-ER supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video, EDID and HDCP. Included mounting hardware lets you attach each unit to a wall, rack or pole. There’s no software to download or install, and you can have the BHDBT-K-SI-ER Extender Kit set up and ready to go quickly. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

    • Features:

      • Supports the Latest Video and Audio Applications
      • Extends a High Definition 1920 x 1080 (1080p) @ 60 Hz signal up to 500 feet (150 m)
      • Accepts up to five BHDBT-TR-SI-ER transceivers and six total monitors to further expand the range up to 3,000 feet (900 m)
      • Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio
      • Supports 36-bit Deep Color (12 bits per channel), CEC pass-through, 3D video, EDID and HDCP Allows You to Control Other Display Devices
      • 2-way 39 KHz IR Remote Control functionality lets you control your Blu-ray player with its remote while standing at the remote monitor (and vice versa)
      • RS-232 serial port supports 115 Kbps full-duplex baud rates for scanners and touchscreen monitors Easy to Set Up and Use
      • Plug-and-play engineering means no software or drivers to download and install
      • Ready to use in minutes
      • Included mounting hardware lets you install each unit on a wall, rack or pole

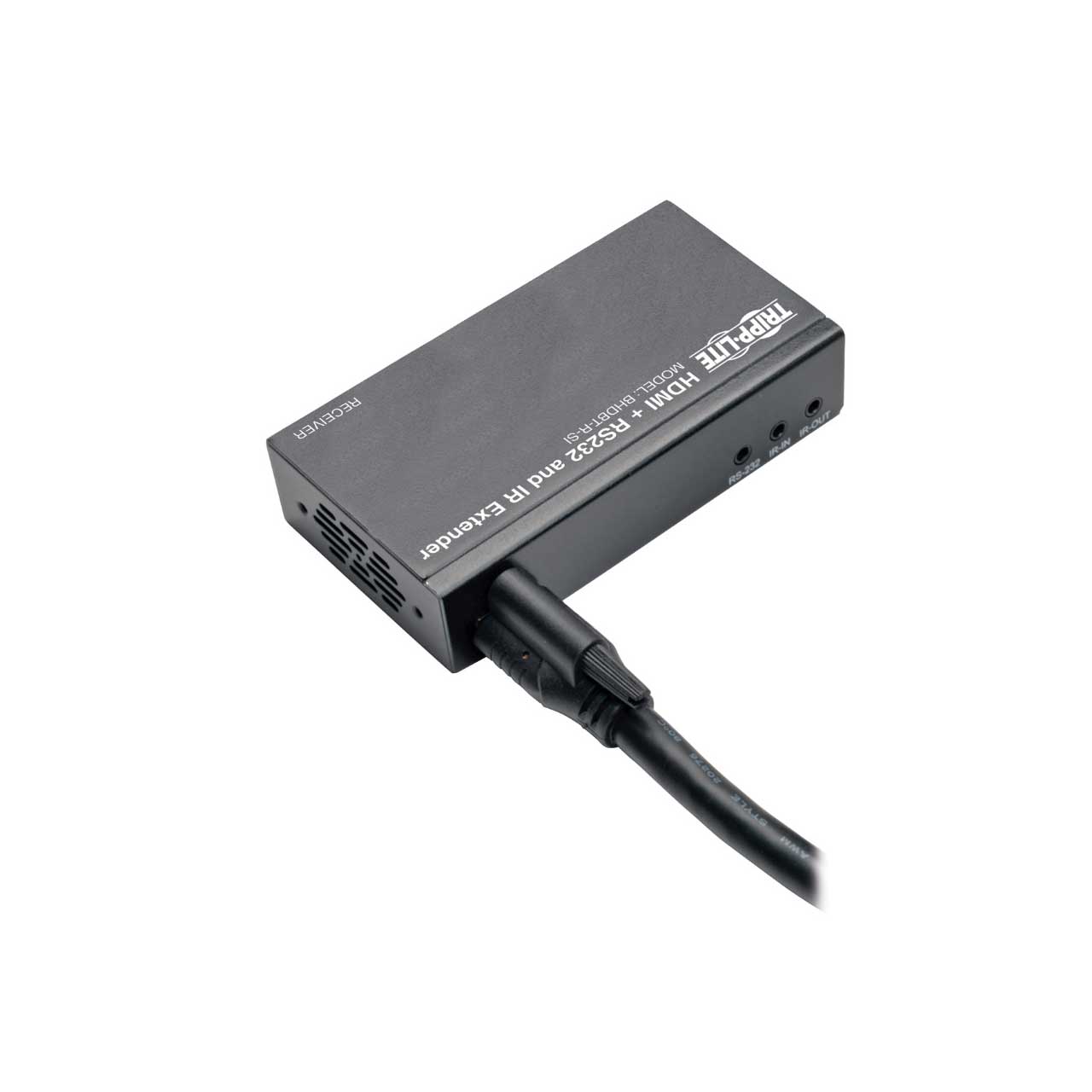

      • Locking HDMI ports on both the transmitter and receiver prevent cables from coming loose or disconnected, ensuring an intact signal TAA-Compliant
      • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

    • Specifications:

      • AC Adapter: Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 3A
      • Included Mounting Accessories: Y
      • Color: Black
      • Unit Weight Details: 0.55lbs (Transmitter) 0.5lbs (Receiver
      • Transmitter Unit Height (in.): 1.1
      • Transmitter Unit Width (in.): 4.5
      • Transmitter Unit Depth (in.): 2.5
      • Receiver Unit Height (in.): 1.1
      • Receiver Unit Width (in.): 4.5
      • Receiver Unit Depth (in.): 1.1
      • Operating Temperature Range: 0 to 40 C (32 to 104 F)
      • Storage Temperature Range: -20 to 60 C (-4 to 140 F)
      • Relative Humidity: 20 to 90%
      • Max 1024 x 768 Range (ft): 500
      • Max 480P Range (ft): 500
      • Max 1440 x 900 Range (ft): 500
      • Max 1080i Range (ft): 500
      • Max 1080P Range (ft): 500
      • Max 480i Range (ft): 500
      • Max 640 x 480 Range (ft): 500
      • Max 800 x 600 Range (ft): 500
      • Max 1600 x 1200 Range (ft): 500
      • Max 720P Range (ft): 500
      • Ports: 1

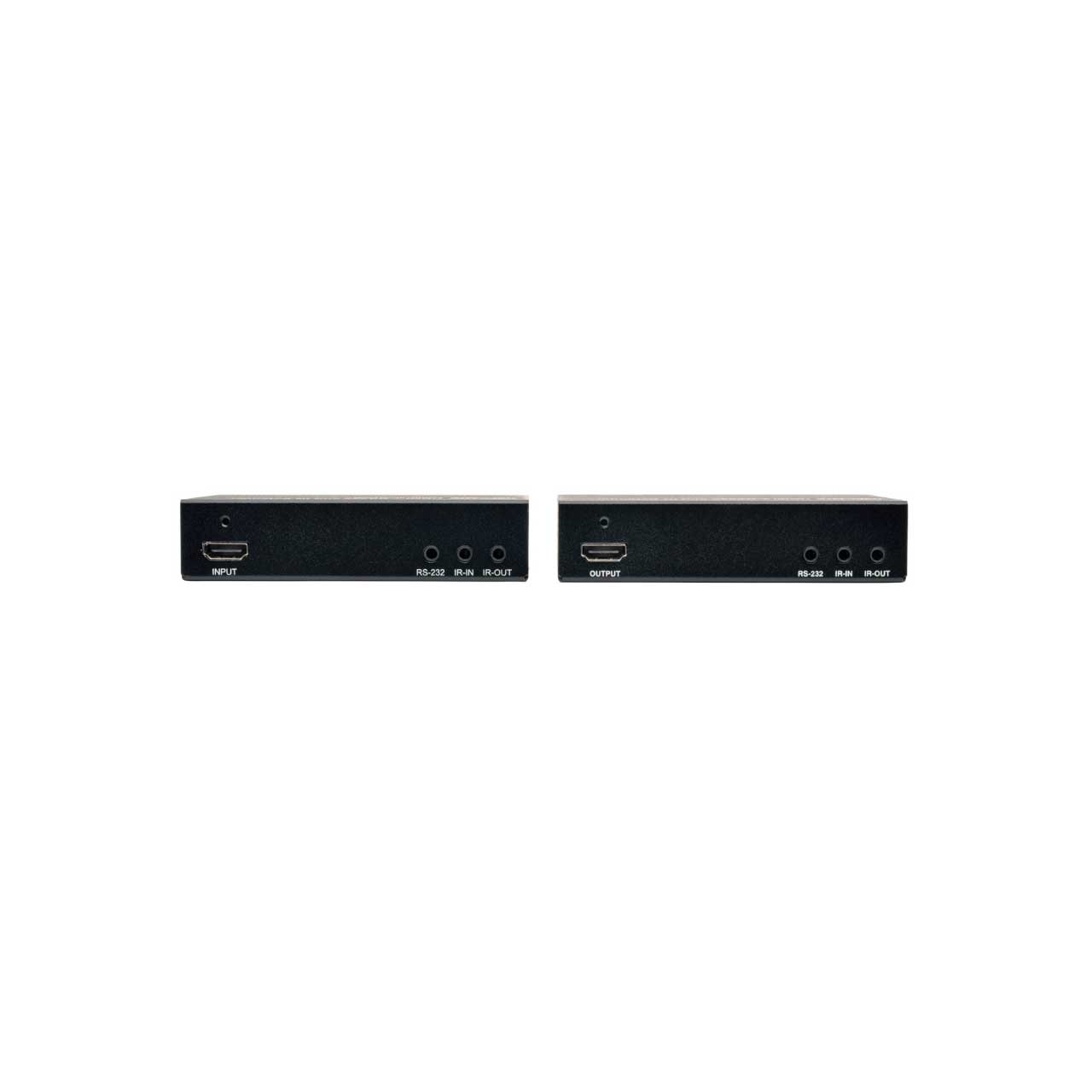

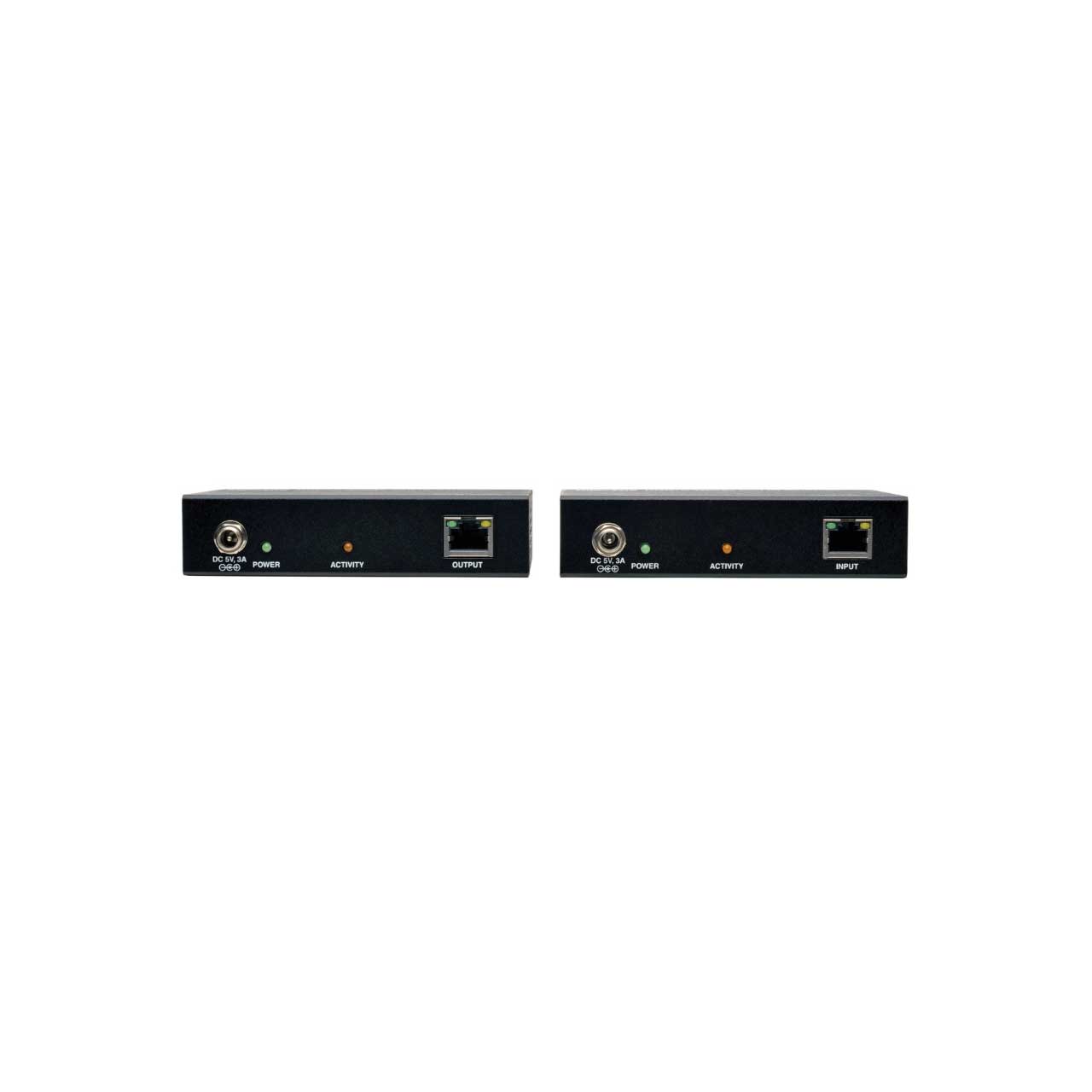

      • Side A - Connector 1: HDMI (FEMALE)
      • Side A - Connector 2: RJ45 (FEMALE)
      • Side B - Connector 1: HDMI (FEMALE)
      • Side B - Connector 2: RJ45 (FEMALE)
      • Side B - Connector 3: DB9 (MALE)
      • Approvals: CE, FCC, RoHS, REACH
      • Product Warranty Period (Worldwide): 1-year limited warranty

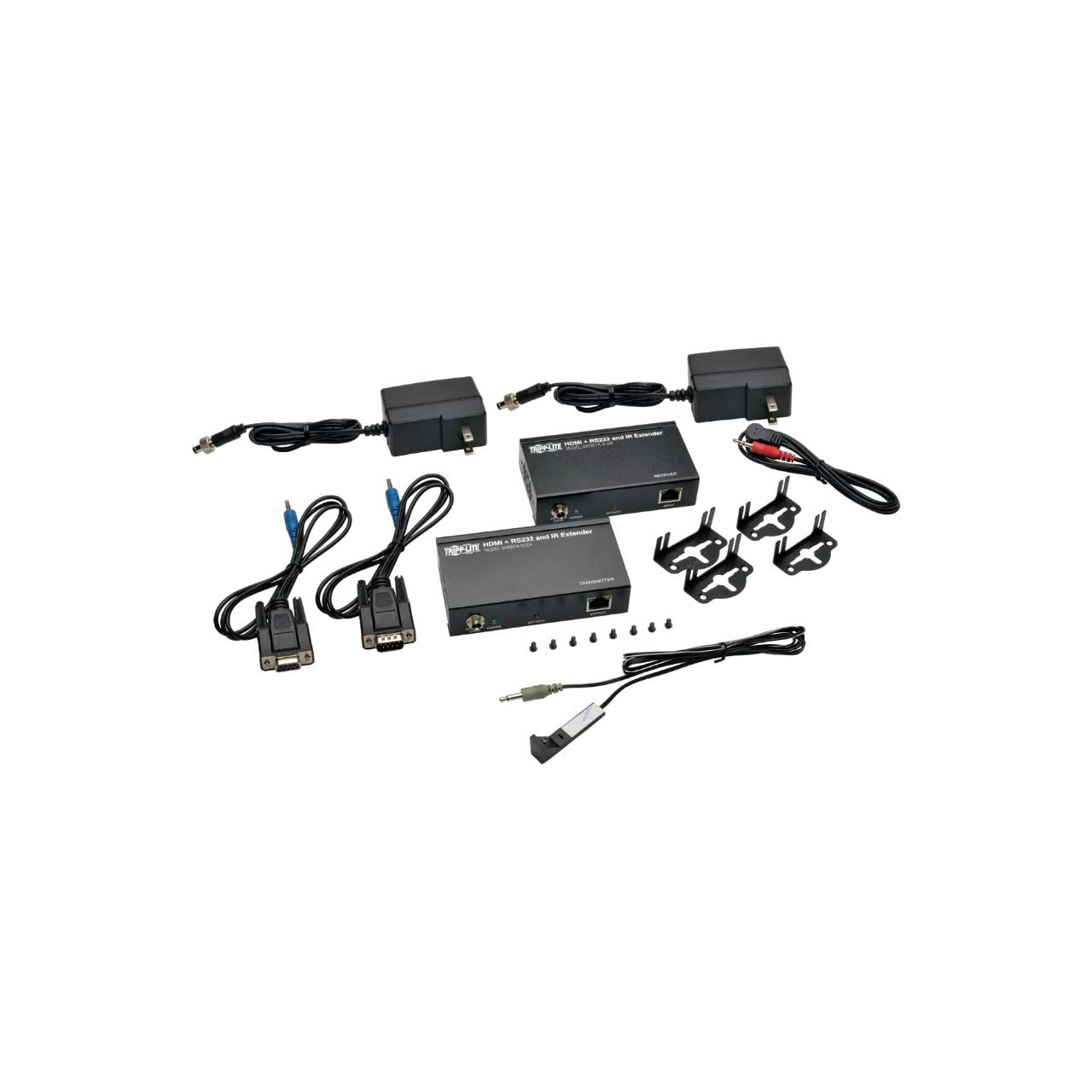

    • Item Includes:

      • Transmitter unit
      • Receiver unit
      • IR-IN cable
      • IR-OUT cable
      • 3.5 mm Male to DB9 Female adapter cable
      • 3.5 mm Male to DB9 Male adapter cable
      • (2) External Power Supplies with NEMA 1-15P Plug(Input: 100–240V, 50/60 Hz, 0.5A; Output: 5V, 3A)
      • Mounting hardware
      • Owner’s manual

    • Warranty:

      • 1 Year

    • GTIN:

      0037332187086
