Tripp Lite HT10DBS Home Theater Isobar Surge Protector 10 Outlet RJ11 RJ45 Coax

ITEM #: TRL-HT10DBS MFG #: HT10DBS

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$196.56

Our Price:

$143.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    HT10DBS - Overview

    Premium protection for your expensive home theater equipment, the Tripp Lite HT10DBS Isobar® 10-Outlet Home/Business Theater Surge Protector features a network-grade surge protection rating of 3840 joules to defend your sensitive electronics against even the strongest surges and spikes. In fact, Tripp Lite will repair or replace any connected equipment damaged by surges, including direct lightning strikes, up to $500,000 for life (valid in the U.S., Canada and Puerto Rico only).

    The HT10DBS features 10 NEMA 5-15R outlets, which are arranged in two exclusive isolated filter banks that prevent equipment connected to one bank from interfering with equipment connected to another. These internal barriers also prevent disruptive line noise from causing A/V distortion, computer lock-ups, data errors and similar problems. Four of the 10 outlets can accommodate transformers, and all of them are protected against EMI/RFI interference that can disrupt your electronics and inflict hardware damage or data loss.

    Because residential power outlets have three wires - hot line (H), neutral (N) and ground (G) - the HT10DBS protects all three, covering two protection modes: full normal mode (H-N) and common mode (N-G/H-G).

    In addition, the HT10DBS provides three-line 2.2 GHz gold coaxial protection, one-line phone/modem protection and one-line high-speed Ethernet protection for safeguarding your entire home theater system. Color-coded labels for outlets and device plugs identify connections at a glance. An integrated 12A circuit breaker protects all outlets and shuts down connected equipment in the event of an overload. An illuminated master provides one-touch control over connected components.

    • Features:

      • 10 NEMA 5-15R outlets in exclusive isolated filter banks
      • Network-grade 3840-joule surge protection rating
      • Coaxial/telephone/modem/Ethernet surge protection
      • 12A resettable circuit breaker prevents dangerous overloads
      • 8 ft. power cord with space-saving right-angle NEMA 5-15P plug
      • This product is covered by a Lifetime Limited Warranty (coverage details)
      • $500,000 Ultimate Lifetime Insurance
      • Lighted on/off switch provides one-touch control over connected equipment
      • Automatic shutoff permanently cuts power to outlets if protection circuit is incapacitated, preventing equipment damage and indicating replacement is required
      • Diagnostic LEDs confirm power, protection and line fault status at a glance
      • Conforms to current UL 1449 3rd Edition safety standards
      • Outlets arranged in 2 exclusive isolated filter banks to limit noise interaction among connected equipment
      • Block disruptive EMI/RFI line noise up to 60 dB that can cause equipment damage or data loss
      • Combine large toroidal chokes, ferrite rod-core inductors, HF/VHF capacitors and metal oxide varistors to block interference

    • Specifications:

      • Input
      • Nominal Input Voltage(s) Supported: 120V AC
      • Recommended Electrical Service: 120V (110-125V)
      • Input Cord Gauge Type: 14 gauge; SJT
      • Voltage Compatibility (VAC): 120
      • Maximum Surge Amps: 150000
      • Input Plug Type: NEMA 5-15P
      • Input Cord Length (ft.): 8
      • Right-Angle Plug: Yes
      • Integrated Cord Clip: No

        Output
      • Frequency Compatibility: 50 / 60 Hz
      • Output (Watts): 1440
      • Output Receptacles: (10) 5-15R
      • Circuit Breaker (amps): 12
      • Transformer Accommodation: (6) Yes
      • Right-Angle Outlets: No

        User Interface, Alerts & Controls
      • Diagnostic LED(s): Yes
      • Switches: Combination AC circuit breaker and illuminated 2 position on/off power switch
      • Diagnostic LED Details: Built-in LEDs confirm line power, protection and ground status

        Surge / Noise Suppression
      • AC Suppression Joule Rating: 3840
      • AC Suppression Response Time: NM = instantaneous CM = < 1 ns
      • Protection Modes: Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
      • Clamping Voltage (RMS): 140
      • UL1449 Let Through Rating: 330V - UL verified
      • EMI / RFI Filtering: Up to 60 dB
      • Isolated Filter Banks: 2
      • Automatic Shut-Off: Yes

        Dataline Surge Suppression
      • Telephone/DSL Protection: Yes
      • Telephone/DSL Protection Details: 1 line
      • Cable (Coax) Protection: Yes
      • Cable (Coax) Protection Details: 3 line
      • Network (Ethernet) Protection: Yes

        Physical
      • Anti-Microbial Protective Coating: No
      • Color: Black
      • Color (AC Line Cord): Black
      • Integrated Keyhole Mounting Slots: Yes
      • Keyhole Slot Mounting Measurement (Center to Center): Distance between horizontal tabs = 355.09mm; Distance between vertical tabs = 58.17mm
      • Material of Construction: Metal
      • Outlets Measurement (Center to Center): Distance between horizontal standard outlets = 39.45mm; Distance between horizontal transformer outlets = 53mm; Distance between vertical outlets = 38.76mm
      • Receptacle Color: Black
      • Shipping Dimensions (hwd / in.): 16.50 x 3.10 x 9.20
      • Shipping Weight (lbs.): 4.60
      • Unit Dimensions (hwd / in.): 14.25 x 2.25 x 3.5
      • Unit Weight (lbs.): 3.5

        Communications
      • Network Speed: 10/100 Mbps

        Special Features
      • Rotatable Outlets: No

        Standards & Compliance
      • Canada: Approved for Canada by ETL
      • Approvals: Exceeds IEEE 587 category A&B specifications
      • UL1449 3rd Edition (AC Suppression): Tested to UL1449 3rd Edition requirements by ETL
      • UL497A (Communications): UL497A
      • FCC Part 68 (Communications): FCC Part 68

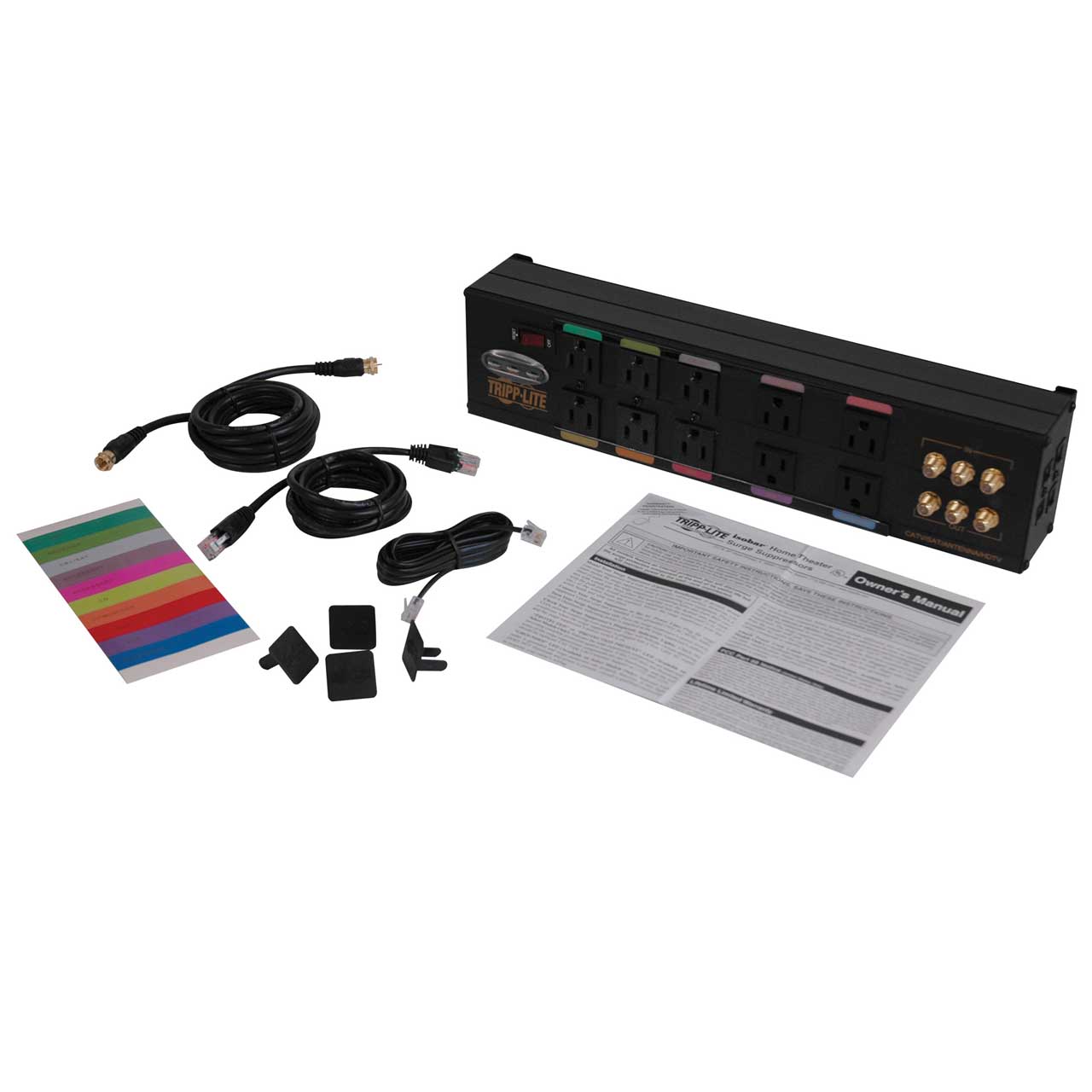

    • Item Includes:

      • HT10DBS Isobar 10-Outlet Home/Business Theater Surge Protector, Metal Housing
      • RJ11 telephone cable, 6 ft.
      • RG59 coaxial cable, 6 ft.
      • RJ45 Cat5 Ethernet cable, 6 ft.
      • (4) Outlet safety covers
      • Owner's manual

    • GTIN:

      0037332121745
