Tripp Lite IS-500 Isolation Transformer 500W Surge 120V 4 Outlet 6ft Cord TAA GSA
  • Tripp Lite IS-500 Isolation Transformer 500W Surge 120V 4 Outlet 6ft Cord TAA GSA
  • Tripp Lite IS-500 Isolation Transformer 500W Surge 120V 4 Outlet 6ft Cord TAA GSA

Questions? Ask a Markertek Expert:
800-522-2025 Email

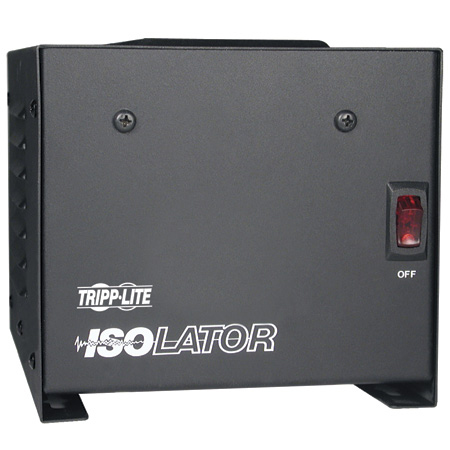

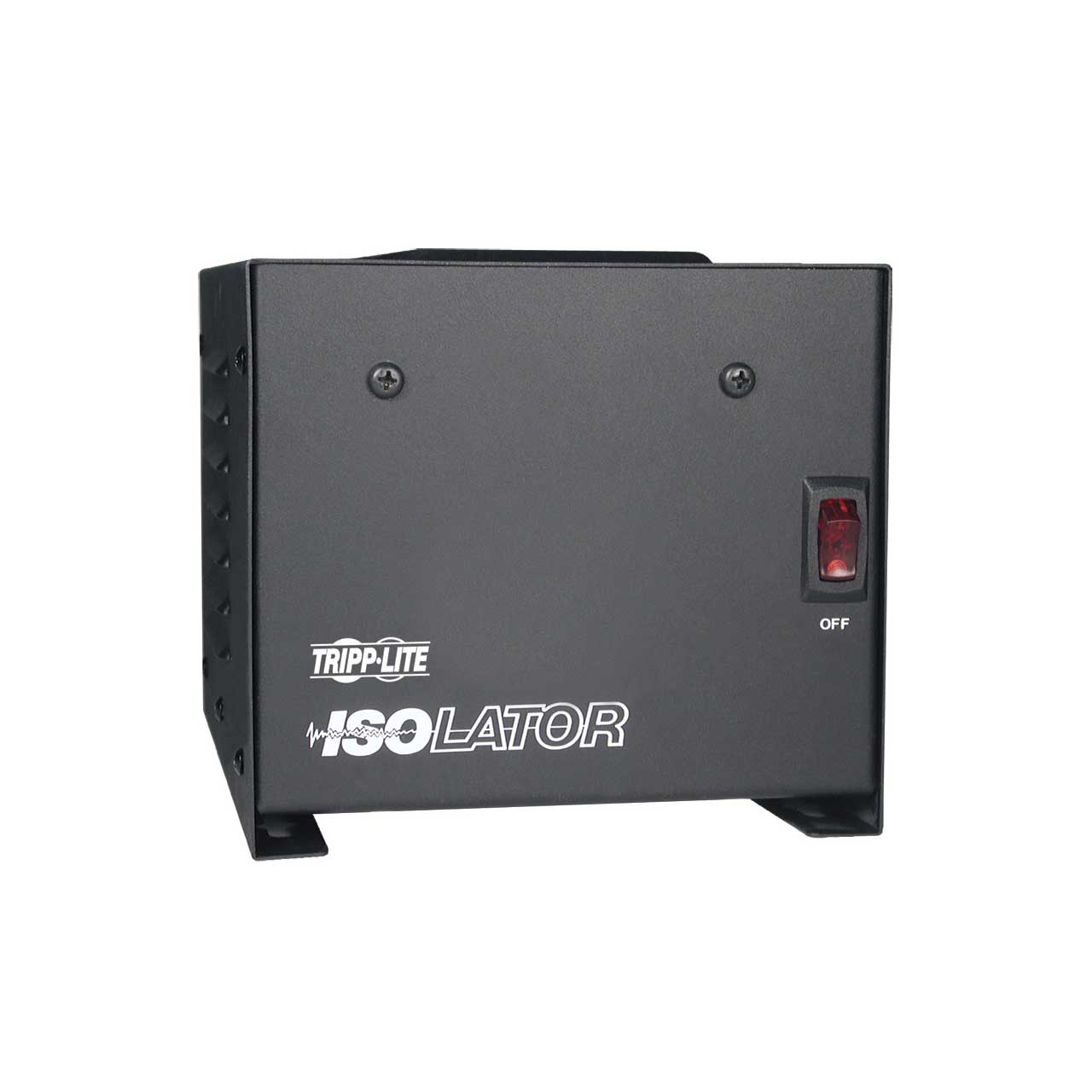

Tripp Lite IS-500 Isolation Transformer 500W Surge 120V 4 Outlet 6ft Cord TAA GSA

Manufacturer: Tripp Lite

Item #: TRL-IS-500   •   MFG #: IS-500



List Price:$282.60
Our Price:$202.22

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!





    Tripp Lite Isolator series isolation transformer-based power conditioners offer complete line isolation, continuous noise filtering and enhanced normal and common mode surge suppression. Internal low-impedance isolation transformer component with Faraday Shield offers 100% isolation from the input AC line. Secondary neutral to ground bonding eliminates common mode noise, providing an isolated ground reference for sensitive equipment and an inexpensive alternative to the installation of dedicated circuits and site electrical upgrades. Removes EMI/RFI noise, utility switching transients, background spikes generated by other on-site loads and utility or lightning related surge conditions. Additional surge suppression components placed at both the line input and transformer output combined with full line isolation offers continuous line filtering of a full range of power line noise in all modes. Continuous transformer filtering with no wearable parts uniquely reduces surges in the worst of power environments to harmless levels. Reduces 6000V IEEE C62.41 Cat A&B ring wave and combination wave test surges to only 0.5V common mode. Model IS500 offers 500 watts capacity with 4 widely spaced output receptacles, a 6-ft power cord, circuit breaker overload protection and lighted power switch. Rugged all-metal unit housing ships ready for upright tower or wallmount placement in industrial, medical, office or network environment.


    • Features

      • Tripp Lite Isolator series isolation transformer-based power conditioners offer complete line isolation, continuous noise filtering and enhanced common mode surge suppression
      • Supports combined loads up to 500 watts continuous/4.2A at 120V
      • Isolation transformer with Faraday Shield offers 100% isolation from the input AC line
      • Neutral to ground bonding at the secondary eliminates common mode noise and provides an isolated ground reference for sensitive equipment
      • Isolation transformer design serves as an inexpensive alternative to the installation of dedicated circuits and site electrical upgrades
      • Removes EMI/RFI noise, utility switching transients, background spikes and power problems generated by other on-site loads, utility grid-switching and lightning related surges
      • Line isolation with additional surge suppression components offer continuous line filtering of a full range of power line noise in all modes
      • Continuous transformer filtering with no wearable parts reduces surges in the worst of power environments to harmless levels

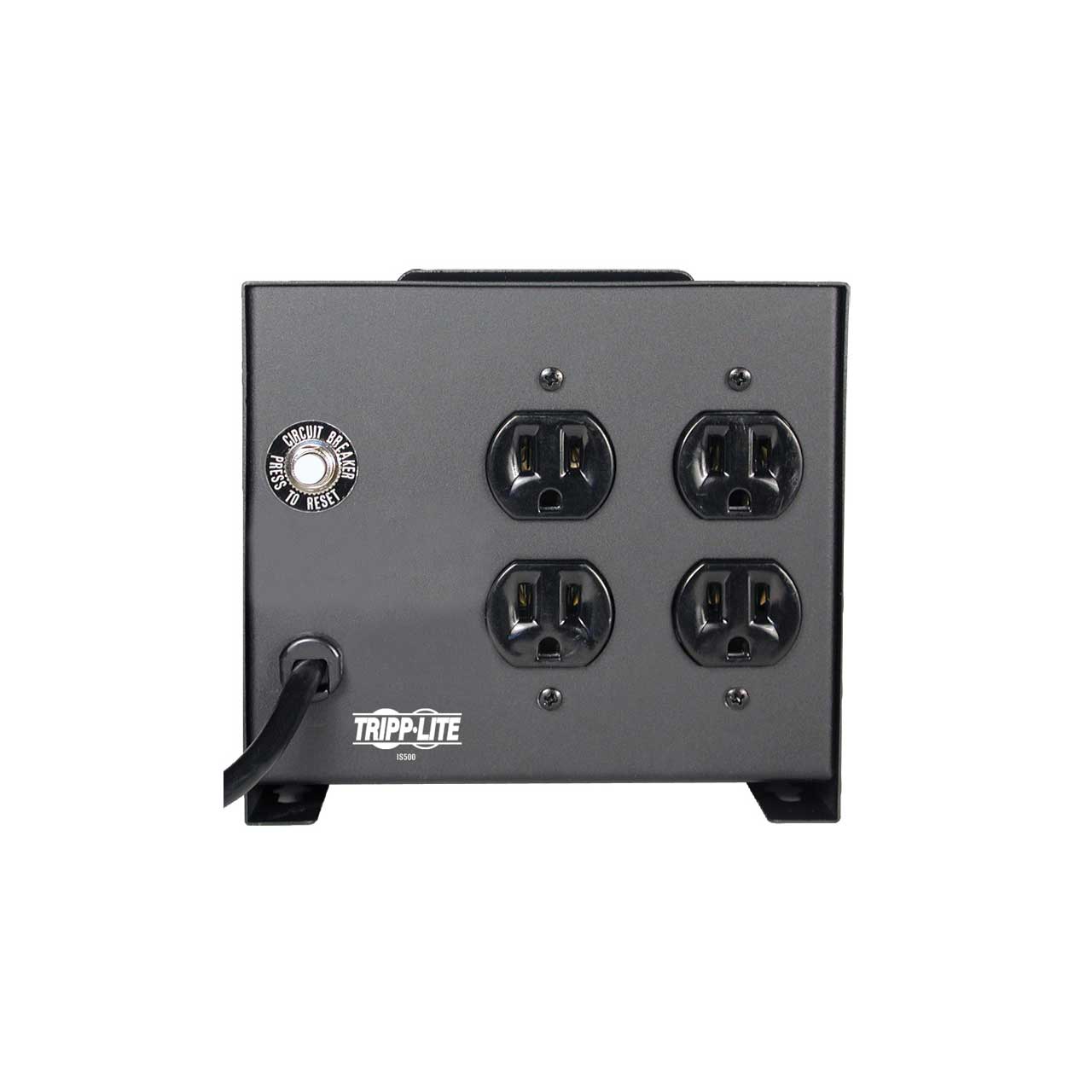

      • Includes 4 widely-spaced NEMA5-15R output receptacles, 6 ft power cord, circuit breaker overload protection and lighted power switch
      • Rugged all-metal housing ships ready for upright tower or wallmount installation

    • Specifications

      • OVERVIEW
      • Efficiency
      • 96%
        Let-through Voltage (Combination Wave)
      • L-N: <130V L-G: <10V N-G: <0.5V IEEE C62.41 Cat. B
        Let-through Voltage (Ring Wave)
      • L-N: <10V L-G: <10V N-G: <0.5V IEEE C62.41 Cat. A
        Noise Suppression Rating
      • 33-65dB normal mode; > 80dB common mode
        Nominal Voltage / Frequency
      • 120V / 60Hz
        Over Current Protection
      • Yes, 4.5A circuit breaker
        Suppression Joule Rating
      • 680 Joules
        Surge Test Conditions
      • Per ANSI/IEEE C62.41 - (IEEE587) Cat. A & B test waveforms
        Total Harmonic Distortion
      • less than 1%
        VA / Watt Capacity
      • 500
        Transformer Type
      • Low impedence isolation transformer
        OUTPUT
      • Output Receptacles
      • (4) 5-15R
        Outlet Quantity / Type
      • 4 NEMA 5-15R
        Number of Outlets
      • 4
        Ouput Amp Capacity
      • 4.2
        INPUT
      • Input Cord Length (ft.)
      • 6
        Input Cord Length (m)
      • 1.83
        Input Plug Type
      • NEMA 5-15P
        PHYSICAL
      • Shipping Dimensions (hwd / in.)
      • 7.25 x 13.25 x 6
        Shipping Dimensions (hwd / cm)
      • 18.42 x 33.66 x 15.24
        Shipping Weight (lbs.)
      • 23.6
        Shipping Weight (kg)
      • 10.71
        Unit Dimensions (hwd / in.)
      • 5.5 x 6.25 x 8.5
        Unit Dimensions (hwd / cm)
      • 13.97 x 15.88 x 21.59
        Unit Weight (lbs.)
      • 22.6
        Unit Weight (kg)
      • 10.25
        Cooling Method
      • Convection
        Form Factors Supported
      • Tower
        WARRANTY
      • Product Warranty Period (Worldwide)
      • 2-year limited warranty

    • Item Includes

      • IS500 Isolation transformer system
      • Instruction manual with warranty information
