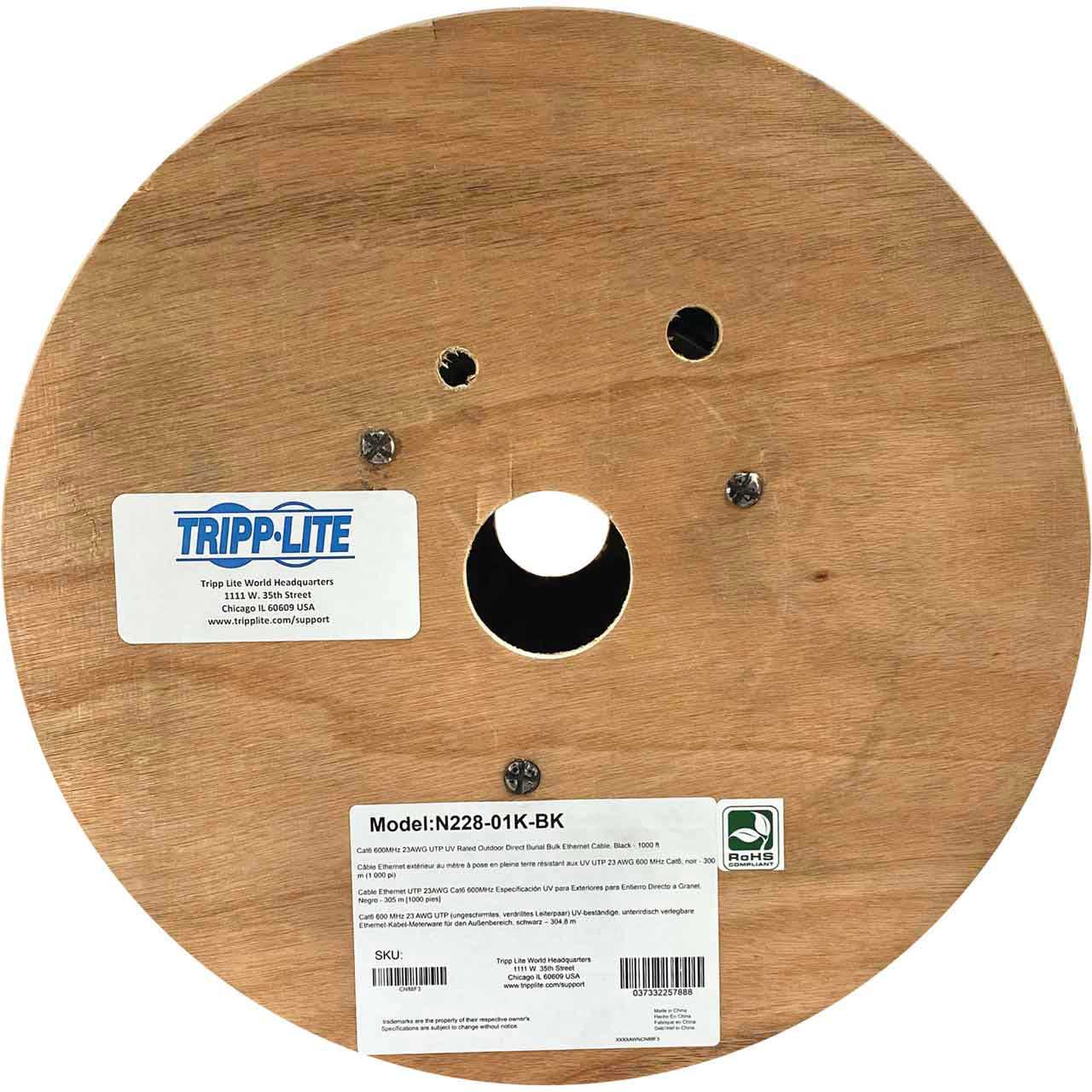

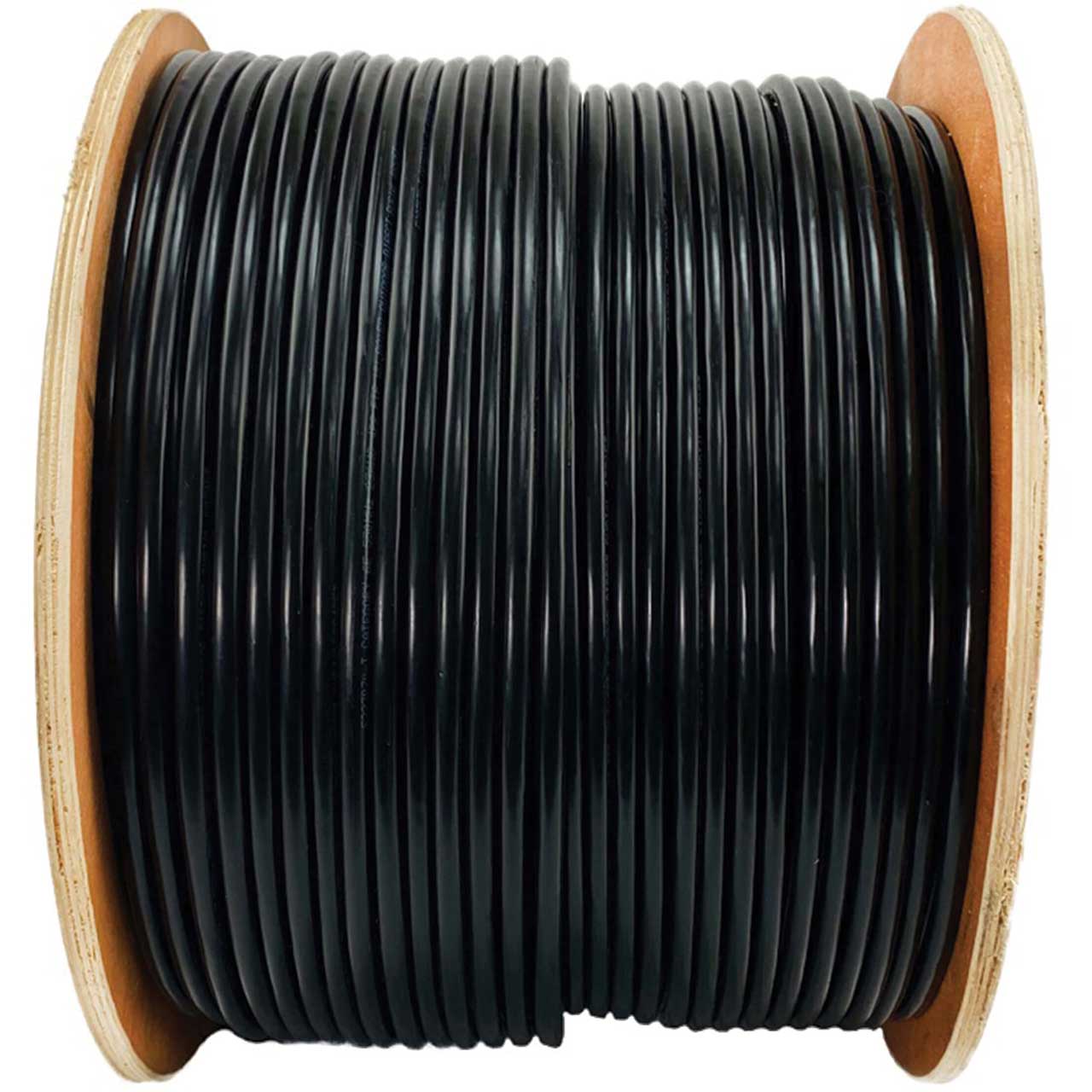

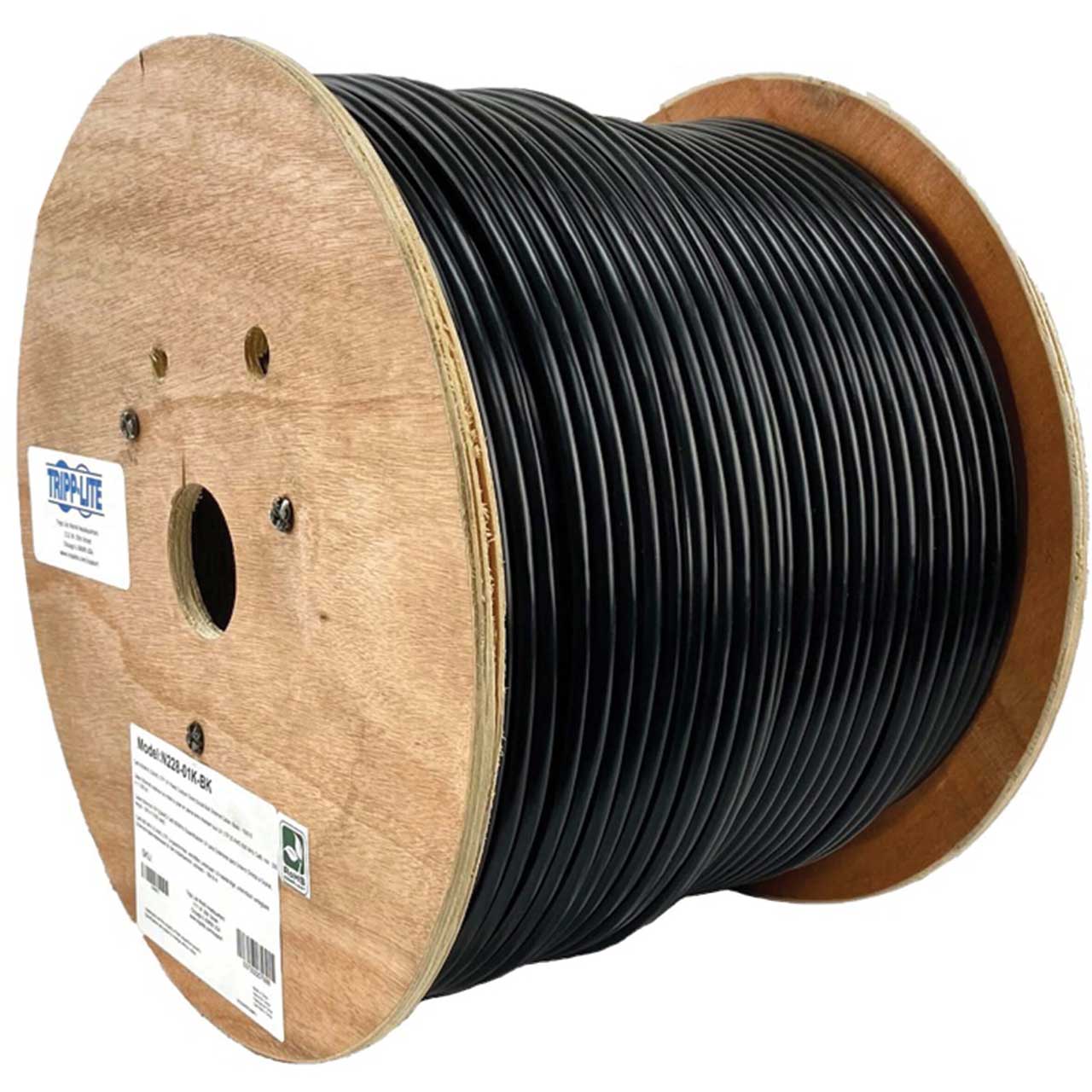

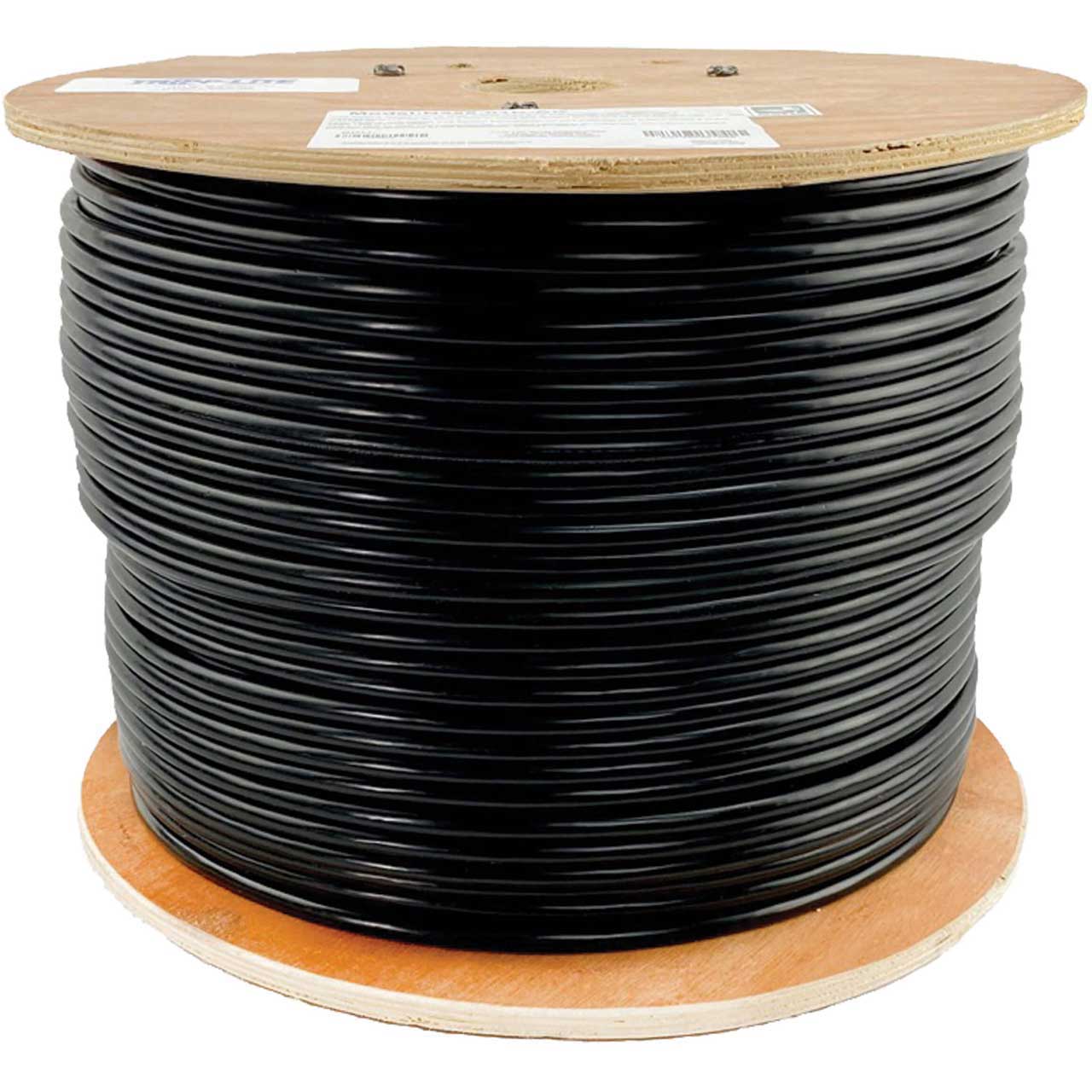

Tripp Lite N228-01K-BK Cat6/Cat6e Bulk Ethernet Cable 600MHz Outdoor-Rated - Black - 1000 Foot

ITEM #: TRL-N228-01K-BK MFG #: N228-01K-BK

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$1,100.00

Our Price:

$490.94

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    N228-01K-BK - Overview

    Premium High-Speed Cat6 Cable for Outdoor Gigabit Ethernet Applications
    This high-speed bulk cable is ideal for distributing data, voice, security and video communications across Gigabit Ethernet networks in outdoor applications, including mounted wireless antennas, surveillance cameras and digital signage. Designed for fast transmission and excellent signal quality, the N228-01K-BK ensures peak performance through your LAN.

    Perfectly Constructed for Superior Performance

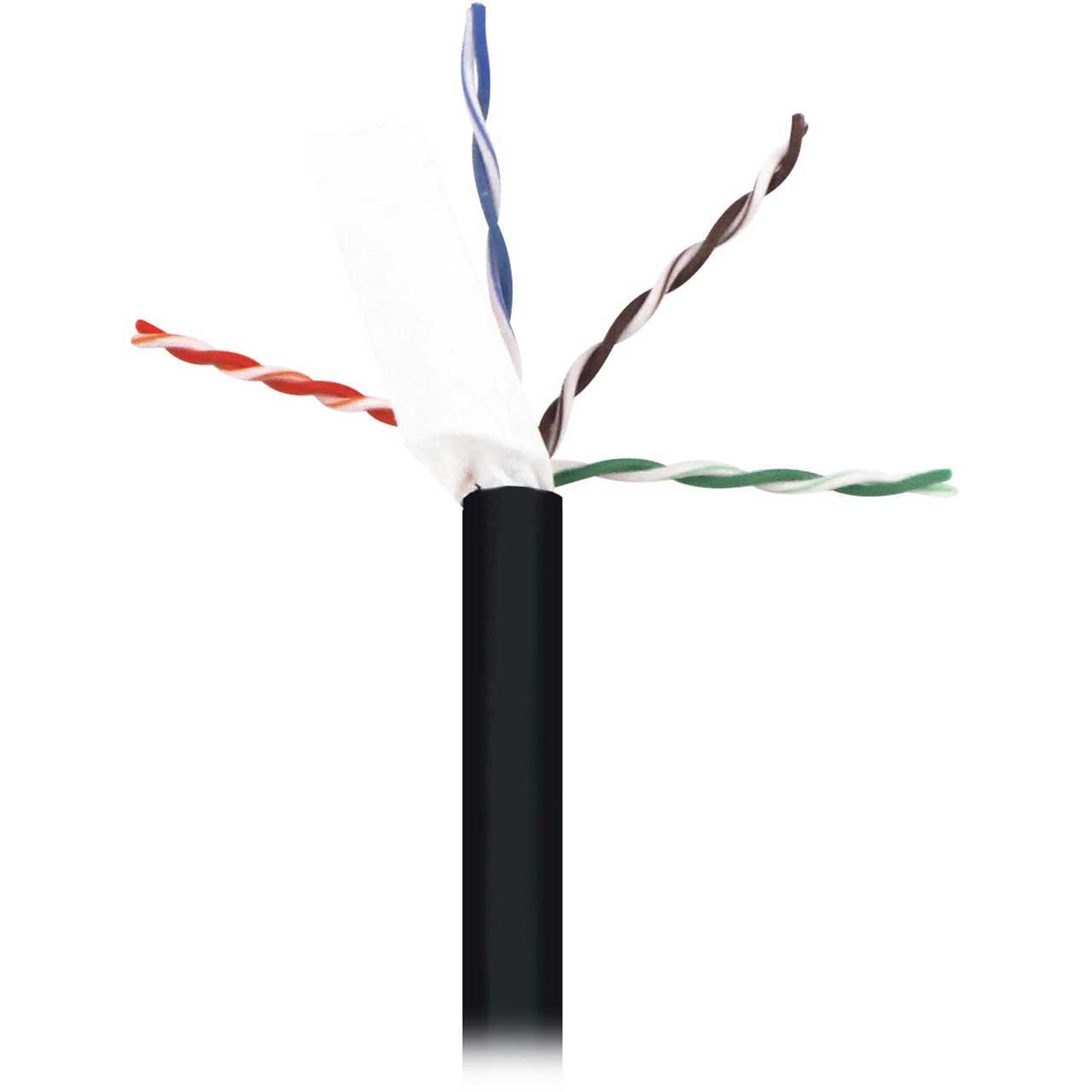

    Manufactured from 23 AWG copper wire, this 1000-foot roll of four-pair solid-core UTP cabling delivers speeds up to 600 MHz. The flexible UV-rated LDPE (low-density polyethylene) jacket resists drying and cracking, so it will stand up to exposure in sun, rain, wind and other weather conditions. It supports a temperature range of -40° to 167°F. Near-end crosstalk (NEXT) levels are held to a minimum, making the N228-01K-BK ideal for 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice, EIA/TIA and Token Ring Type 3 applications.

    • Features:

      • Recommended for outdoor Cat6/6e applications, including mounted wireless antennas
      • 23 AWG 4-pair solid copper cable rated for 600 MHz/1 Gbps Ethernet speeds
      • UV-rated LDPE jacket prevents drying and cracking in harsh weather environments
      • Rated for outdoor temperatures ranging from -40° to 167°F (-40° to 75°C)

    • Specifications:

      • Physical
      • Color: Black
      • Cable Shielding: UTP
      • Cable Jacket Material: LDPE
      • Cable Jacket Rating: : MX
      • Number of Conductors: 8 (4-Pair)
      • Wire Type: Solid
      • Wire Gauge (AWG): 23
      • Cable Length (ft.): 1000
      • Cable Length (in.): 12000
      • Shipping Dimensions (hwd / in.): 11.10 x 14.50 x 14.50
      • Shipping Weight (lbs.): 31.90

        Environmental
      • Operating Temperature Range: -40 TO 167 F(-40 to 75 C)
      • Storage Temperature Range: -40 TO 167 F(-40 to 75 C)

        Communications
      • Network Speed: 1Gbps

        Connections
      • Side A - Connector 1: BARE WIRE
      • Side B - Connector 1: BARE WIRE
      • Crossover Wiring: No
      • Snagless Connector: No

        Standards & Compliance
      • Certifications: Tested to UV, RoHS, REACH

    • Item Includes:

      • 1x N228-01K-BK Cat6/6e Ethernet Cable, Black, 1000 ft.

    • Warranty:

      • Lifetime Limited Warranty

    • GTIN:

      0037332257888
